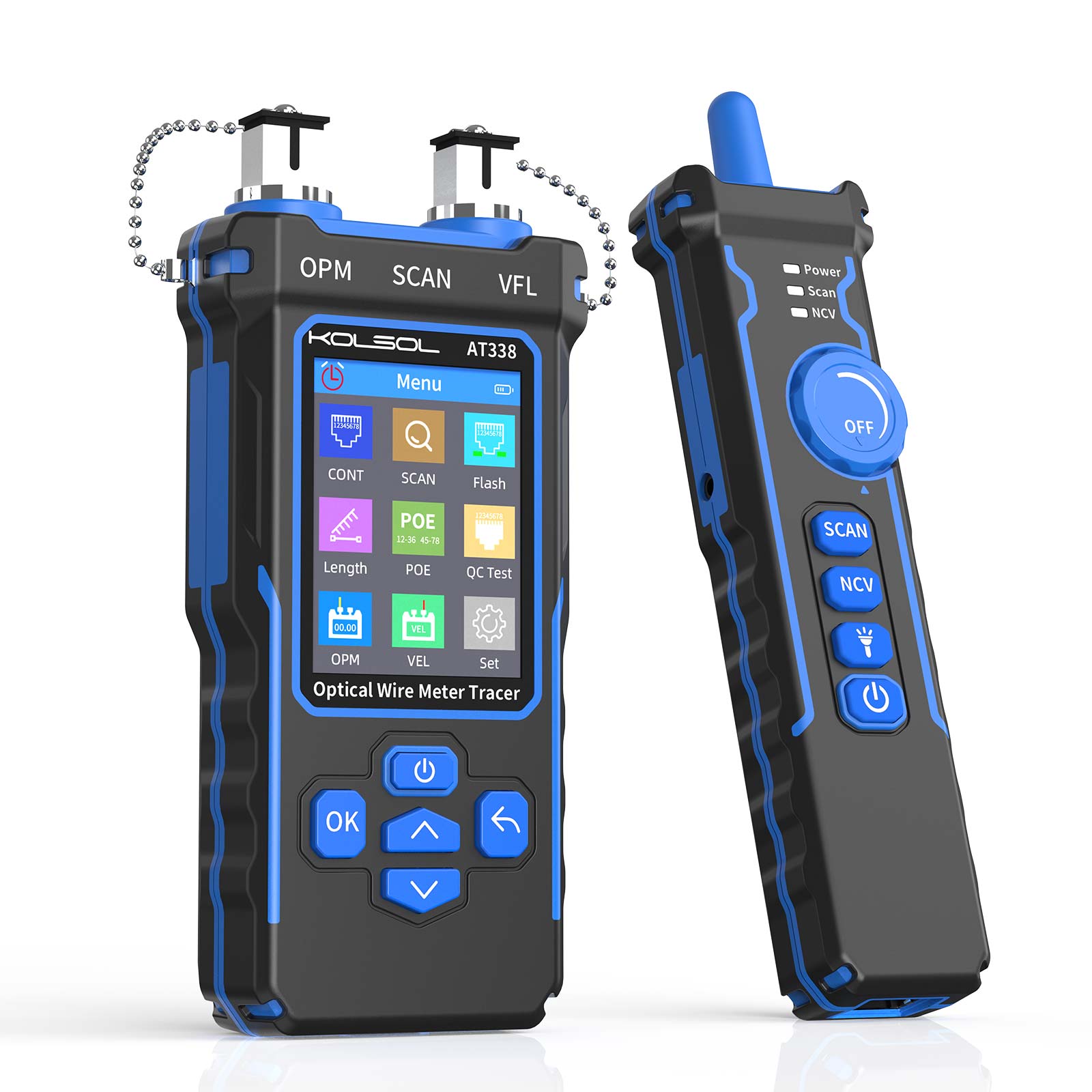

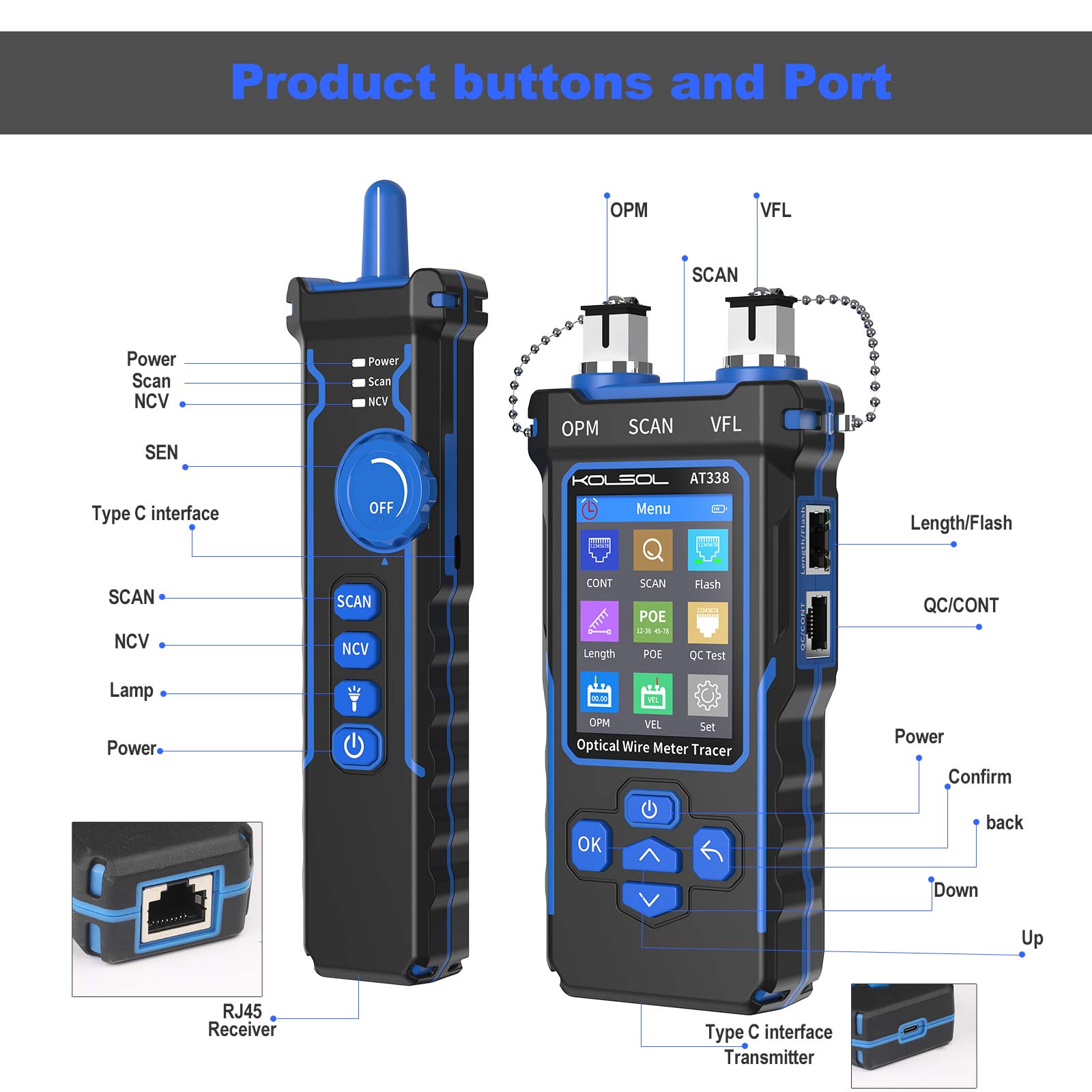

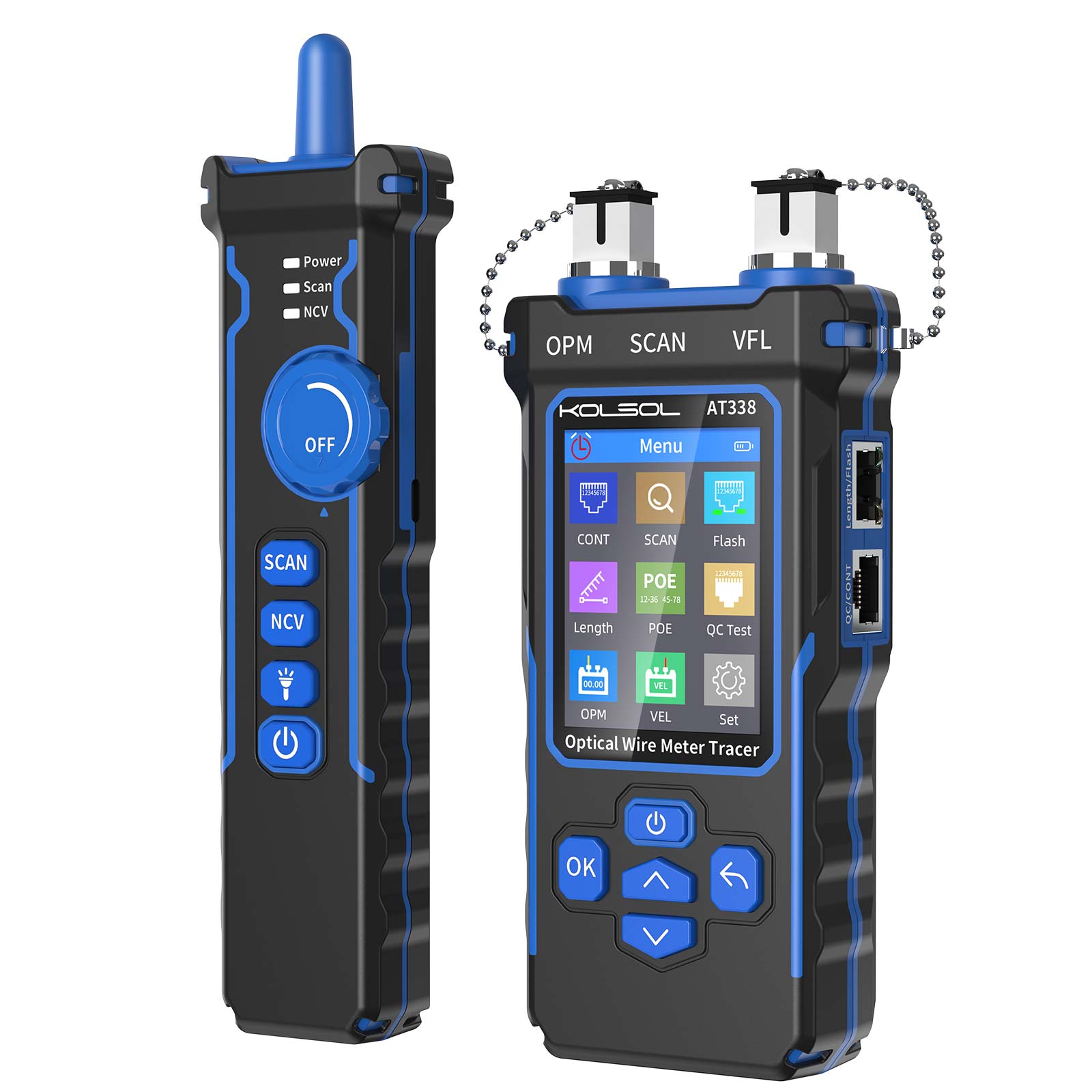

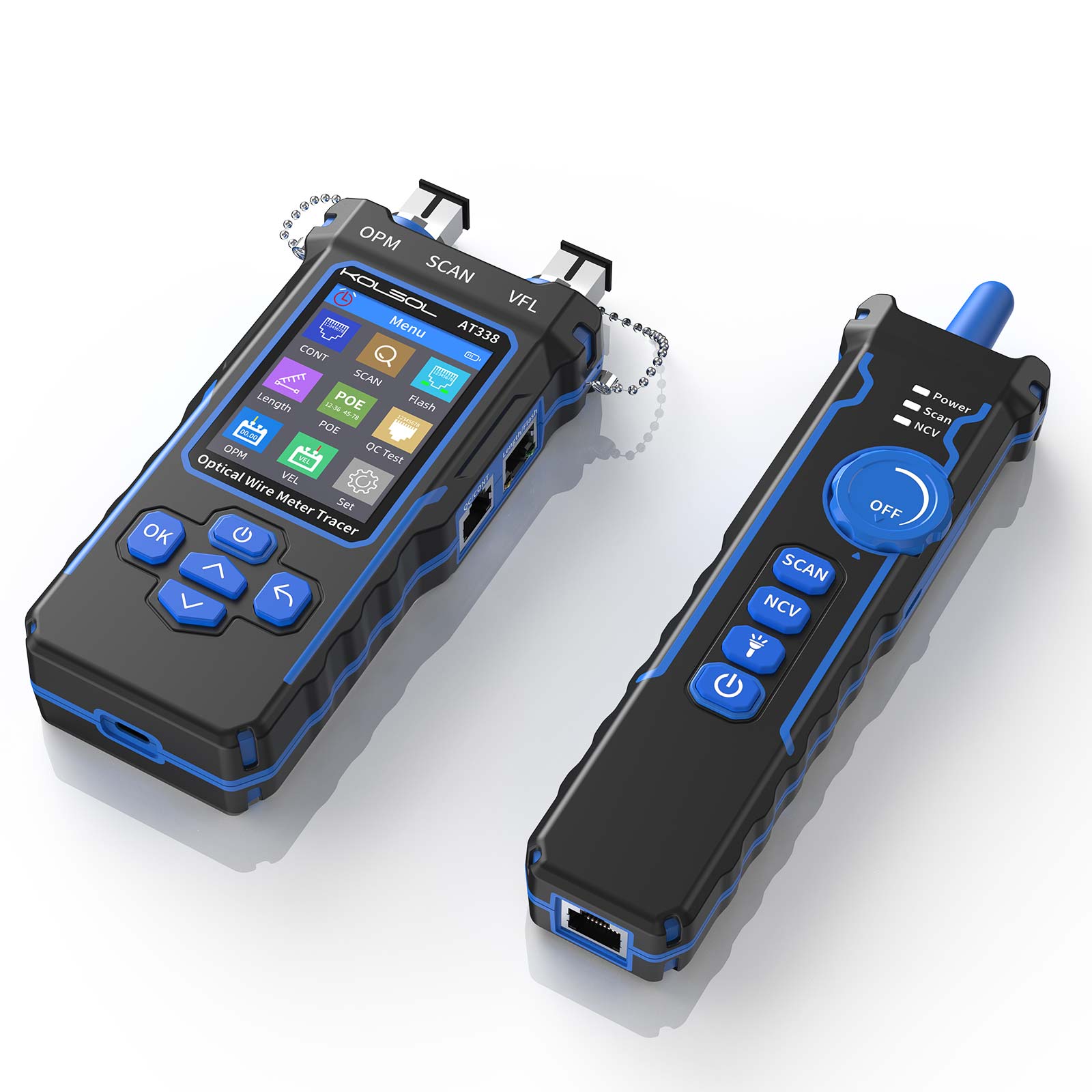

KOLSOL AT338 NF-8508 Network Cable Tester LAN Optical Wire Meter Power Meter Tester

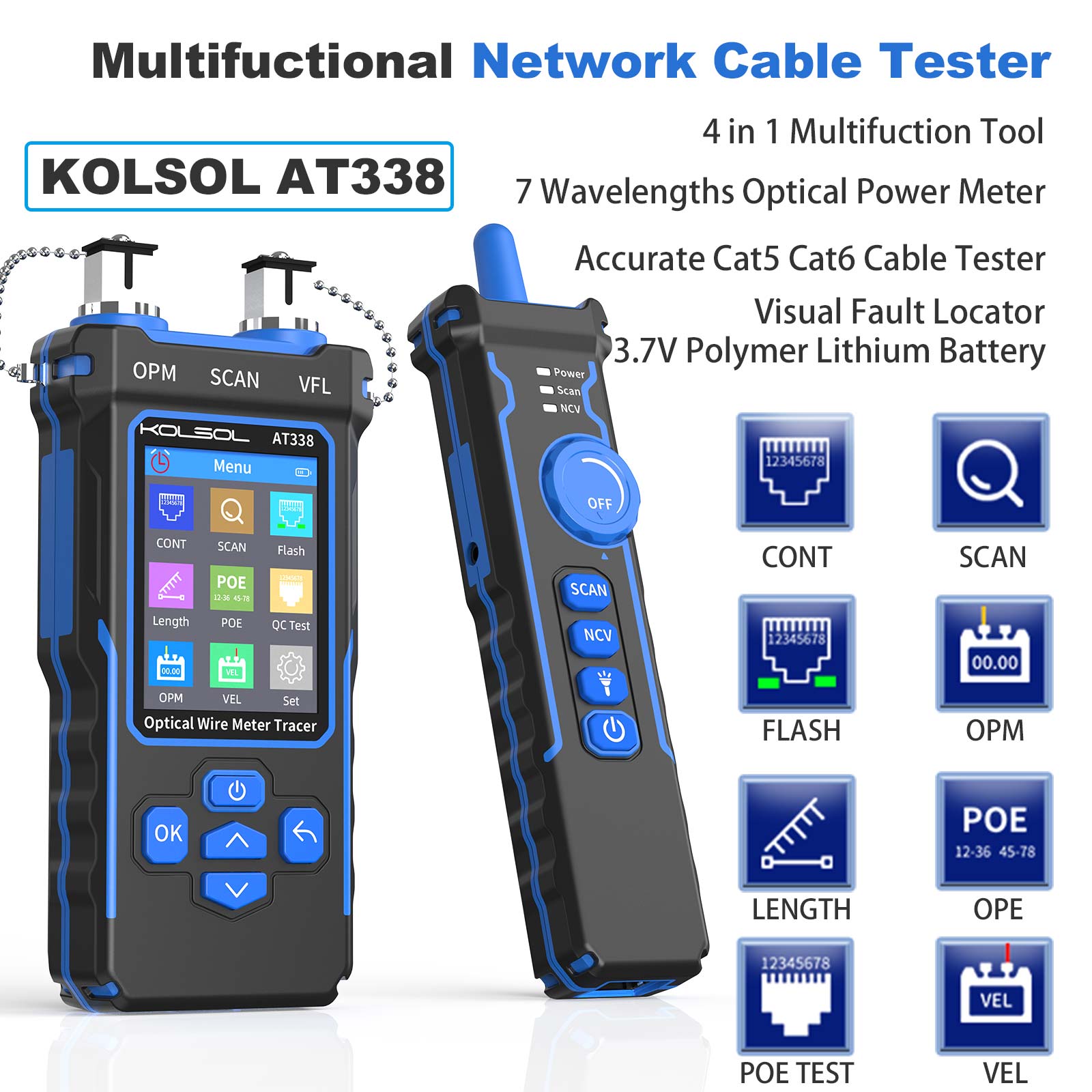

AT338 network tester is a multifuctional tool which can do POE test, fault location, non-contact voltage detecting, etc. It is a perfect tool for the work of network line engineering and telecommunication, computer, other metal conductor maintenance, etc.
Product Features:
Checks fiber faults by emitting red lasers and tests optical power and attenuation value of light.

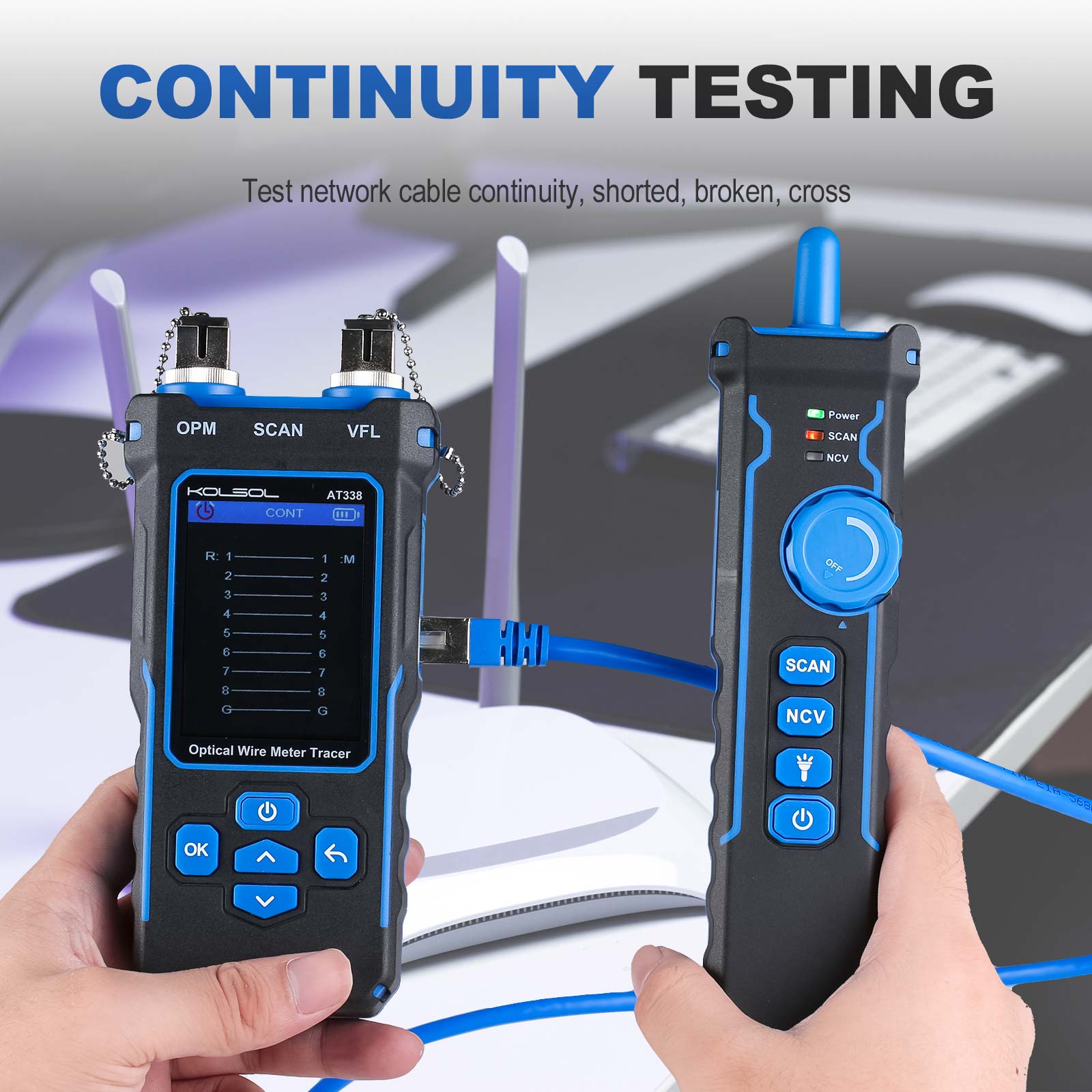

Tests the faults of short circuit, open circuit, and cross in a LAN network.
Traces a cable with strong anti-interference ability.
Judges a cable by flashing the switch/router port where the target cable is being plugged in.
Tests CAT6 / CAT6 cables of lengths of 10m to 200m.
Checks the existence and standard of PSE(power sourcing equipment), either IEEE 802.3af or 802.3at, in your network.
Tests the quality of the crimping of crystal heads.
Product Functions:
1. Multi-Function Network Cable Tester

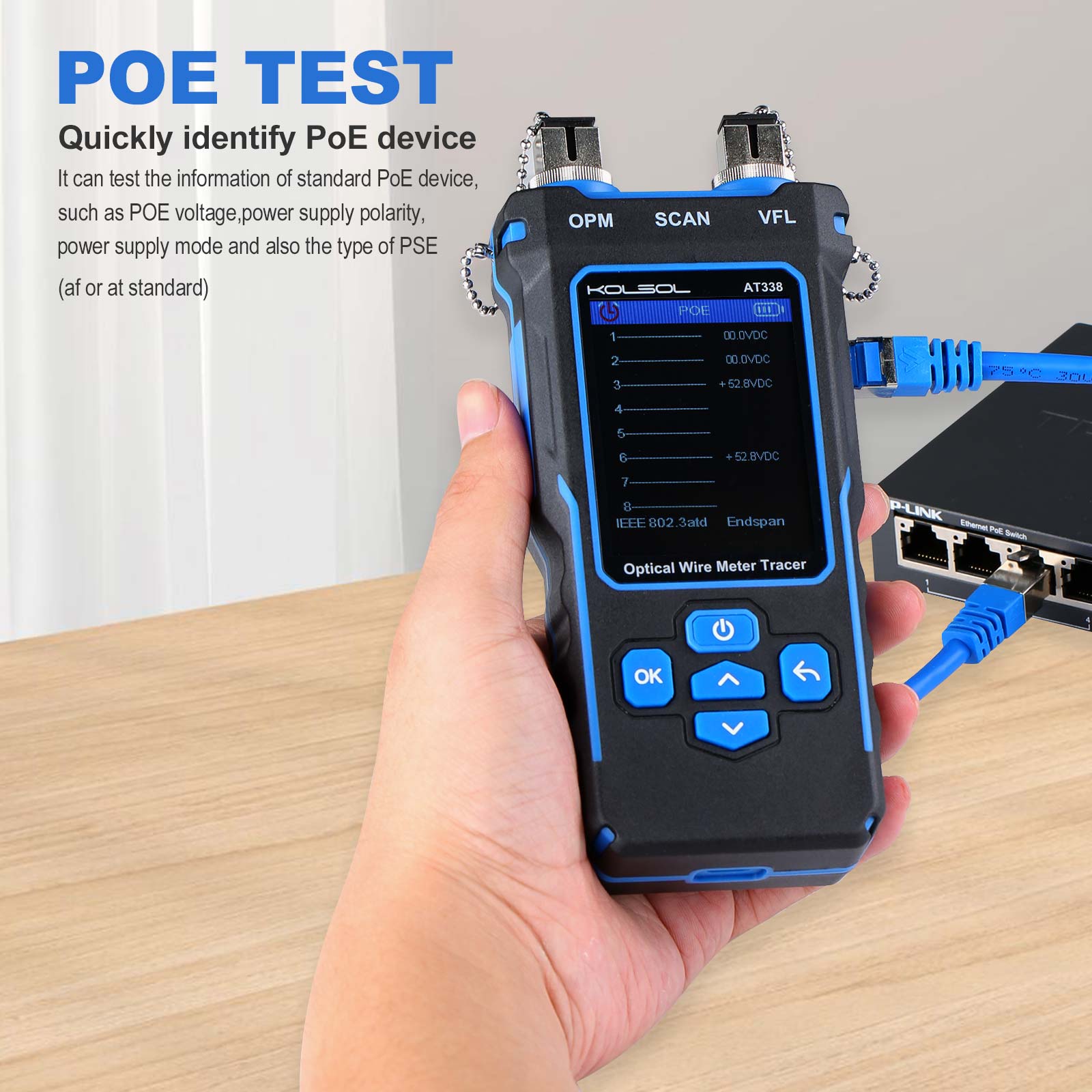

1) PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
2) Measure cable length accurately, the range is 200m.
3) Two scan modes selectable: AC filter & Non AC filter
4) Test physical status for STP, UTP lan cable.

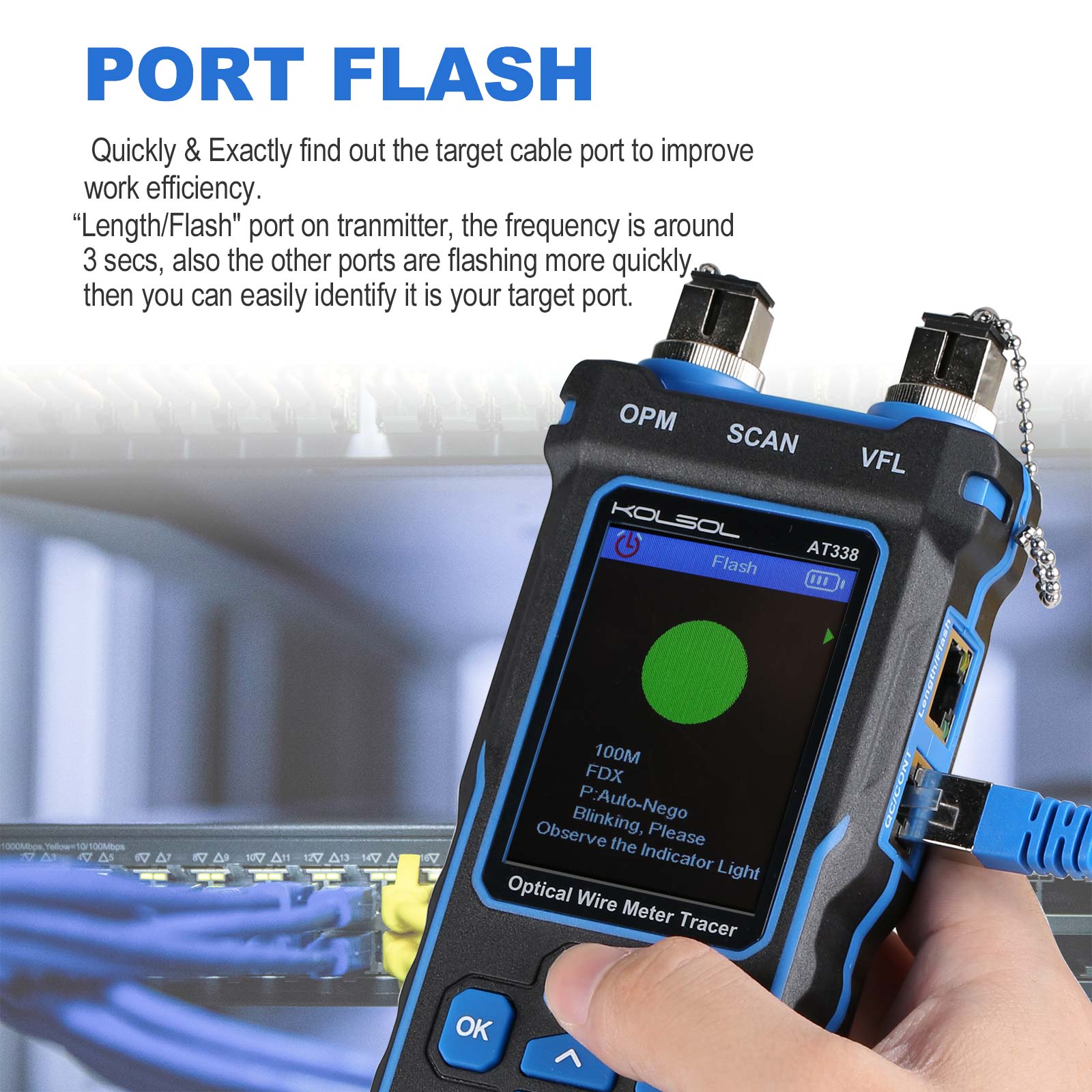

5) Hub blink for locating network port by the flashing port light on Hub / Switch.

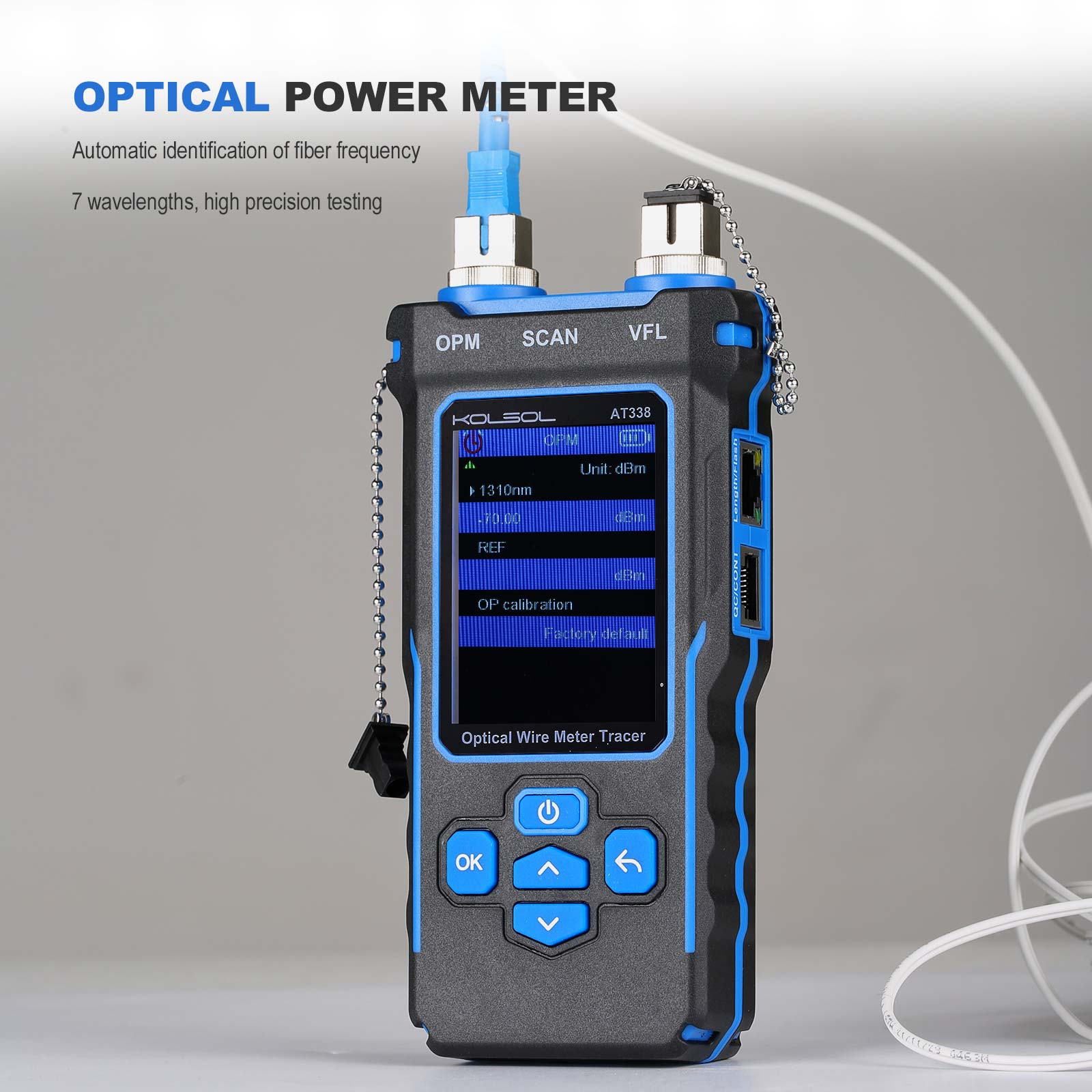

2.Optical Power Meter & Visual Fault Locator
1) Measurement of the power of optical sender (dBm and W).
2) Can measure 7 standard wavelengths,850/1300/1310/1490/1550/1625/1650,
3) Insertion loss test of optical devices
4) Locating the fault of fiber breakage, winding and so on.
3.Other Functions:
1) Quickly to check the RJ45 plug (crystal head).
2) Detect AC voltage presence (50V-1000V).

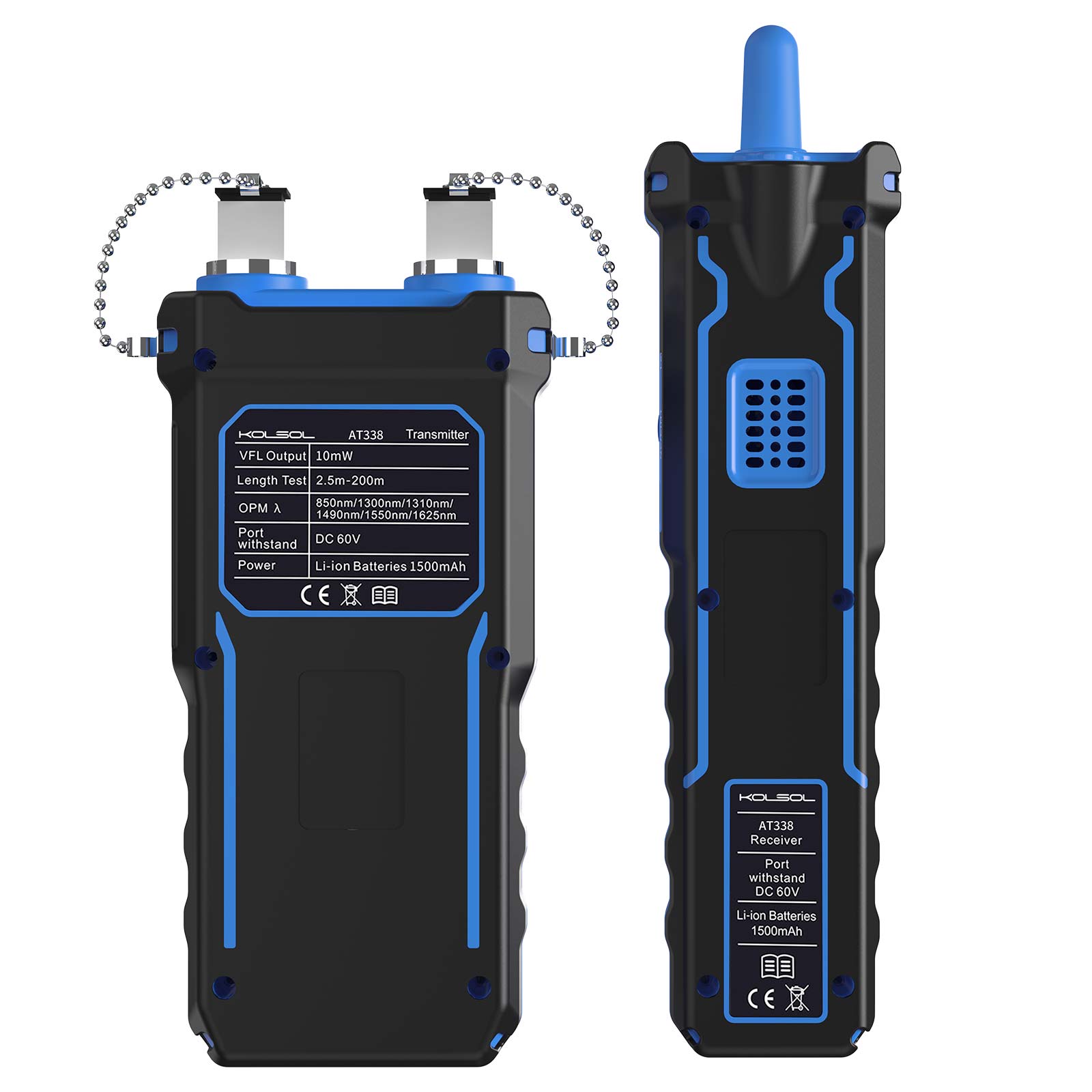

Product Specifications:
Transmitter | Wiremap | Cable type | CAT5, CAT6 (STP & UTP) |
Test with switch directly | Yes | ||
Max range | 600m | ||
Scan | Cable type | CAT5, CAT6 (STP & UTP) | |
AC filter | Yes | ||
Max range | 600m | ||
Length | Cable type | CAT5, CAT6 (STP & UTP) | |
Test range | 2~200m | ||
Breakage location | Yes | ||
POE | Test range | DC 5~60V standard / non-standard PoE switch | |
Voltage display | Yes | ||
PSE type | IEEE 802.3af/at | ||
Power meter | Power detecting range(dBm) | -70 ~ +10 | |
Wavelength (nm) | 800-1700 | ||
Probe | InGaAs | ||
Detection limit | ∮1.0mm | ||
Standard wavelength | 850, 1300, 1310, 1490, 1550, 1625, 1650nm | ||
Display resolution | 0.01dBm | ||
VFL | Emitting Energy | 10mw | |
Standard wavelength | 650nm | ||
QC for crystal head | Yes | ||
Power supply | 3.7V lithium battery | ||
Low battery warning | 2.7V | ||
Auto-off time | 15min, 30min, 60min, OFF | ||
Voltage protection | DC48V 5mA | ||
Dimensions (LxWxD) | 148*70*32mm | ||
Receiver | Sensitivity adjustable | Yes | |
AC Voltage detecting | Yes | ||
Lamp | Yes | ||
Battery type | 3.7V lithium battery | ||
Low battery warning | 2.7V | ||
Dimensions (LxWxD) | 198*50*28mm | ||
OEM / ODM : Yes
Model Number : AT338
Place of Origin : Shenzhen, China
Main Function : Multifunction Network Cable Tester/Optical Power Meter& Visual Fault Locator
Port: RJ45
Interface: SC
Wavelength: 850/980/1310/1490/1550/1625nm
Power : 3.7V lithium battery
Warranty : 1 Year

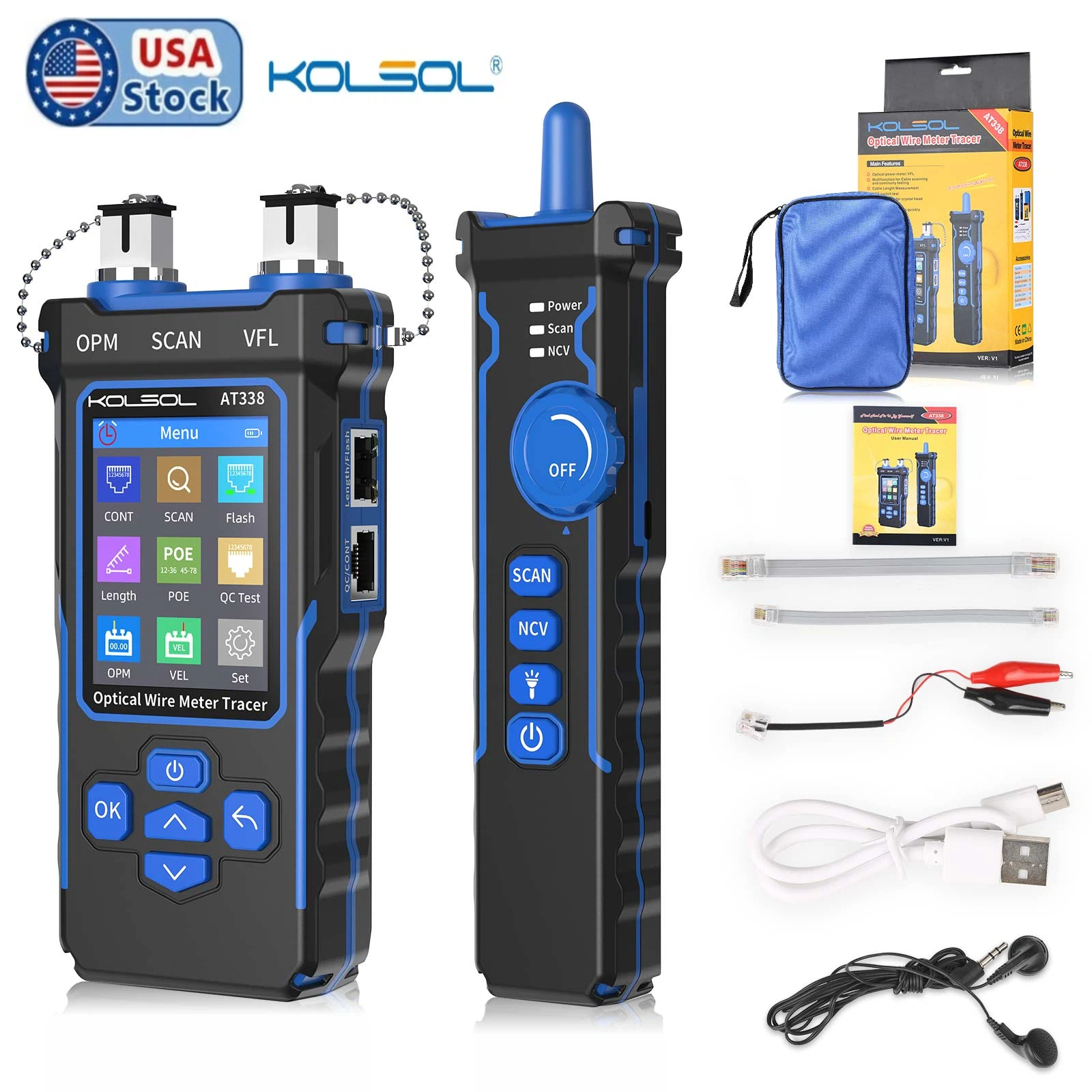

Package Includes:
1pc x transmitter
1pc x receiver
1pc x RJ45 adapter line
1pc x RJ11 adapter line
1pc x earphone
1pc x cable with clips
1pc x Type-C cable
1pc x user manual
1pc x quality certificate
1pc x carry bag
