Feature:
1. Versatile Testing Options: This analog multimeter offers three testing voltages (100V/500V/1000V) for insulation resistance, AC/DC voltage, and transistor breakdown tests, meeting diverse electrical inspection needs.
2. Enhanced Safety Features: The pointer type insulation resistance tester includes Type-C charging and auto-discharge functions, ensuring secure operation during prolonged use.

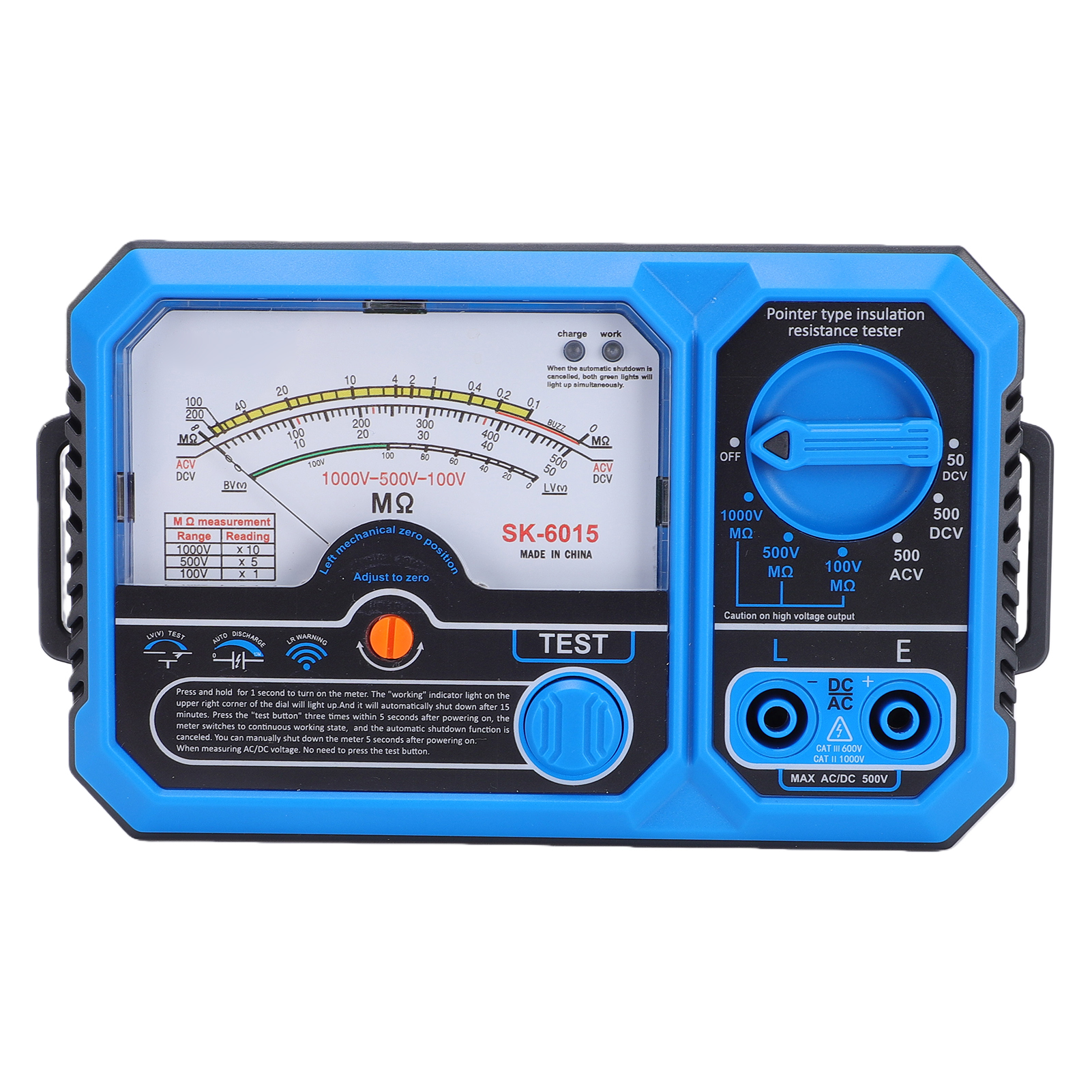

3. High-Visibility Display: Equipped with a large backlit analog dial, this insulation resistance tester provides clear readings even in low-light environments for precise measurements.
4. Proactive Fault Detection: The universal analog multimeter triggers an audible alert when resistance falls below 2MΩ (at 1000V), enabling quick identification of insulation degradation.

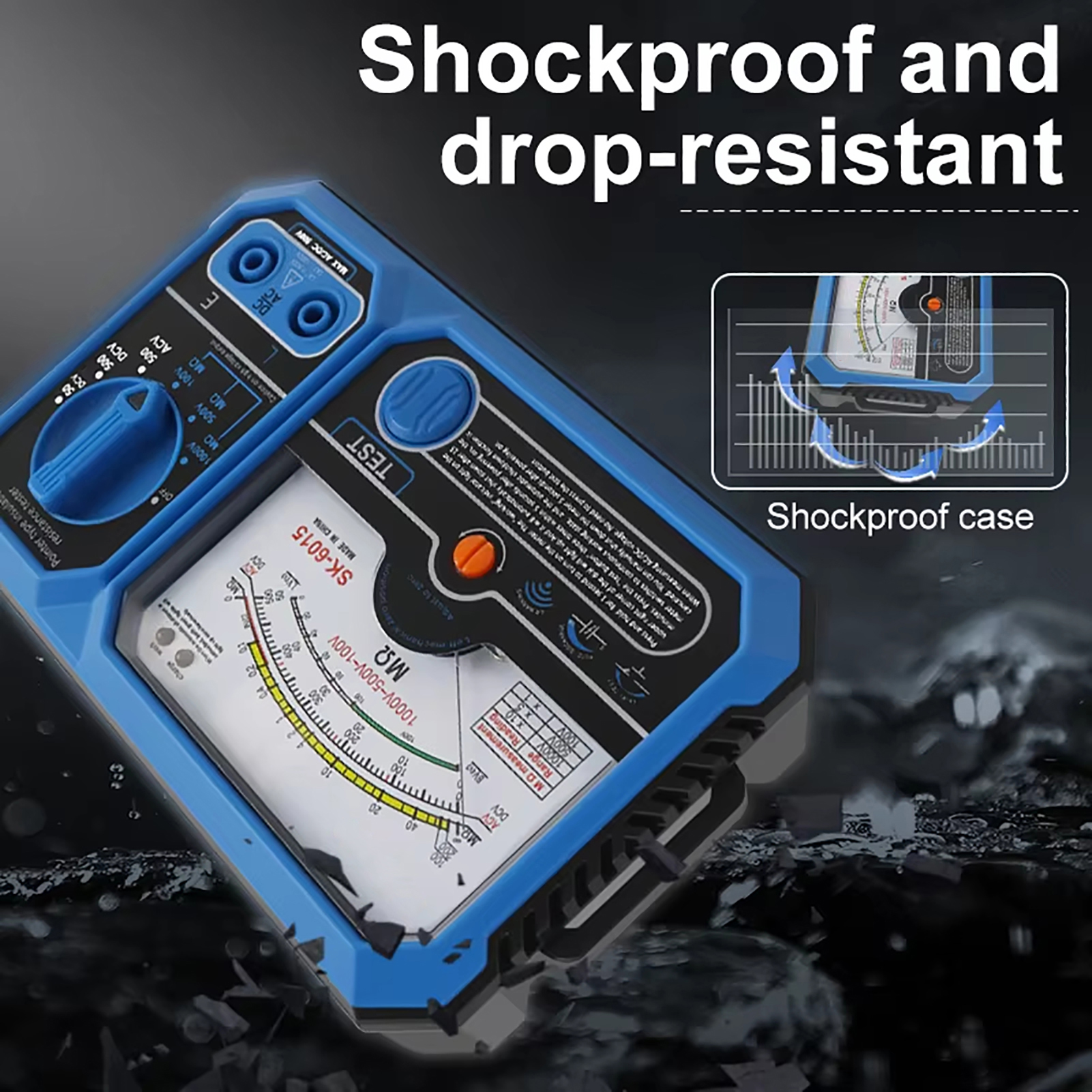

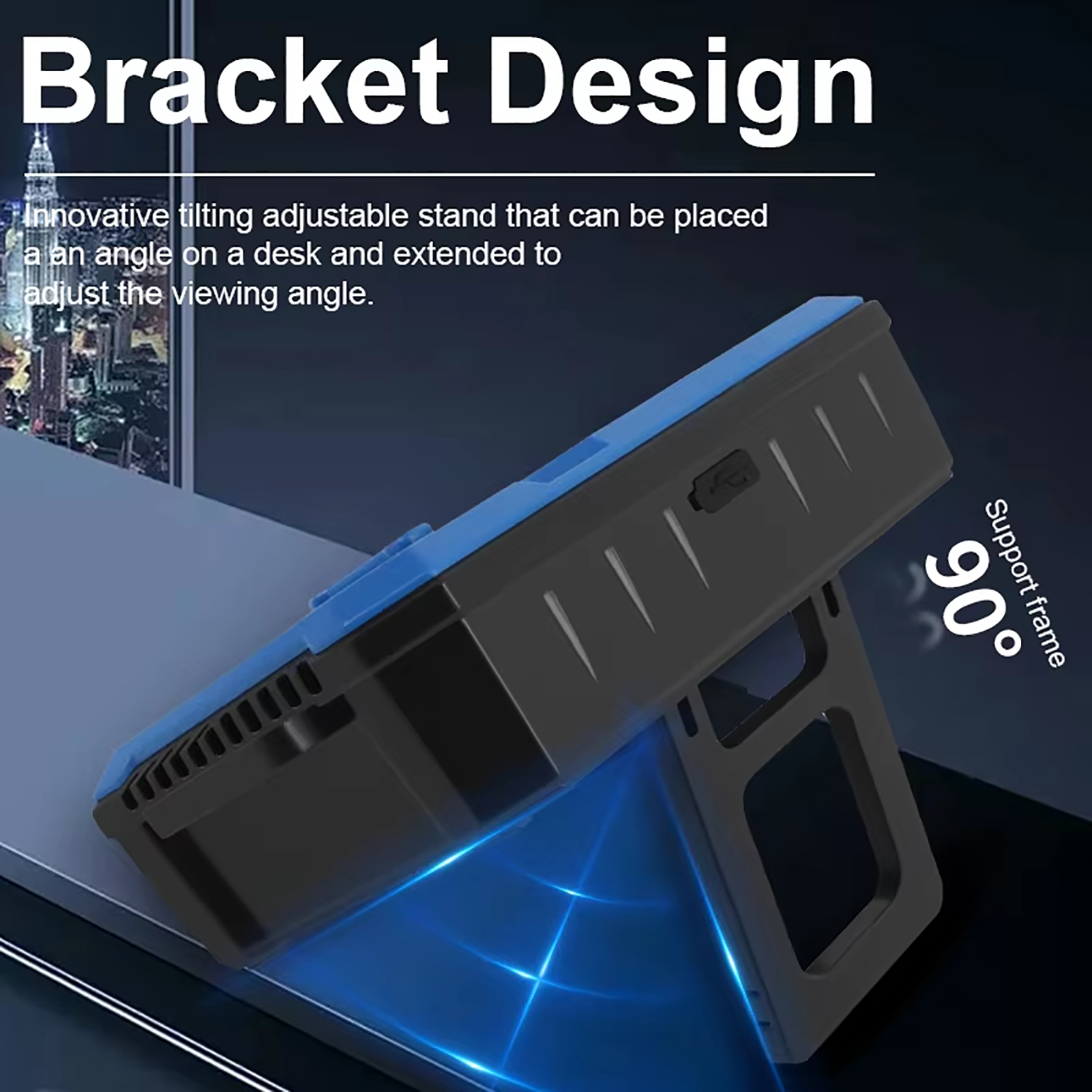

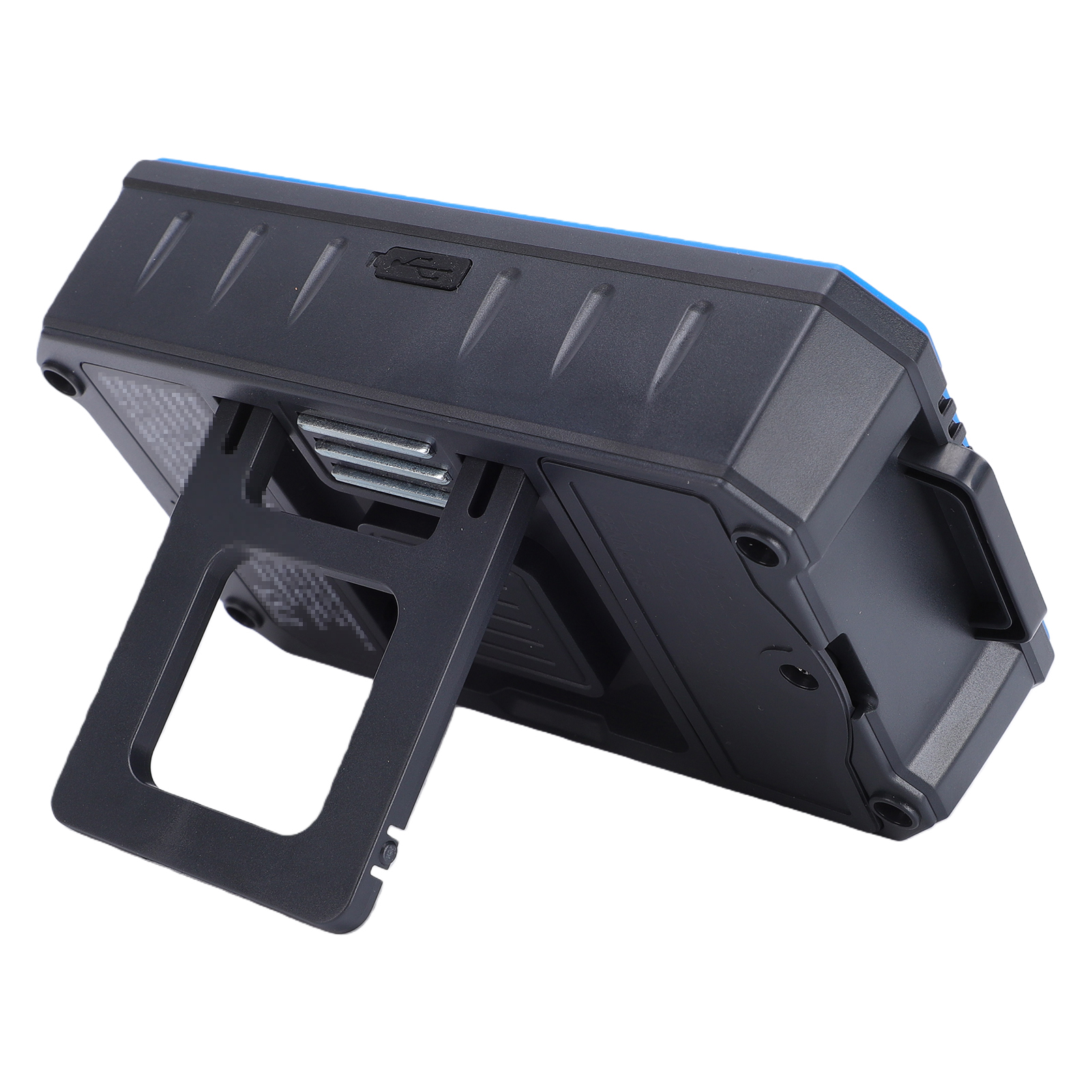

5. Rugged Portable Design: Featuring an impact-resist ABS casing with an adjustable stand and magnetic backplate, this tester ensures stable placement for hands-free operation in various work environments.
Specification:
Power Supply: Built-in rechargeable battery (1500mAh)
Insulation Resistance Test:
Rated Voltage: 1000V / 500V / 100V
Measurement Range: 0 - 2000 MΩ
Accuracy: 1M - 2000M ±10%
Voltage Measurement:
AC Voltage: 0 - 500V (50Hz)
DC Voltage: 0 - 500V
Transistor Withstand Voltage Test: Supported (1000V/500V/100V range)
Low Resistance Alarm Threshold:
1000V Range: < 2 MΩ
500V Range: < 1 MΩ
100V Range: < 200 KΩ
Application Scenarios:
Insulation performance testing for industrial motors and transformer windings.
Insulation acceptance testing for power cables and wiring installations.
Maintenance of compressors and fan motors in HVAC systems.
Safety compliance testing for household appliances (e.g., washing machines, microwaves).
Voltage testing for electronic components (transistors, diodes).

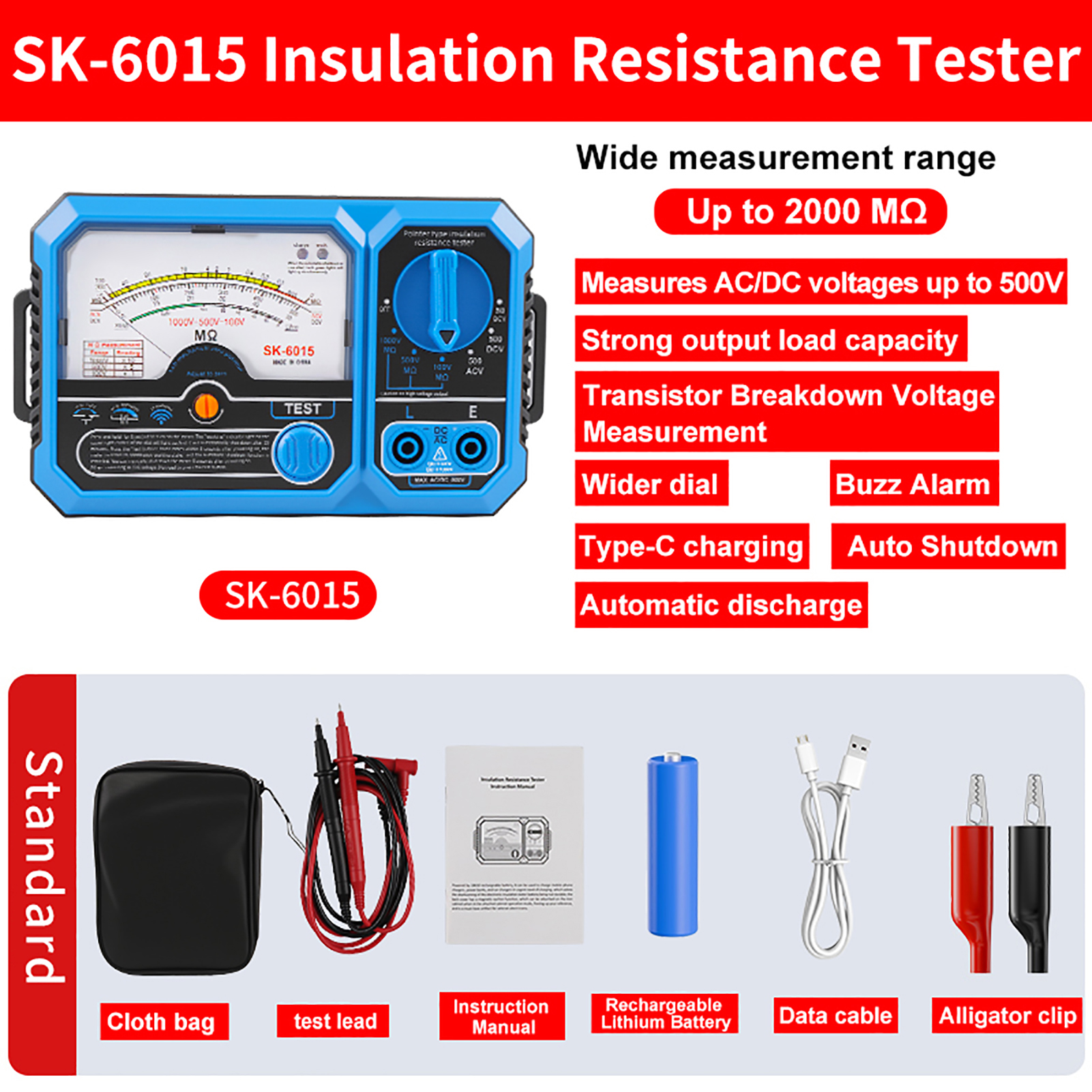

Package List:
1 x Analog Insulation Resistance Tester
1 x Storage Bag

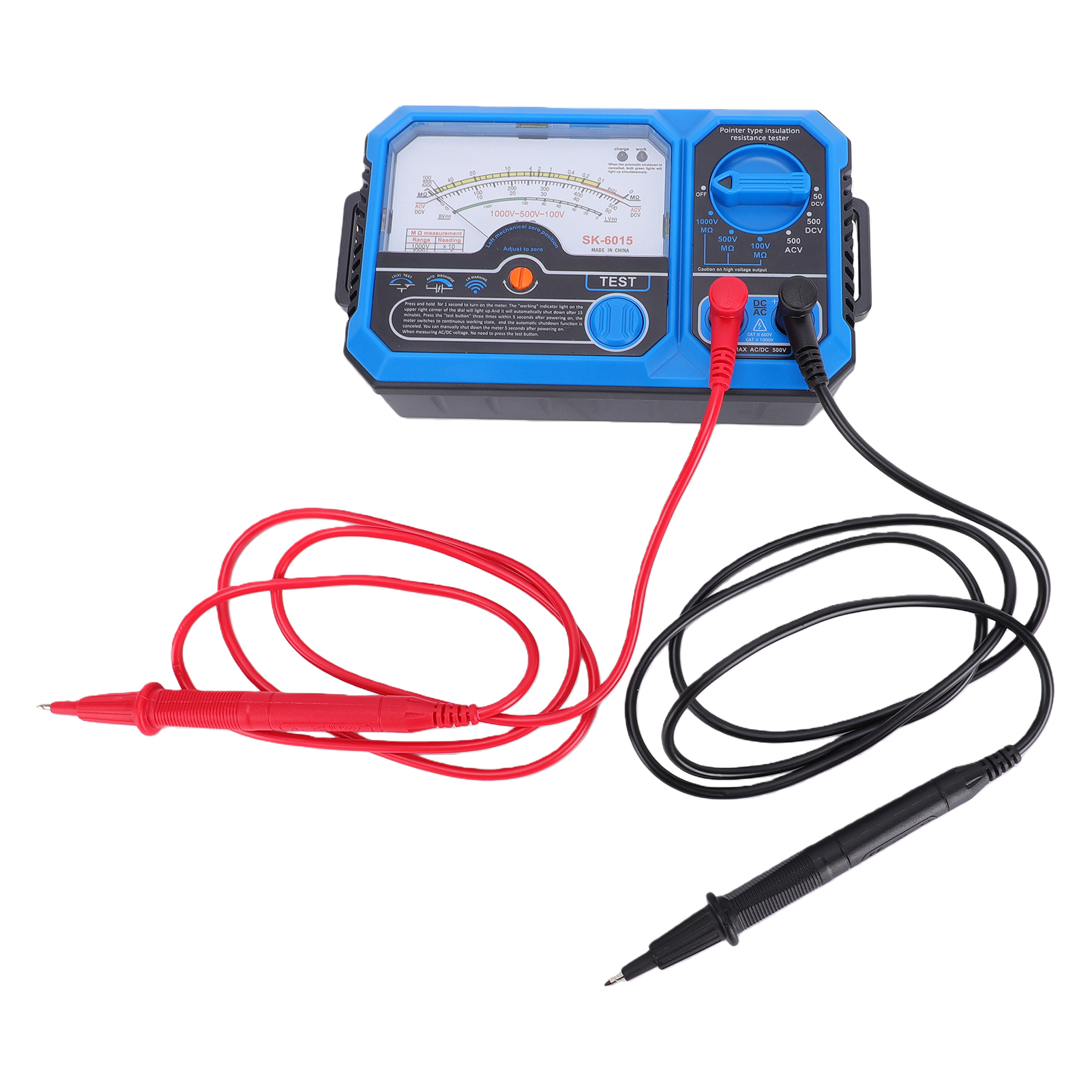

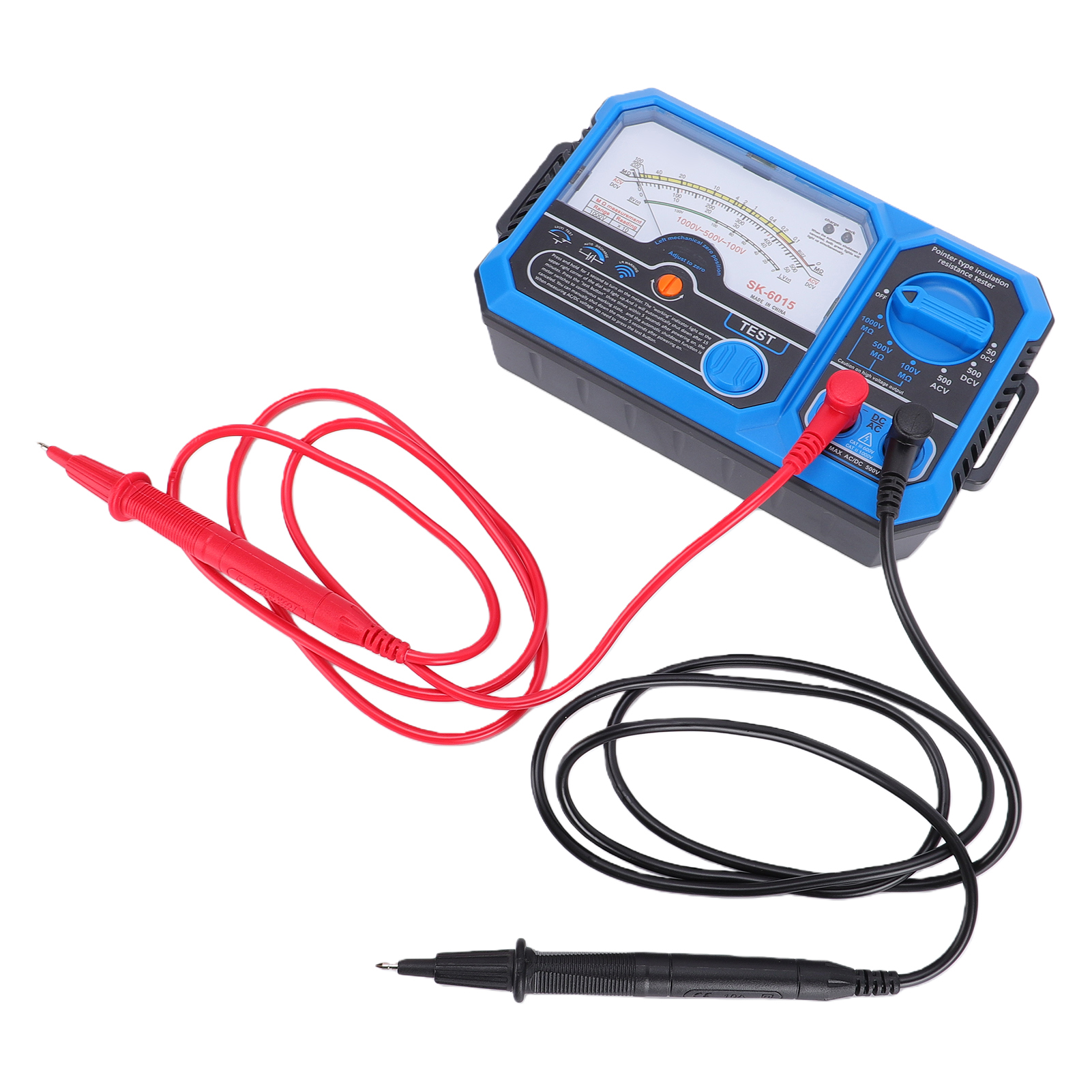

2 x Test Leads
1 x Instruction Manual
1 x Charging Cable
2 x Test Clips
