T4 Turbo Kit for 67/98 Small block Chevy 305 350 C/K 1500 5.0/5.7 V8 Hot Parts




~~~WANSMOKE~~~

Fast Shipping, 100% Customer Satisfaction !

     WANSMOKE delivers top-tier performance parts at the industry's best prices. We never compromise on safety, using precision machining and high-standard manufacturing to build lift and leveling kits that last. While others lower their standards to lower their prices, we stay committed to quality. Choose WANSMOKE and lift your vehicle the right way.

     Meet the latest from WANSMOKE. Developed from the ground up at our U.S. R&D center, every part is engineered for maximum performance, precision fitment, and effortless installation. Our all-in-one Turbo Kits provide a straight forward path to high-performance power for naturally aspirated engines.

Compatible for Chevy Small Block 283 / 305 / 307 / 327 / 350 / 400 V8 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SINGLE Turbo Hot Part.

1966+ Chevrolet Bel Air 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1966+ Chevrolet Biscayne 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1969+ Chevrolet Blazer 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1988+ Chevrolet C/K 1500 2500 3500 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1977+ Chevrolet C10/C20/C30 Pickup/Suburban 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1967+ Chevrolet Camaro 305L / 350L SBC V8
1966+ Chevrolet Caprice 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1967+ Chevrolet Chevelle 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1966+ Chevrolet El Camino 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1966+ Chevrolet Malibu 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8

1988+ GMC C/K 1500 2500 3500 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8
1977+ GMC C15/C25/C35 K15/K25/K35 4.6L / 5.0L / 5.3L / 5.7L / 6.6L SBC V8

1967+ Pontiac Firebird 305L / 350L SBC V8

Suitable for SBC Small Block Chevy/GMC models like Camaro, Tahoe, Suburban, Yukon, C/K, C10, C20, C1500, C2500, K10, K20, K1500, K2500, Firebird, El Camino, Impala, Malibu, Blazer...etc

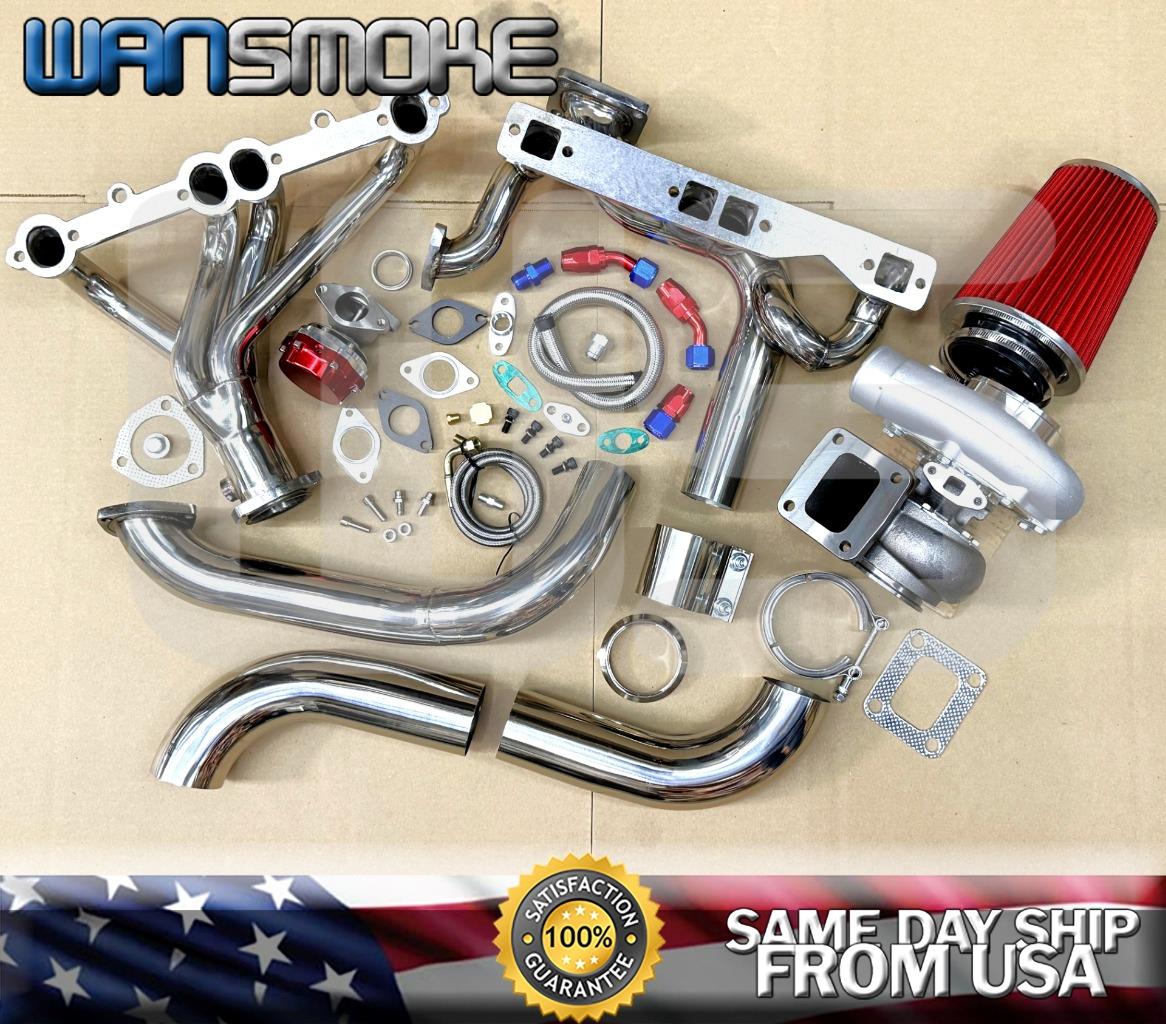

Includes - T76 Turbocharger
Includes - Turbo Manifold
Includes - Manifold Gasket
Includes - Exhaust Cross Tube
Includes - External Wastegate
Includes - 4" Air Filter
Includes - 3" Turbo Exhaust Pipe
Includes - V-Band Clamp + Flange
Includes - Oil Feed Line
Includes - Oil Return Drain Line
Includes - Oil Pan Drain Plug Adapter
Includes - T4 4 Bolt Steel Gasket

1. Condition:100% Brand new and high quality.
2. Seal performance is reliable
3. Long service life

Turbocharger

     T76 Turbocharger! High Quality Guaranteed! cast housing with durable steel. Capable of boosting horse power up To 700+ HP, standard T4 exhaust flange, CNC machined flanges. High quality T76 with a forged turbine propeller wheel!

Specification
T4 flange
3" v-band outlet
Bearing: Wet Float Bearing
Capable of Boosting Horse Power up to 700BHP.
Turbine
Inducer: 73.5
Exducer: 64.3
Trim: 76.5
A/R: 0.96

Compressor
Trim: 56.1
Inducer: 76.6
Exducer: 102.3
A/R: 0.8

Exhaust Turbo Manifold
1. Standard T4 Turbo Flange Configuration Outlet.
2. Come with pre-weld 35 / 38 (mm) wastegate 2 Bolt flange.
3. Increase Engine Intercooler Output and Efficiency.
4. Made of High Quality Stainless Steel Material for Strength and Durability.
5. TIG Welded CNC Machined Flange for Resistance against Cracking and Wearing
6. T4 Single Turbo Setup.

Turbo Exhaust Tubing
3" Tubing Steel TIG welded. Fits all of our turbo kits that feature a turbocharger with a V-band exhaust housing. This provides a simple starter solution for connecting your turbo's exhaust to your existing exhaust system. The pictured metal composite Flange is included!

External Wastegate
1. High strength Alloy aluminum body with steel head.
2. Comes with 7 psi spring installed.
3. Protect the turbo system from over boosting.
4. Complete install kit included .

Oil Line Kit
1. OIL DRAIN RETURN & FEED LINE.
2. 10AN Fittings.
3. Inner Diameter: 0.50"
4. Length: 17.00"
5. CNC Machined Turbo Adapter Plate.
6. Weldable 10AN Oil Pan Fitting Included.
7. Inner Diameter: 0.25"
8. Length: 36.00"
9. 1/8 NPT Fittings Natural Polish Finish.
10. CNC Machined Turbo Adapter Plate.
11. Brass Fitting Block Fitting and Port Cover Included

Long Cone Air Filter
1. Oil-free filter Micro cotton gauze type filter material washable with water or soap and reusable.
2. Improves Up to 95% Filtration Efficiency.
3. Designed to increase horsepower and acceleration.
4. Stands Roughly Around: 6" Inlet: 4.0" Overall Tall: 9"
1. For emissions related items please check with your local jurisdiction for emission specific requirements before purchasing. NO installation instruction included unless otherwise specified. If item is questionable please consult your local professional/mechanic before making purchase.
2. NO instructions included. modification might required for complete installation.
3. Professional TURBO INSTALLER is Highly recommend. Any damage during installation will not be refunded.
4. Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive.
5. Don't hesitate to contact us if item stuck, unknown or fault installation !!




Purchase now for only $650!
