Feature:

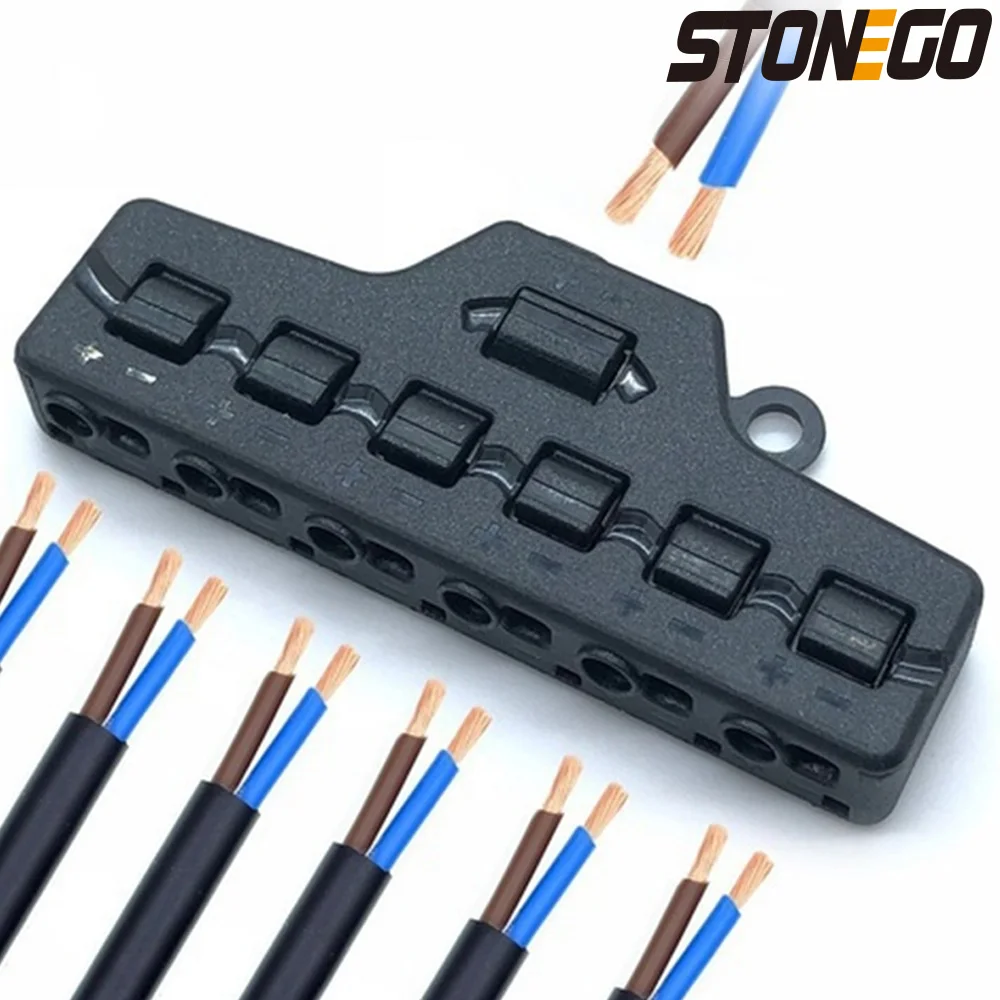

- QUICK & EASY TO INSTALL: The quick connect low voltage wire splitter distribution block allows for easy installation of lighting LED strips with 2 inputs and 12 outputs.

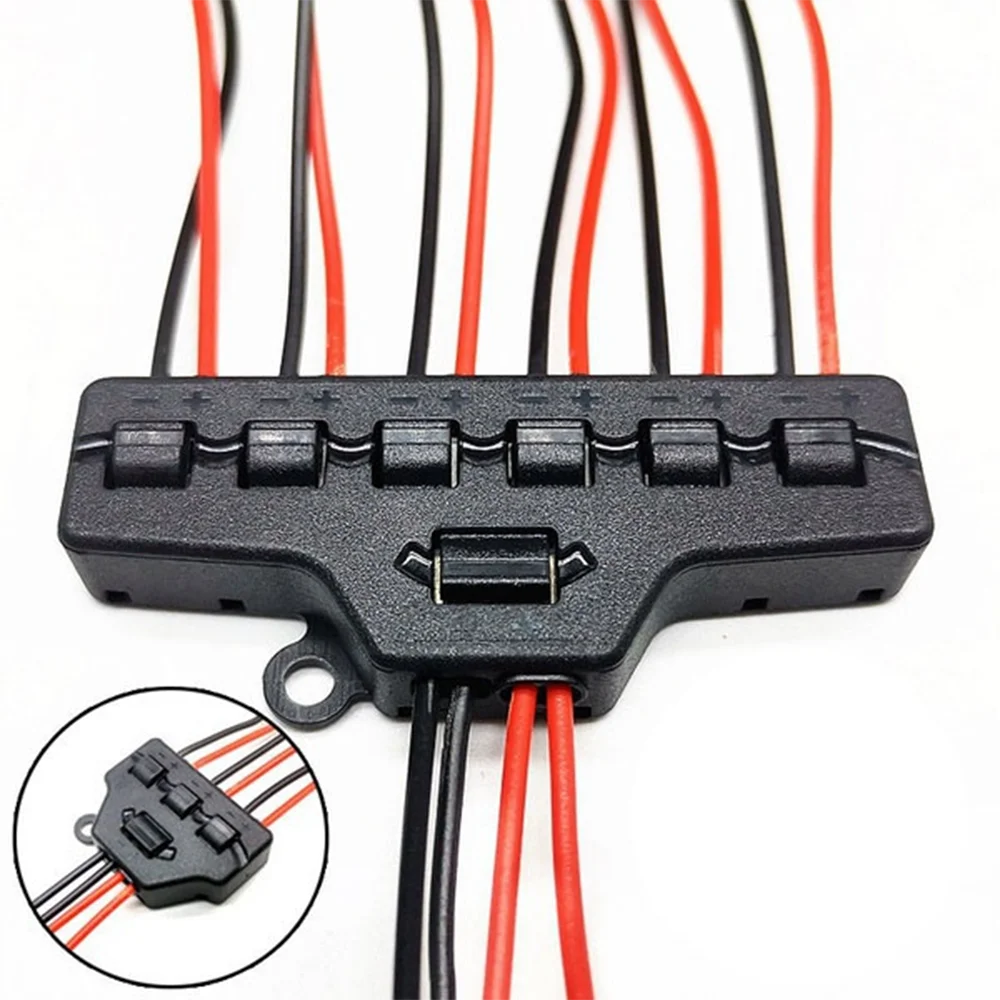

- POSITIVE AND NEGATIVE BIPOLAR INPUT/OUTPUT: The splitter features a bipolar input and output, allowing for efficient and effective power distribution.

- WIDE VOLTAGE AND CURRENT RANGE: The splitter can handle a voltage range of 0-42V DC and a maximum current of 9A (input) and 1.5A (output).

- SUITABLE FOR VARIOUS WIRING SIZES: The input wiring range is 0.34-0.75mm² and the output wiring range is 0.2-0.5mm².

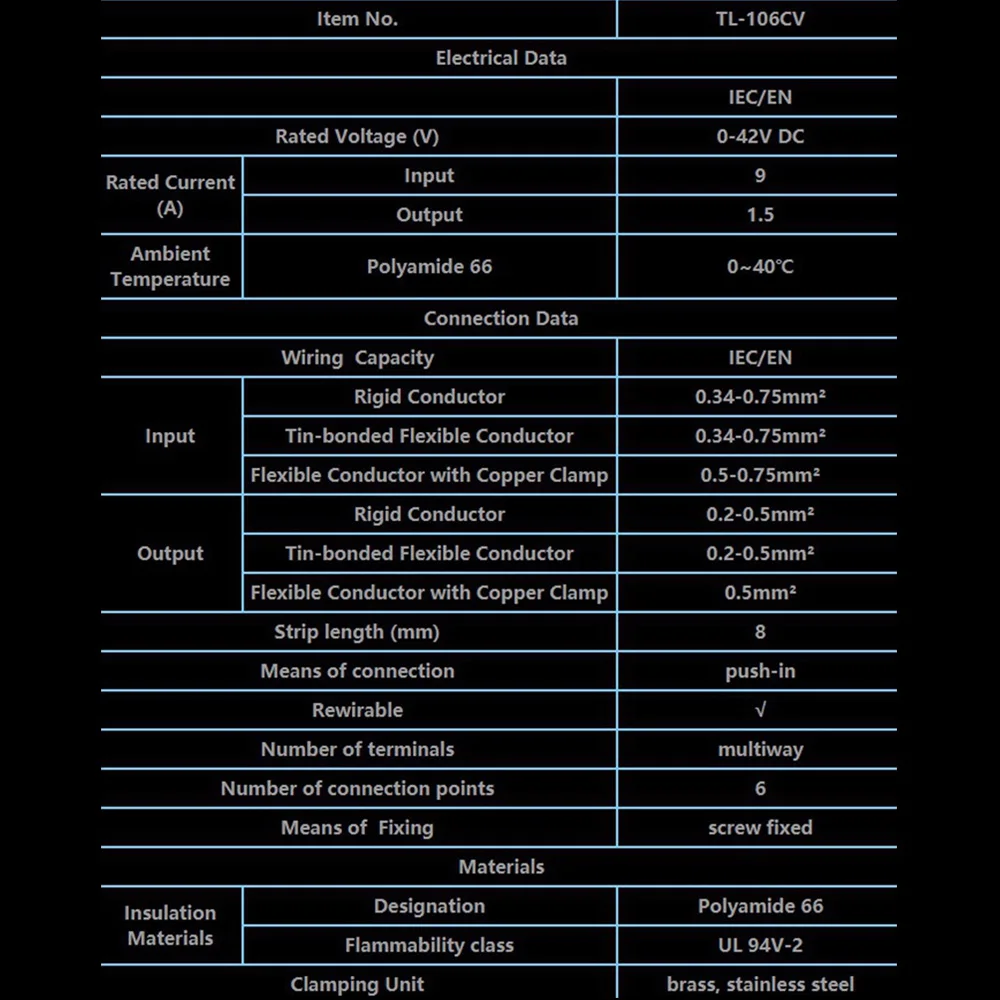

Specification:

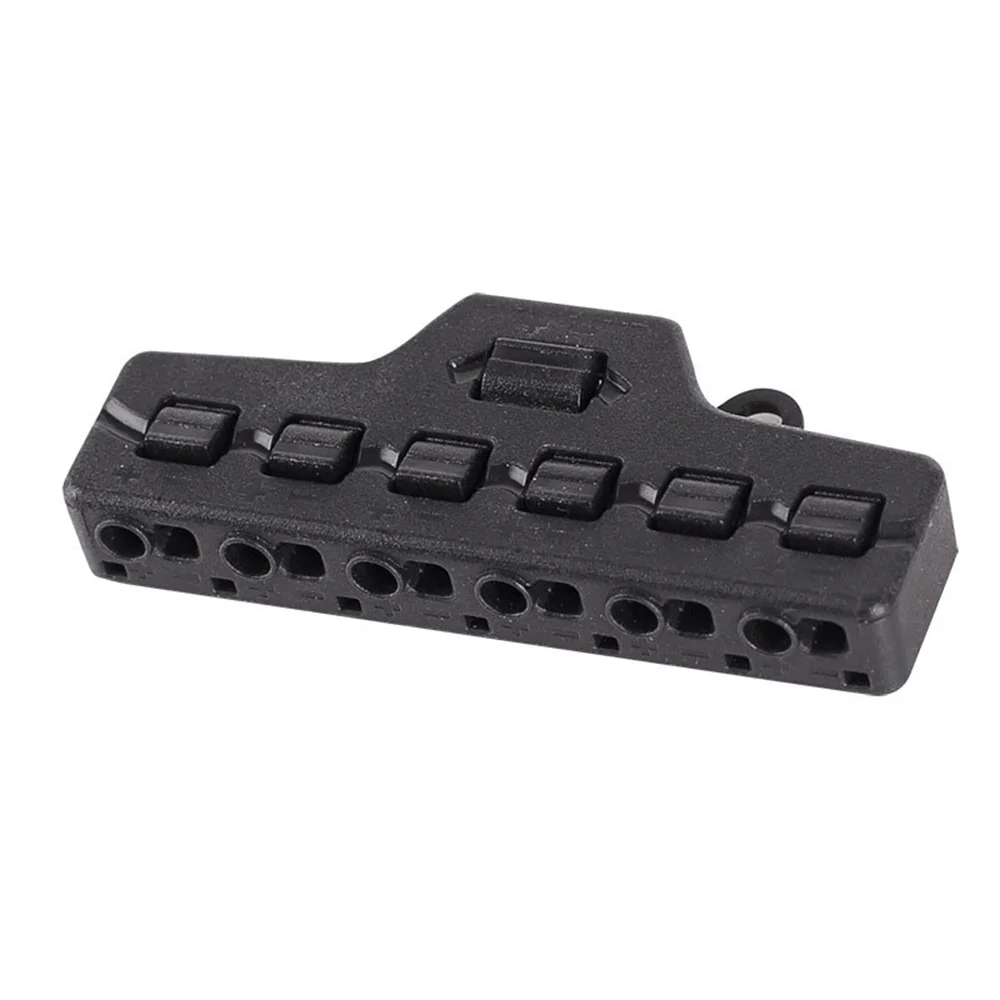

Type: 2 IN 12 OUT Splitter

Color: Black

Input Wiring: 0.34-0.75mm²

Output Wiring: 0.2-0.5mm²

Voltage Range: 0-42V DC

Maximum Current: 9A (Input), 1.5A (Output)

Package included:

1PC 2 IN 12 OUT Splitter
