iPoster 9-Inch Quad Monitor Split Screen System – 2 CCD Backup Cameras with IR Night Vision + 2× 33ft + 1× 49ft 4-Pin Extension Cables (12V/24V, for Truck, Van, Caravan, Trailer, RV)

Heavy-Duty Quad-View Reversing System

This rugged quad-view camera kit is built to give large vehicles a complete surround view with minimal wiring hassle. The system includes a 9-inch 4-channel TFT LCD color monitor, two IP68 waterproof CCD cameras with 18 IR LEDs each, and3X 33 ft (10 m) 4-pin extension cables — ideal for trucks, buses, vans, motorhomes, caravans, trailers, and RVs.

The monitor supports six display modes across four channels and auto-switches between PAL and NTSC. The cameras use a 1/3-inch SHARP CCD sensor to deliver 800 TVL resolution and a wide 120° viewing angle, with far better clarity and color contrast than typical CMOS cameras. When light drops, the 18 IR LEDs automatically activate for sharp, noise-free vision down to 0 Lux. Housed in a hard metal body, the cameras are IP68 waterproof, dustproof, and shockproof to 10G — designed to run cool and last in all conditions.

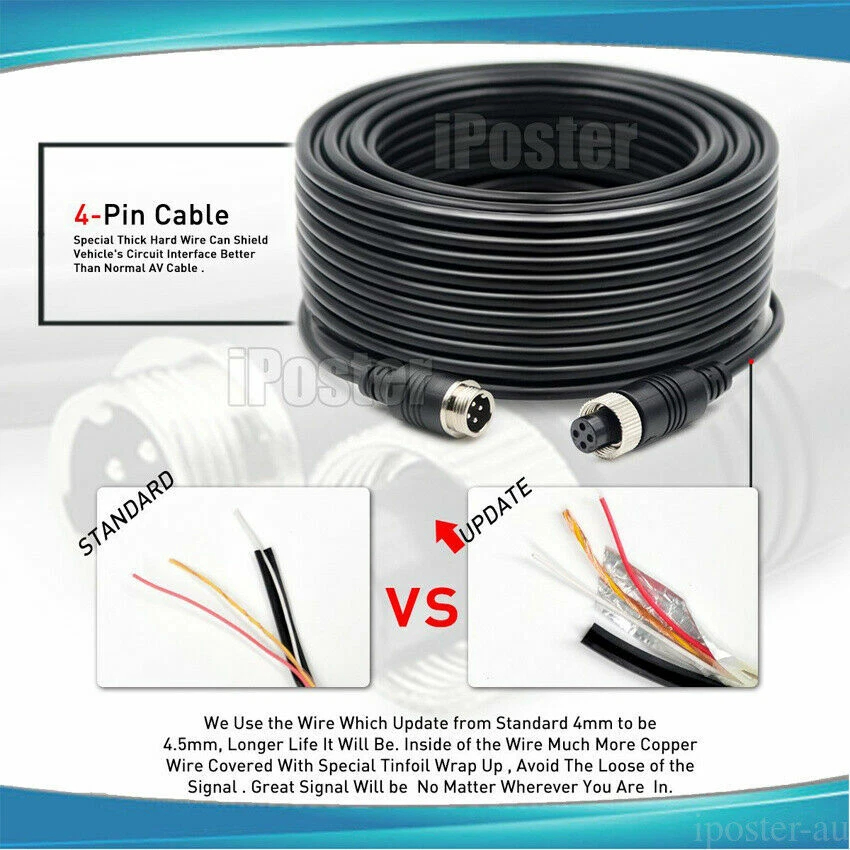

A key advantage is the 4-pin single-cable design: each cable carries both power and video, so you don’t need separate power runs to cameras. The heavy-gauge shielded cable also resists vehicle circuit interference more effectively than standard AV cables. The system accepts 12V–24V DC input and is fully compatible with 12V–32V heavy-vehicle electrical systems. Installation is plug-and-play, and the power connection harness has all video connectors built in. Includes two 10-meter cables and one 15-meter cable； longer cables are available on request.

A quick overview of the main features:

• HD high-quality wired heavy-vehicle CCD reversing complete kit with 4-pin connector – one cable does it all

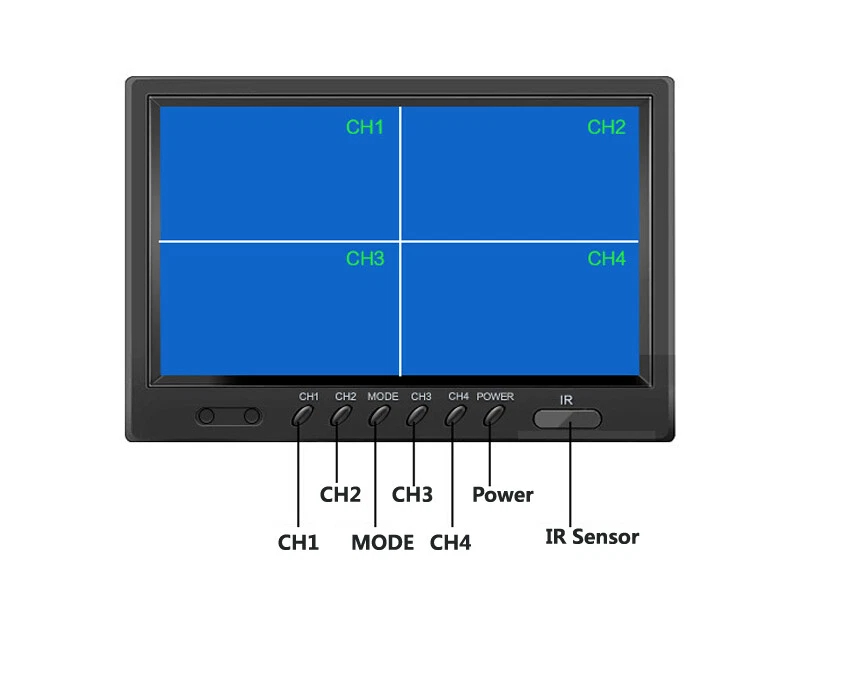

• Large wide-screen 9-inch quad monitor with 800(H)×480(V) resolution, 350 cd/m² brightness, auto PAL/NTSC and 4-channel video input

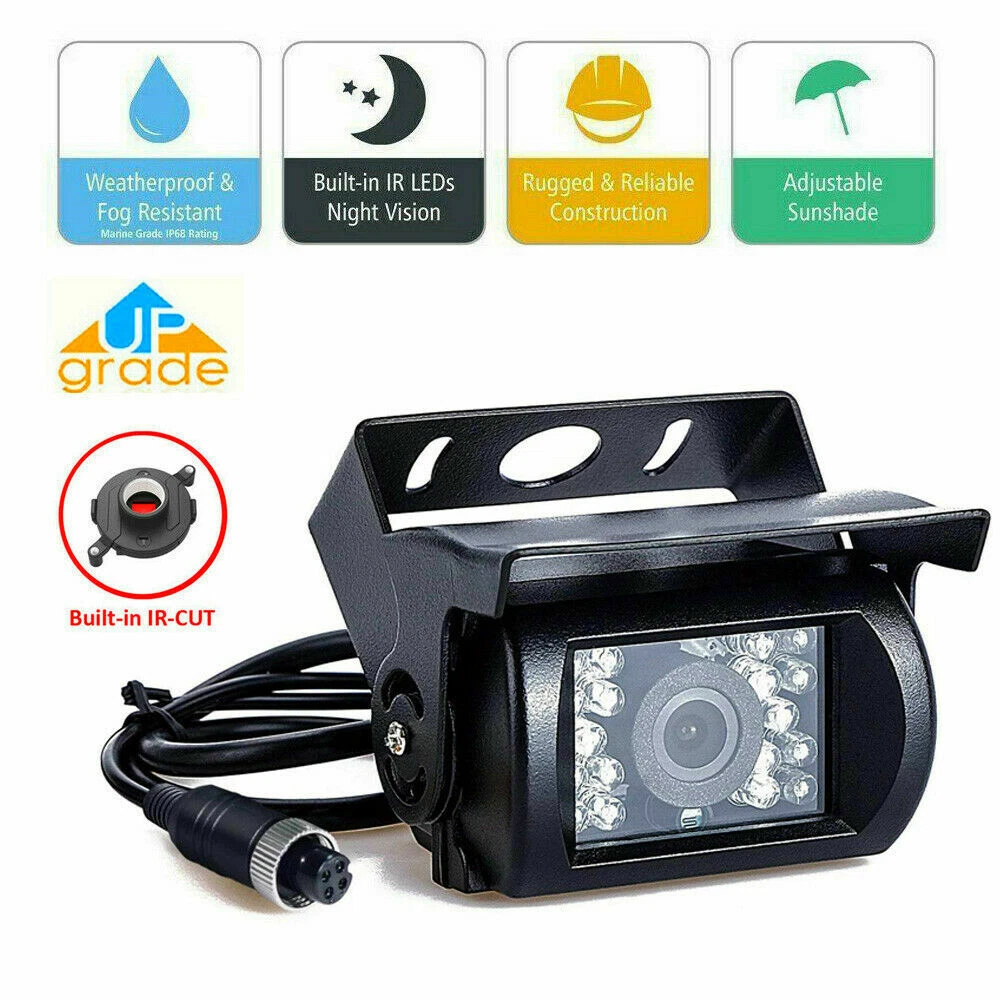

• Two infrared LED CCD waterproof metal-cover rear-view cameras with 800 TV lines, 120° view angle and IP68 rating

• 18 IR LEDs per camera for sharp night vision down to 0 Lux

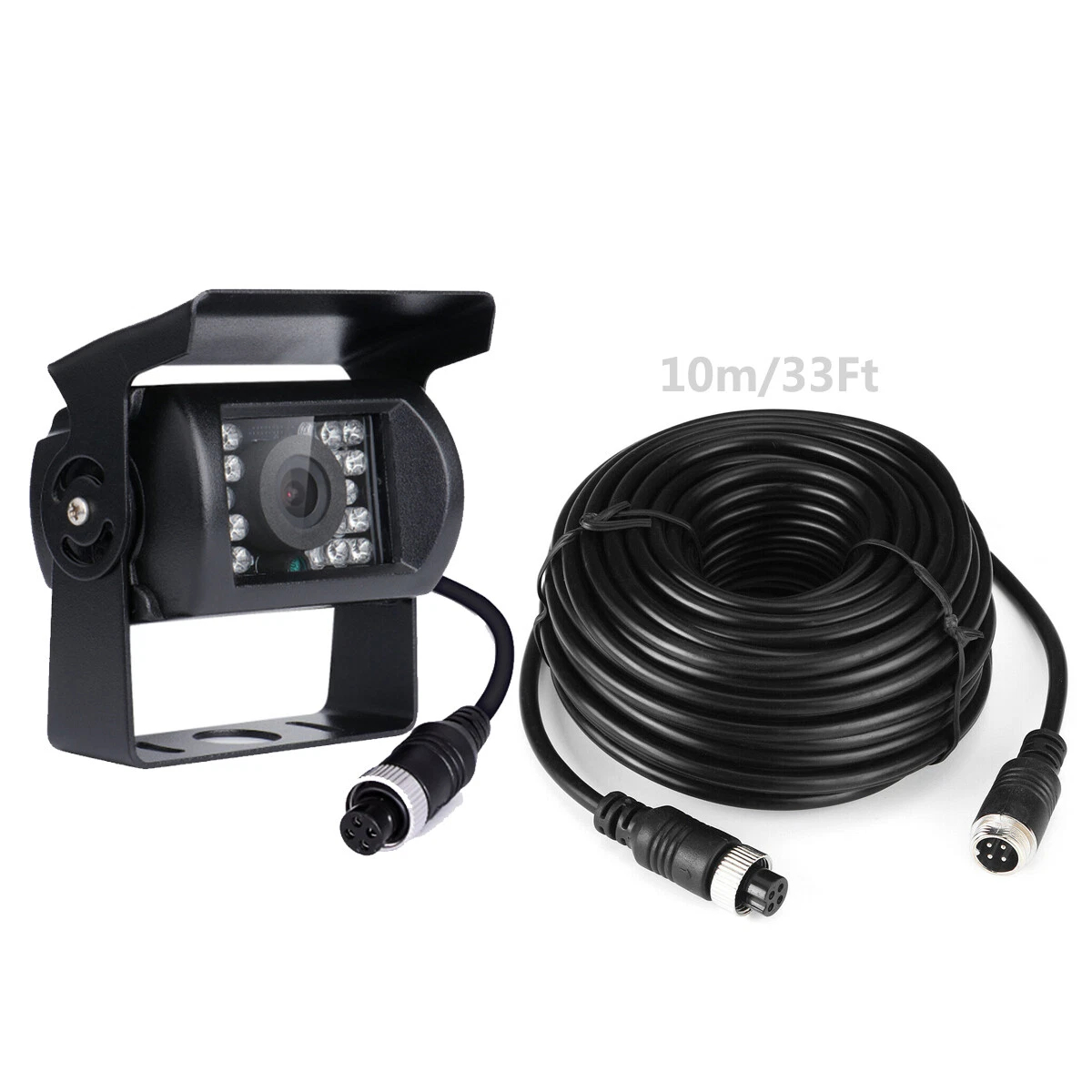

• 33-foot (10-meter) 4-pin extension cables included, ideal for buses, trucks and long vehicles

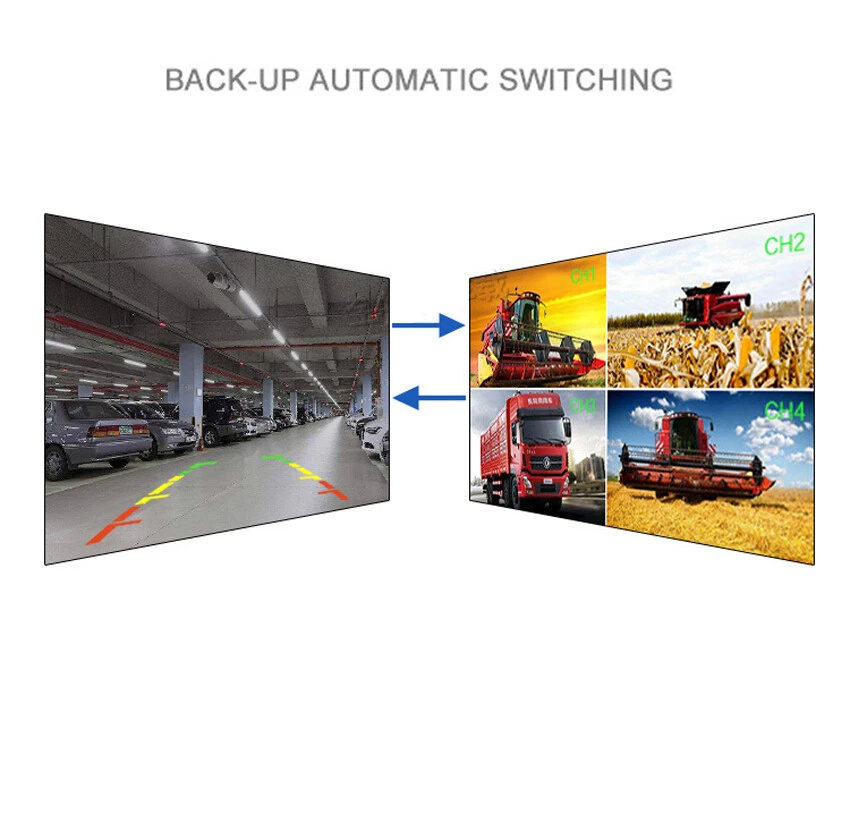

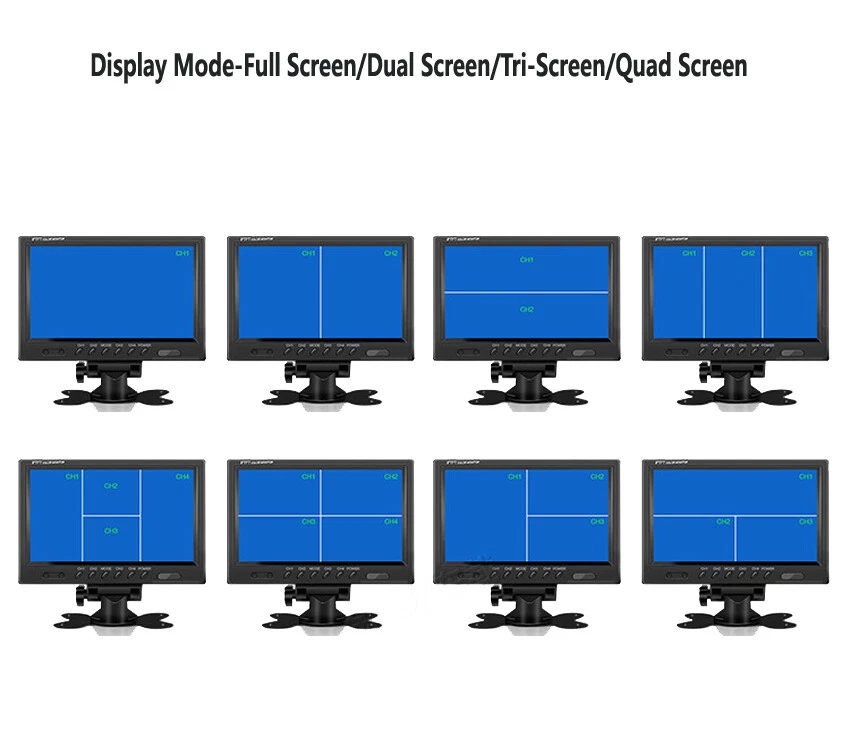

• Six selectable display modes on the monitor for different viewing needs

• Tough CCD sensor outperforms CMOS with sharper focus and clearer low-light images

• Single-cable 4-pin solution transmits power and video together, reducing wiring and blocking interference

• Operating temperature range: -20°C to +70°C

• Works on 12V to 24V vehicles, also suitable for 12V–32V heavy-duty electrical systems

Technical Specifications

Monitor

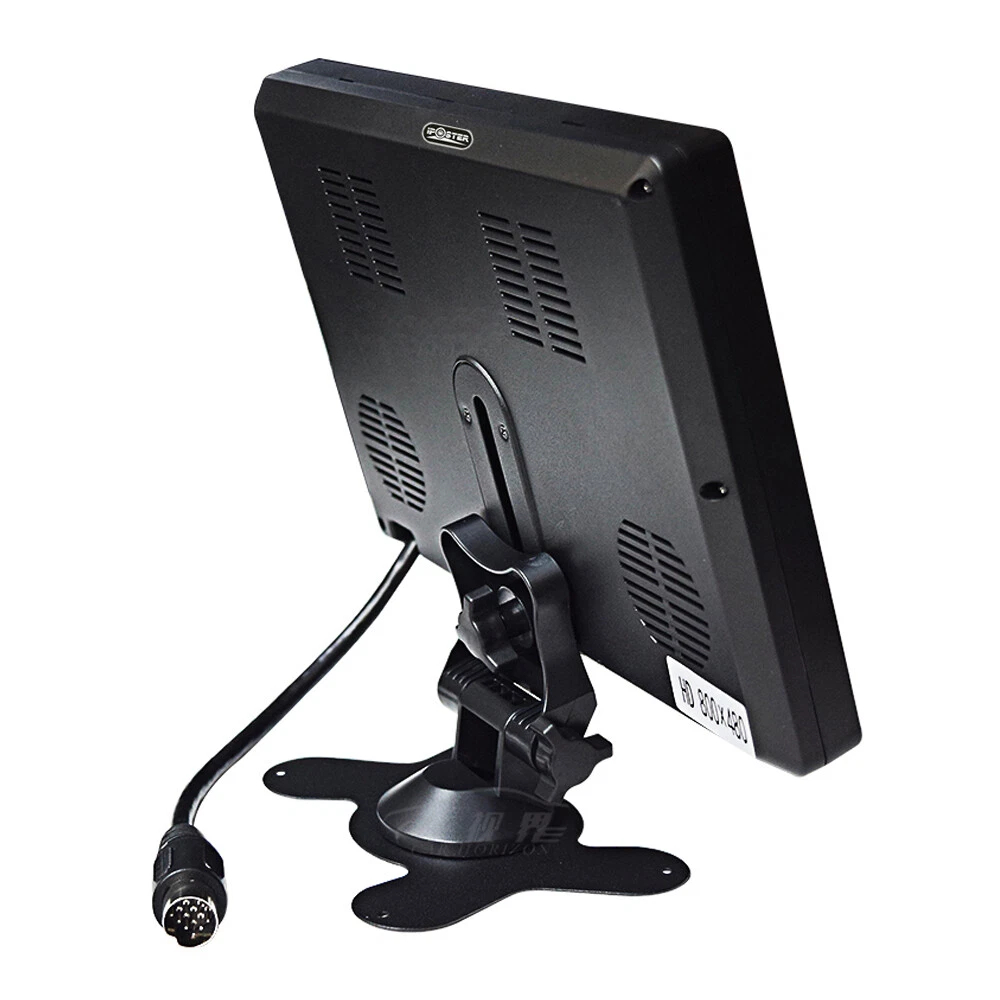

• 9-inch TFT LCD color quad monitor

• Resolution: 800 (H) × 480 (V) pixels

• Brightness: 350 cd/m²

• 4-channel video input with automatic PAL/NTSC switching

• Power input: DC 12V–24V

• Operating temperature range: -20°C to +70°C (-4°F to +158°F)

Camera

• Connector type: 4-pin aviation-style connector (single-cable power and video)

• Image sensor: 1/3-inch SHARP Color CCD

• Horizontal resolution: 800 TV Lines

• Effective pixels: 910(H)×892(V) for NTSC / 900(H)×882(V) for PAL

• Minimum illumination: 0 Lux (with 18 built-in IR LEDs)

• Viewing angle: 120° wide-angle lens

• Video output: 1.0 Vp-p, 75 Ohm composite

• Power supply: DC 12V–24V

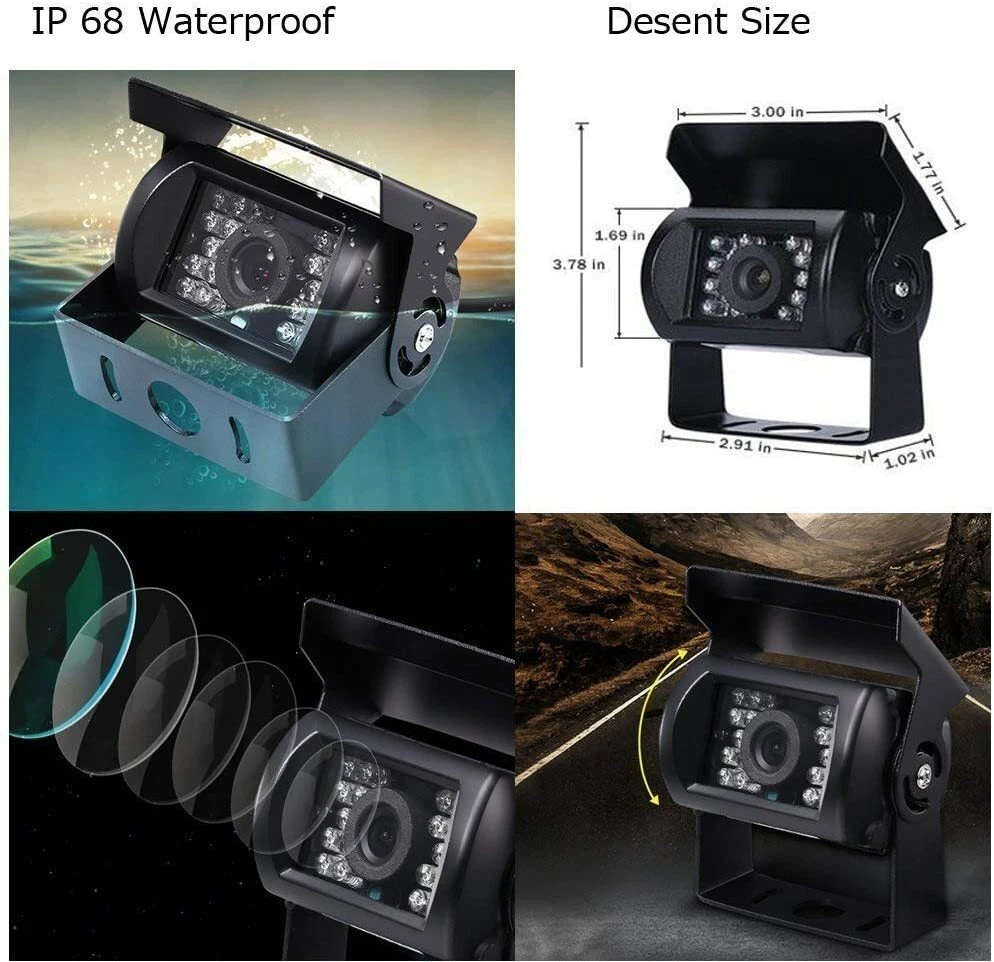

• Ingress protection: IP68 (fully dust-tight and protected against continuous water immersion)

• Shock resistance: 10G

• Dimensions: 89 mm (W) × 53 mm (H) × 48 mm (D)

The difference between CCD and CMOS: the CCD camera sharpens the focus and produces a picture that looks as real as possible. In low light, its lens works together with the 18 IR LEDs to maintain a clear night vision image, which a standard CMOS camera simply cannot match.

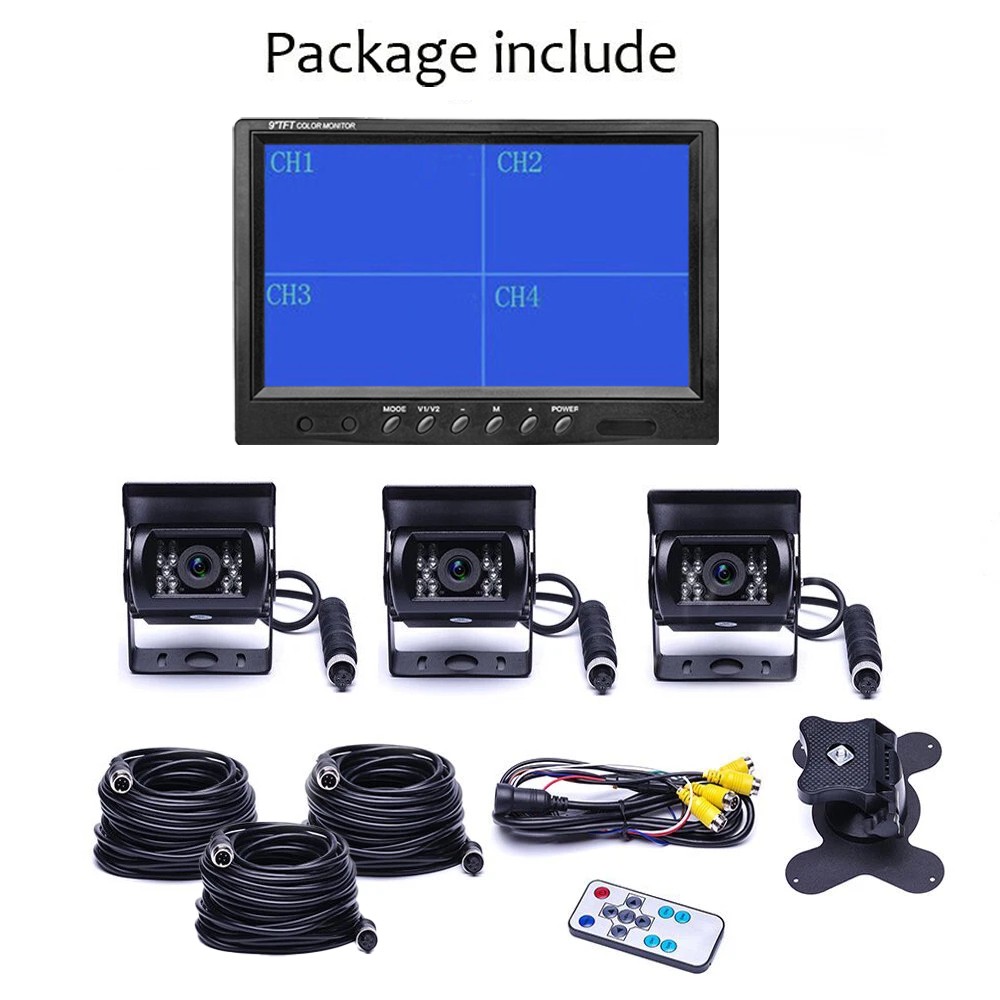

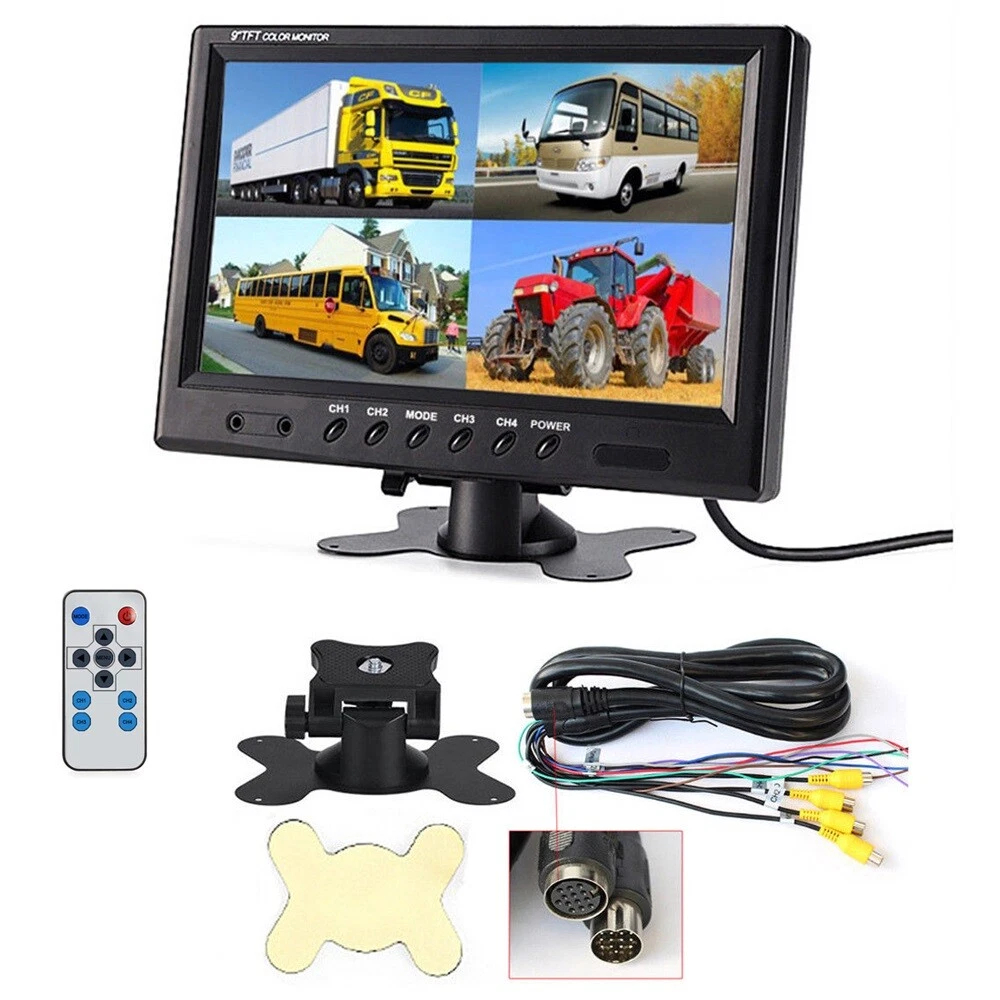

What’s included in the package:

• 1 × Quad 9-inch TFT LCD color monitor

• 1 × Mount/stand

• 3 × Waterproof CCD color cameras with 18 IR LEDs night vision

• 2 × 33 ft (10 m) +1 x (15m) 4-pin extension cables

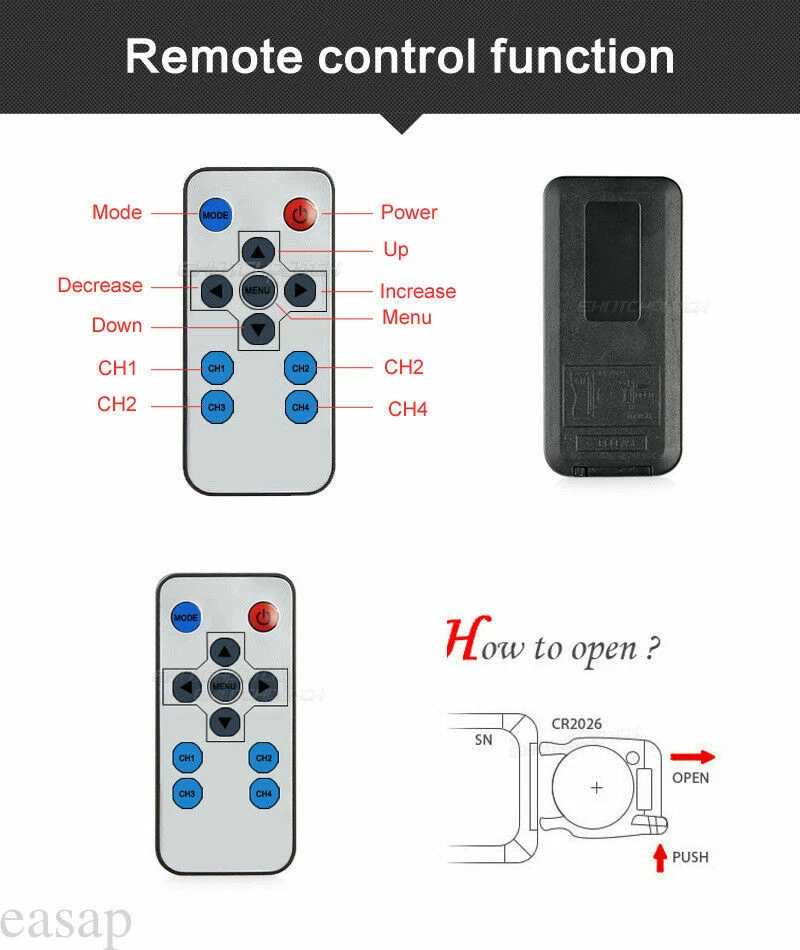

• 1 × Remote control (battery not included)

• 1 × Power connection wire with built-in video connectors

• 1 × Screw kit for installation

• 1 × User manual

This complete, high-quality camera-and-monitor set gives you a professional all-around view solution for your heavy vehicle, combining easy one-cable wiring, brilliant night vision and a crystal-clear 9-inch quad display.

---
