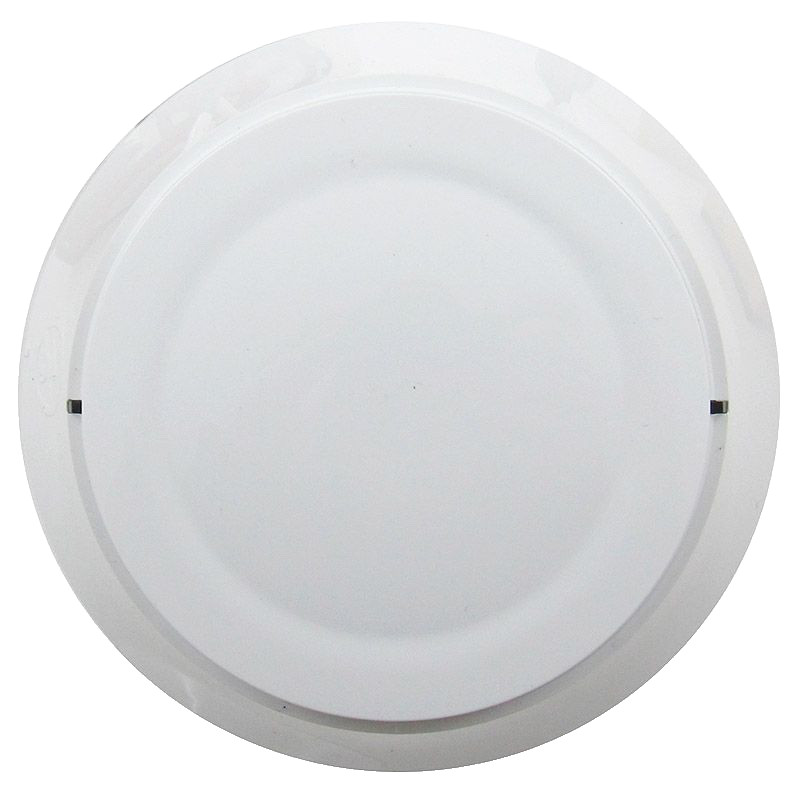

🔥 Fire-Lite SD365 Addressable Photoelectric Smoke Detector (B300-6 Base Included)

The Fire-Lite SD365 is an intelligent addressable plug-in photoelectric smoke detector designed for Fire-Lite fire alarm control panels. It uses an enhanced optical sensing chamber to detect a wide range of combustion sources with high accuracy and reliability.

This model features point ID capability with rotary address switches, allowing precise device identification and location within the system.

✔️ Includes B300-6 mounting base
✔️ Direct replacement for SD355 Series (on compatible systems)

📌 Key Features

• Intelligent addressable smoke detection
• Advanced optical sensing chamber for improved detection
• Rotary address switches for exact device identification
• Dual LED indicators (status & alarm)
• Remote testing capability from control panel
• Built-in magnetic test switch
• Compatible replacement for SD355 series

⚙️ Technical Specifications

Type:

• Intelligent addressable photoelectric smoke detector

Protocol / Loop:

• Fire-Lite SLC
• LiteSpeed protocol only

Power Requirements:

• 15 – 32 VDC (peak) supplied by SLC
• Standby: 200 μA max @ 24 VDC (LED enabled)
• Alarm: 4.5 mA max @ 24 VDC

Indicators & Controls:

• Dual LEDs (blink during polling, latch in alarm)
• Rotary decimal address switches
• Remote test from panel
• Magnetic test activation

🔧 Compatible Bases & Accessories

• B300-6 – White, 6” standard flanged base (included)
• B501-WH – White, 4” European flangeless base
• B200S-WH – Intelligent programmable sounder base
• B224BI-WH – Isolator base
• B224RB-WH – Relay base
• RA100Z – Remote LED annunciator (3–32 VDC)
• TR300 – Accessory trim ring for B300-6

🔗 System Compatibility

Compatible with Fire-Lite intelligent addressable fire alarm control panels that support the LiteSpeed protocol on the SLC loop.

📦 What’s Included

• 1x Fire-Lite SD365 Smoke Detector
• 1x B300-6 Mounting Base
