3-Port HD/SD Component Video Stereo Audio
Manual Switcher

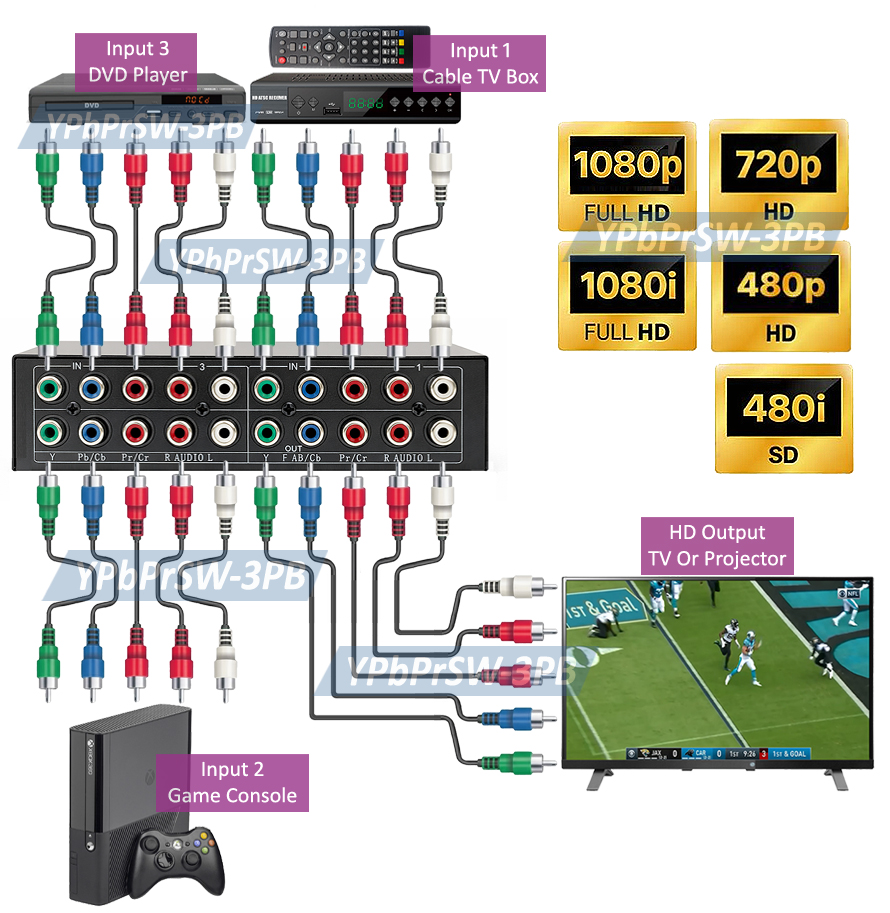

This 3-Way Component Video (YPbPr) Switcher allows you to connect up to 3 component video devices to a single TV, monitor, projector with component video and stereo audio inputs.
This switch box helps reduce cable swapping and keeps your entertainment setup neat and organized.
 |
Simply press the buttons to toggle between video devices such as DVD players, cable boxes, satellite receivers, game consoles, camcorders, and other A/V equipment with component video/RCA video and analog stereo audio output.
Supports all HD and SD component YPbPr video resolutions from 480i to 1080p.
 |
This component video audio switch can be used as a regular 3 in 1 out composite RCA video switcher or a stand alone stereo audio switcher.
 |
High-Definition Support
This A/V switcher supports all component RGB video resolutions from 480i/480p, 576i/576p, 720p and up to 1080i/1080p. It is also a great way to expand your existing TV display with more
component video inputs.
This HD and SD
video switch offers
wide bandwidth capacity, ensuring that the audio and video output from this
HD/SD video audio routing switch maintain the same signal quality as the
original inputs.
 |

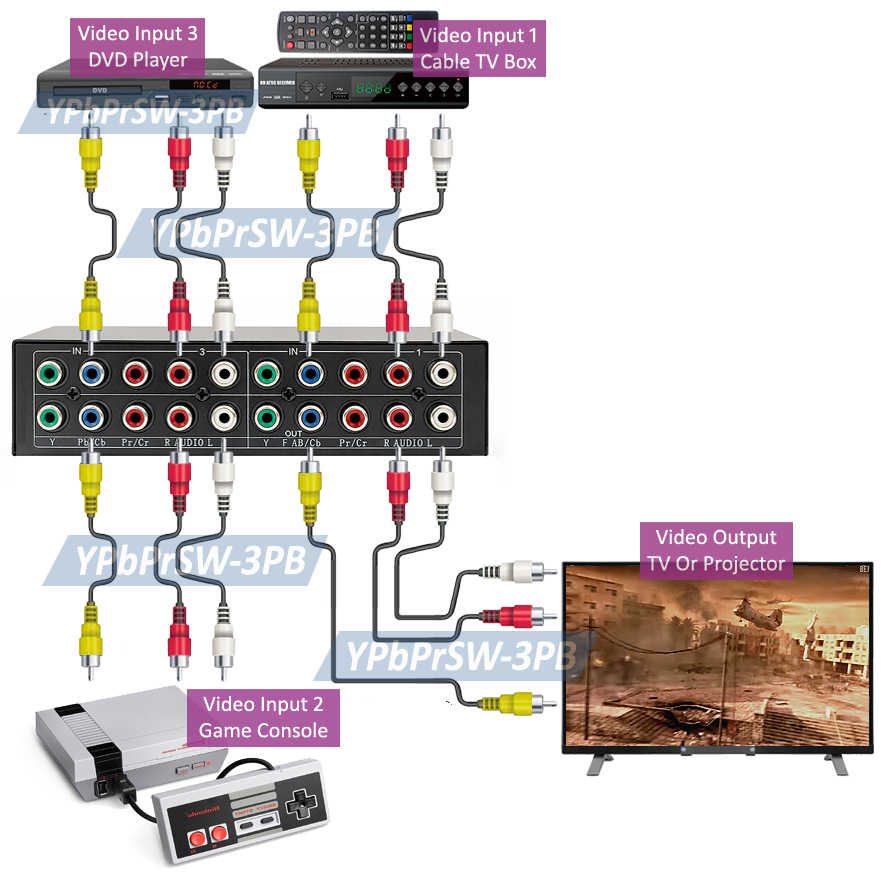

Multi-Channel Composite RCA Video Switcher
This HD video/audio switch could also double as a standard
composite RCA video switcher.
Each one of the green or blue or red RCA jacks on the input side can be used for all composite RCA video inputs and will be routed through the same colored RCA jack on the output end accordingly for RCA video output.
The output video type and output resolution of this switcher will be the same as the original input of component video or composite video type.
⚠[Important Compatibility Note]: This A/V switch does not allow mix of component video and composite RCA video inputs to be connected together to the same display as it does not convert video format from one to the other.
 |

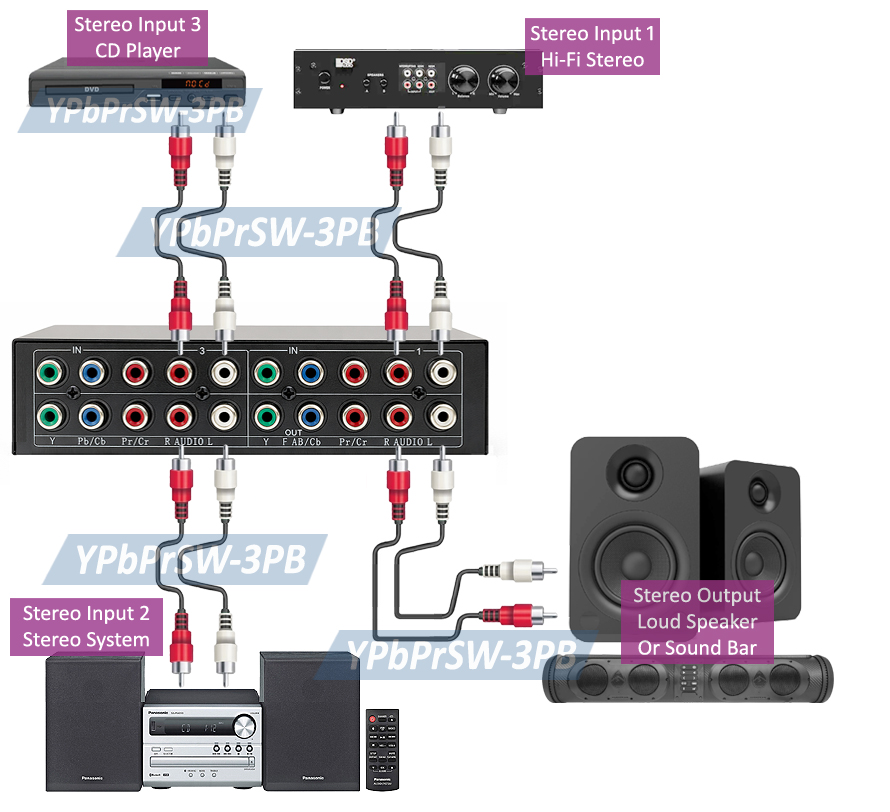

Stand Alone Stereo Audio Switcher
This video switch can also be used as a stand alone stereo audio switcher with no video inputs needed. Users can connect up to 3 audio equipments such as
CD player, home stereo system, Hi-Fi stereo and output to loud speaker system, sound bar or audio receiver for playback.
 |
Expandable Design
This A/V switch can be cascaded with more switches or other audio/video mixer,
splitter to act together as a single large switching system with more
inputs as needed depending on the setup.
Perfect solution for permanent/mobile
presentations and great for use in presentations, trade shows, conferences,
retail, and entertainment applications.
- High performance video/audio connectivity and device sharing solution.
- Expanding with more video/audio inputs for existing TV, A/V receiver or home theater system with limited A/V inputs.
- 3-way HD component RGB or YUV video switcher when used with all component RGB video devices for inputs.
- Supports all HD and SD component YPbPr video resolutions from 480i to 1080p.
- Doubles as a standard composite RCA video switch when used with all standard composite RCA video devices for inputs.
- Doubles as a stand alone stereo audio switch with no video inputs needed and output to loud speaker system, sound bar or audio receiver.
- Supports all NTSC and PAL system inputs and output. Output video standard will follow the original video input standard.
- Accurate and fast fast video and audio signal routing and switching.
- Can be cascaded with other A/V mixer, matrix and splitter to act together as a single large switching system.
- Video and audio output will be retained the same signal quality as the original inputs with no loss for long distance transmission.

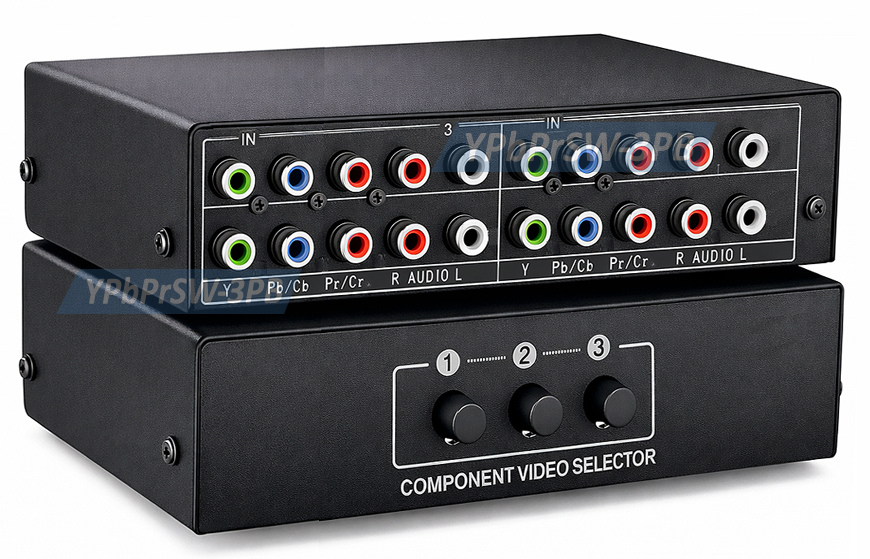

- Built with sturdy metal enclosure.
- Video Inputs: Component RGB video input x 3
- Video Output: Component RGB video output x 1
- Audio Inputs: Analog stereo L/R input x 3
- Audio Output: Analog stereo L/R output x 1
- Video Resolution Support:
- SD: 480i,480p,576i,576p
- HD: 720p,1080i,1080p

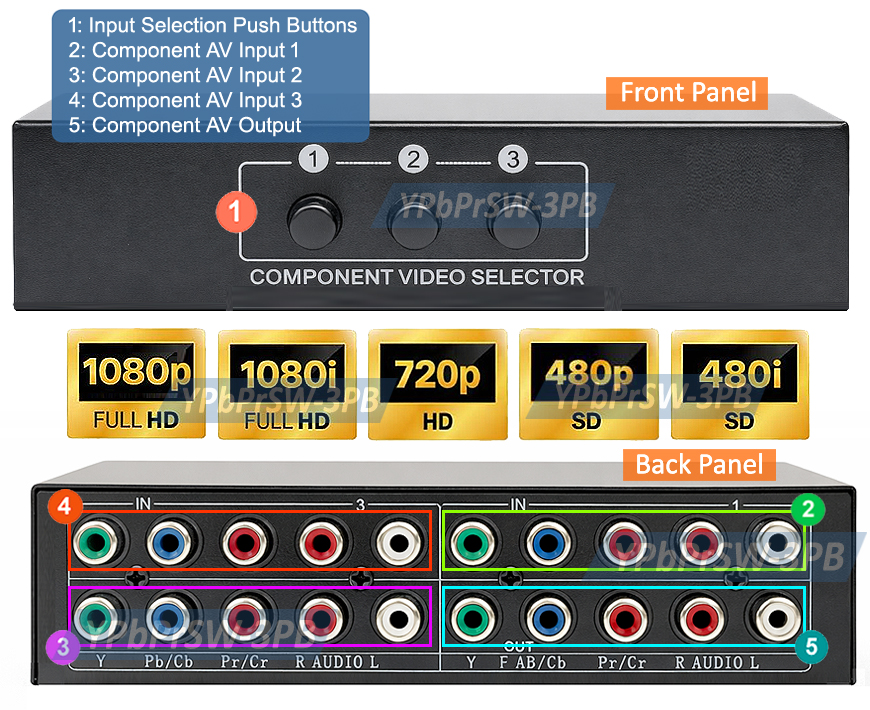

- Switching Control: Manual push button on the front panel
