Features:

High level of accuracy and sensitivity, enhance safety of your vehicle.
Fit both the front wheels and the rear wheels, left and right sides.
Original standard, directly replace your old one.
Replacing OE numbers for reference are TPMS35, F2GZ-1A189-A, F2GT1A180AB and F2GZ1A189A.
Fit for Ford F-150 Mustang Edge Explorer, for Lincoln MKX Continental.

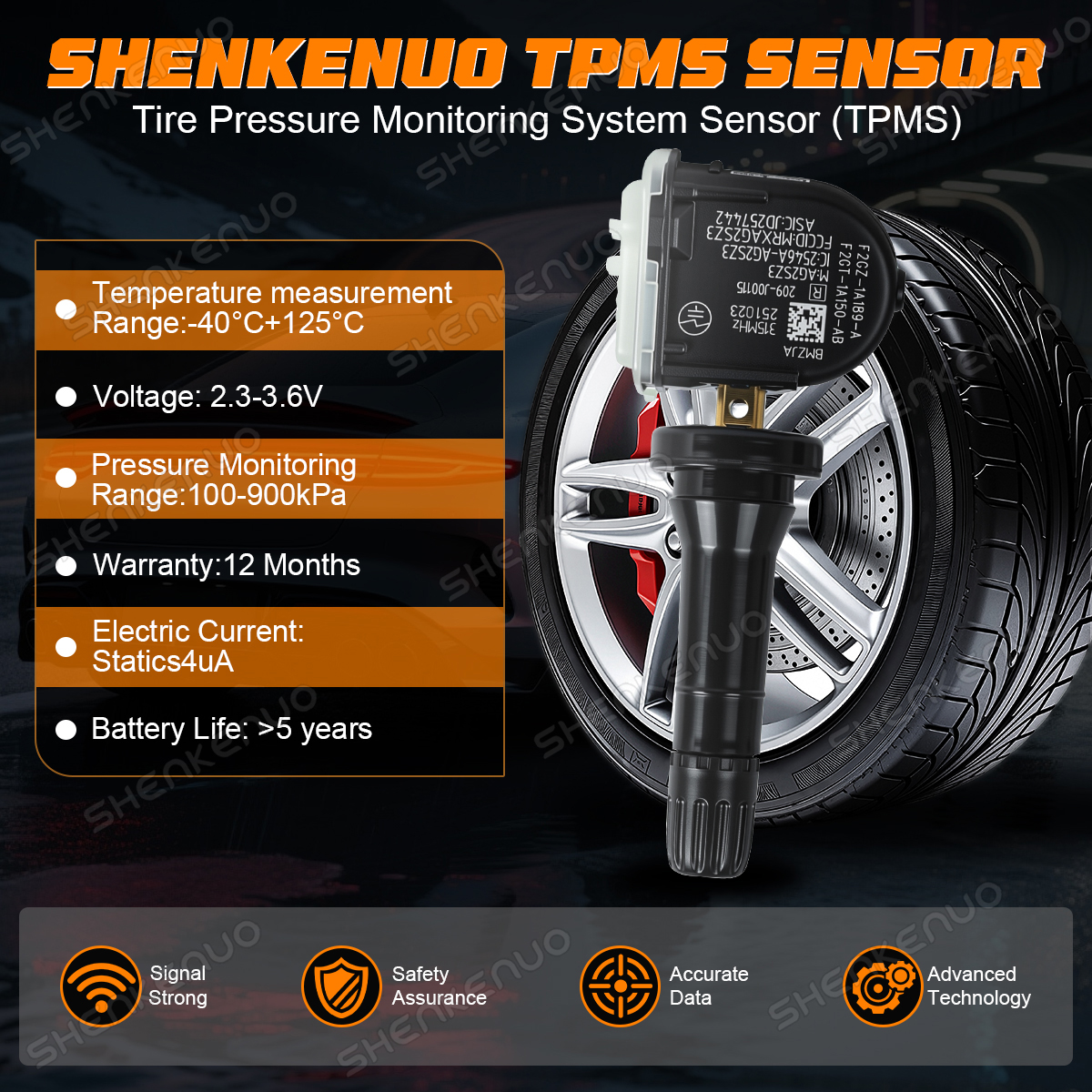

Specification:

Condition: 100% Brand New

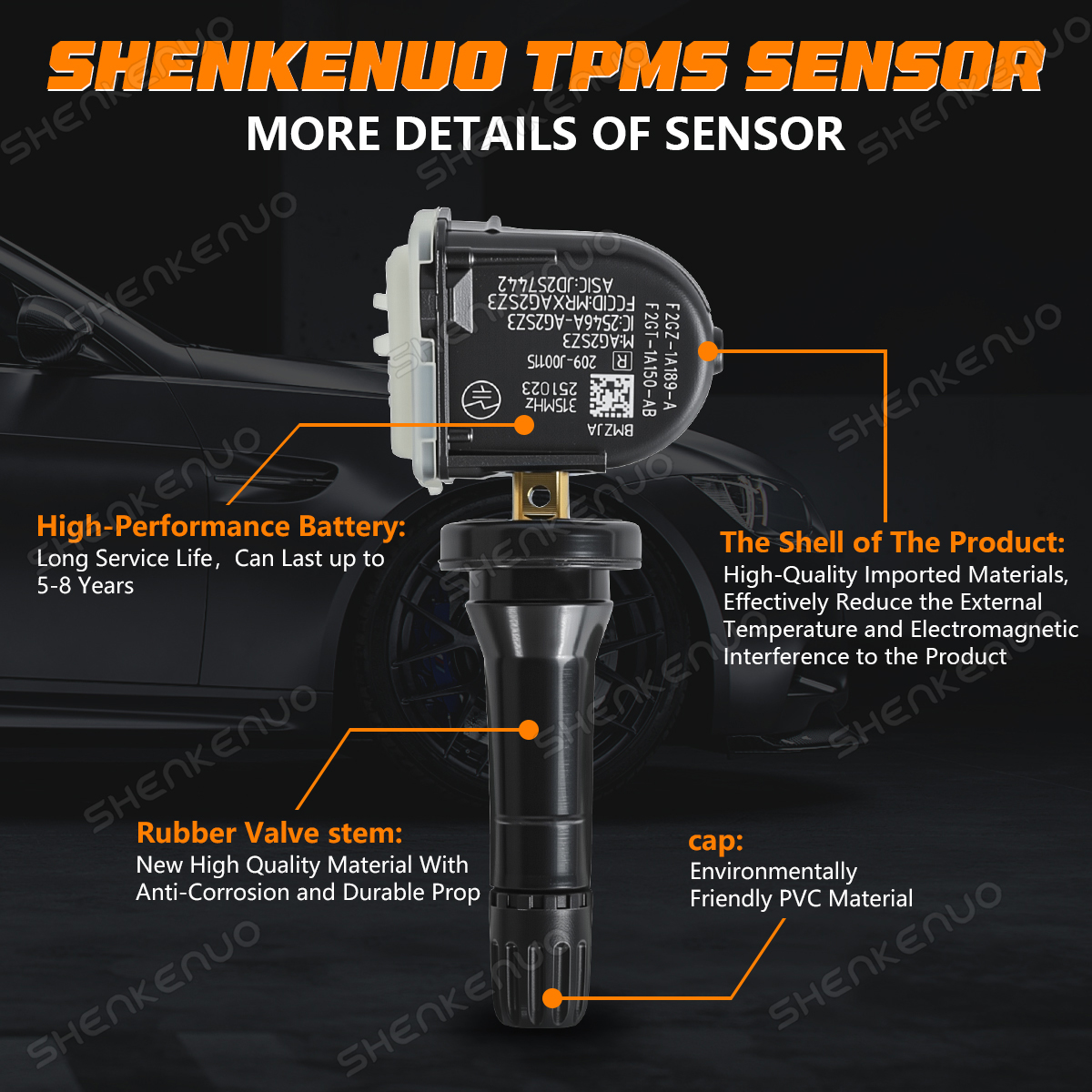

Material: Metal +Plastic

Color: Shown as picture

OE: F2GT-1A180-AB F2GT-1A189-AB

Interchange Part Number: F2GZ1A189A / F2GT-1A-180AB / FR3V-1A-180AB / F2GT-1A-150AB / FR3V-1A-150AB /（9L3T) / HC3T-1A180AB / 150AA

Quantity: 4pcs

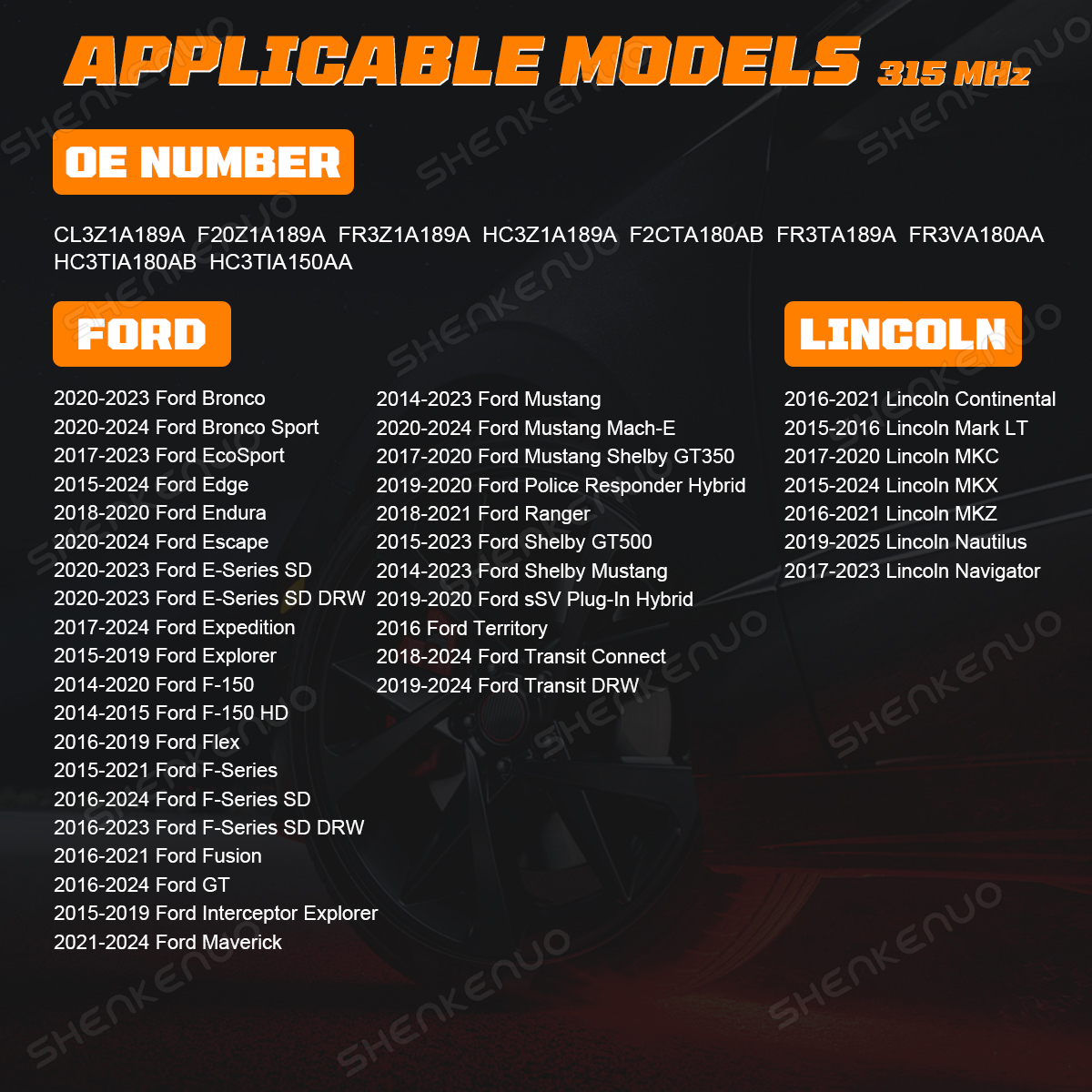

Fitment:

FOR 2015-2019  Ford F-150

FOR 2016-2019  Ford Explorer

FOR 2015-2019  Ford Mustang

FOR 2017-2018 Lincoln Continental

FOR 2017-2018 Lincoln MKZ

FOR 2016-2017 Lincoln MKS

FOR 2016-2018 Lincoln MKT

FOR 2016-2018 Lincoln MKX



Package Included:

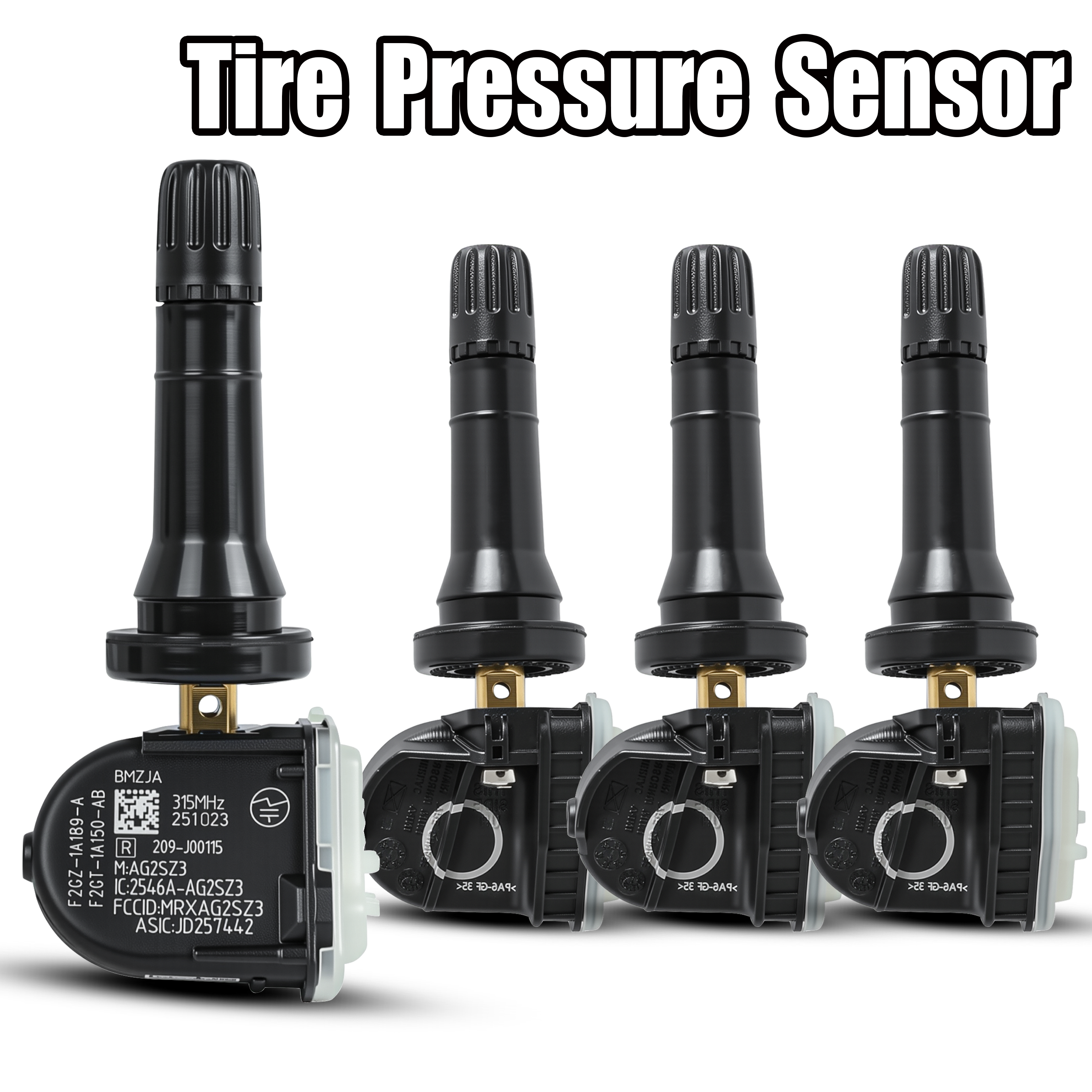

4 X Tire Pressure Sensor

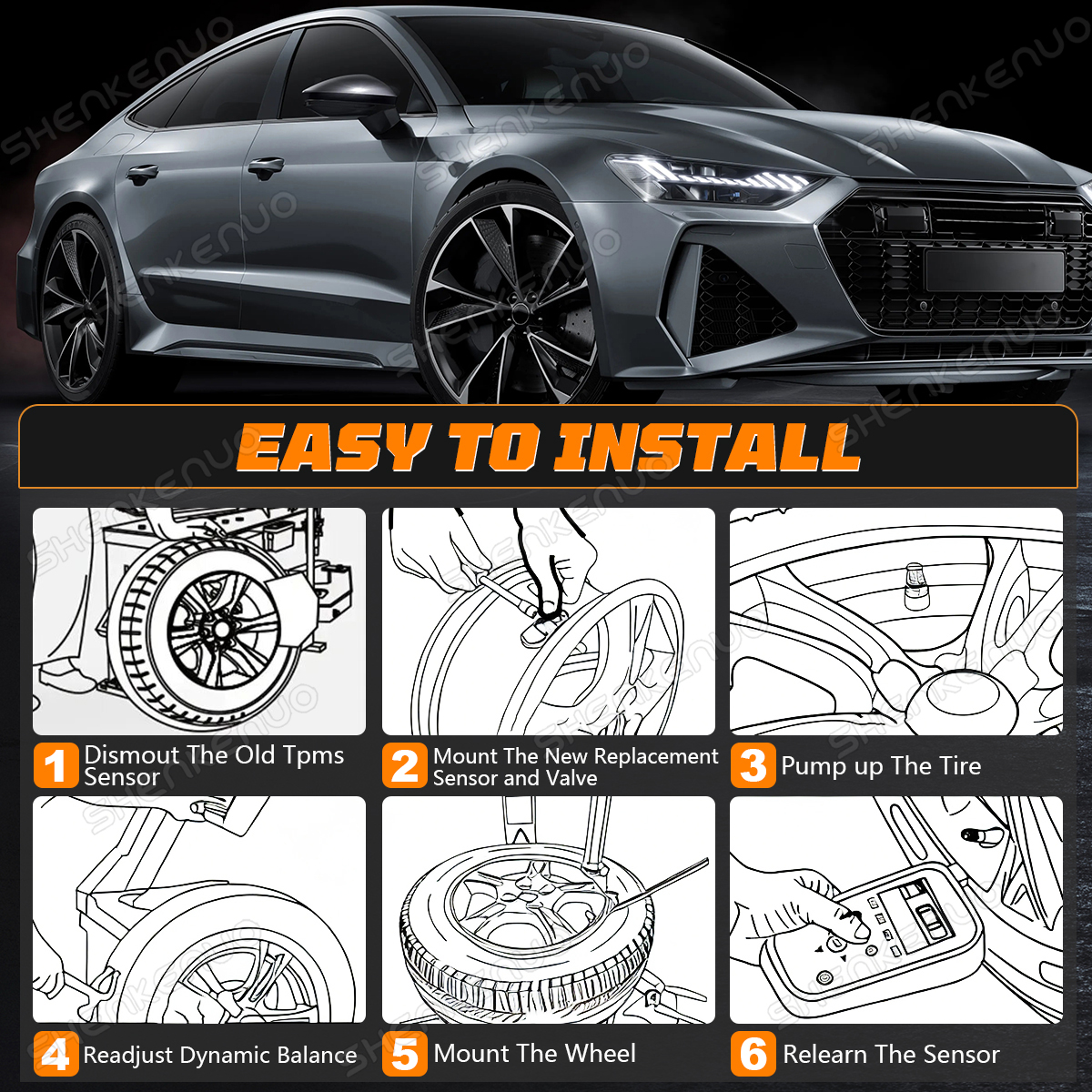

Optimized Installation Process:

1. Deflate the Tire:
   Remove the valve cap and core to fully deflate the tire.

2. Dismount the Tire:
   Secure the tire onto the tire changer and position the valve at the 1 o’clock position relative to the tire separation head. Use a tire tool to lift the bead over the mounting head and dismount the tire.

3. Remove the Sensor:
   Using a screwdriver, remove the fastening screw and sensor from the valve stem. Then loosen the nut and completely remove the valve.

4. Install the Sensor and Valve:
   Insert the valve stem through the valve hole on the rim. Secure the screw-nut with a torque of 4.0 Nm using a positioning pin for alignment. Attach the sensor body against the rim and tighten the mounting screw.

5. Mount the Tire:
   Position the tire onto the rim, ensuring the valve is oriented 180 degrees opposite the separation head. Carefully seat the tire bead over the rim edge.
