RSX EP3 Civic Si K20 GT35 Turbo Kit Sidewinder Manifold Wastegate 44mm Hot Parts




~~~WANSMOKE~~~

Fast Shipping, 100% Customer Satisfaction !

     WANSMOKE delivers top-tier performance parts at the industry's best prices. We never compromise on safety, using precision machining and high-standard manufacturing to build lift and leveling kits that last. While others lower their standards to lower their prices, we stay committed to quality. Choose WANSMOKE and lift your vehicle the right way.

     Introducing WS K-Series Side Winder Turbo Header Manifold, specifically crafted for high-output K20 and K24 engines. Designed for elite-level power delivery, this manifold generates massive midrange gains that hold strong all the way to redline. Whether you are building a dedicated drag car or a high-performance street machine, this manifold provides the immense torque and rapid spooling required for modern high-power applications.

GT35 Turbocharger
  • High quality material, cast housing with durable steel.
  • Exhaust (Turbo Manifold) Flange: T3 4 bolt pattern Flange.
  • Exhaust (Down Tube) Flange: 4 bolt pattern Down Tube flange.
  • Cooling Type: Water and Oil Cooled.
  • Bearing Type: Floating Bearing.
  • Horse Power: Boost Horse Power up to 600HP.
  • Turbine Inducer/Exducer: 68mm/62.4mm
  • Turbine A/R: 0.63
  • Turbine Trim: 84mm
  • Compress Inlet Size(Air intake): 4 inch (103.5mm)
  • Compressor Inducer/Exducer: 61.5mm/81.5mm
  • Compressor A/R: 0.7
  • Compressor Outlet Size: 2.5 inch (63.6mm)
  • Fitment Type: Performance/Custom
Sidewinder Manifold
  • Standard T3, T3/T4, T04e, GT30, GT35 Turbo Flange Configuration Outlet
  • Increase Engine Exhaust Output and Efficiency
  • Come with pre-weld 40 / 44(mm) wastegate flange.
  • Computerized Mandrel-Bended to Maximize Air Flow Smoothness
  • TIG Welded CNC Machined Flange for Resistance against Cracking and Wearing
External Wastegate
  • Internal base housing with forged stainless steel valves construction.
  • Fits any 44mm Tial Style Flange turbo manifold wastegate port with V-band pattern.
  • Ductile cast iron valve body to resist extreme temperatures and warping
  • CNC billet aluminum T6061 housing for heat disbursement.
  • Heavy duty actuator diaphragm withstands temperatures up to 490 degrees Celsius.
  • Comes with 12 psi spring installedOverall Tall - 4.75" / (120mm)
  • Overall Width - 3.75" (95mm)
  • Inlet Port ID - 1.73" / 44mm
  • Outlet Port ID - 1.57" / 40mm
Application:
  • 2002-2005 Honda Civic Si EP3
  • 2006-2011 Honda Civic Si FA FG
  • 2003-2006 Honda CR-V RD
  • 2003-2007 Honda Accord CM
  • 2002-2006 Acura RSX DC5
  • 2004-2008 Acura TSX CL9
K-Swap Chassis:
  • Perfect for EG/EK Civics, DC2 Integra, and CRX with K20, K24 swaps
Fitment:
  • Suitable for Garrett, Precision, Turbonetics...etc

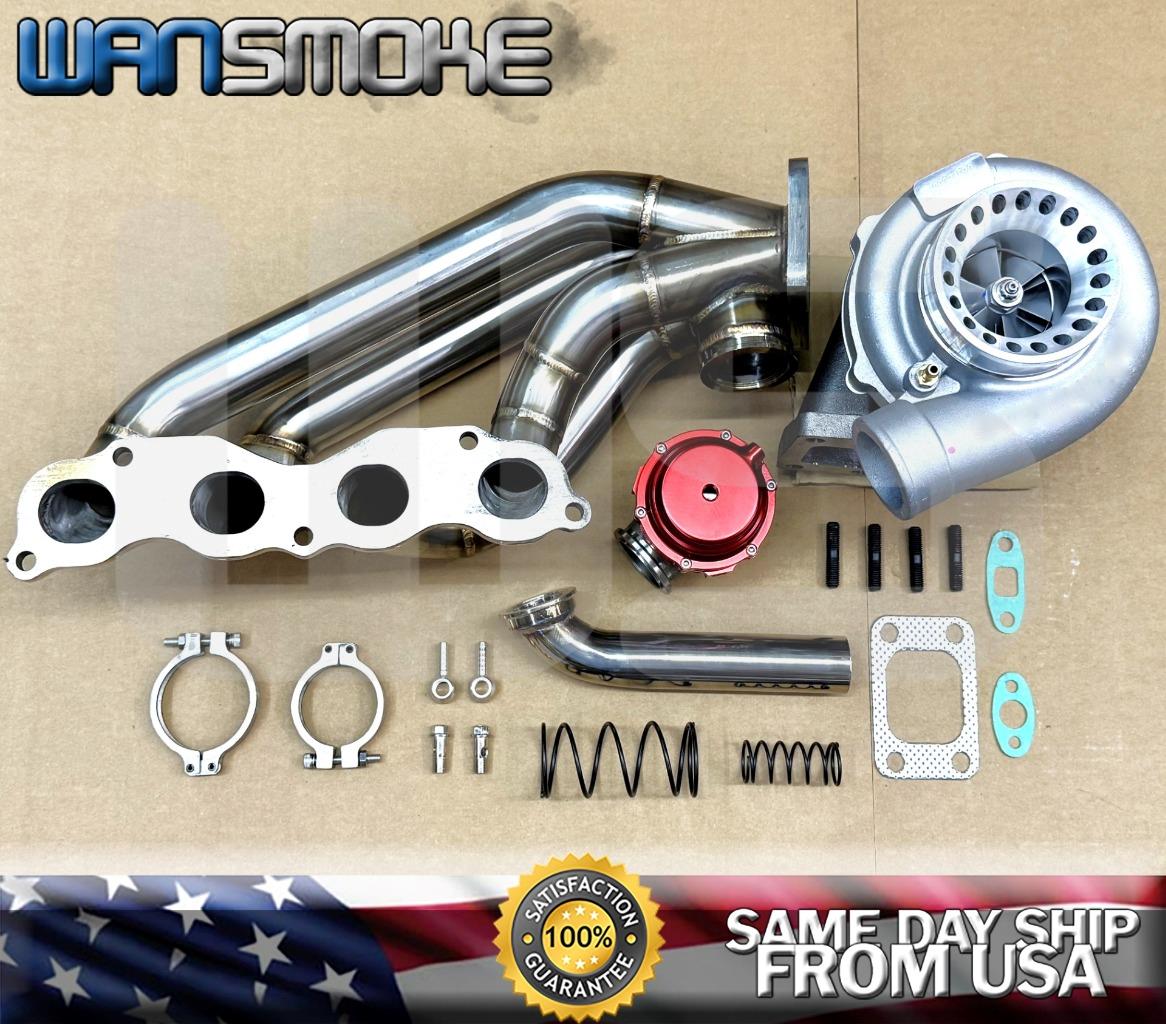

Item Content:
  • GT35 Turbocharger
  • Sidewinder Turbo Manifold
  • External Wastegate
  • Wastegate Dump Tube
Attention:
  • Compatible any vehicle with Honda K-series K20, K24 Dohc 4-Cylinder or engine swap.
  • AC & PS retention might require significant modification or re-routing the coolant components or accessory lines.
  • Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive.
  • Don't hassle to contact us if item stuck, unknown or fault installation !!




Purchase now for only $598.99!
