Model
Parameter
EPEVER WiFi 2.4G RJ45 D
Working voltage
5V± 0.5V(Powered by RS485 com. port)
Power consumption
Peak emission: 150mA; Idle: 310uA
Enclosure
IP30
Communication method
RS485
Communication parameters
115200Bps, 8N1
Interface standard
EPEVER communication standard V1-1.0
Work frequency
2.4 ~ 2.4835GHz
Work temperature range
-40℃~ 85℃
Dimension
63mm x 19mm x 10mm
Net weight
7.7g
- BluetoothModule: EPEVER BLE RJ45 D
PS : this item only can be use for epever brand item,can't be use for others.
| |||||||||||||||||||||||||
WiFi Adapter
EPEVER WiFi 2.4G RJ45 DOverview:

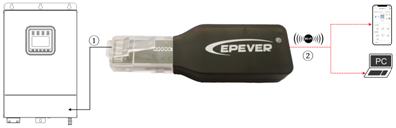

Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.
Features:
Applicable to EPEVER controllers, inverters, or inverter/charger with RJ45 port
Use immediately after connecting; easy and convenient operation
Directly powered by the communication port
Up to 20 meters of communication distance
Support the Local monitoring and "EPEVER Cloud" working mode.
Specifications：
Adoptingthe Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology,EPEVER BLE RJ45 D enables data collection, communication, and wirelessmonitoring of connected devices.
Features:
Support communication via phone APP
Support data encryption
Use immediately after connecting; easy and convenientoperation
Feature fast communication and strong anti-interferenceability
Directly powered by the communication port
Up to 10 meters of communication distance
APP Operation :
Note: Addthe Bluetooth module and the connected device to the cloud server by website (https://hncloud.epsolarpv.com) or APP.Then you will be able to monitor the device and set parameters by PC or APP(the following takes APP as an example).
Specifications :
Parameter | EPEVER BLE RJ45 D |
Working voltage | 5V± 0.5V (Powered by RJ45 port) |
Power consumption | Average: 5V@10mA; Peak: 5V@60mA |
Communication distance | ≤ 10m |
Serial port baud rate | 115200bps |
Communication method | RS485 to Bluetooth |
Connection port | RJ45 |
Bluetooth protocol | Bluetooth 5.0 |
Dimension (L x W x H) | 63mm x 19mm x 13.8mm |
Work temperature | -20℃~70℃ |
Enclosure | IP30 |
Net Weight | 8.0g |
