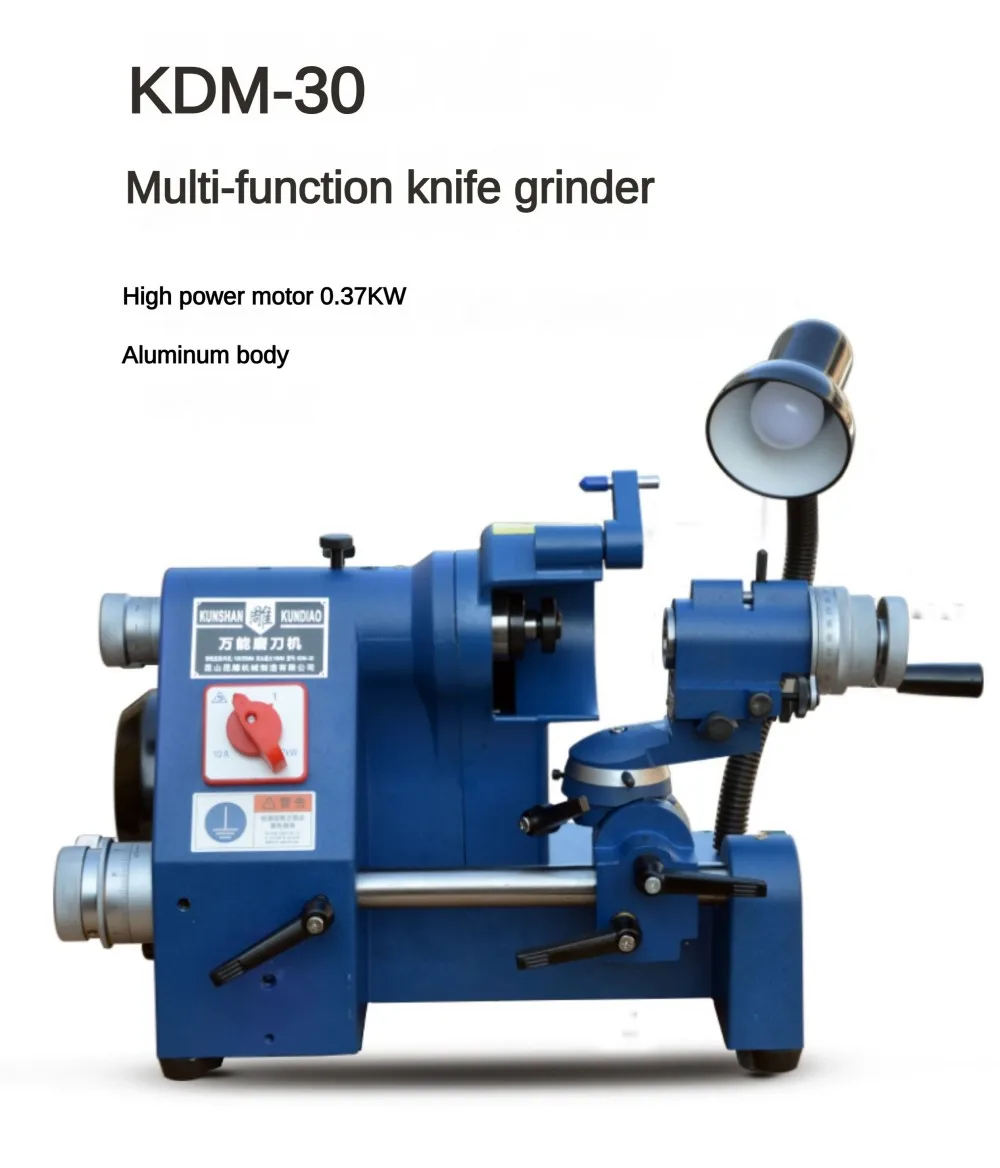

KDM-30 Full Automatic Metal Cutter Grinder Mill Universal Grinding Machine 220V

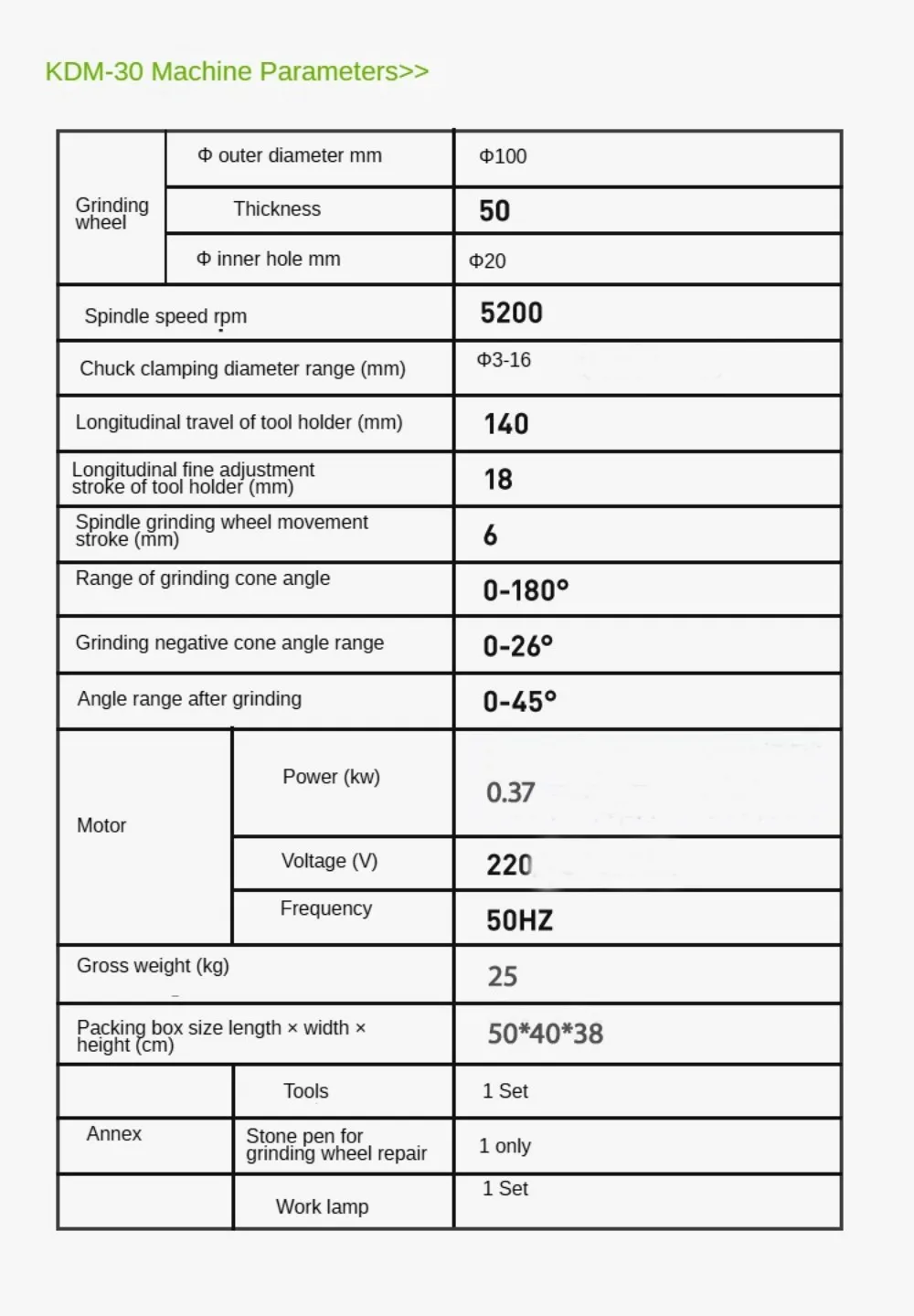

Product Name : KDM-30 Sharpening Machine
Product voltage: 220V
Product power: 370W
Frequency: 50Hz
Spindle speed: 5200rpm
Spindle accuracy: 0.01mm
Clamping diameter range: 3-16mm
Longitudinal travel stroke of the turret is 140mm
Longitudinal fine adjustment stroke of the tool holder: 18mm
Spindle grinding wheel moving stroke: 6mm
Cone angle range: 0-180°
Grinding negative taper angle range: 0-26°
Grinding angle range: 0-45°

The grinding machine is the supporting equipment of the machining center, which can be used for grinding, engraving, milling machine, engraving machine, computer engraving machine, marking machine and other engraving sharp knives, round knives, straight shank milling cutters, engraving knives, and die pins with various diameters, shapes and angles according to the engraving ratio.

It can grind various types of HSS and carbide engraved struts, such as semicircular or anti-cone angles, as well as single or polygonal struts. The grinding head can be operated in 24 positions, making it easy to grind any angle and shape.
