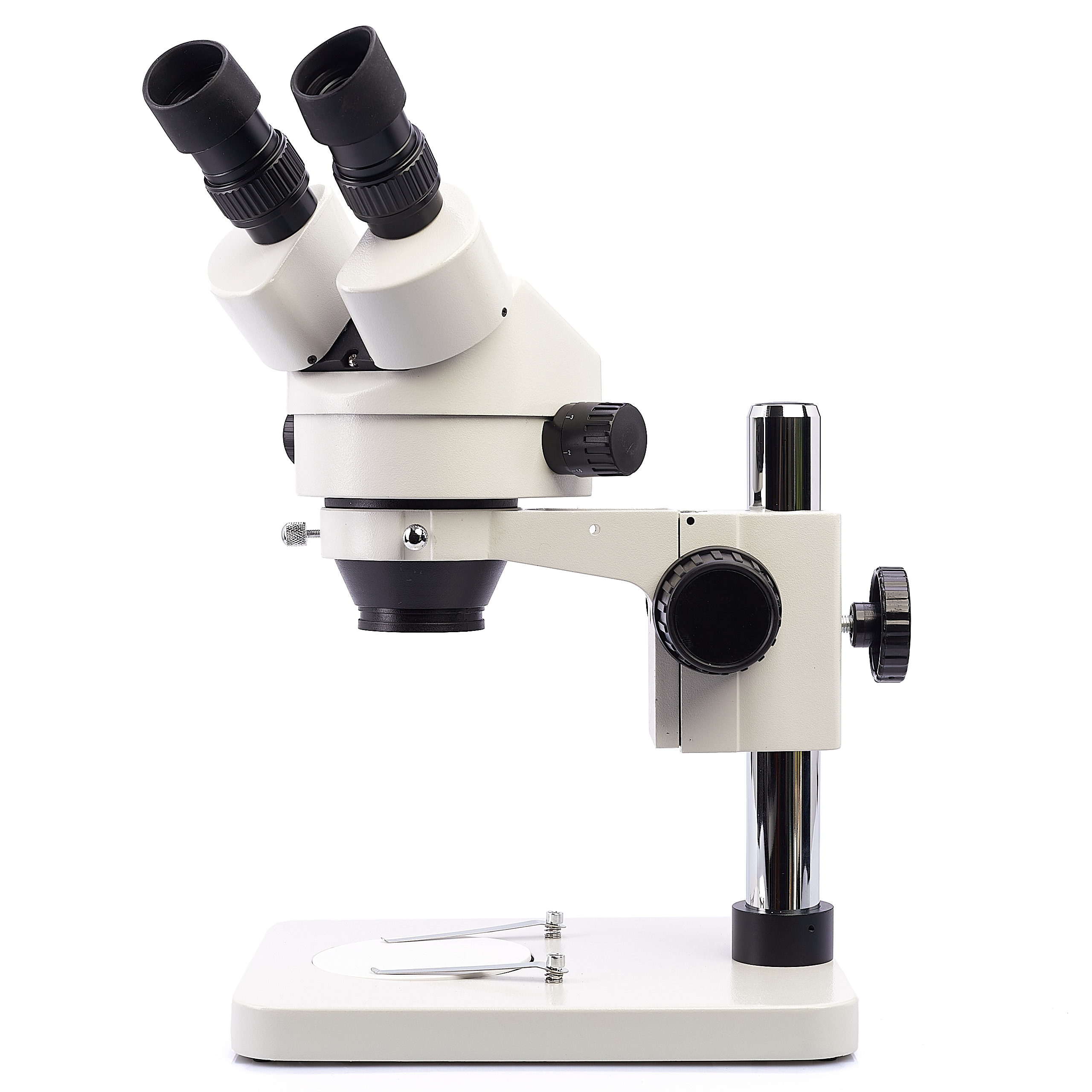

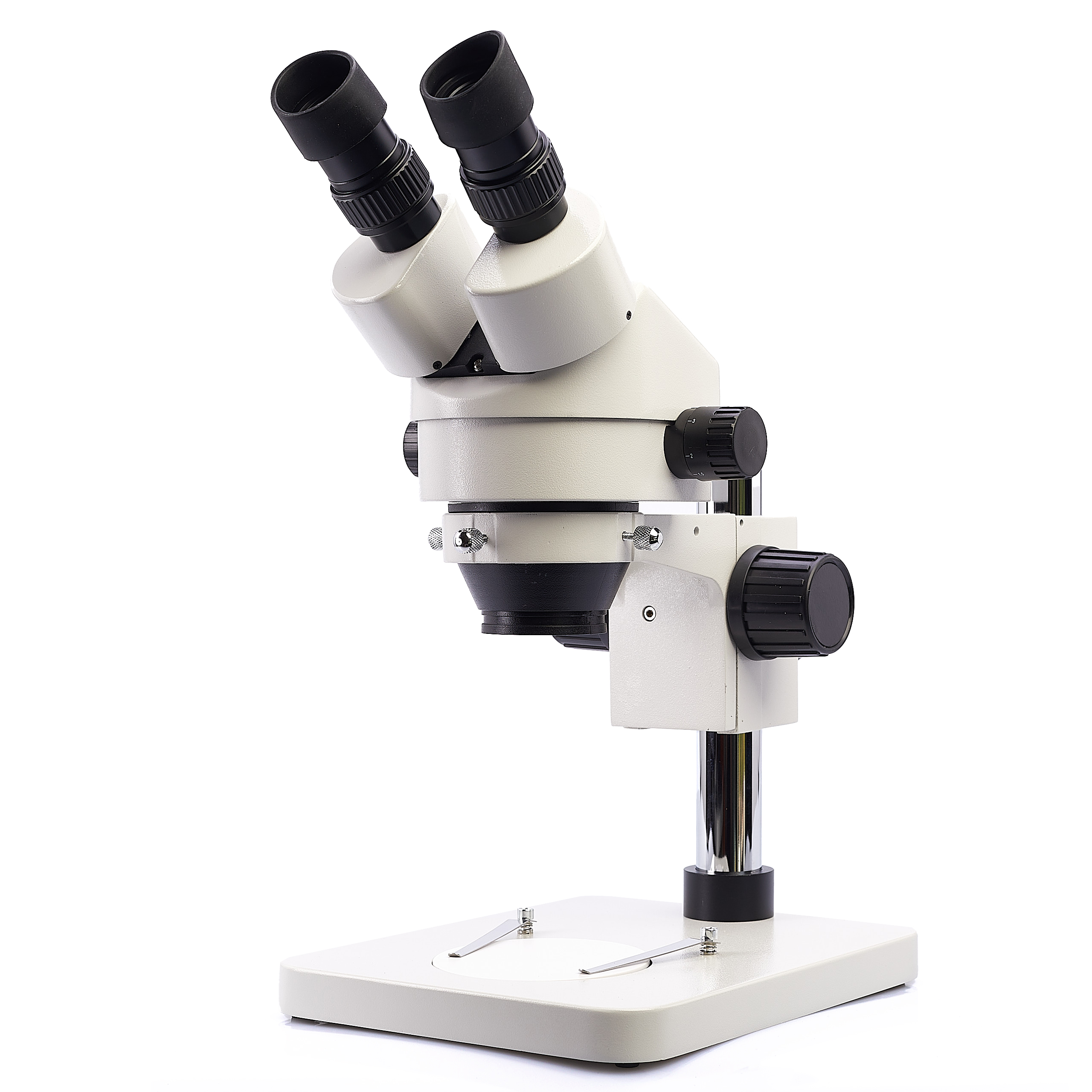

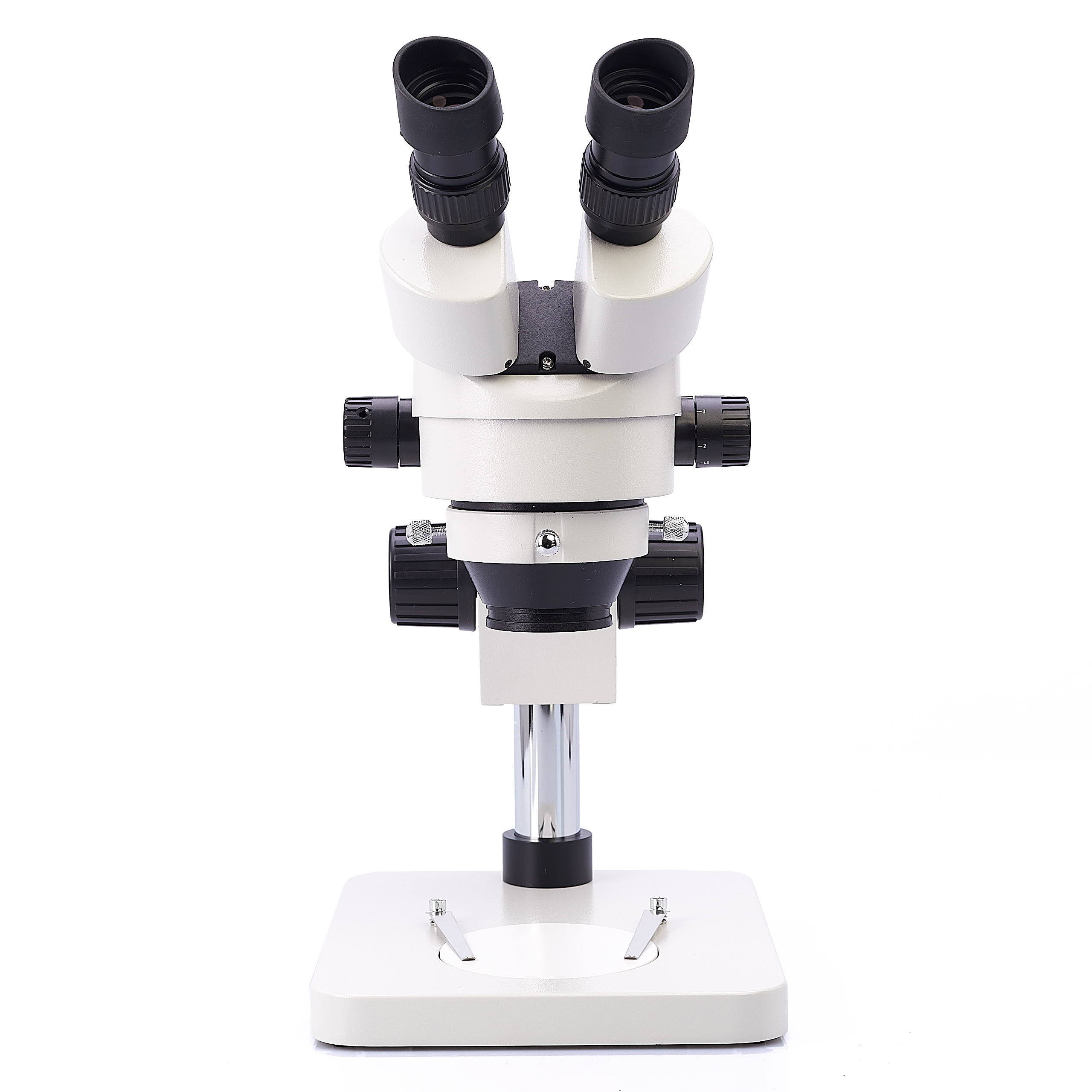

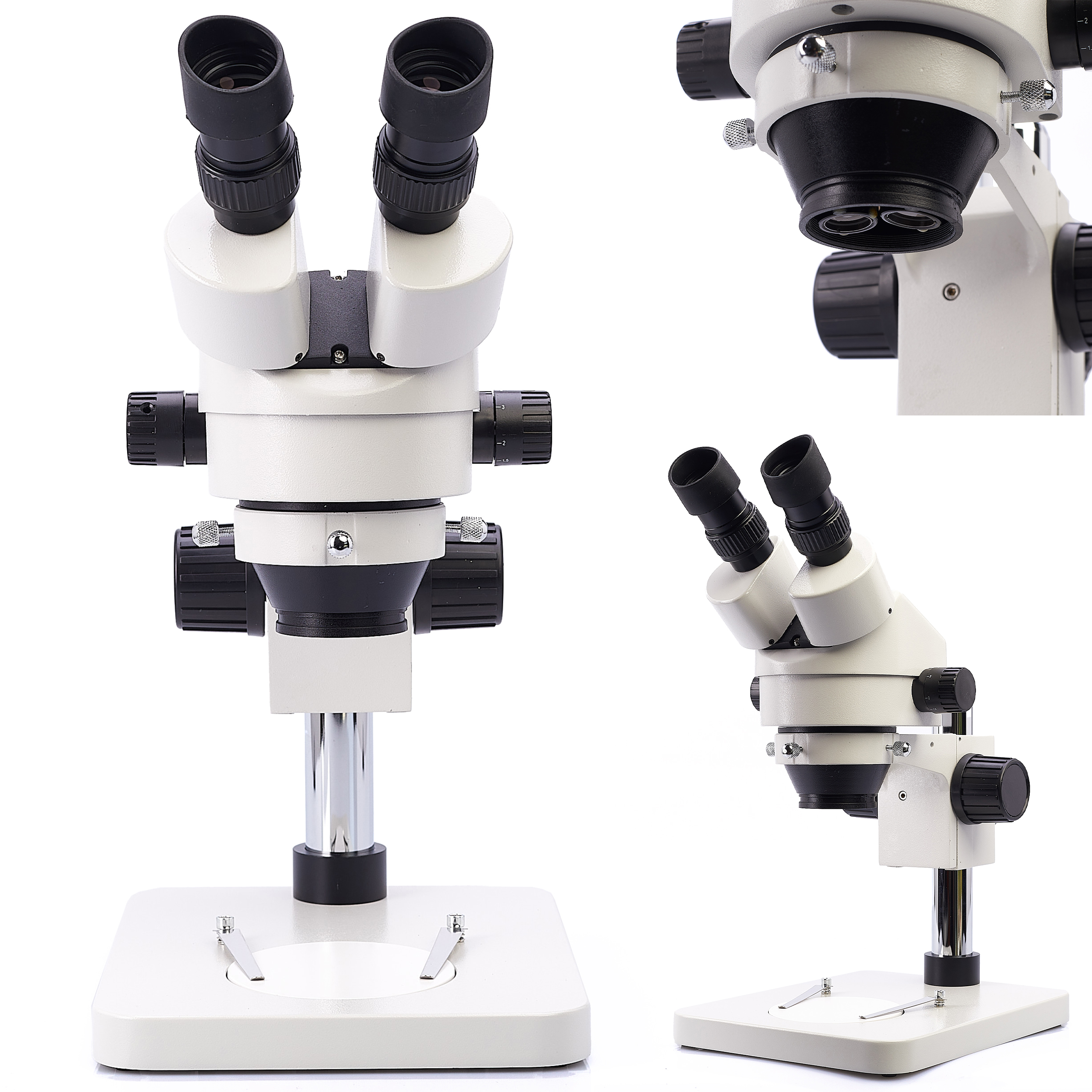

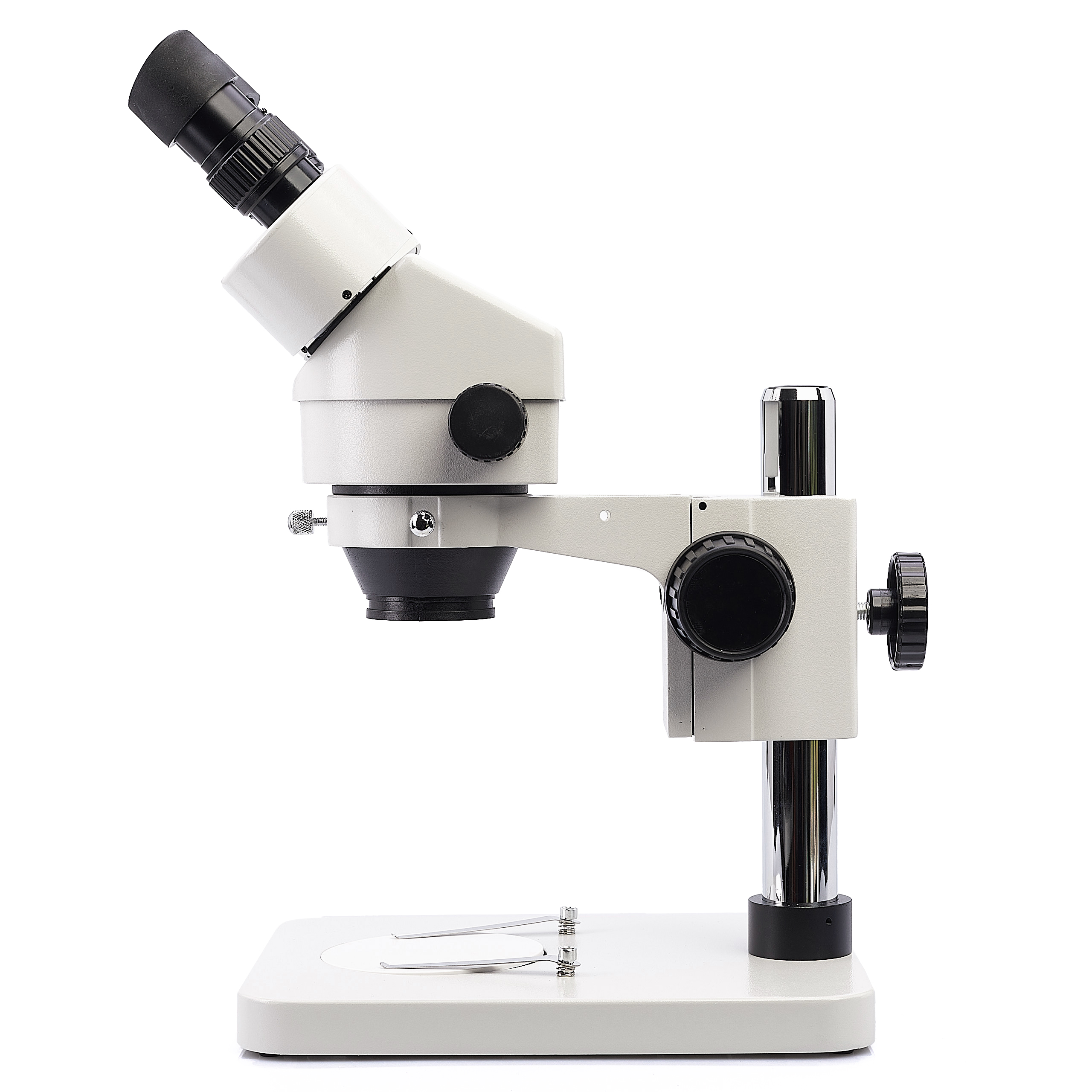

Binocular microscope Techrebal 10F 7-45X

✅ Professional microscope for work

✅ Prolonged observation without eye fatigue

✅ Large working space between objective and head for sufficient working space

✅ Free manoeuvring of the instrument during work

✅ The optical system of this model is made of high-quality glass with special coating so that the image is sharp and colours are natural

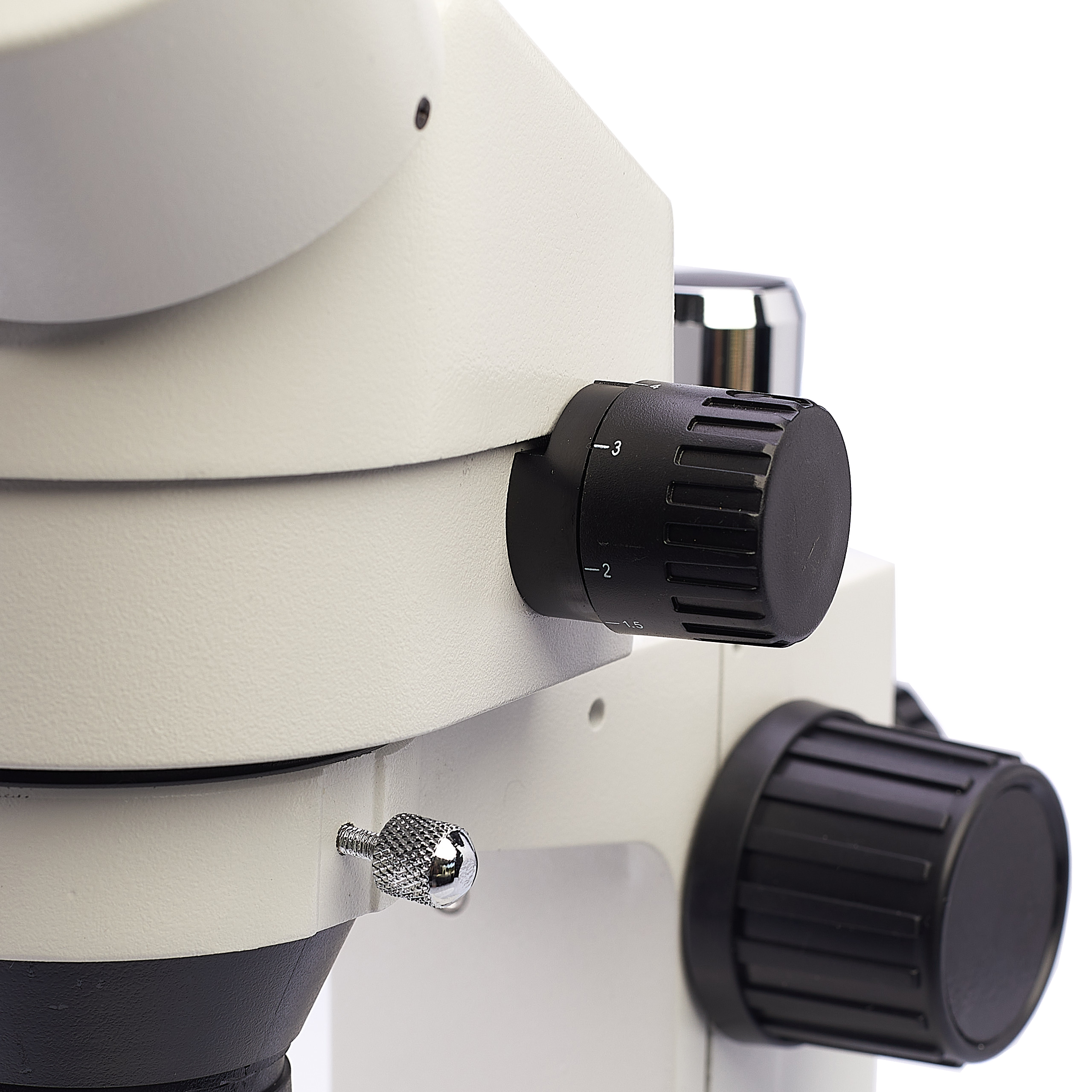

✅ 7 x-45x zoom range

✅s wivelling head with360° rotation capability

✅ Dioptric adjustment for both eyepieces

✅ Adjustable pupil distance to suit your eyes

✅ Metal base with clamps included

✅ Possibility of expanding the working space by using appropriate lenses

❎ This enables long observations without unnecessary muscle strain and eye fatigue, compared to ocular microscopes.

High-quality optical glass elements. Designed to meet the requirements of modern professional microscope applications.

❎ The microscope is ideal for professional electronic repairs and occasional observation by biologists, geologists, jewellers and others.

❎ The object can be viewed in 3D, more detailed observations can be made and its dimensions can be measured precisely.

❎ Thelarge working distance allows both flat slides and larger objects to be examined.

❎ For even more comfortable observation, the table can be turned with the white or black side facing up.

❎ The specimen is held in place by useful clamps.

❎Application example:

✔️ Soldering of electronic components

✔️ industrial inspection,

✔️ inspection of computer components,

✔️ inspection of a telecommunications module,

✔️ learning tool

✔️ laboratory analysis,

✔️ medical analysis,

✔️ school research tool,

✔️ insect research,

✔️ plant research,

✔️ skin testing,

✔️ textile inspection,

✔️ jewellery inspection,

✔️ inspection of collections/coins,

✔️ inspection of prints.

Technical data:

✅ Head: 360° rotating, binocular, 45° inclined.

✅Optical system material: glass

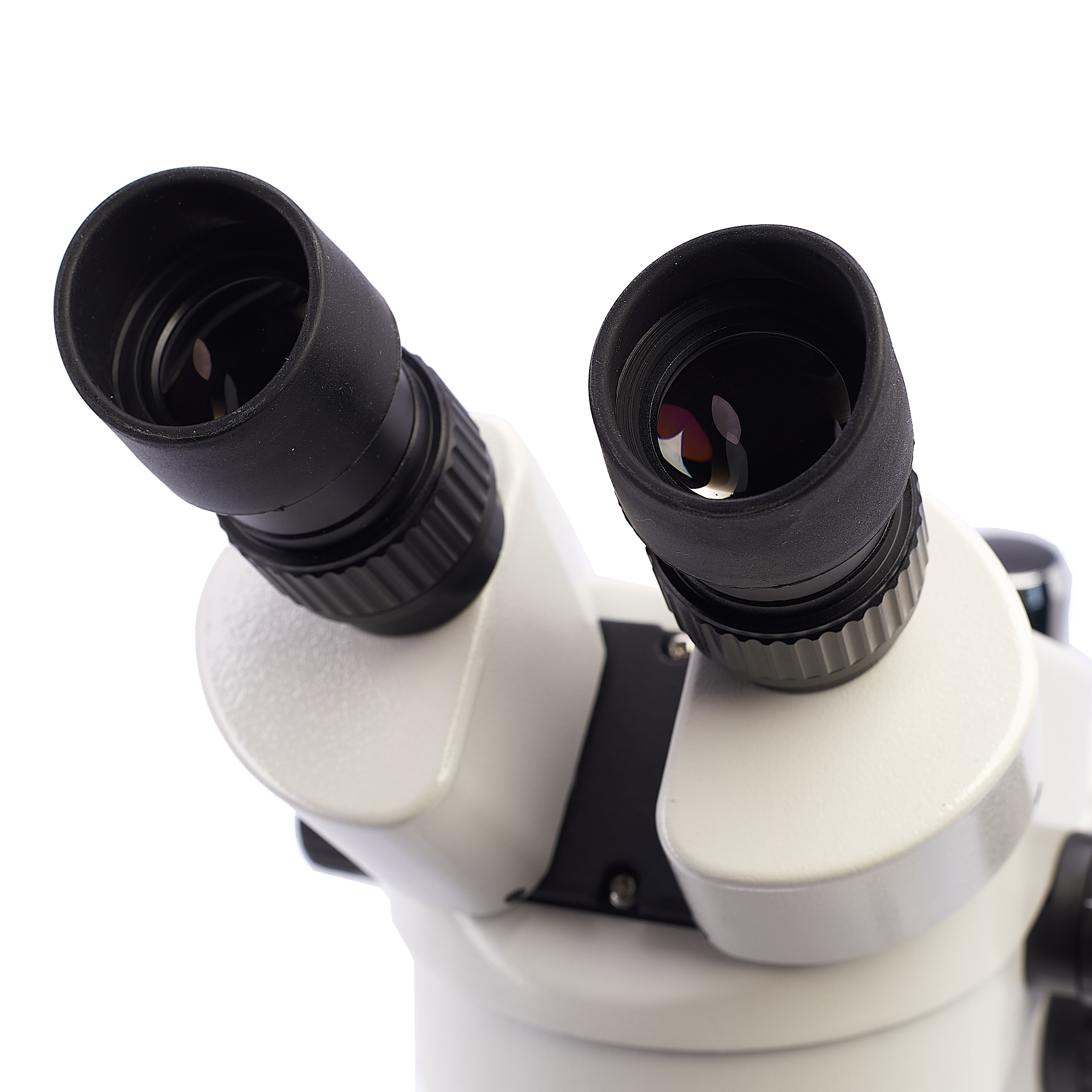

✅Ocular: standard configuration: 10X / 20MM, wide field of view.

✅ Magnification (x): 7-45

✅ Working distance (mm): 100 mm

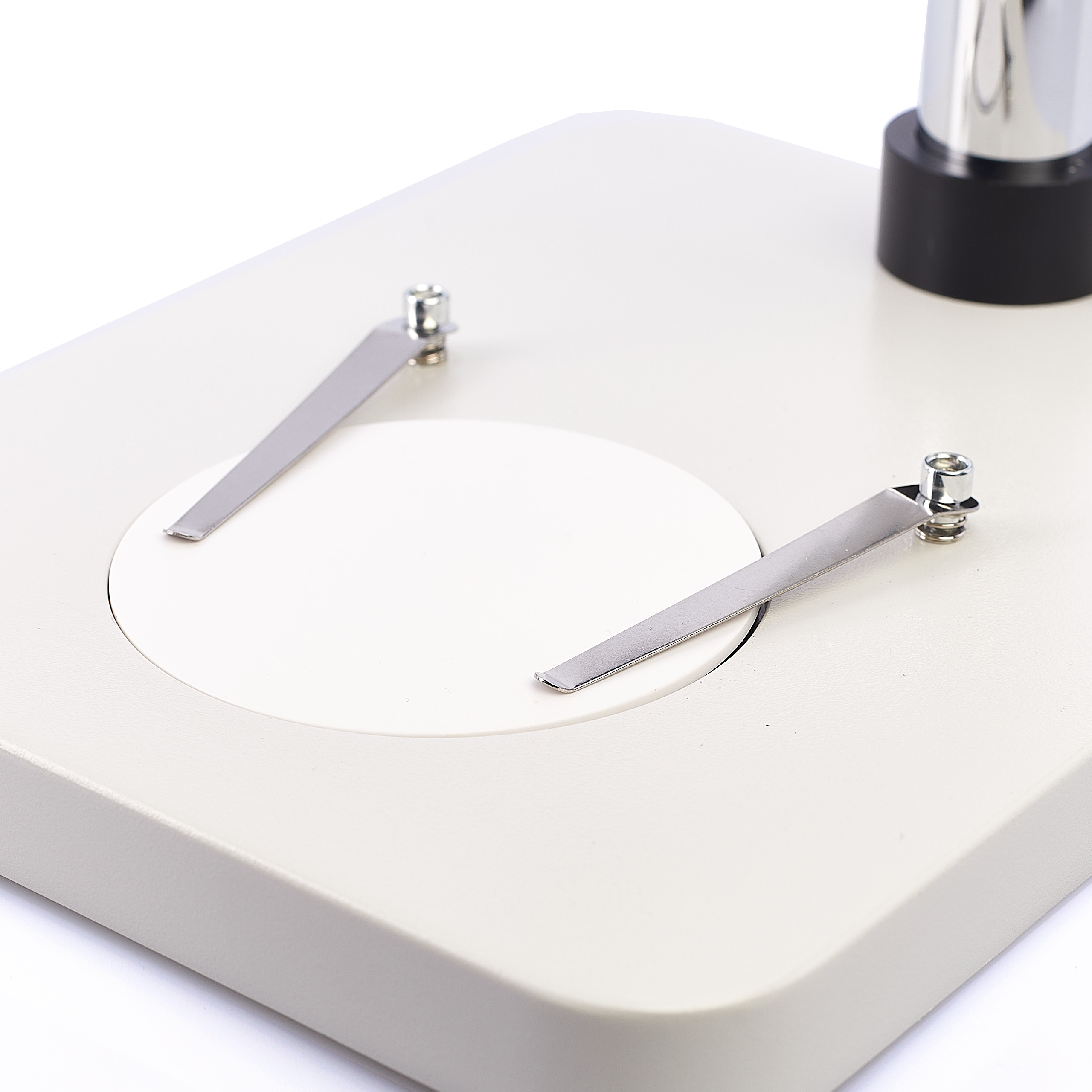

✅Table: semi-opaque heat-resistant metal with clamps, interchangeable black and white plate, plate diameter 95 mm

✅ Field of view with 7x magnification: 28.6 mm

✅ Field of view with 45x magnification: 4.4 mm

Kit contents :

1️⃣ Stereo complete binocular microscope Techrebal 10F

2️⃣ Binocular head

3️⃣ Two WF10X/20 eyepieces

4️⃣ Heat-resistant semi-matt metal table

5️⃣ Interchangeable black and white plate

6️⃣ Rubber eyepiece lenses

❌ DO YOU NEED A MICROSCOPE WITH SPECIAL FEATURES AND SPECIFICATIONS?

❌ WE WILL BE HAPPY TO LISTEN TO YOU AND OFFER YOU A PRICE, WITH THE POSSIBILITY OF SELECTING ANY COMPONENT, BASE, HEAD, OBJECTIVE, EYEPIECES, CAMERA OR BACKLIGHT!

❌ WE WILL ADVISE YOU ON THE CHOICE OF EQUIPMENT ACCORDING TO PURPOSE :)

❌ The microscope has the possibility to expand the working space, by using the appropriate objectives you can even achieve several times the working space or magnification offered. Such accessories are available in our range.

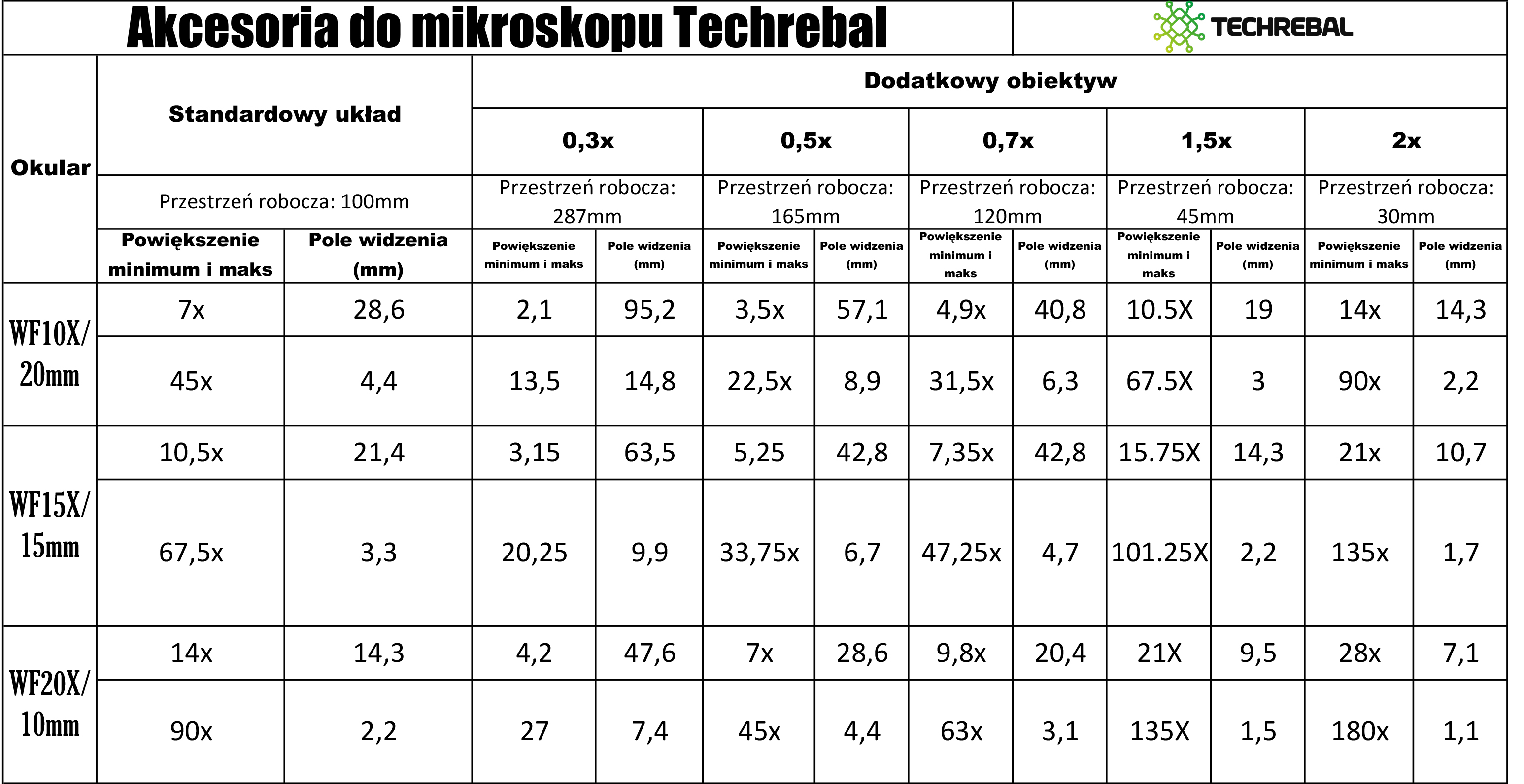

❌ The table above shows the possibility of expanding the microscope using an additional objective or eyepiece, available from us.

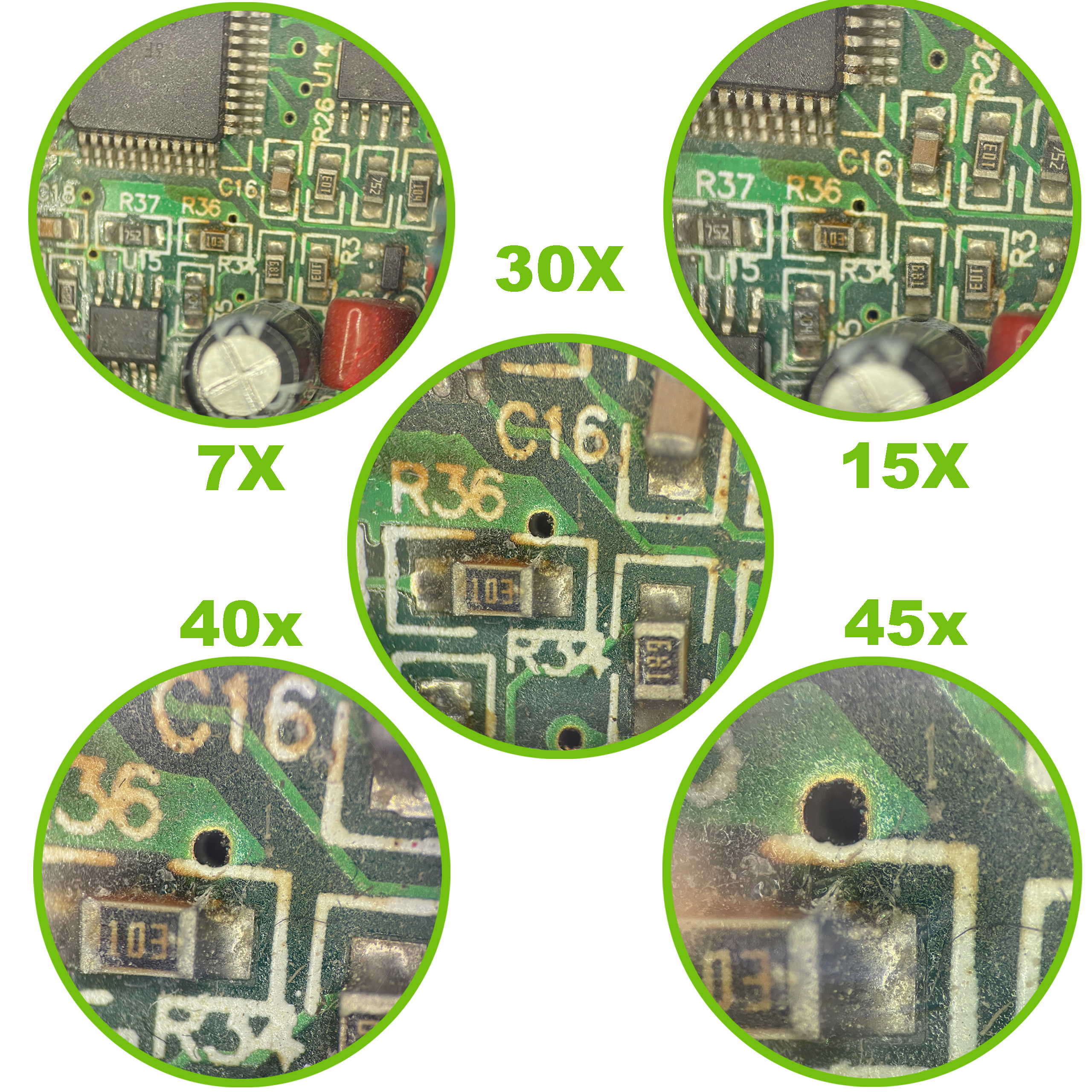

❌ Below is a picture showing the various magnifications we can observe through the microscope eyepieces in real life. In the standard configuration we have 10 cm between the object and the microscope head.
