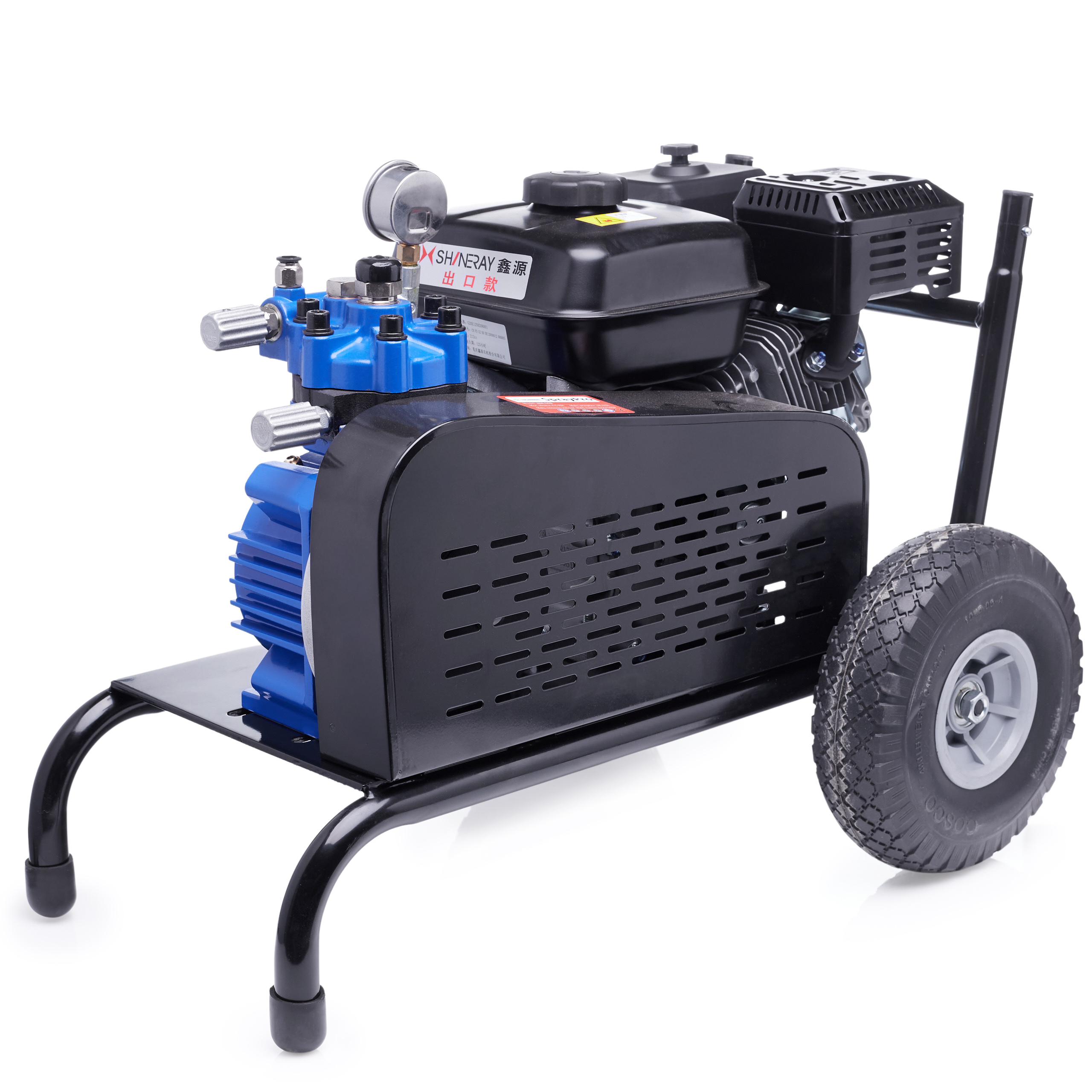

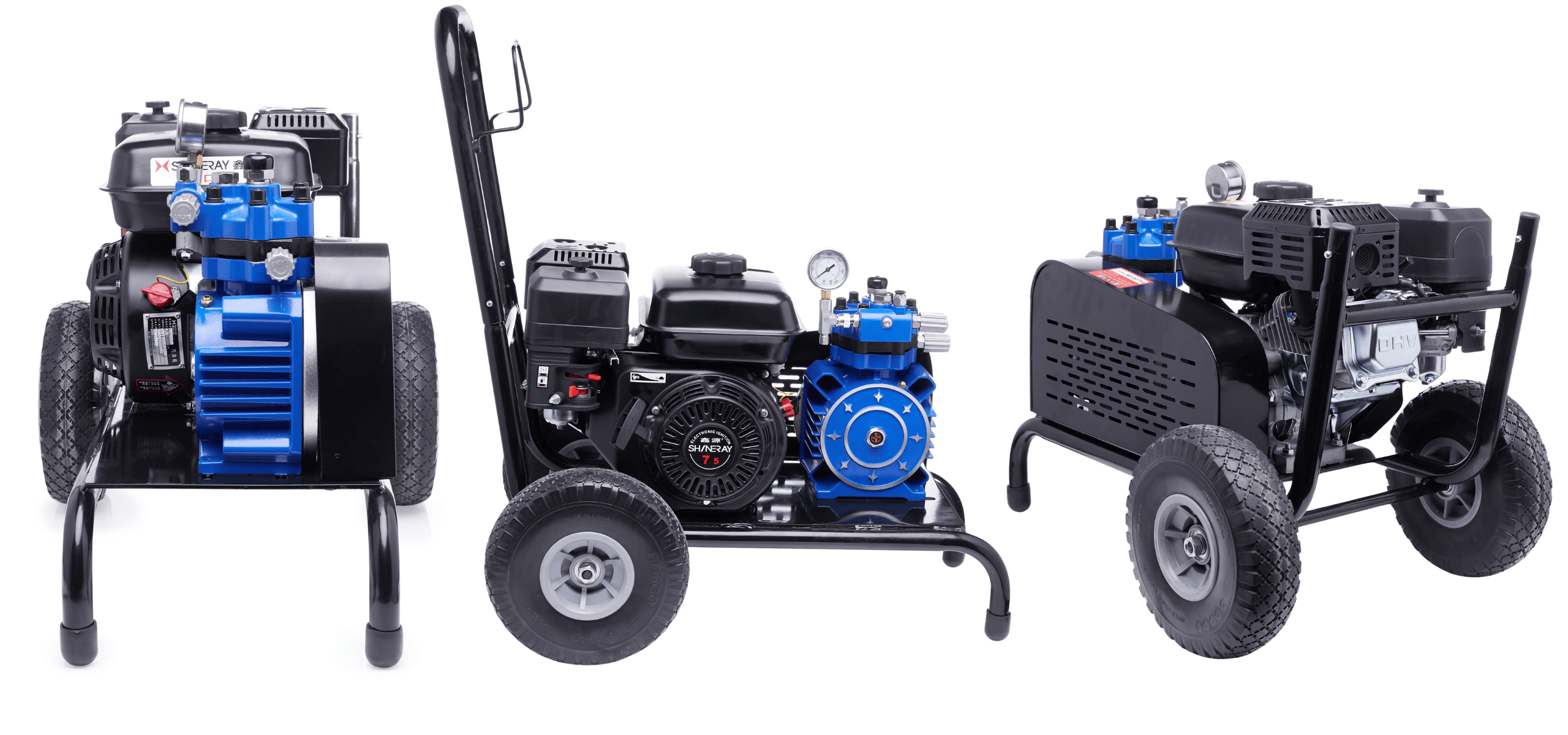

COMPACT HYDRODYNAMIC PAINTING AGENT 488 GTB up to 18l/min hose 10m lance 50cm nozzle 517

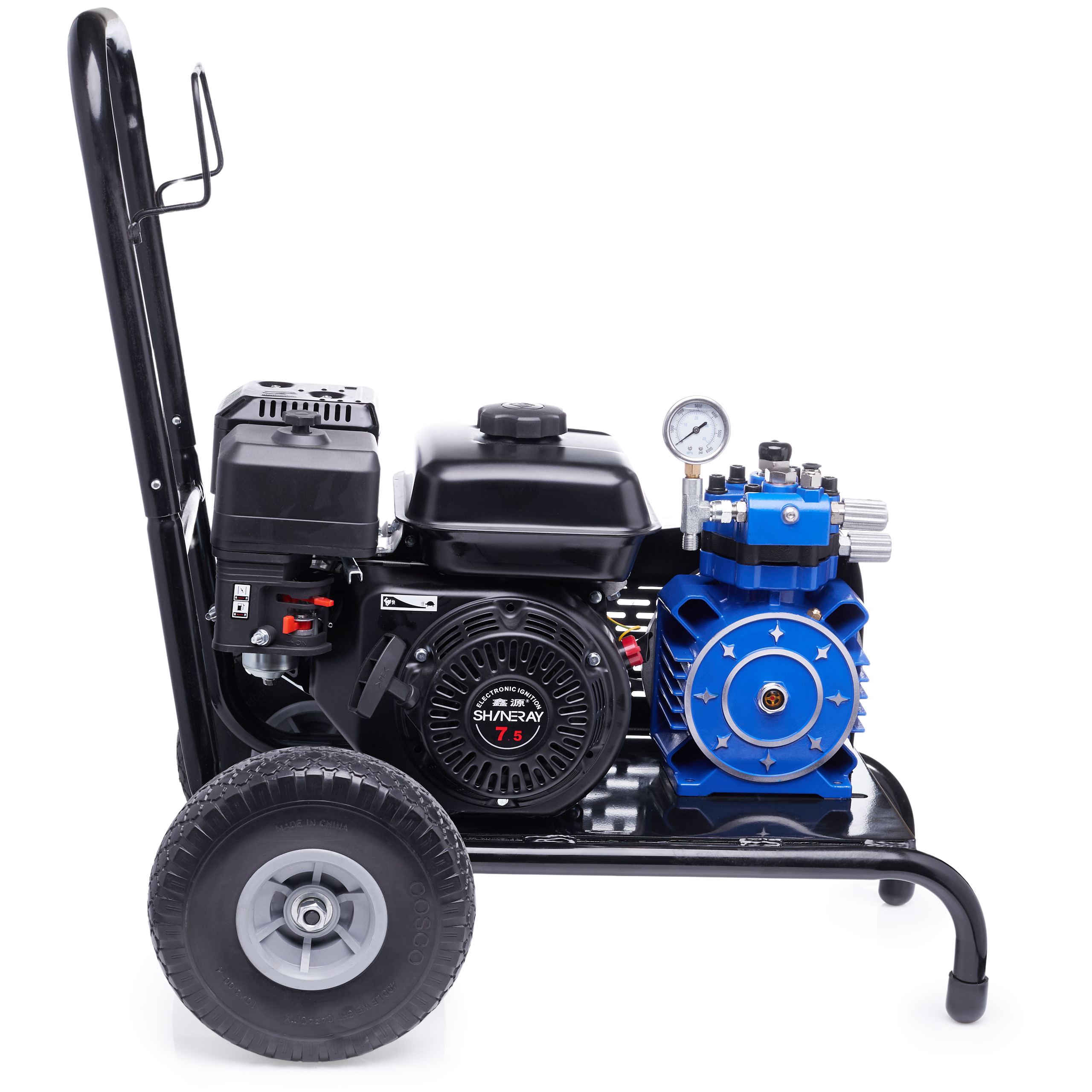

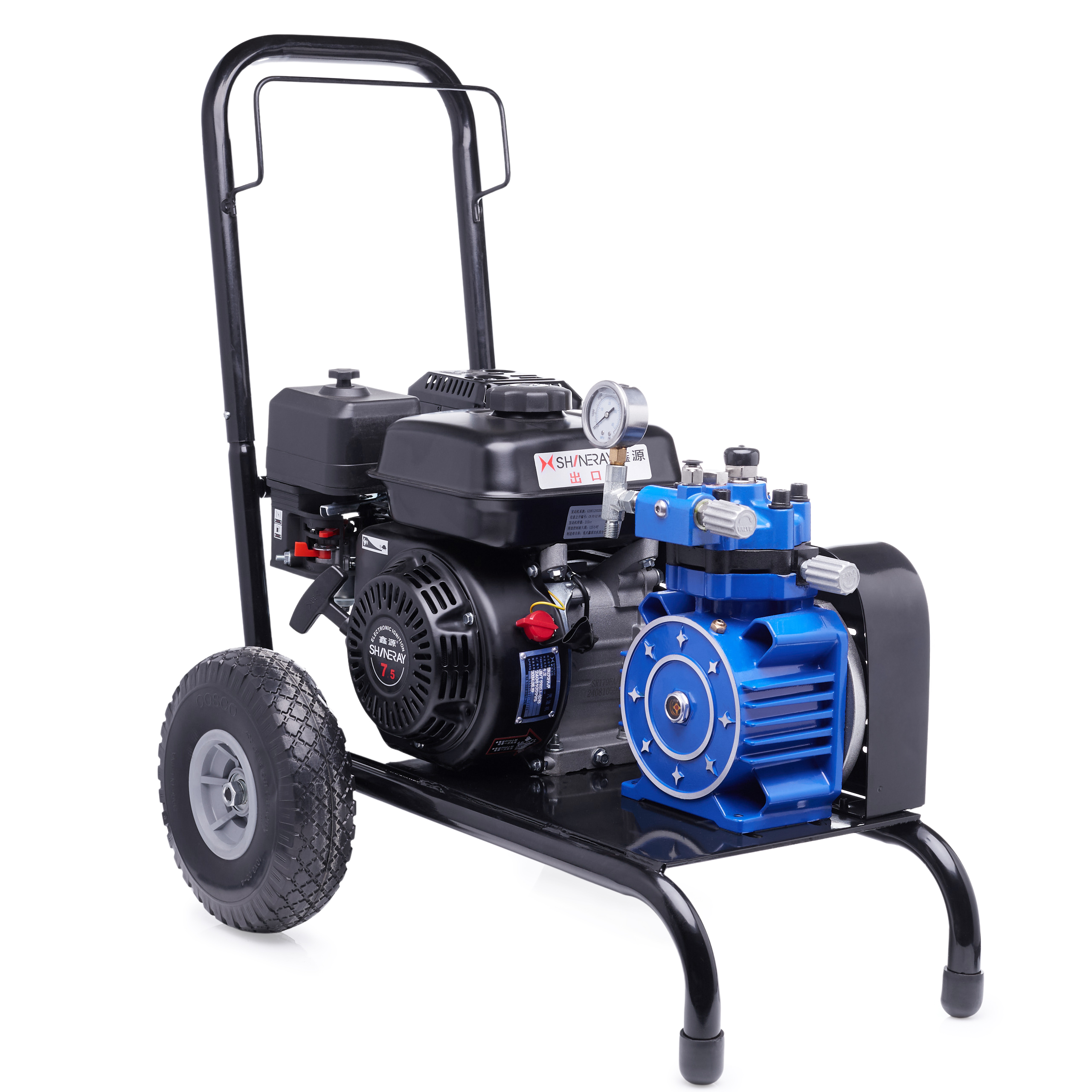

The 488 GTB is a fully professional, efficient and reliable unit ideal for painting large areas. The petrol-powered unit eliminates the need for access to electricity, allowing you to work anywhere, even on construction sites or outdoors. The powerful 6.5 HP engine ensures stable and uninterrupted operation, guaranteeing uniform paint coverage. The robust construction and high performance make it an excellent choice for professionals and demanding home users alike.

❇️ Product features:

✅ Power source independence - The petrol power unit runs on petrol fuel, allowing use in areas without access to electricity, such as construction sites, sheds or outdoor areas.

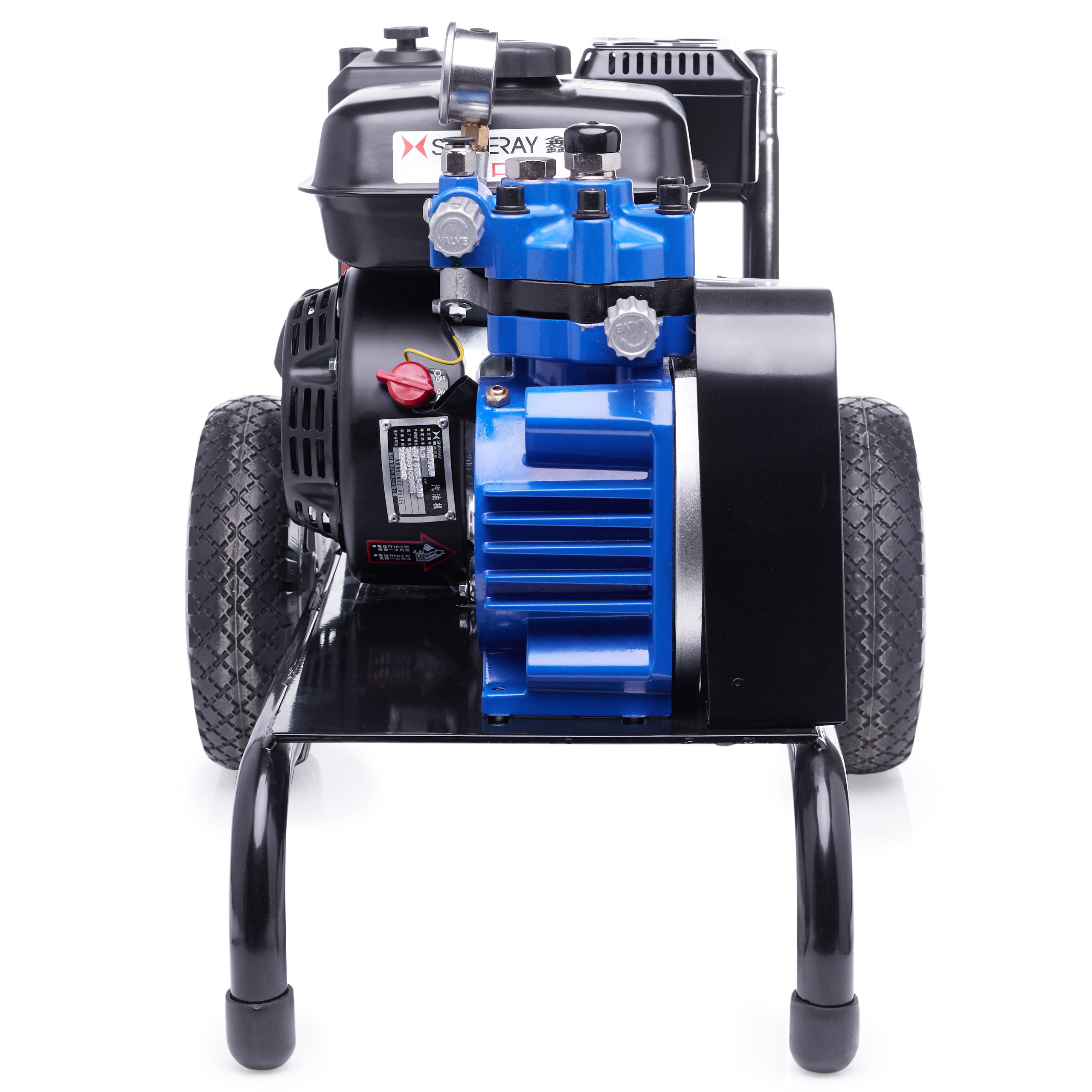

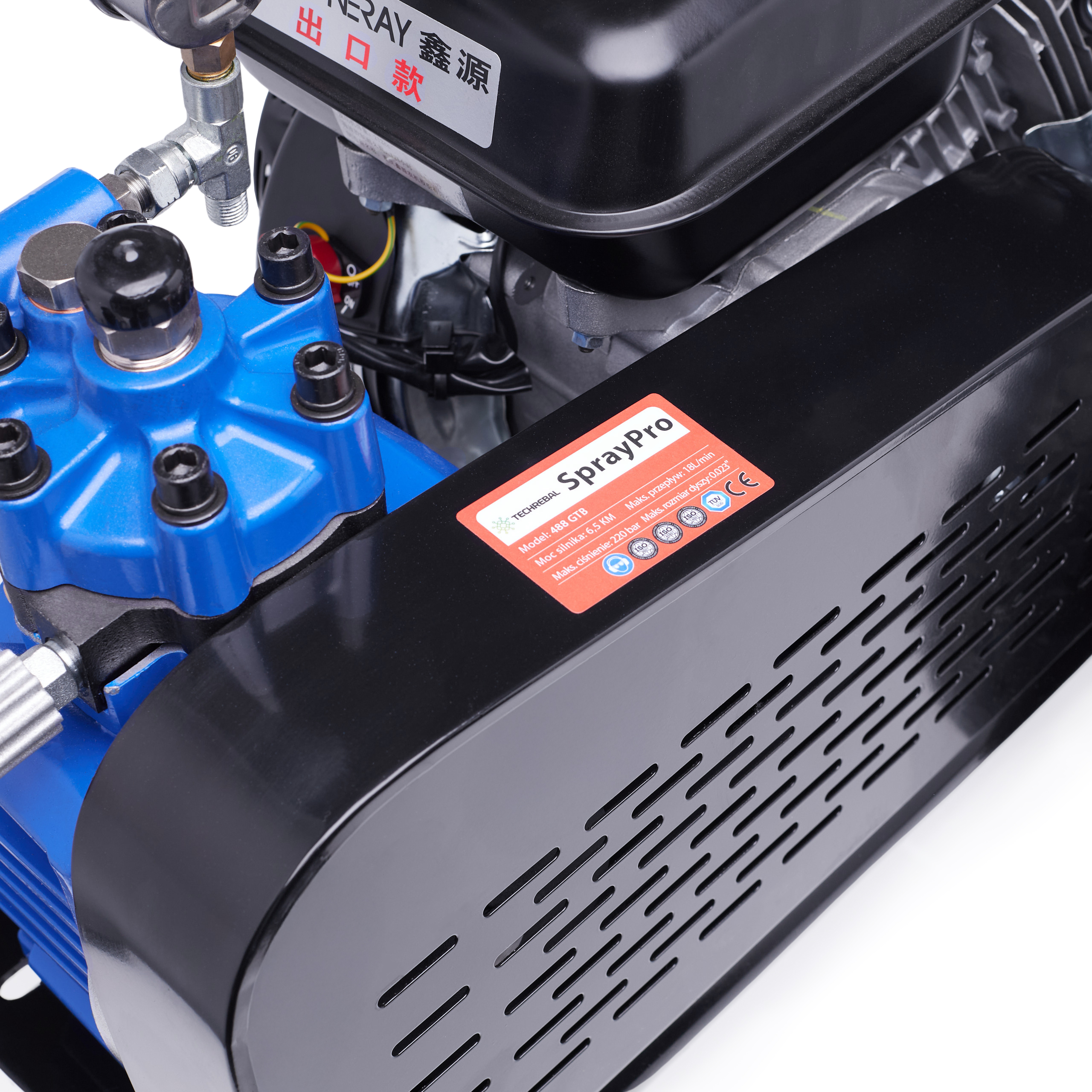

✅Stainless steel diaphragm pump housing - The robust stainless steel construction ensures high strength and corrosion resistance, making the diaphragm pump ideal for the harshest operating conditions.

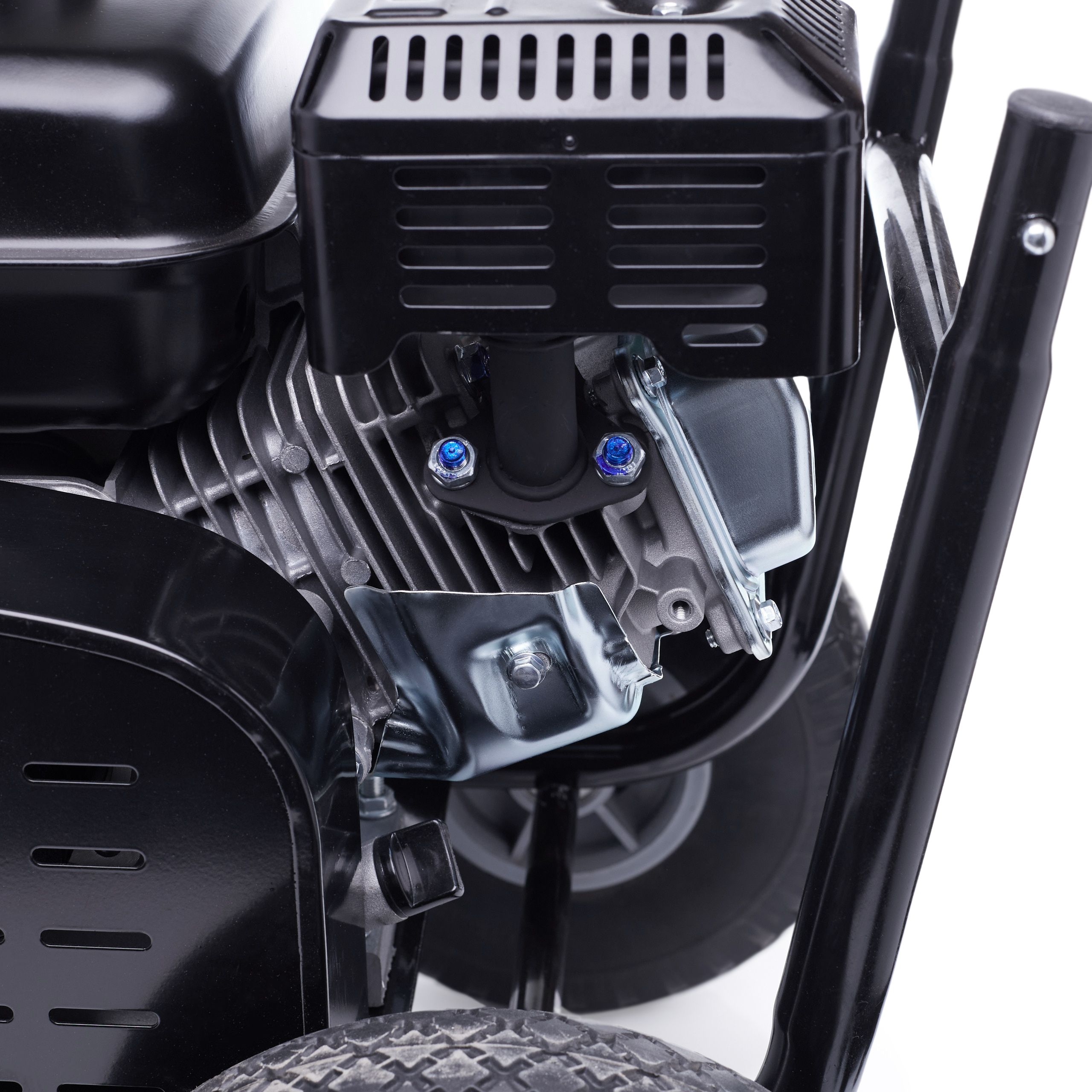

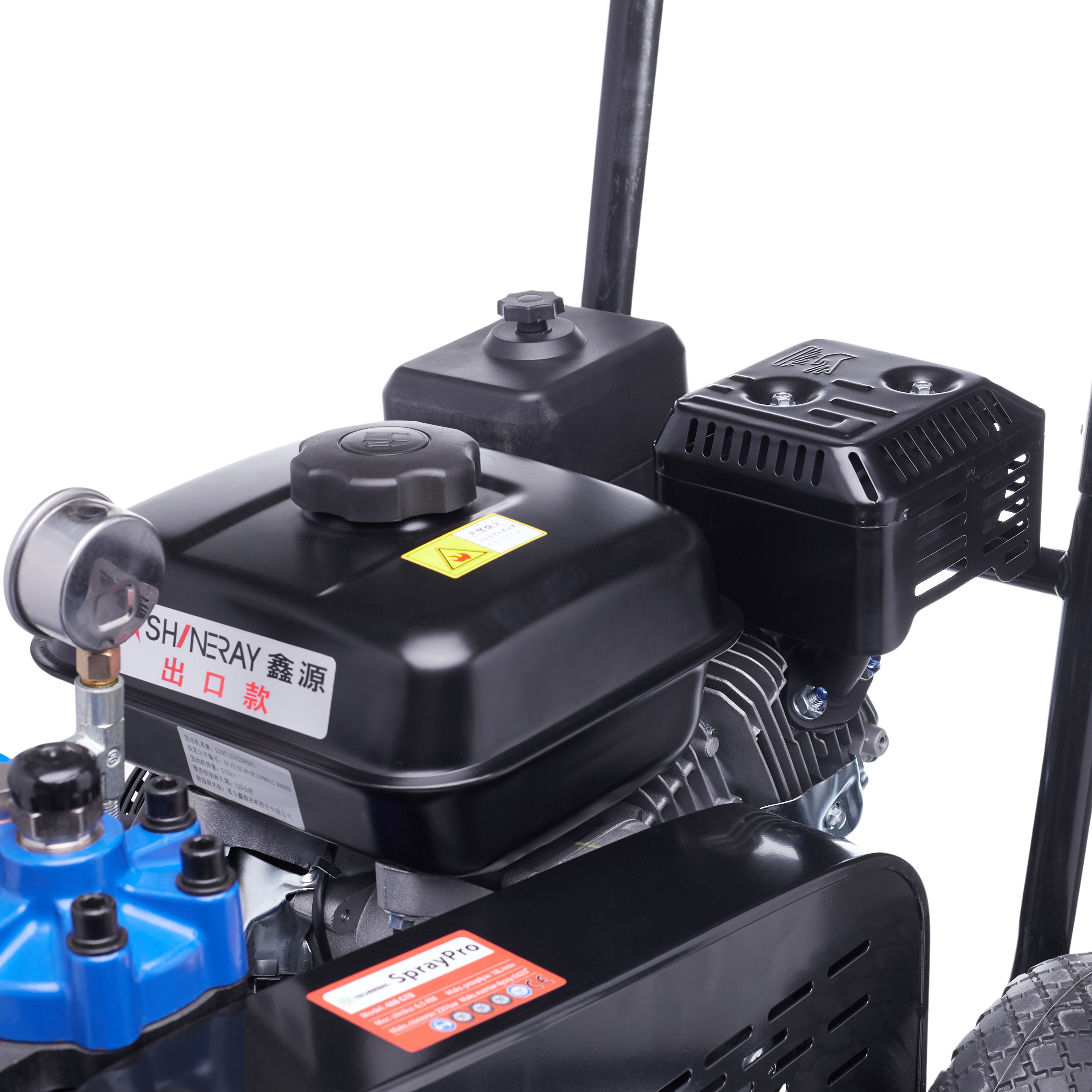

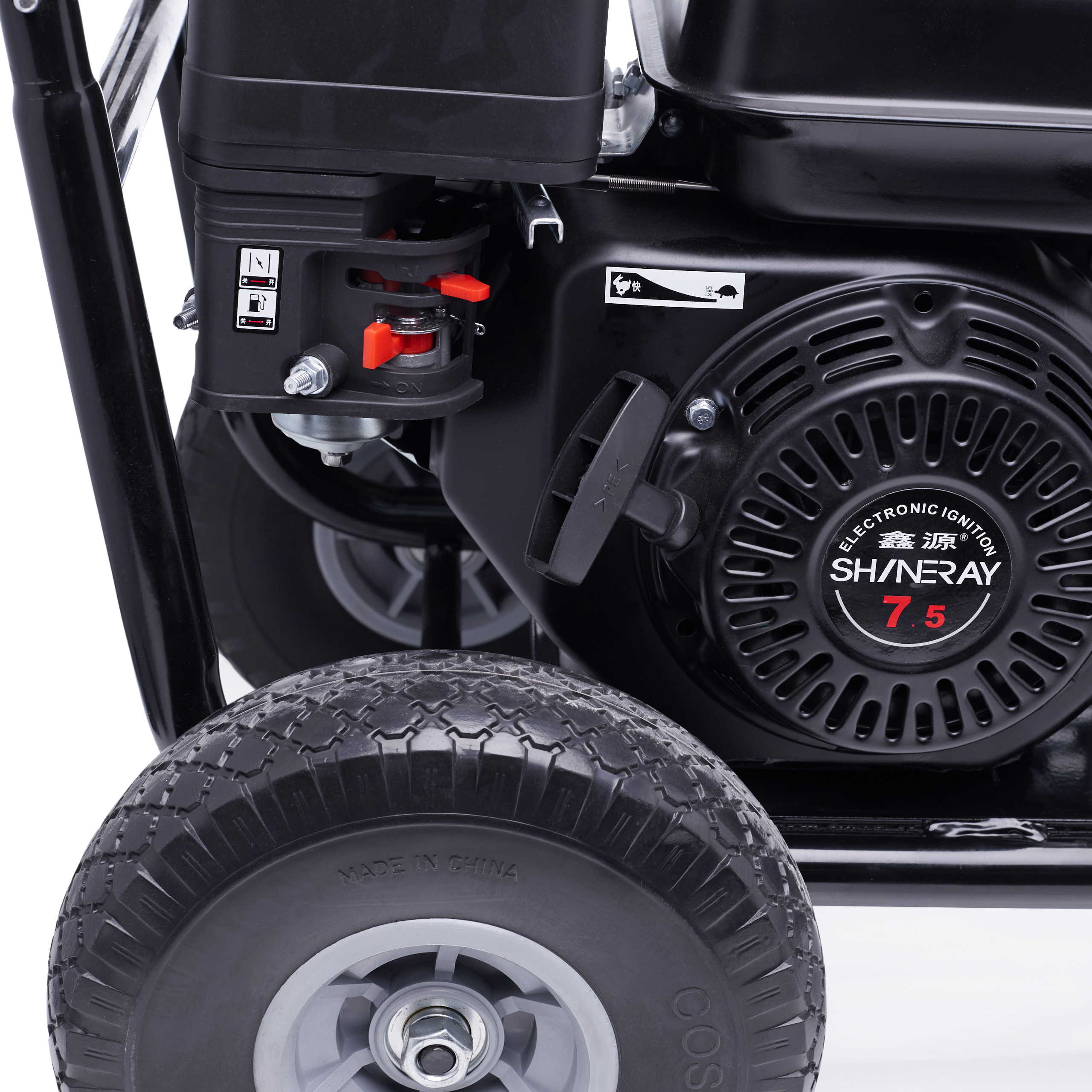

✅ Powerful 6.5 hp engine - The high-power internal combustion engine ensures high productivity, allowing for faster painting of large surfaces without sacrificing quality.

✅ High working pressure - With pressures up to 220 bar, precise paint atomisation is possible, ensuring even coverage of any surface without streaking or smearing.

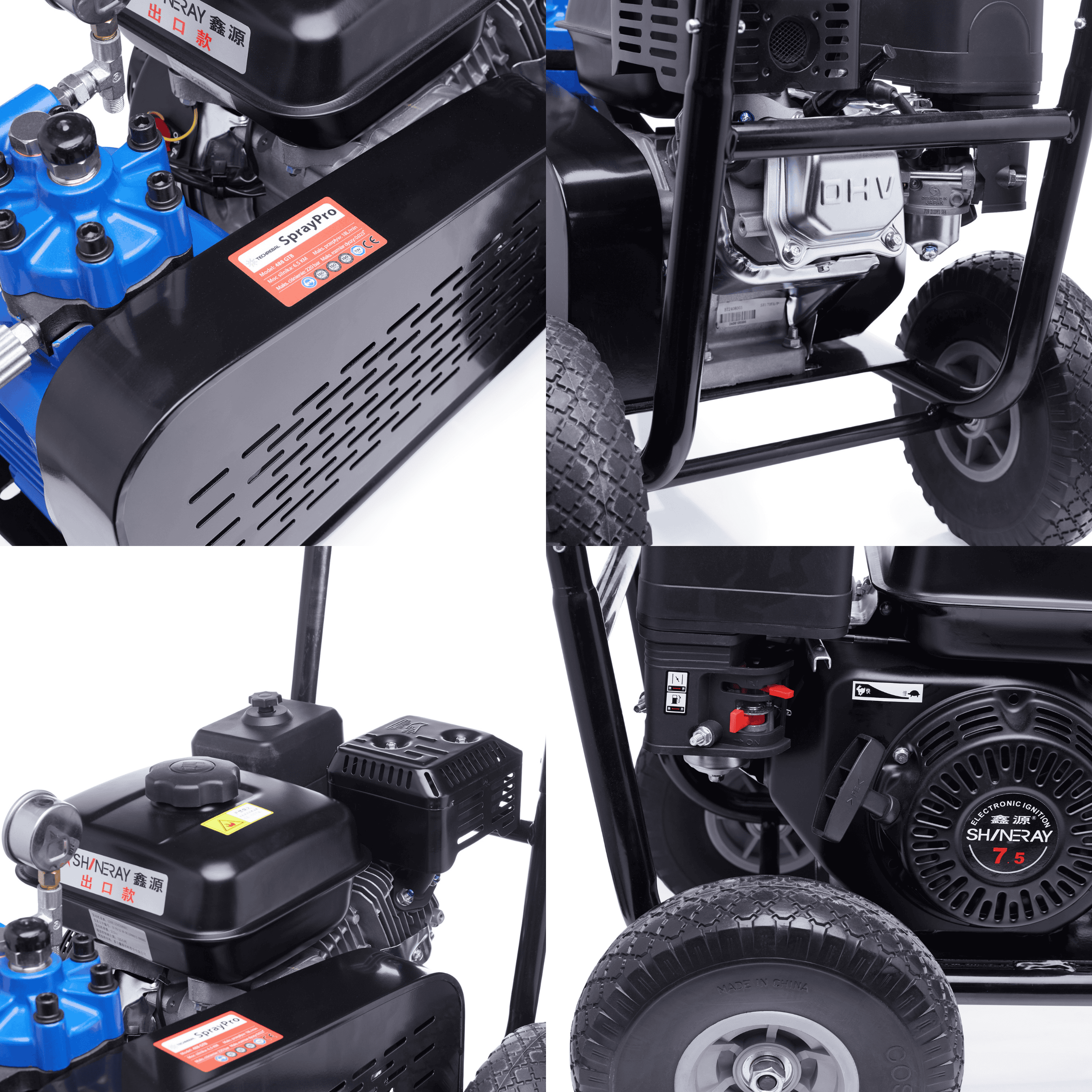

✅ Robust and durable design - The robust chassis and durable components increase the machine's durability, making it a reliable tool for years to come.

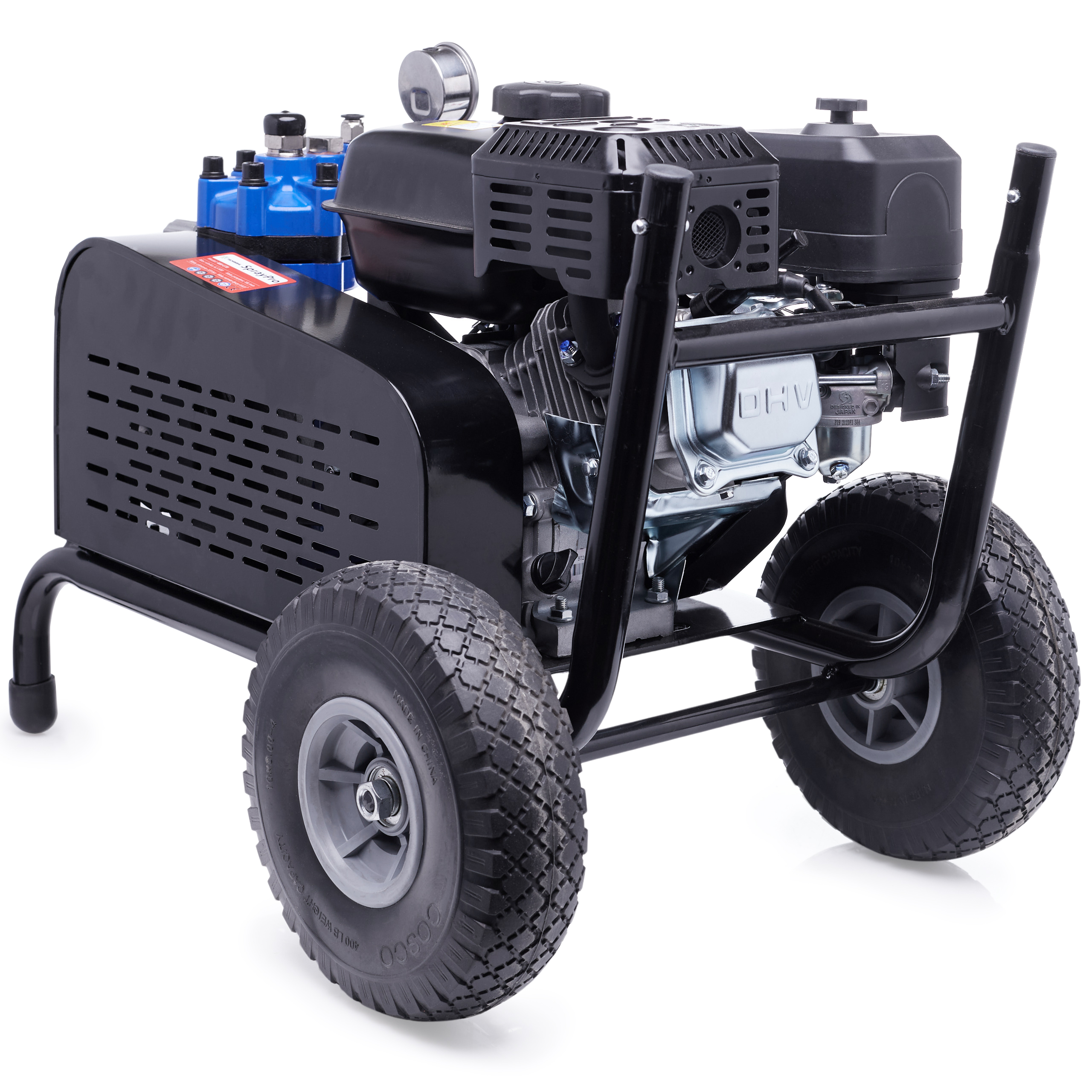

✅ Ergonomic design - A stable transport trolley with a comfortable handle and large wheels makes it easy to move the unit, even over uneven surfaces.

In addition, the frame design features a practical hose holder for conveniently winding the hose. This allows the hose to be neatly stored and transported, eliminating the risk of tangles and hose damage when moving the equipment. The ergonomic design of the frame facilitates transportation of the unit, ensuring convenient use both on the construction site and in the workshop.

⚙️ TECHNICAL DATA

Unit power: 6.5HP
Working pressure of the unit: 220bar (22MPA )
Spraying capacity: 18l/min
Maximum nozzle size supported: 0.023 - (0.58mm)
Engine type: Petrol combustion engine
Compression mechanism: Diaphragm pump
Gun hose length: 10m
Maximum hose length supported: horizontal 60m / vertical 28m
Unit weight: 60kg
Dimensions: 76x55x57.5 cm
Hose connection: 1/4"

⚙️ GUN SPECIFICATIONS:

Maximum pressure: 248 bar (3600 psi)
Trigger: 4-finger
Maximum gun discharge pressure flow: 8 l/min
Maximum spray flow of gun: 4 l/min
Hose thread: 1/4
Head thread: 7/8"
Built-in filter: yes

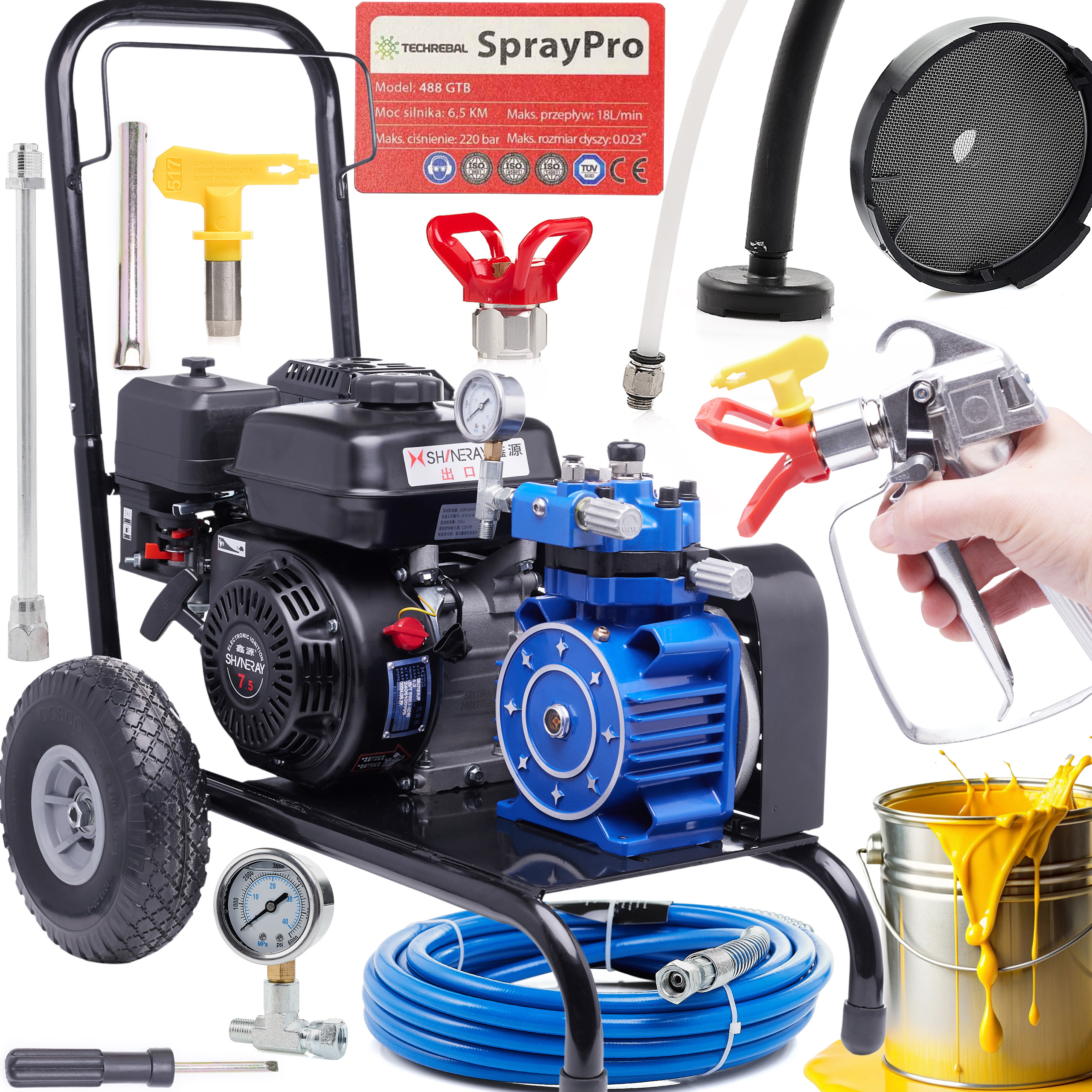

✅ In the set you will receive:

Diesel paint unit
Aggregate spray gun
Paint nozzle model 517
Nozzle filter
Nozzle gasket
Nozzle cover
Lance 50 cm
Paint spray gun hose 10 m
Suction hose 105 cm with filter
Overflow pipe 83 cm
Pressure gauge
Cup spanner
Phillips screwdriver
Polishing manual

✅ High standards and quality of workmanship

Our machine stands out from the competition by meeting strict standards and certification requirements. It is certified to confirm high quality and safety:

✅ ISO 9001

✅ ISO 45001

✅ ISO 14001

✅ TÜV SÜD

✅ Powerful 6.5KM - reliability and efficiency

The 6.5 HP power ensures stable and smooth operation even under high loads. This makes the machine capable of handling a wide range of paints, from water-based emulsions to thicker decorative coatings. You will not have to worry about overheating or loss of performance: the diesel membrane unit is designed for extended use. The high engine power allows you to paint large areas in a short time, making your projects much faster.

Independence and high performance

A painting unit with a combustion engine is the ideal solution for those looking for mobile and reliable equipment. With no need for a mains connection, you can work anywhere, under any conditions. The high engine power ensures continuous operation, which results in fast and efficient painting without the need for frequent breaks. Thanks to the high working pressure, the paint is applied evenly and the results are professional and long-lasting.

✅ Performance up to 18 l/min - fast and efficient painting

With a capacity of up to 18 l/min, large areas can be painted without unnecessary interruptions. The high application speed makes painting much more efficient than conventional methods. This makes the paint unit ideal for both renovation and construction sites, where time and quality are of the essence.

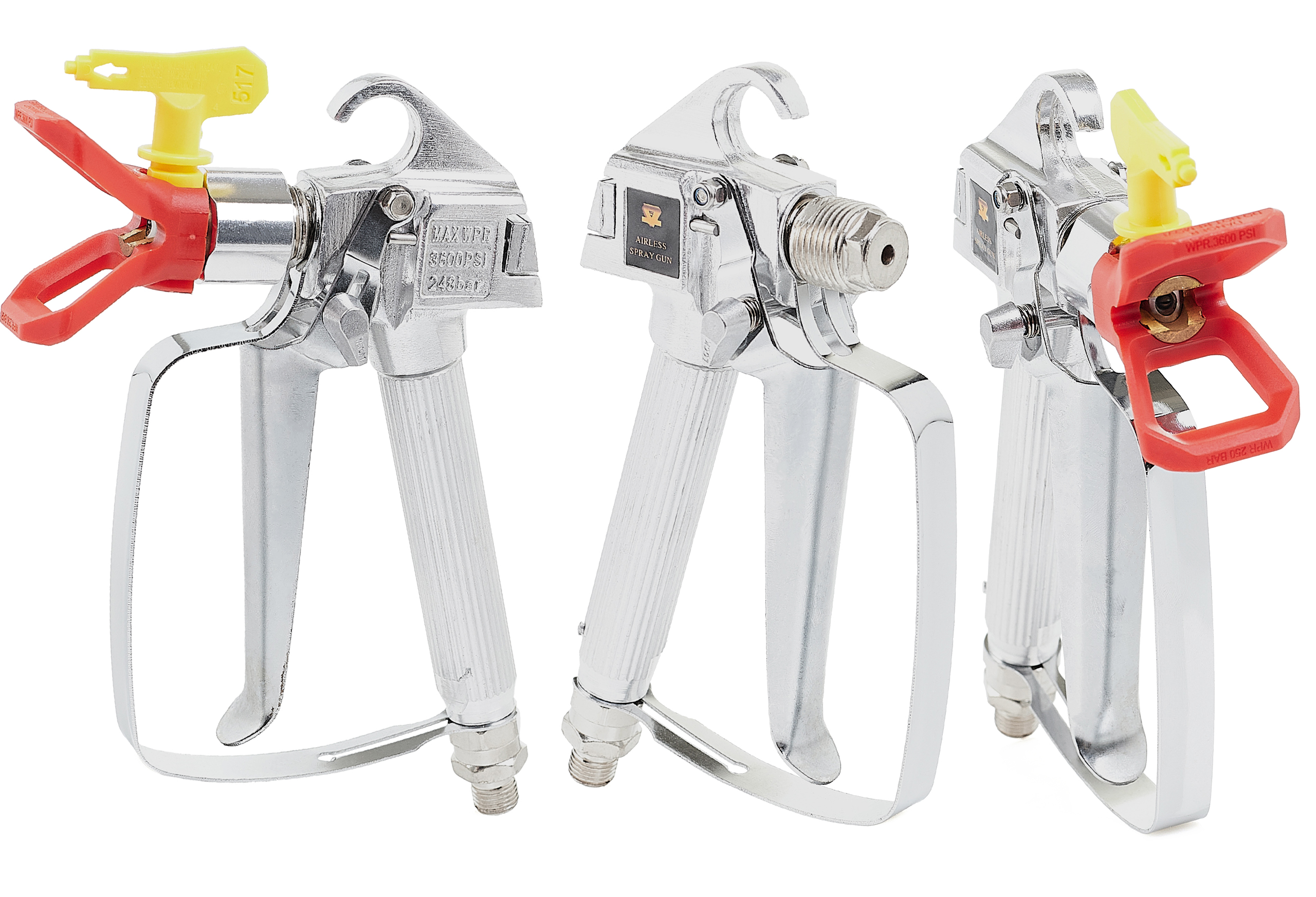

✅ Precision spray gun - full control over painting

The kit includes a professional spray gun that allows you to adjust the paint flow. This makes it possible to adjust the intensity of the spray according to the surface to be painted, ensuring maximum precision. The gun is comfortable to use and minimises hand fatigue even during prolonged work. The ergonomic design facilitates accurate painting of corners, edges and hard-to-reach areas.

✅ Ideal choice for professionals and do-it-yourselfers

Whether you are professionally renovating or planning to paint your home, the paint unit will meet your expectations. Thanks to its high performance, mobility, precision and ease of use, it is an equipment that works in any situation. You can paint walls, ceilings, facades and even wooden and metal parts, achieving excellent results effortlessly.

✅ Perfect paint coverage without streaks or runs

The high working pressure provided by the power unit ensures even paint spraying, eliminating the problem of streaks and unevenness. Even when painting large surfaces, the results are perfect and paint application is fast and precise. This allows you to achieve a professional finish on walls, ceilings or façades in a short time, without the need for touch-ups.

⚪️ Cleaning

When not working for a few minutes, it is important to lock the trigger of the gun and immerse the nozzle in a container of suitable solvent or water (if using water-based paints). This will prevent the paint from drying in the nozzle. Also, do not forget to release the pressure in the unit before starting to break.

If the nozzle becomes clogged, turn it 180 degrees from the SPRAY position (arrow pointing towards the gun outlet) to the CLEAN position (arrow in the opposite direction). Then clean the nozzle to remove any obstructions. If the problem persists, check the filter located in the gun handle - this may also need cleaning.

Are you thinking of replacing a traditional brush or roller with a modern solution?

With the TECHREBAL paint unit you get:

✅Speed - the high pressure allows you to cover large areas with paint in no time.

✅ Perfect coverage - precise paint distribution guarantees an effect like that of a professional.

✅ Versatility - suitable for paints, primers, stains and even very thin fillers.

✅ Working comfort - the ergonomic design and ease of use make painting easy and pleasant.

Forget about uneven coverage and fatigue after manual painting. Choose the Techrebal unit and get a perfect result in much less time!

ATTENTION!

We are the manufacturer of the Techrebal units and provide full service for the equipment we offer.

✳️ Choosing the right nozzle is easy with us! Here are some steps to help you make the right choice:

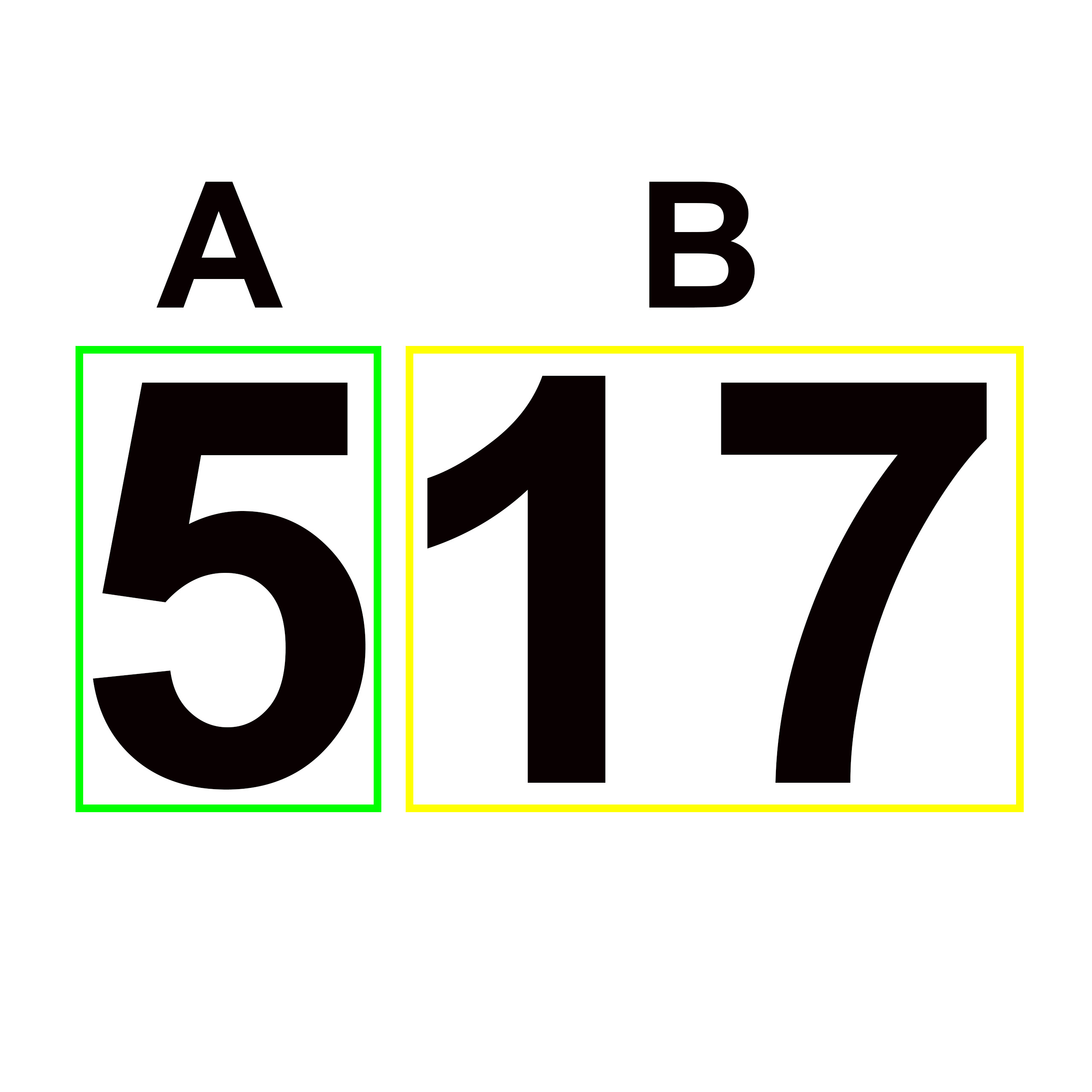

1️⃣ The first digit (A) indicates the width of the paint jet, which we call 'A'. To calculate the jet width, simply multiply the first digit by 5 cm. The result indicates the width of the paint jet if the gun is 30 cm from the surface to be painted. It can be written as:

Jet width = A x 5 cm

Example: If the first digit of "A" is 5, the spray width is: Spray width = 5 x 5 cm = 25 cm.

This means that holding the gun 30 cm from the surface will give a spray width of 25 cm.

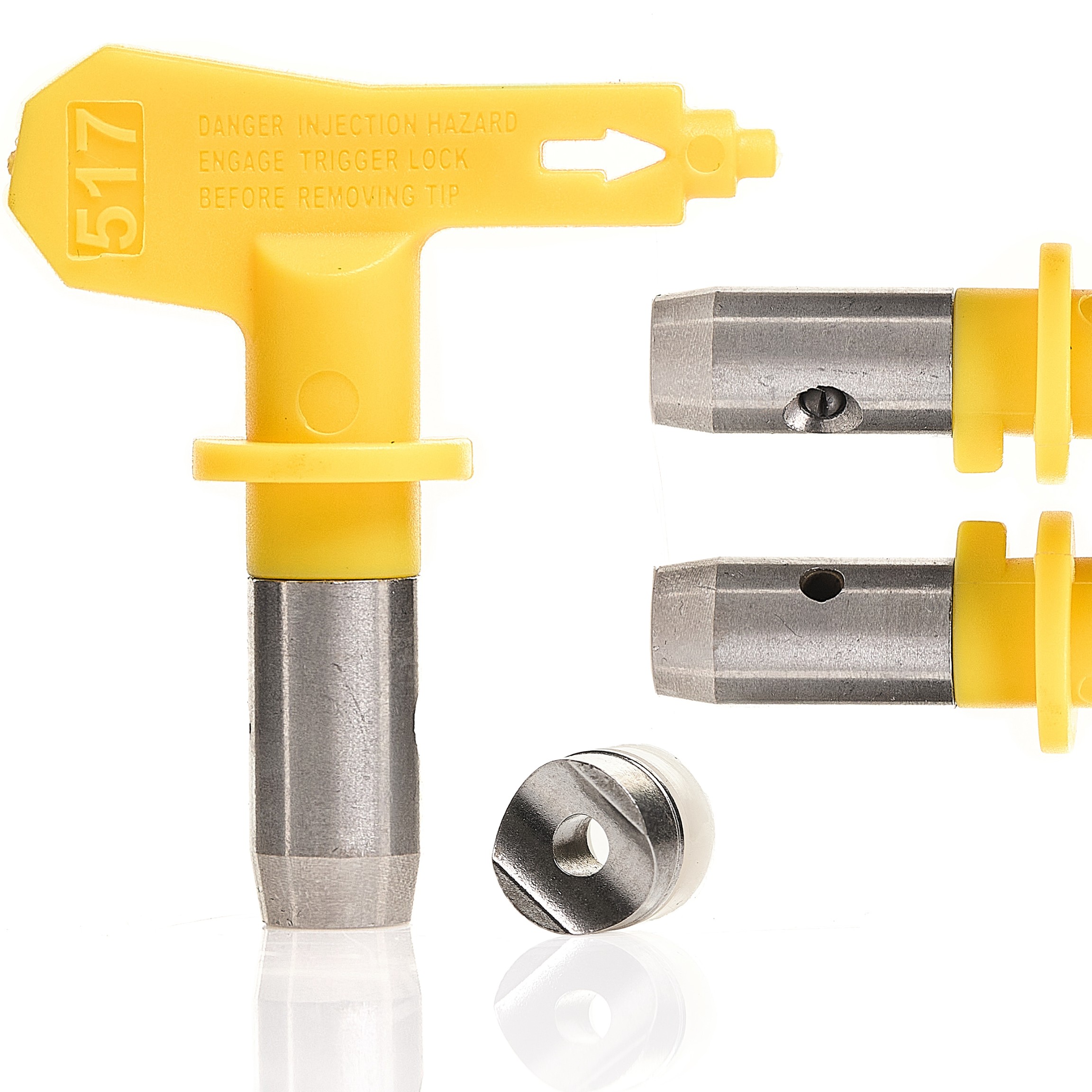

2️⃣ The last two numbers (B) refer to the size of the nozzle opening and the type of paint that can be applied. The higher the number, the thicker the paint that the nozzle can process. For example, a '517' nozzle means a spray width of 25 cm and a nozzle opening diameter of 0.017 inch.

✳️ Range of nozzle orifices for different types of sprayed material:

Pigments: 0.009″
Stains, varnishes and oils: 0.009″ - 0.011″.
Primers: 0.013″.
Urethanes, epoxides: 0.013″ - 0.015″.
Enamels, emulsions: 0.015″.
Acrylics: 0,015″ - 0,019″.
Latex: 0,017″ - 0,019″.
Exterior and facade paints: 0,021″ - 0,029″.
Waterproofing paints: 0,023″ - 0,031″.
Multicoloured building paints: 0,023″ - 0,031″.
Flame retardants: 0,029″ - 0,035″.
Elastomers: 0,025″ - 0,033″.
Putties, smoothing compounds: 0,027″ - 0,035″.
Bituminous masses: 0.055″ - 0.065″.
