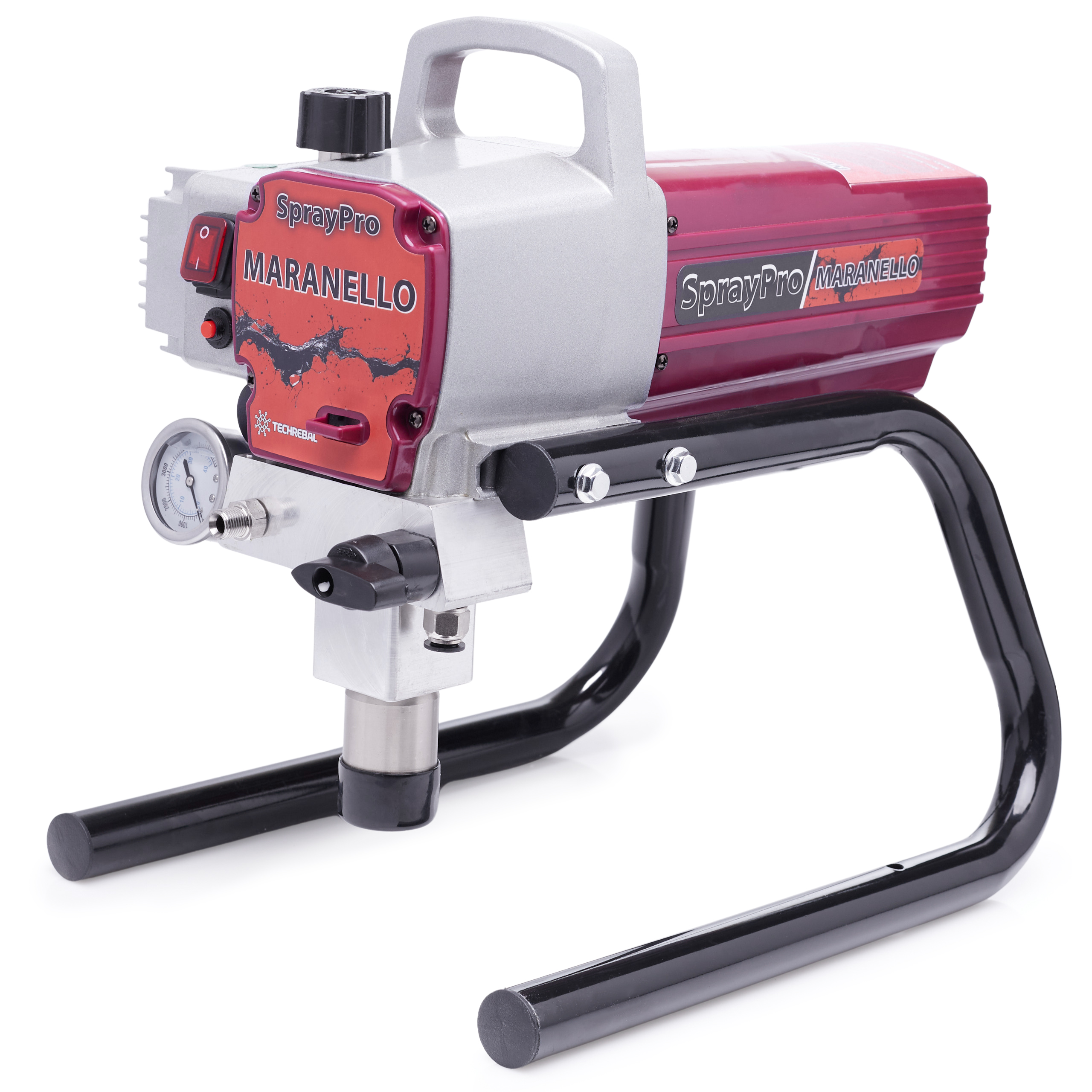

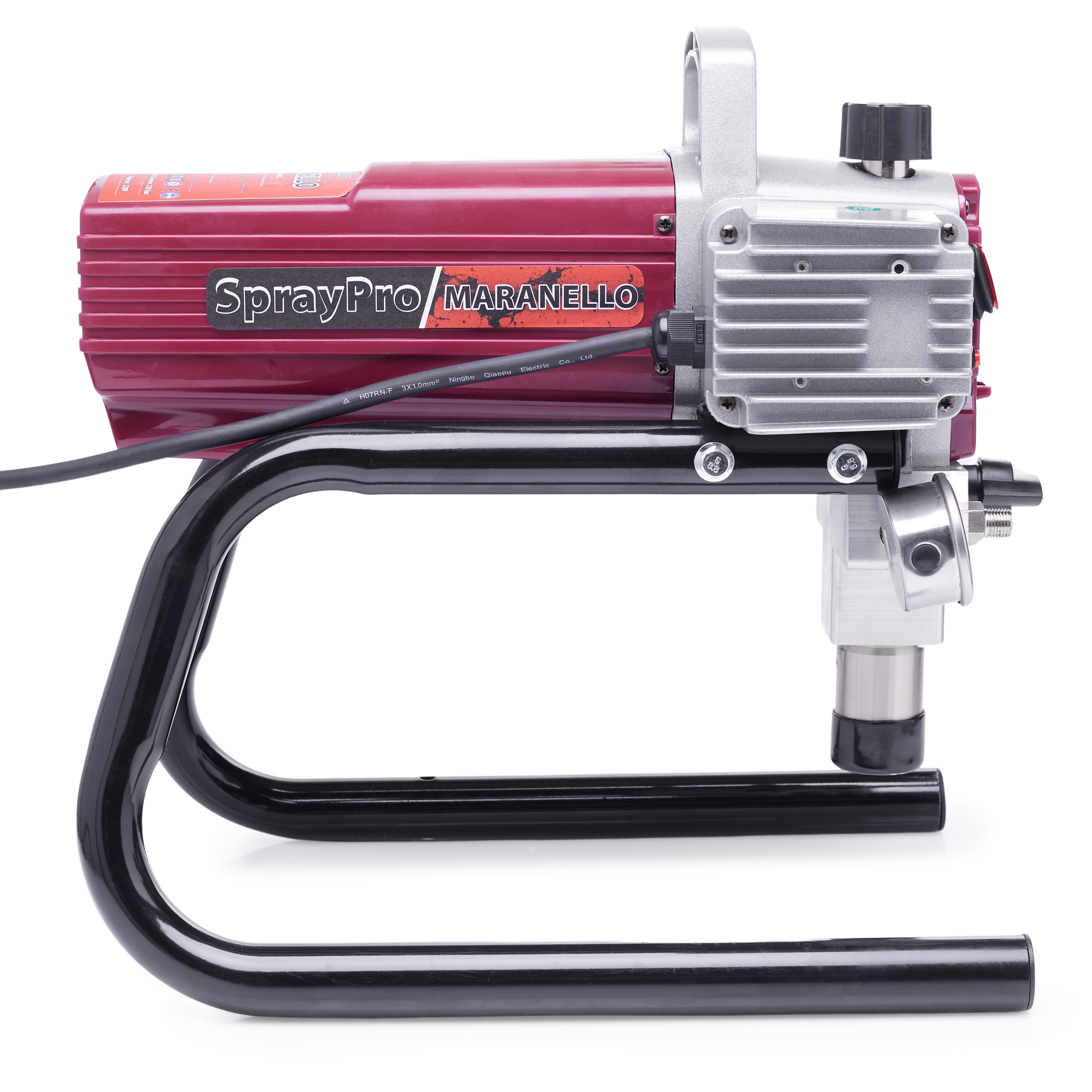

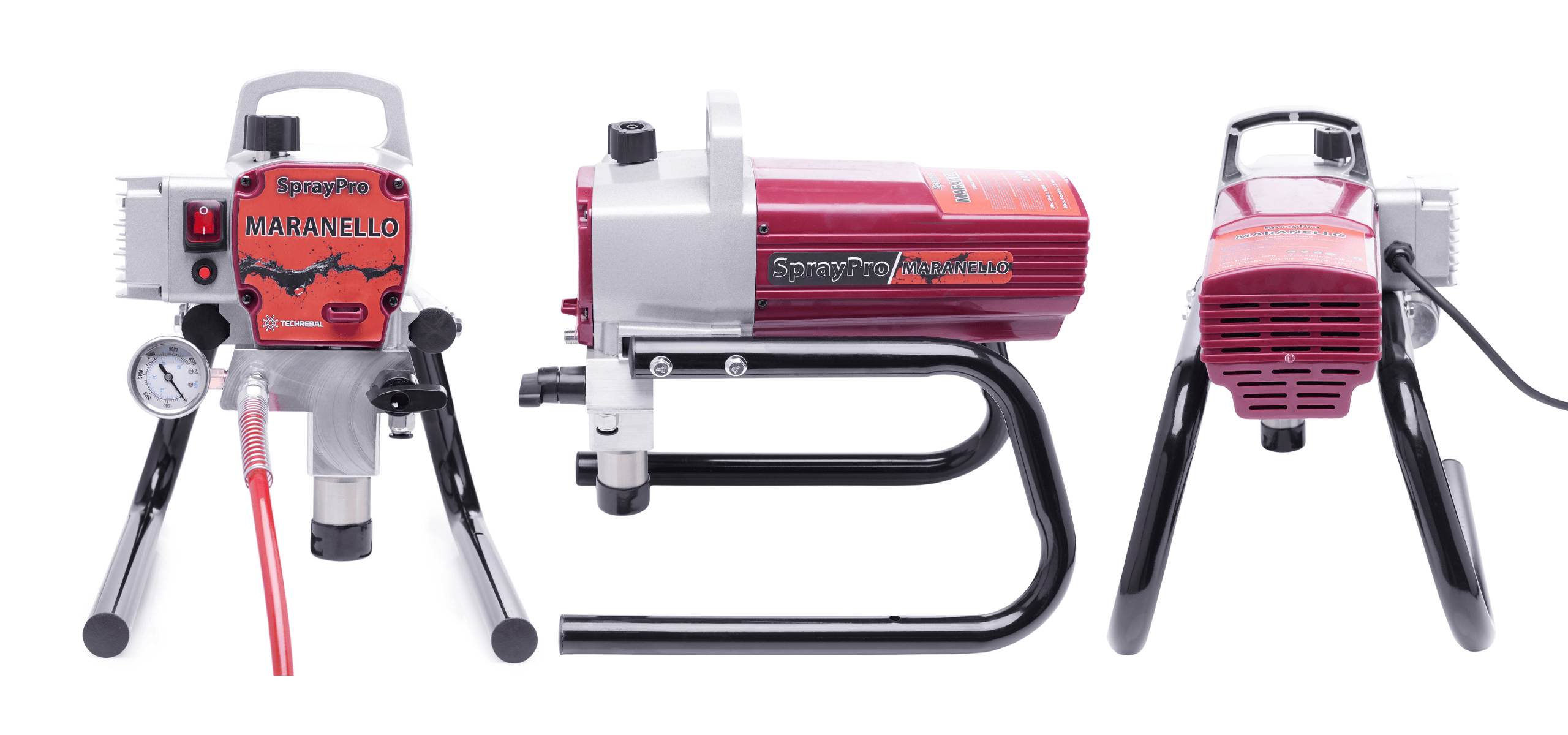

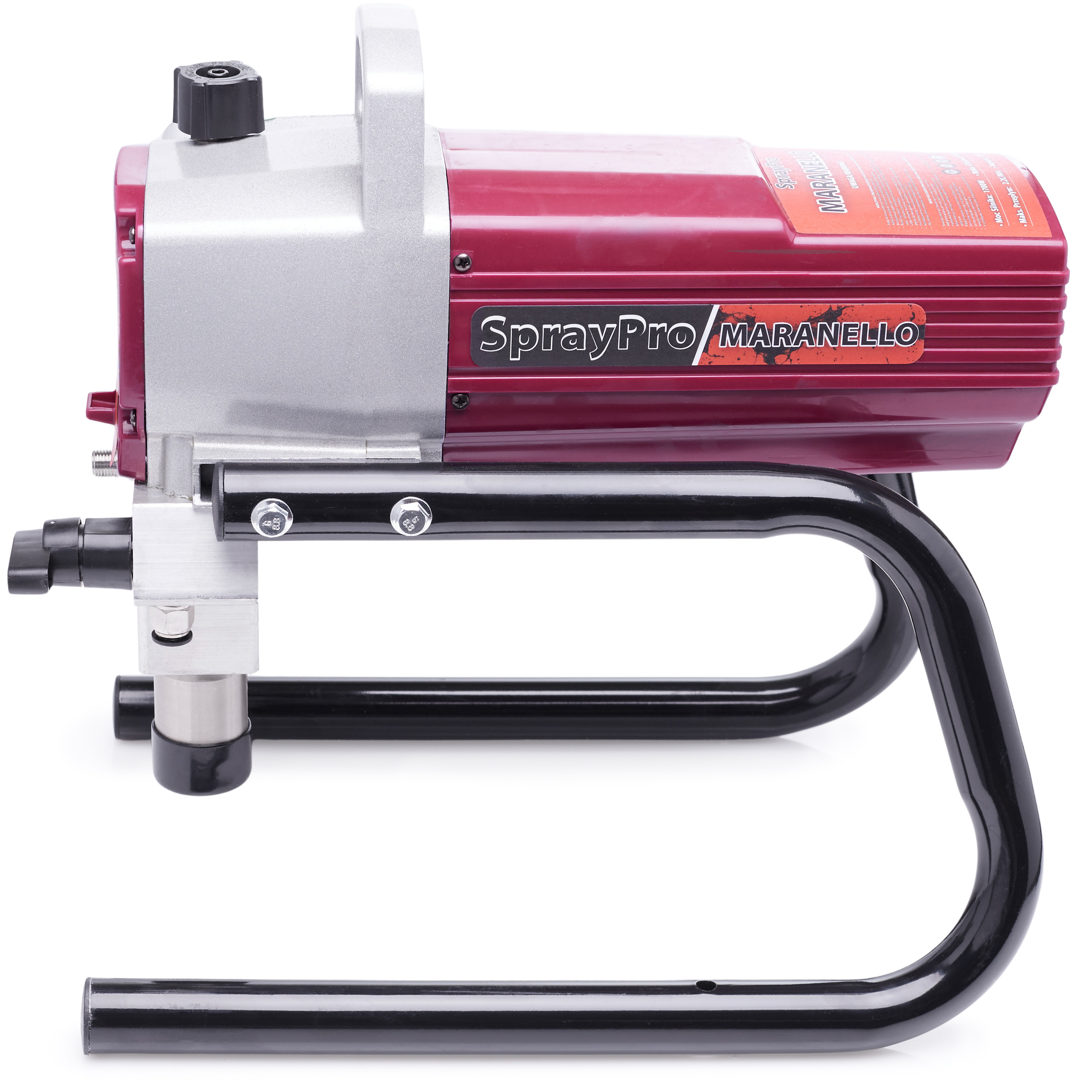

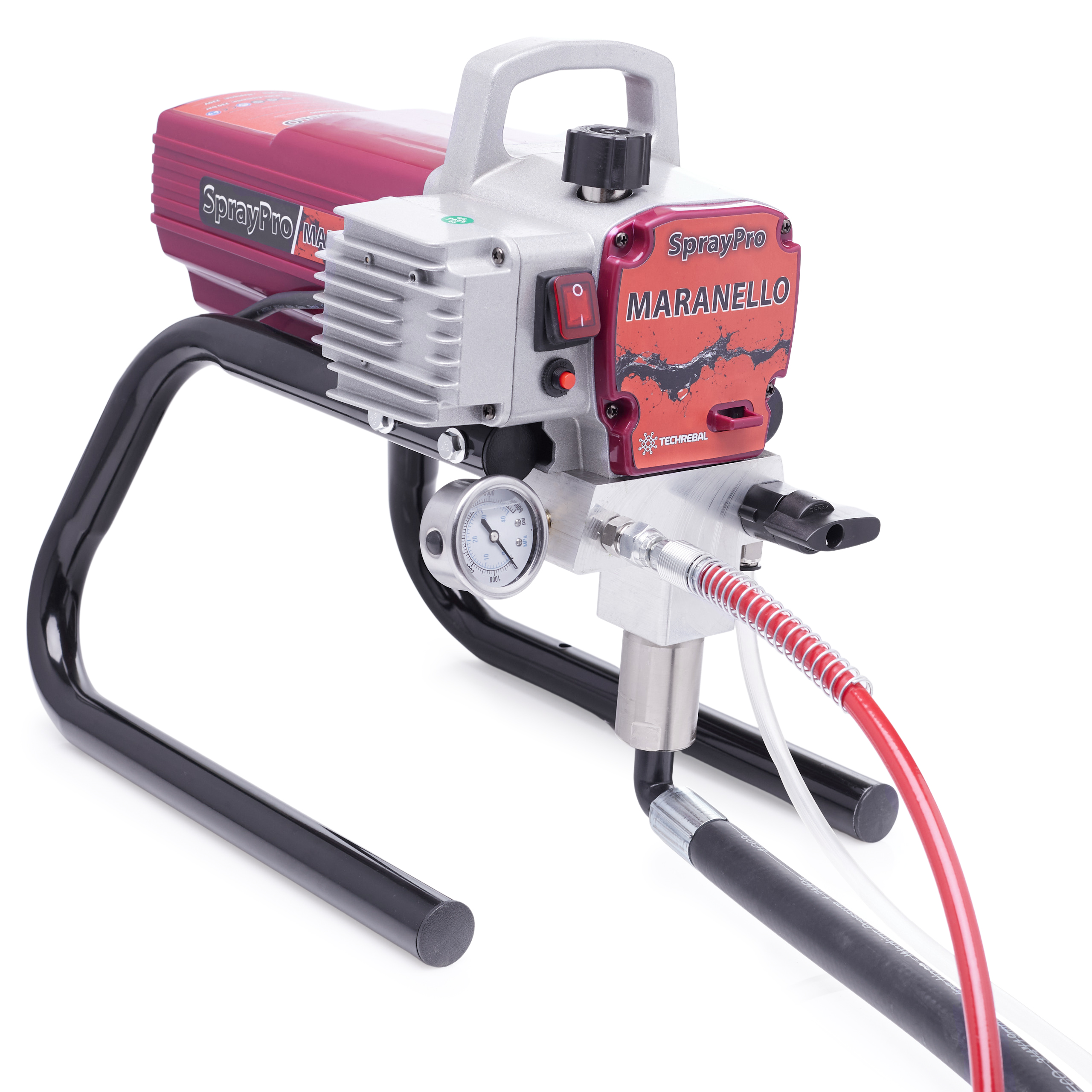

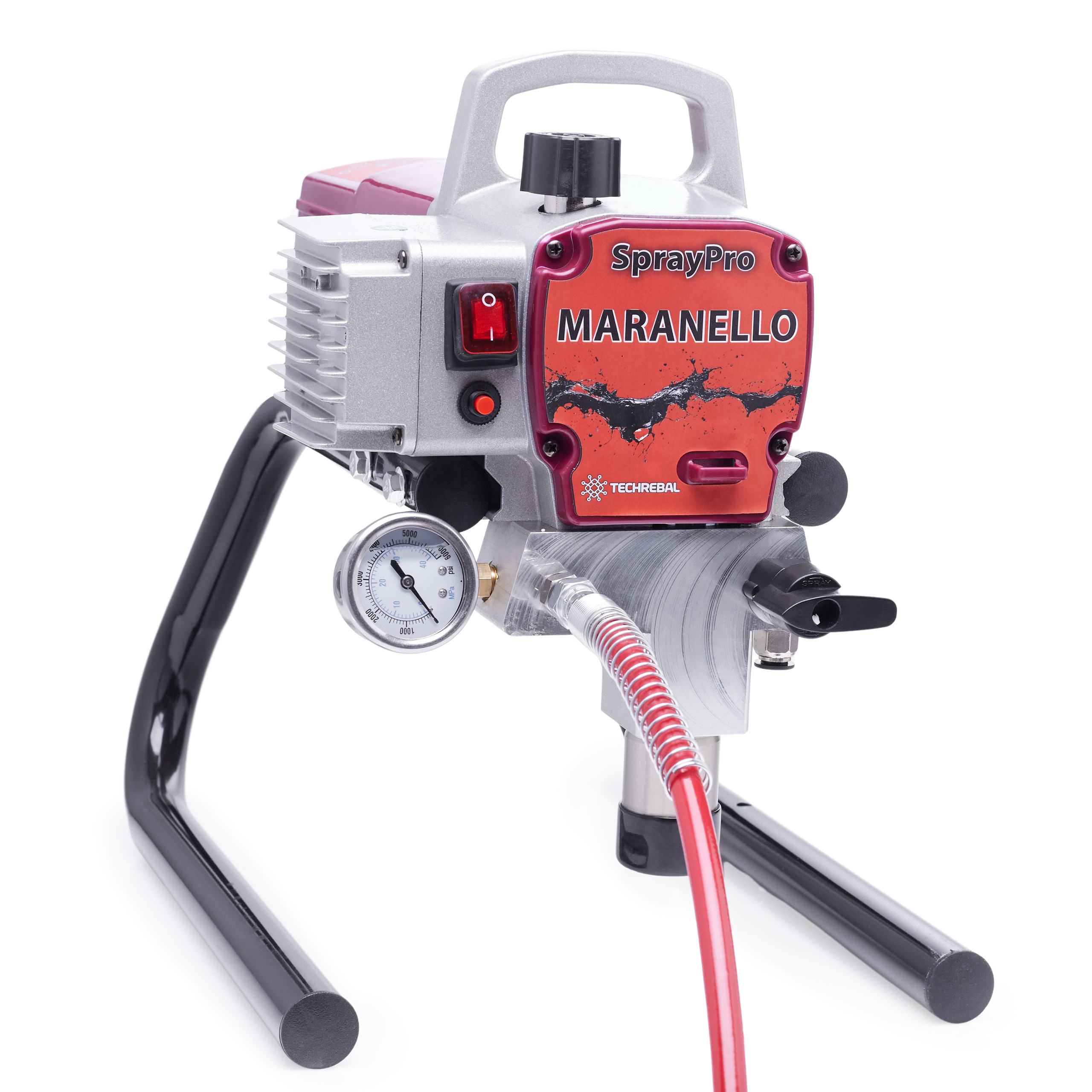

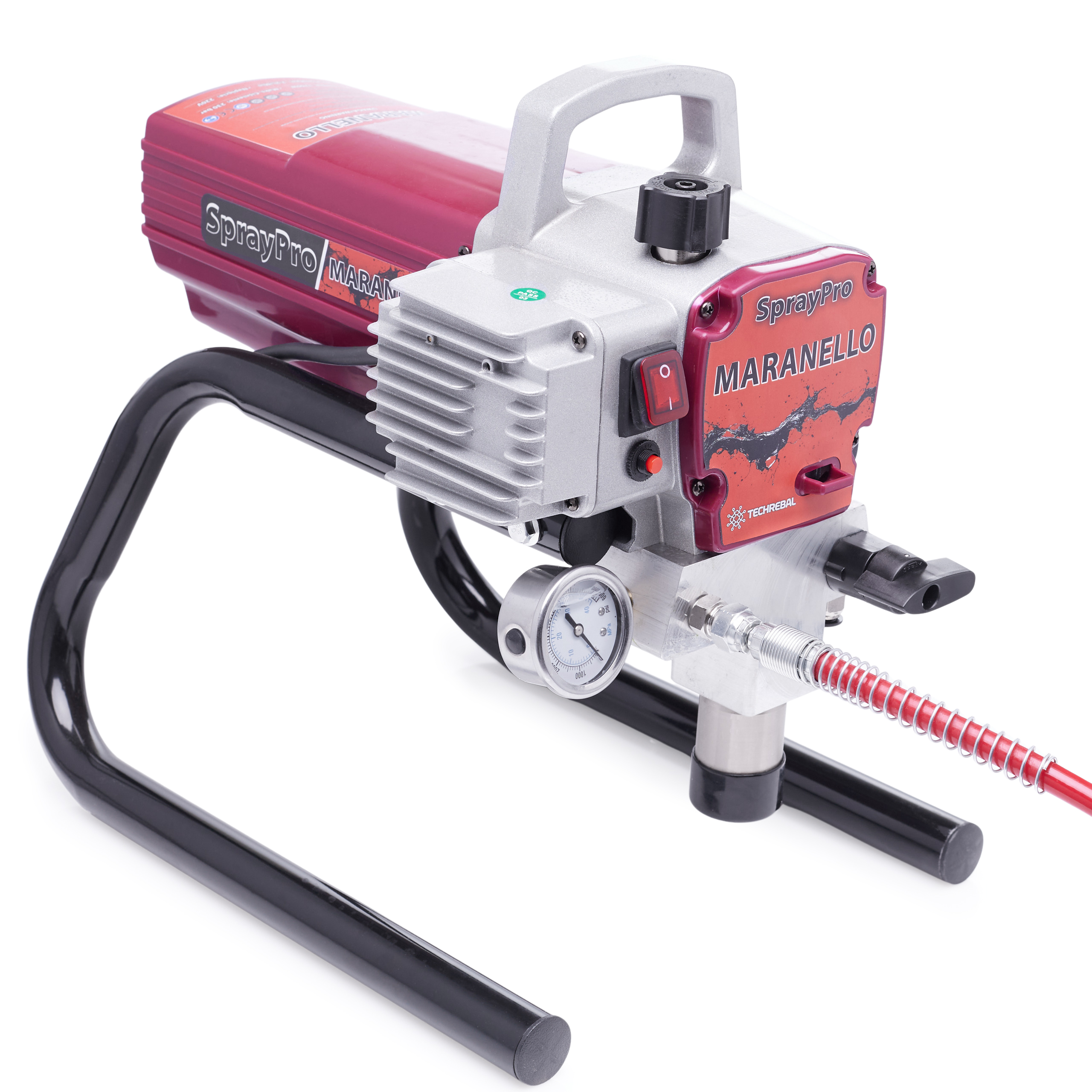

PROFESSIONAL HYDRODYNAMIC PAINTING UNIT MARANELLO PISTON 1700W 2.2L/MIN

The paint unit is the perfect solution for professionals and do-it-yourselfers who appreciate quality and efficiency. Thanks to its modern spray technology, it distributes the paint evenly, eliminating streaks and drips. The 1700 W power guarantees high productivity, even with intensive use. The robust construction and careful design make the unit reliable and easy to use.

❇️ Product features:

✅ Advanced piston technology ensures uniform coverage, eliminating the need for rollers and brushes, significantly reducing work time and increasing efficiency. It enables even paint application even with thicker materials. Thanks to its design, it minimises pulsation and ensures stable work.

The 1,700 W motor guarantees outstanding performance, allowing you to work for a long time without problems even on large surfaces, increasing comfort and saving energy.

✅ The flow rate of up to 2.2 l/min enables fast painting, making the machine ideal for large projects, saving time and increasing productivity.

✅ The professional spray gun allows the paint flow to be adjusted according to the type of surface and specific job, ensuring excellent end results.

✅ Durable construction in robust materials ensures a long service life of the unit, making the piston unit suitable even in difficult working conditions.

✅ Ease of use and mobility make the unit comfortable to use for both professionals and those new to spray painting.

⚙️ TECHNICAL DATA OF THE UNIT:

Unit power: 1700 W
Power supply: 230V/50Hz
Working pressure: up to 230 bar/ 3300psi
Unit capacity: 2.2L/ min
Maximum nozzle size: 0.023".
Motor type: brushless
Compression mechanism: piston pump
Hose length per gun: 8 m
Maximum hose length supported: horizontal 30m / vertical 15m
Weight of unit with accessories: 18.1 kg
Dimensions: 50x42x49 cm

⚙️ GUN SPECIFICATIONS:

Maximum pressure: 248 bar (3600 psi)
Trigger: 4-finger
Max. gun discharge pressure flow: 8 l/min
Maximum spray flow of the gun: 4 l/min
Hose thread: 1/4
Head thread: 7/8"
Built-in filter: yes

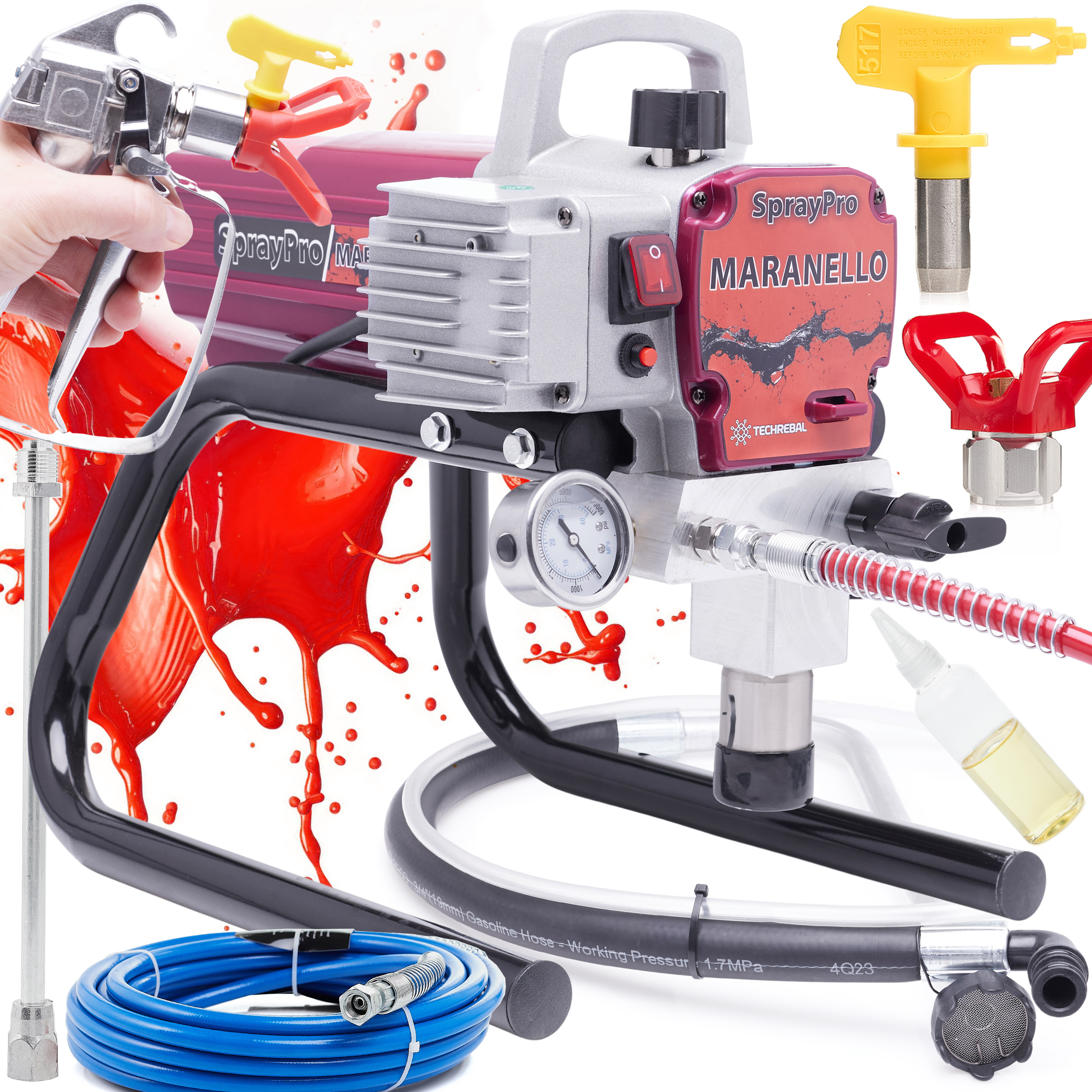

✅ In the set you will receive:

Maranello painting unit
Gun for the unit

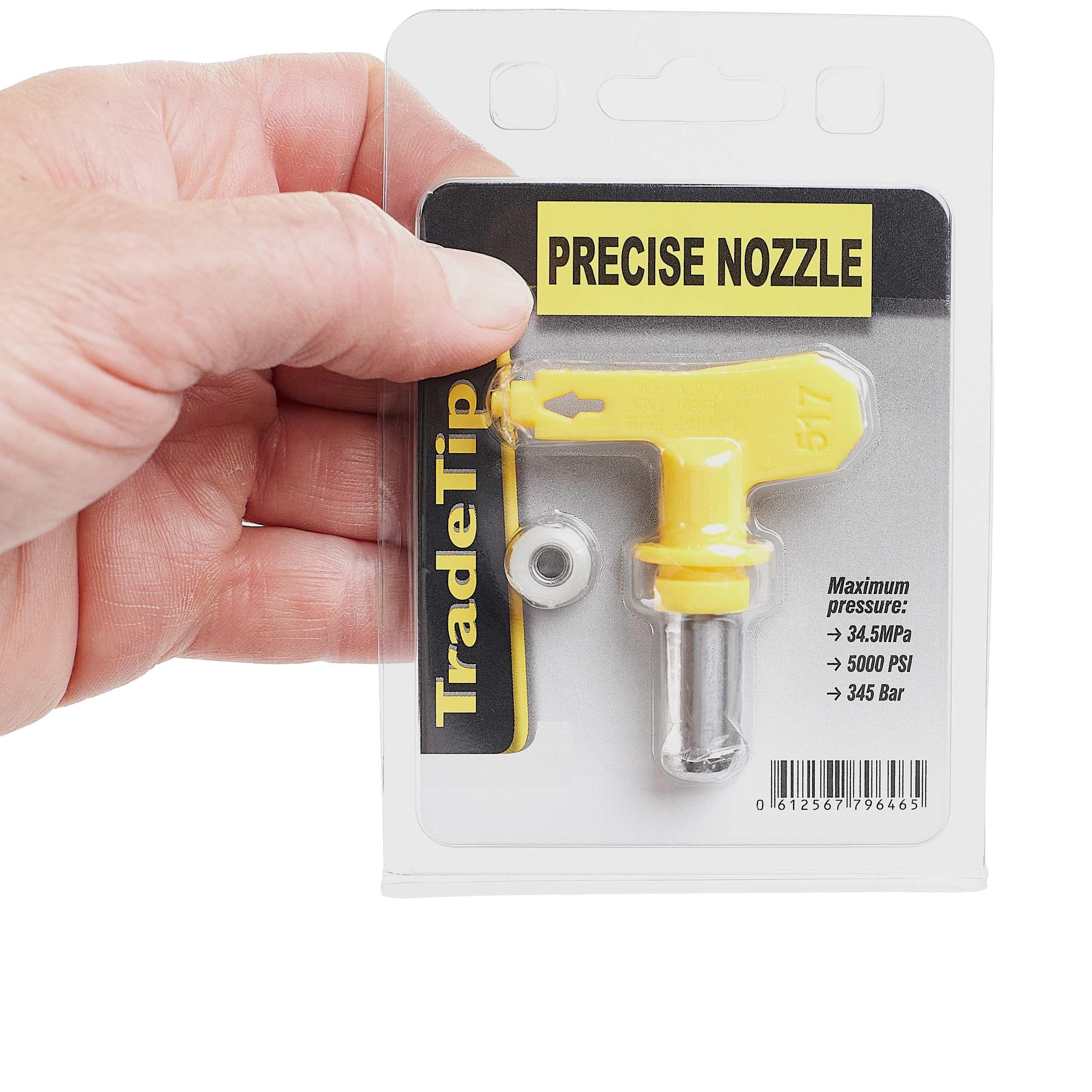

Paint nozzle model 517
Filter for the gun
Nozzle gasket
Nozzle cover
Lance 50 cm
Hose for paint unit 8 m
Suction hose with filter
Overflow pipe 83 cm

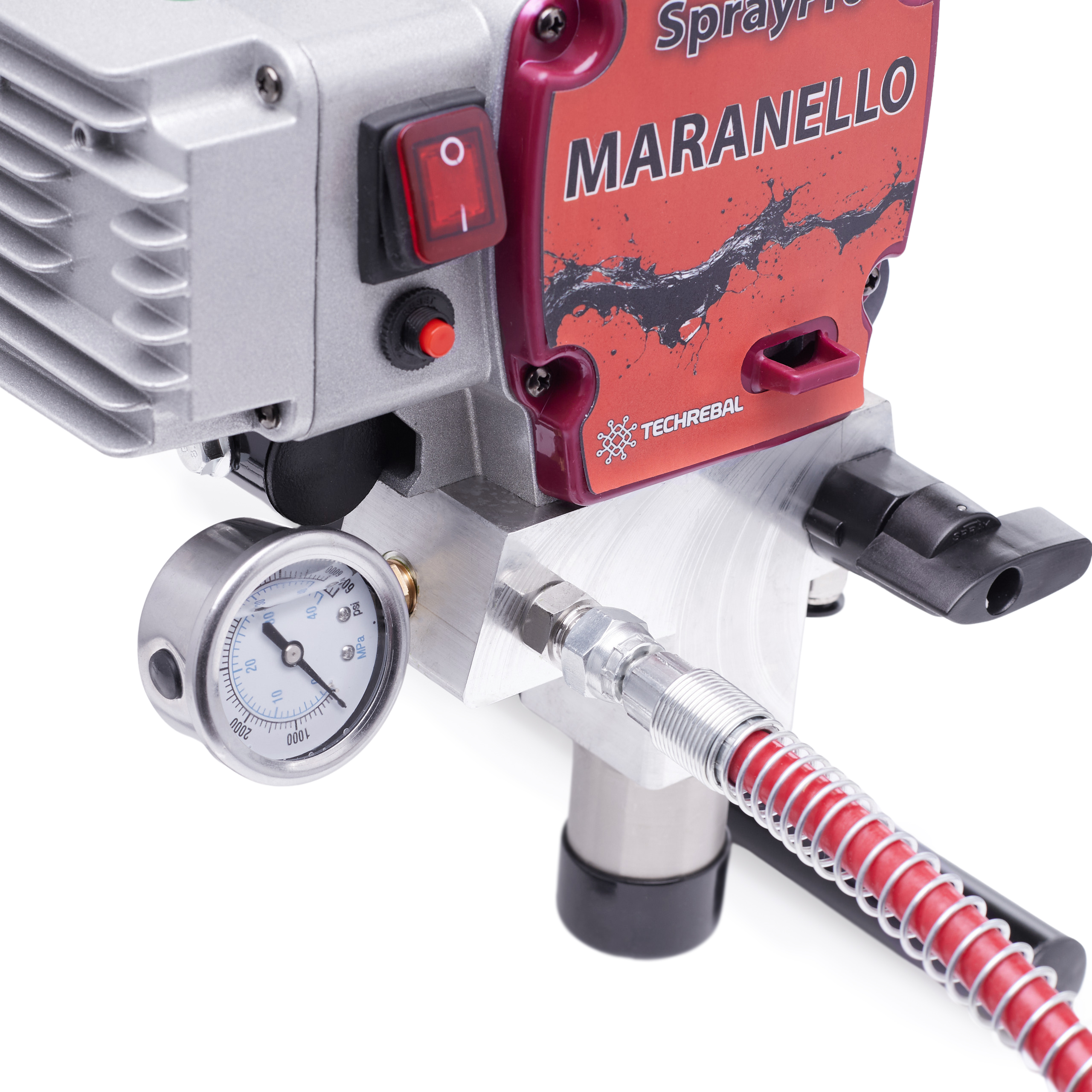

Pressure gauge
Oil bottle
Operating manual in Polish

✅ High standards and quality of workmanship

Our appliance distinguishes itself from the competition by meeting strict standards and certification requirements. It is certified to confirm high quality and safety:

✅ ISO 9001

✅ ISO 45001

✅ ISO 14001

✅ TÜV SÜD

✅ Powerful 1700W - reliability and efficiency

The 1700W power ensures stable and smooth operation even under high load conditions. This makes the unit capable of handling a wide range of paints, from water-based emulsions to thicker decorative coatings. You will not have to worry about overheating or a drop in performance: the piston unit is designed for extended use. The high motor power allows you to paint large areas in a short time, making your projects much faster.

Piston technology

The piston spray system allows you to paint faster and more precisely than ever before. Without the need for rollers or brushes, you save time and the surface is evenly and aesthetically coated with paint. This type of technology also reduces material waste, so less paint is used, which translates into real savings. The paint unit is ideal for painting walls, ceilings, façades or fences.

✅ Performance up to 2.2 l/min - efficient painting

With an application speed of 2.2 l/min, large areas can be covered without interruption. The high application speed makes painting much more efficient than conventional methods. This makes the paint unit ideal for both renovation and construction sites, where time and quality are of the essence.

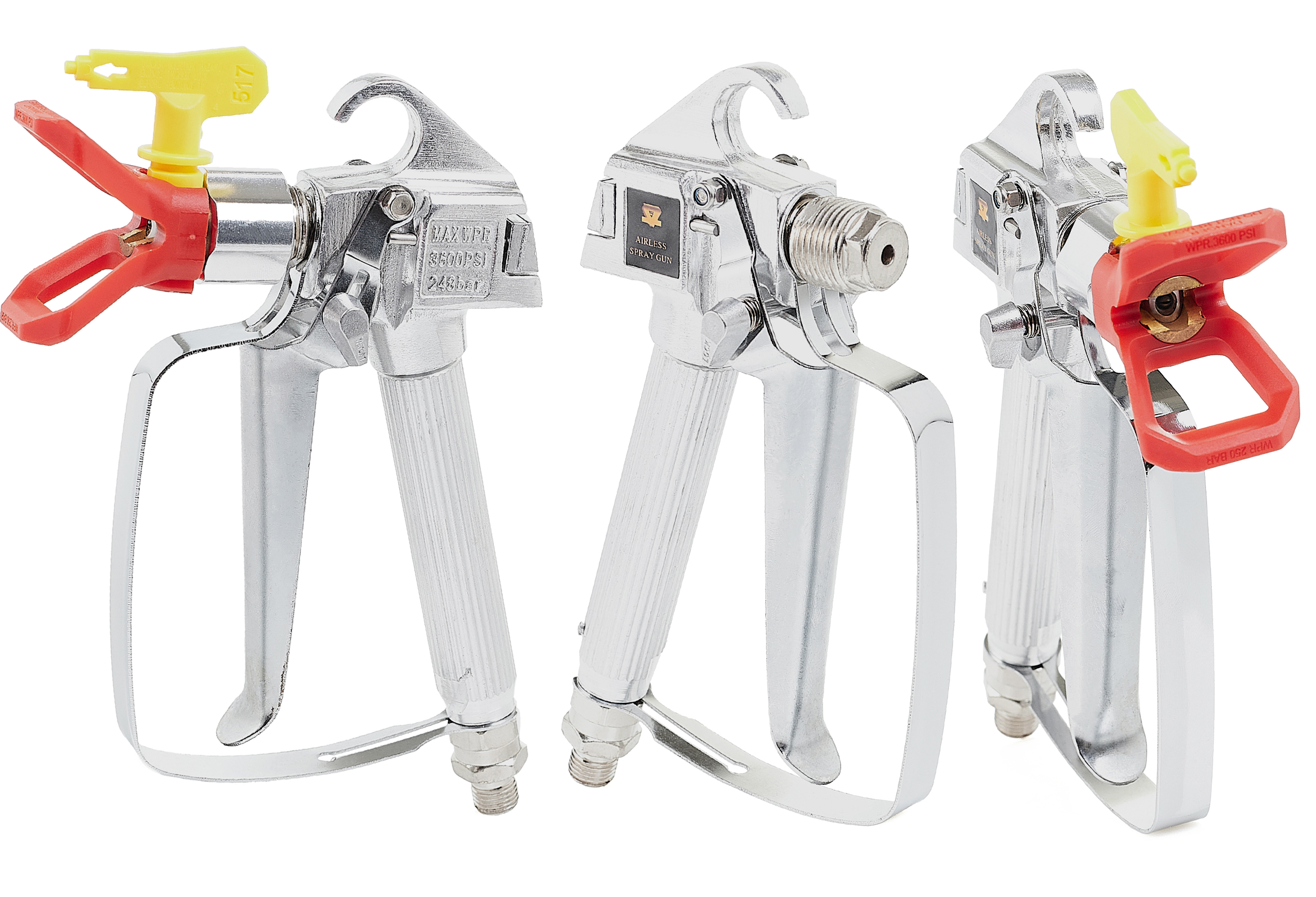

✅ Precision spray gun - full control over painting

The kit includes a professional 4 l/min spray gun that allows the paint flow to be regulated. This allows the spray intensity to be adjusted according to the surface to be painted, ensuring maximum precision. The gun is comfortable to use and minimises hand fatigue even with prolonged work. The ergonomic design facilitates accurate painting of corners, edges and hard-to-reach areas.

✅ Ideal choice for professionals and do-it-yourselfers

Whether you are professionally renovating or planning to paint your home, the paint unit will meet your expectations. Thanks to its high performance, precision and ease of use, it is an equipment that works in any situation. You can paint walls, ceilings, façades and even wooden and metal parts, achieving excellent results effortlessly.

Save time and material

With the piston spray system, you not only speed up painting, you also reduce paint consumption. Traditional methods often lead to unnecessary waste, and brushes and rollers do not guarantee a perfectly even layer. A piston unit eliminates this problem, giving you full control over paint application. It is a solution that delivers professional results in less time.

⚪️ Cleaning

When not working for a few minutes, it is important to lock the gun trigger and immerse the nozzle in a container of suitable solvent or water (if using water-based paints). This will prevent the paint from drying in the nozzle. Also, do not forget to release the pressure in the unit before starting to break.

If the nozzle becomes clogged, turn it 180 degrees from the SPRAY position (arrow).

from the SPRAY position (arrow pointing towards the gun outlet) to the CLEAN position (arrow pointing in the opposite direction). Then clean the nozzle to remove any obstructions. If the problem persists, check the filter located in the gun handle - this may also need cleaning.

Are you thinking of replacing a traditional brush or roller with a modern solution?

With the TECHREBAL paint unit you get:

✅Speed - the high pressure allows you to cover large areas with paint in no time.

✅ Perfect coverage - precise paint distribution guarantees an effect like that of a professional.

✅ Versatility - suitable for paints, primers, stains and even very thin fillers.

✅ Working comfort - the ergonomic design and ease of use make painting easy and pleasant.

Forget about uneven coverage and fatigue after manual painting. Choose the Techrebal unit and get a perfect result in much less time!

ATTENTION!

We are the manufacturer of the Techrebal units and provide full service for the equipment we offer.

✳️ Choosing the right nozzle is easy with us! Here are some steps to help you make the right choice:

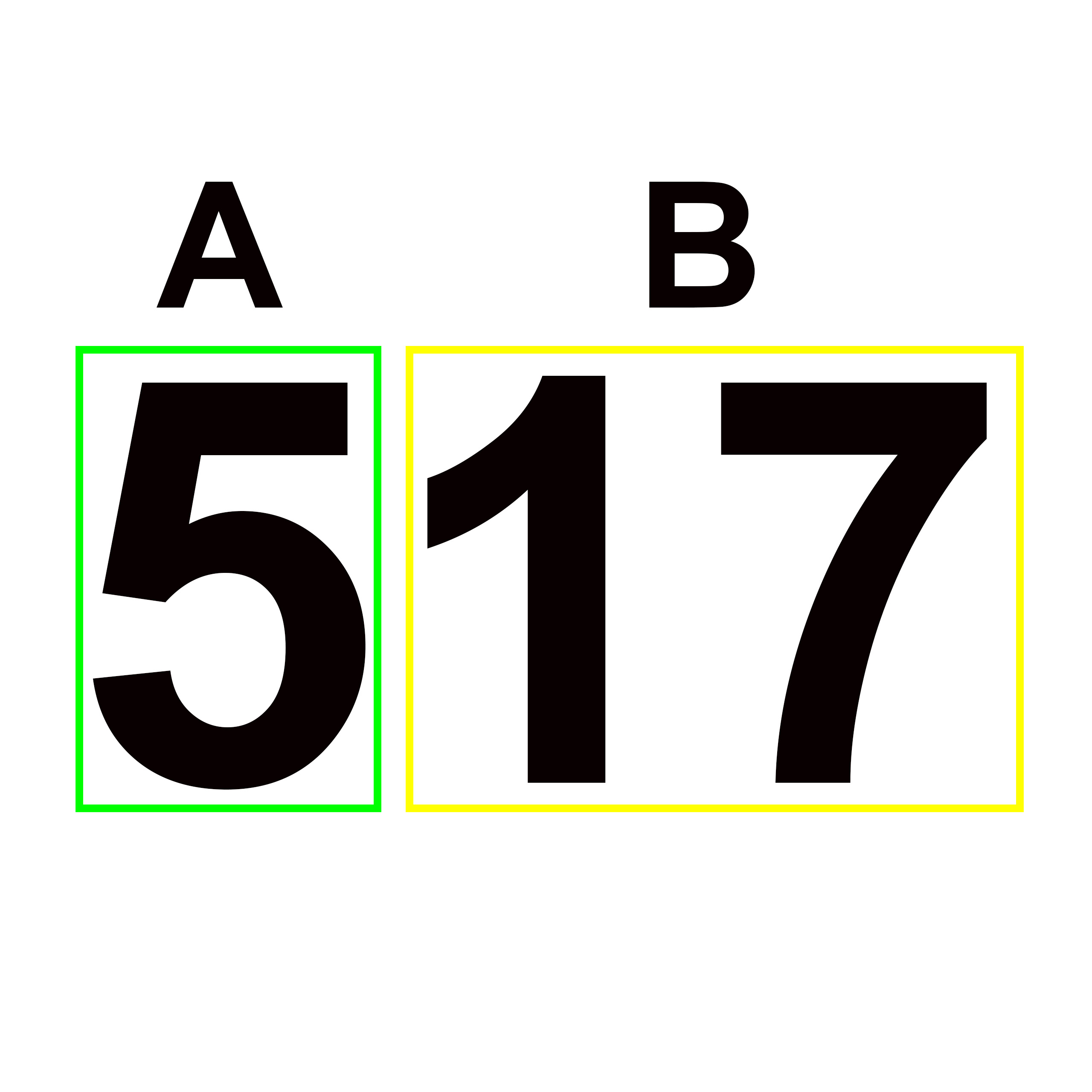

1️⃣ The first digit (A) indicates the width of the paint jet, which we call 'A'. To calculate the jet width, simply multiply the first digit by 5 cm. The result indicates the width of the paint jet if the gun is 30 cm from the surface to be painted. It can be written as:

Jet width = A x 5 cm

Example: If the first digit of "A" is 5, the spray width is: Spray width = 5 x 5 cm = 25 cm.

This means that holding the gun 30 cm from the surface will give a spray width of 25 cm.

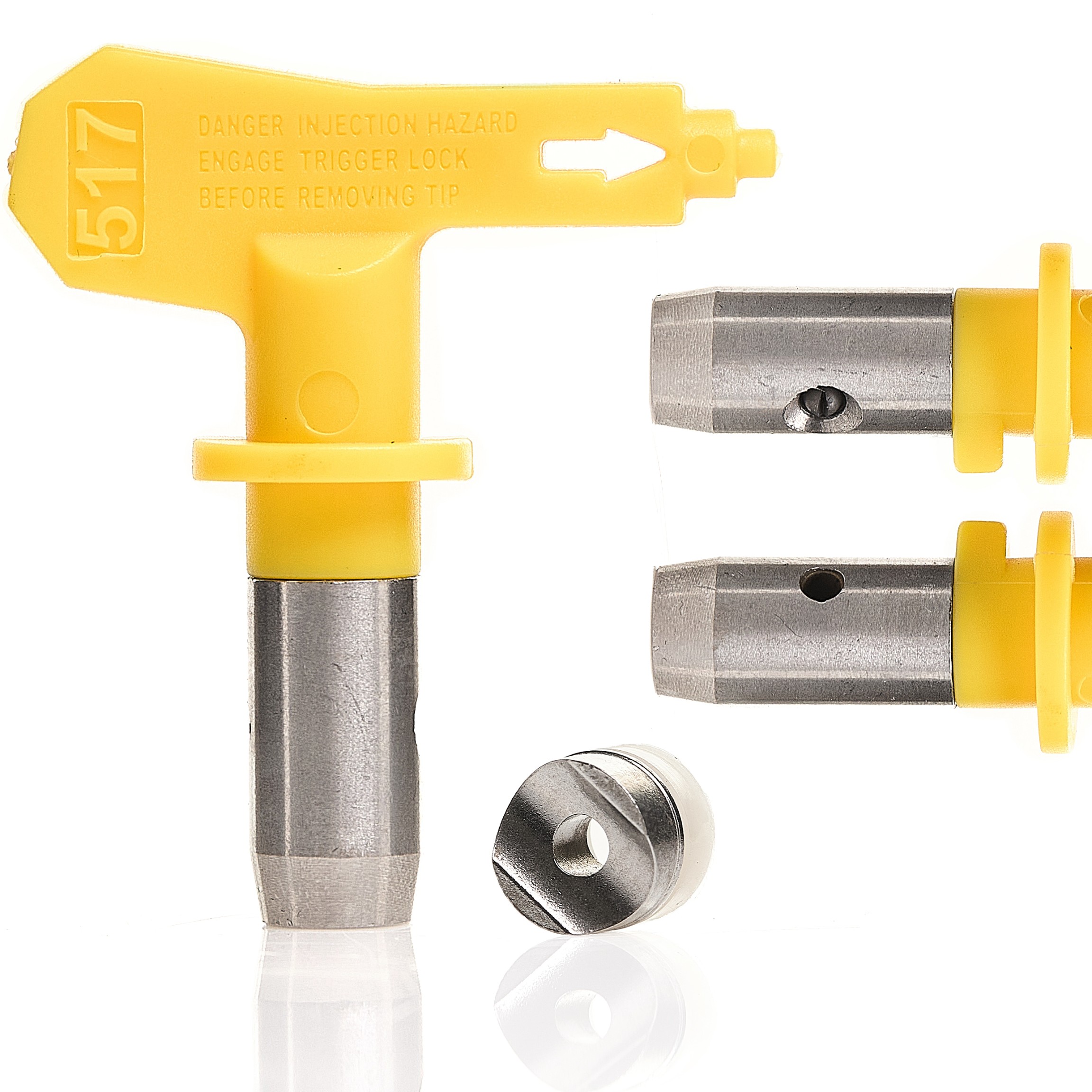

2️⃣ The last two numbers (B) refer to the size of the nozzle opening and the type of paint that can be applied. The higher the number, the thicker the paint that the nozzle can process. For example, a '517' nozzle means a spray width of 25 cm and a nozzle opening diameter of 0.017 inch.

✳️ Range of nozzle orifices for different types of sprayed material:

Pigments: 0.009″
Stains, varnishes and oils: 0.009″ - 0.011″.
Primers: 0.013″.
Urethanes, epoxides: 0.013″ - 0.015″.
Enamels, emulsions: 0.015″.
Acrylics: 0,015″ - 0,019″.
Latex: 0,017″ - 0,019″.
Exterior and facade paints: 0,021″ - 0,029″.
Waterproofing paints: 0,023″ - 0,031″.
Multicoloured building paints: 0,023″ - 0,031″.
Flame retardants: 0,029″ - 0,035″.
Elastomers: 0,025″ - 0,033″.
Putties, smoothing compounds: 0,027″ - 0,035″.
Bituminous masses: 0.055″ - 0.065″.
