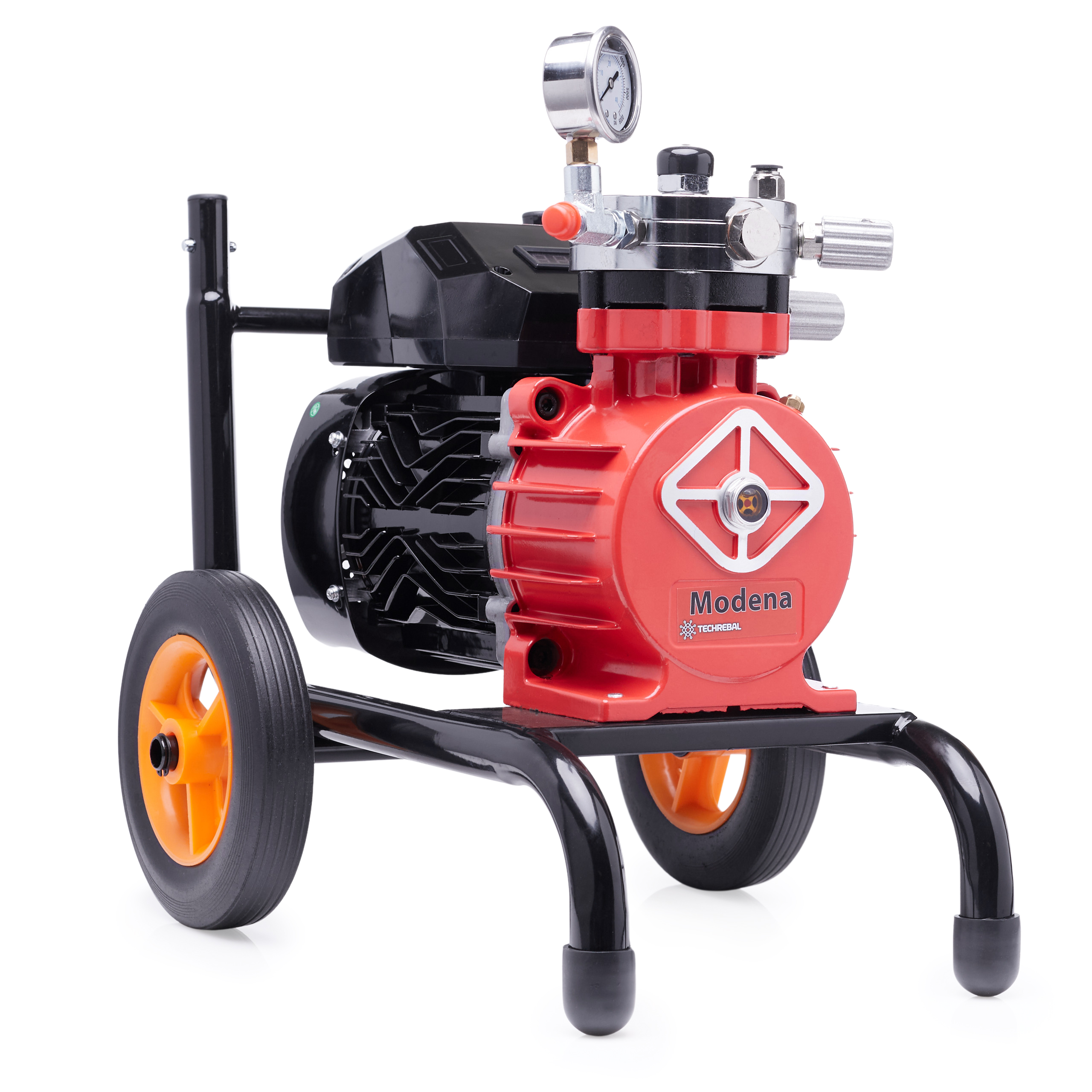

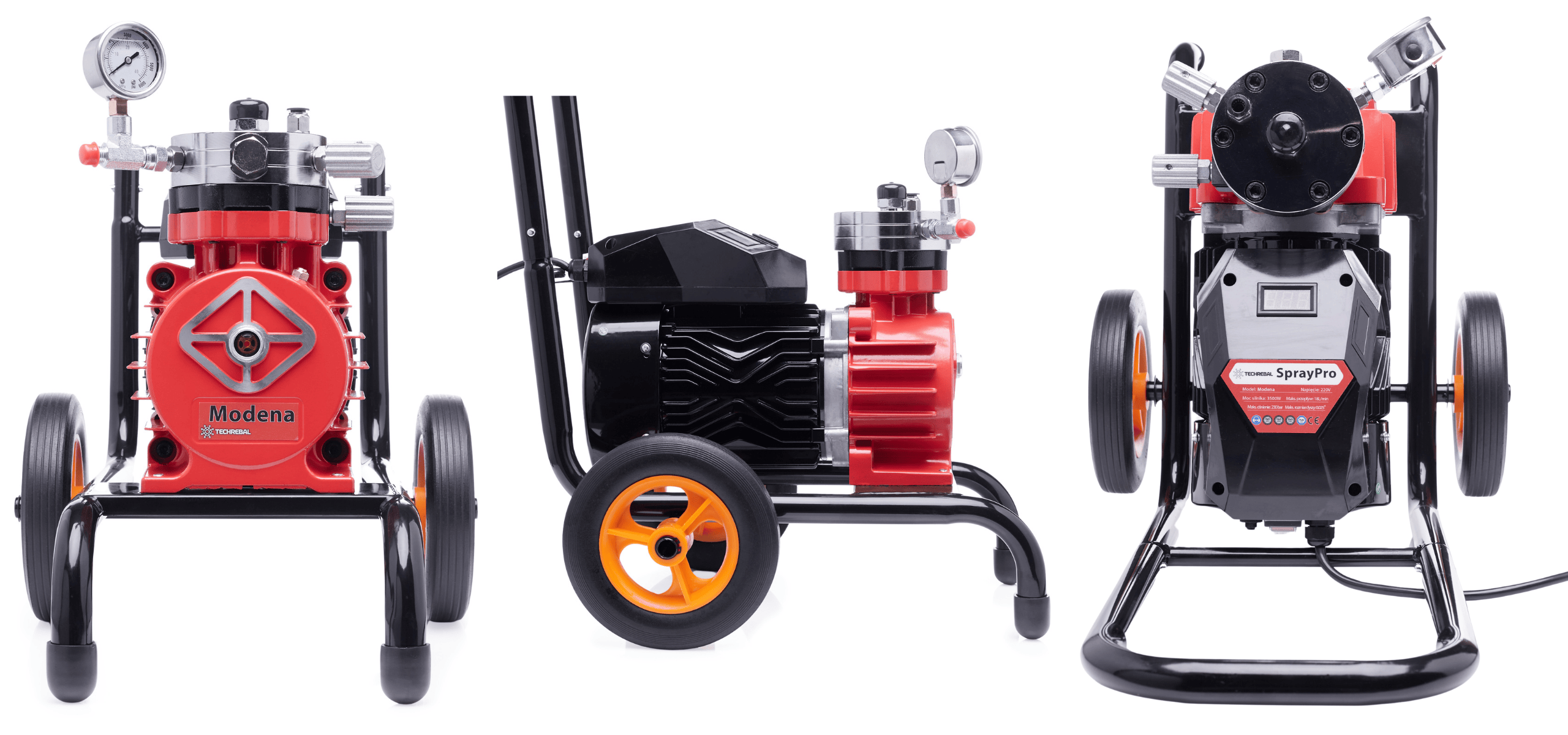

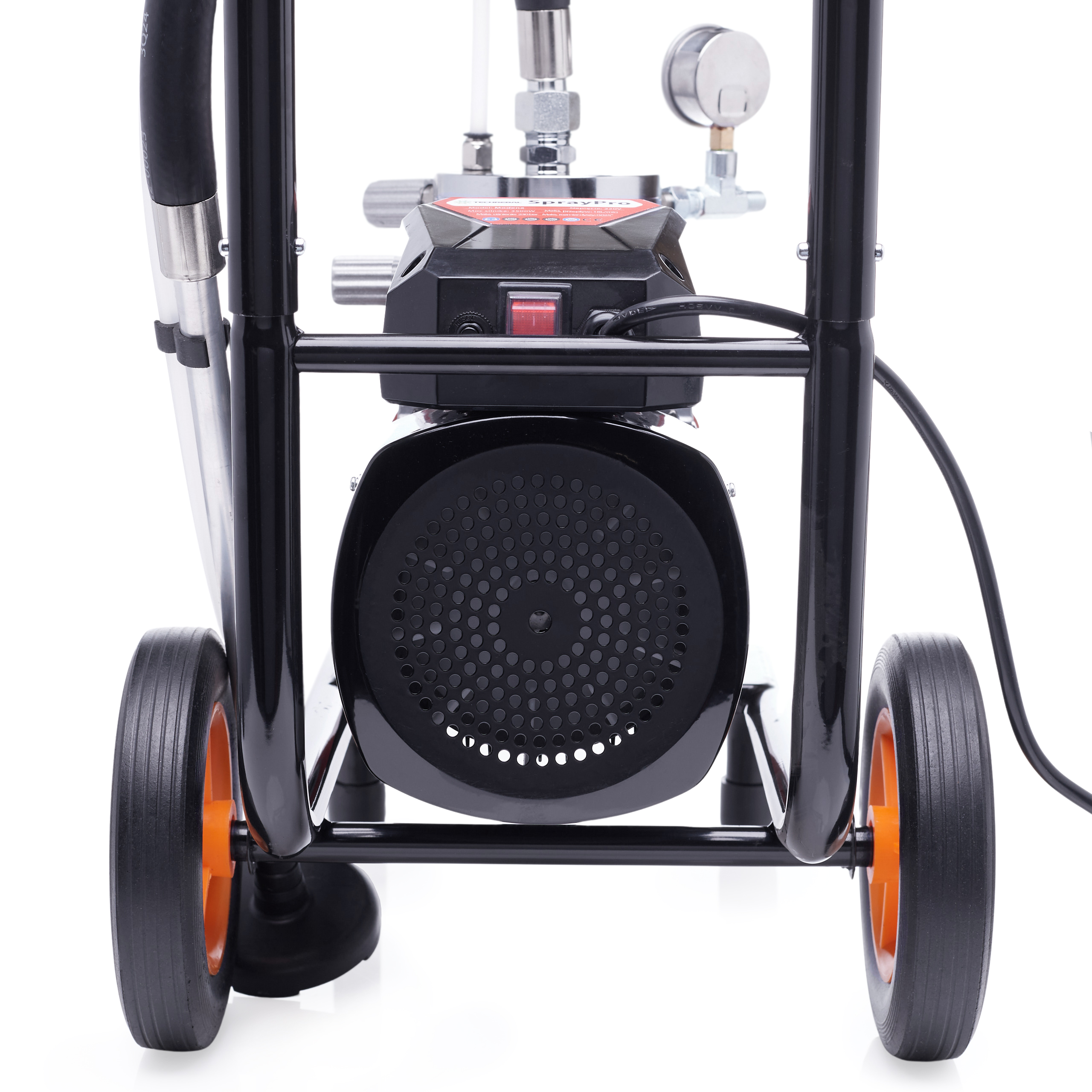

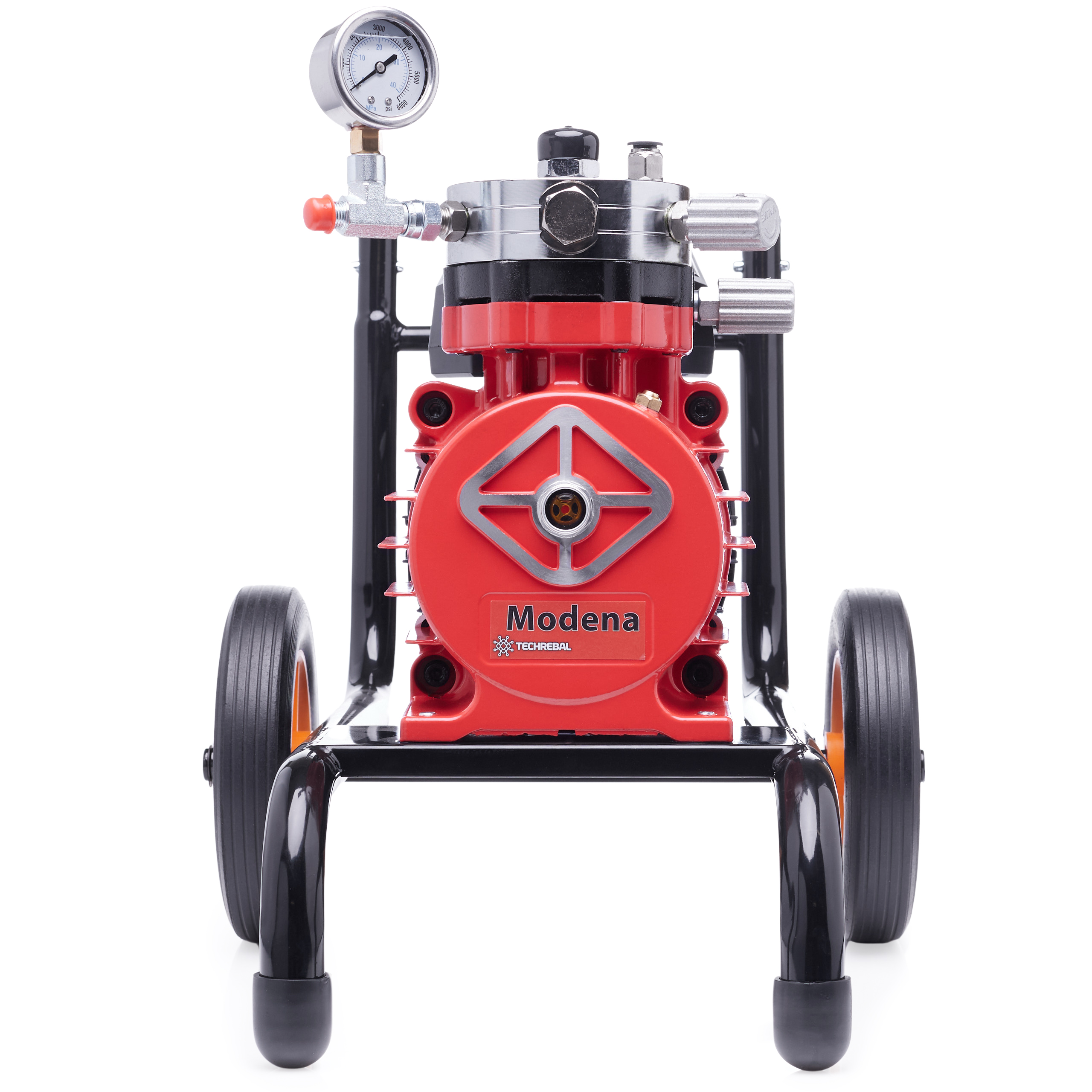

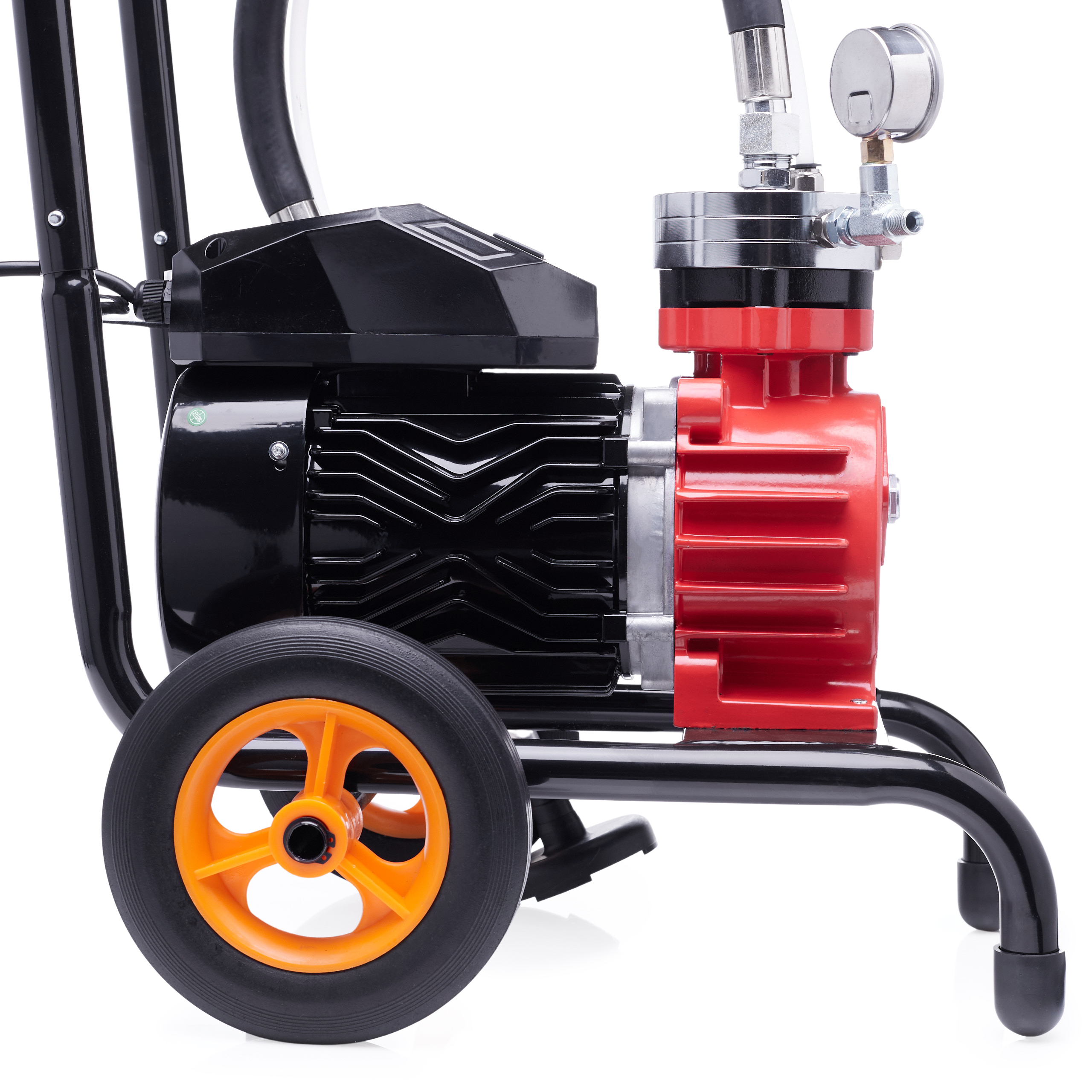

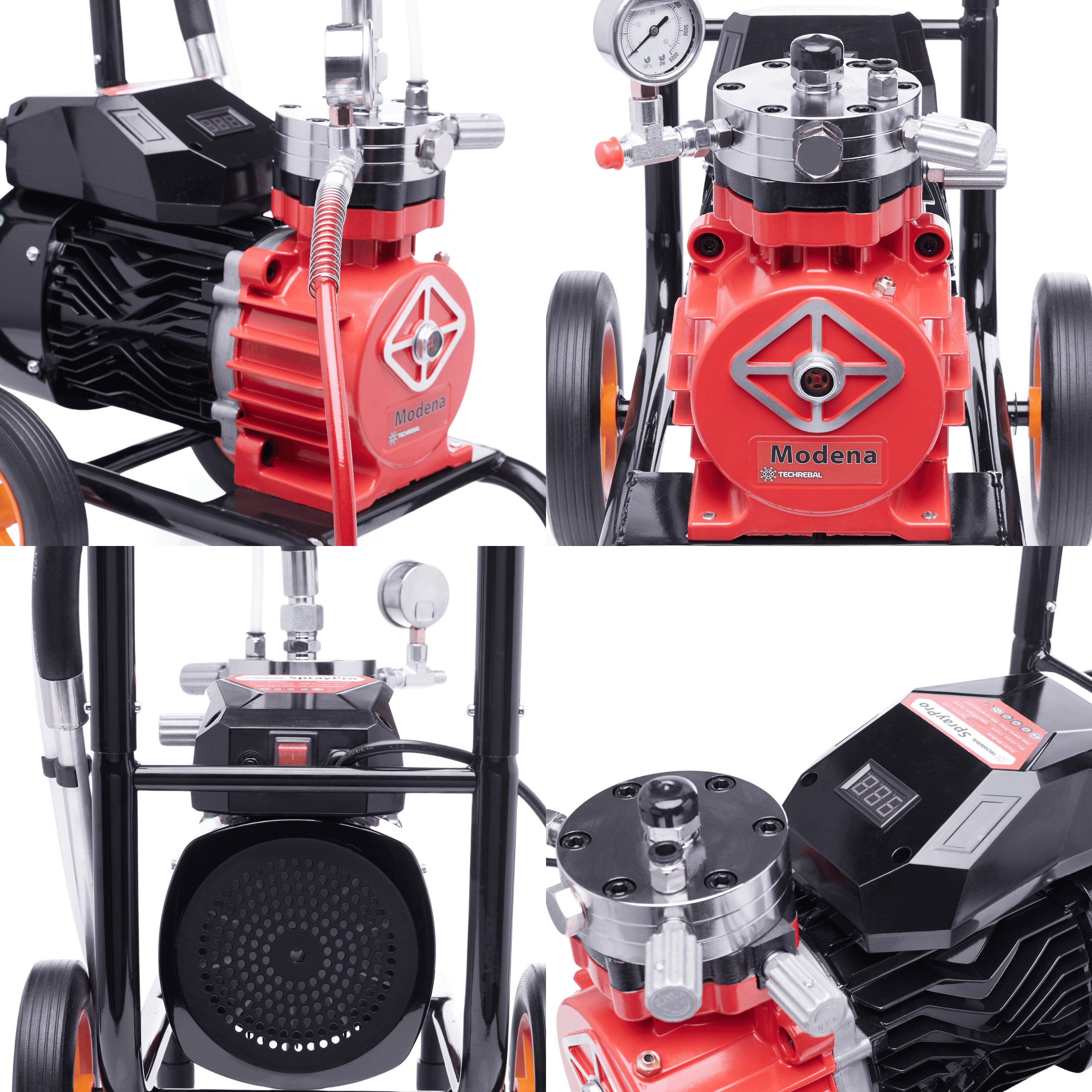

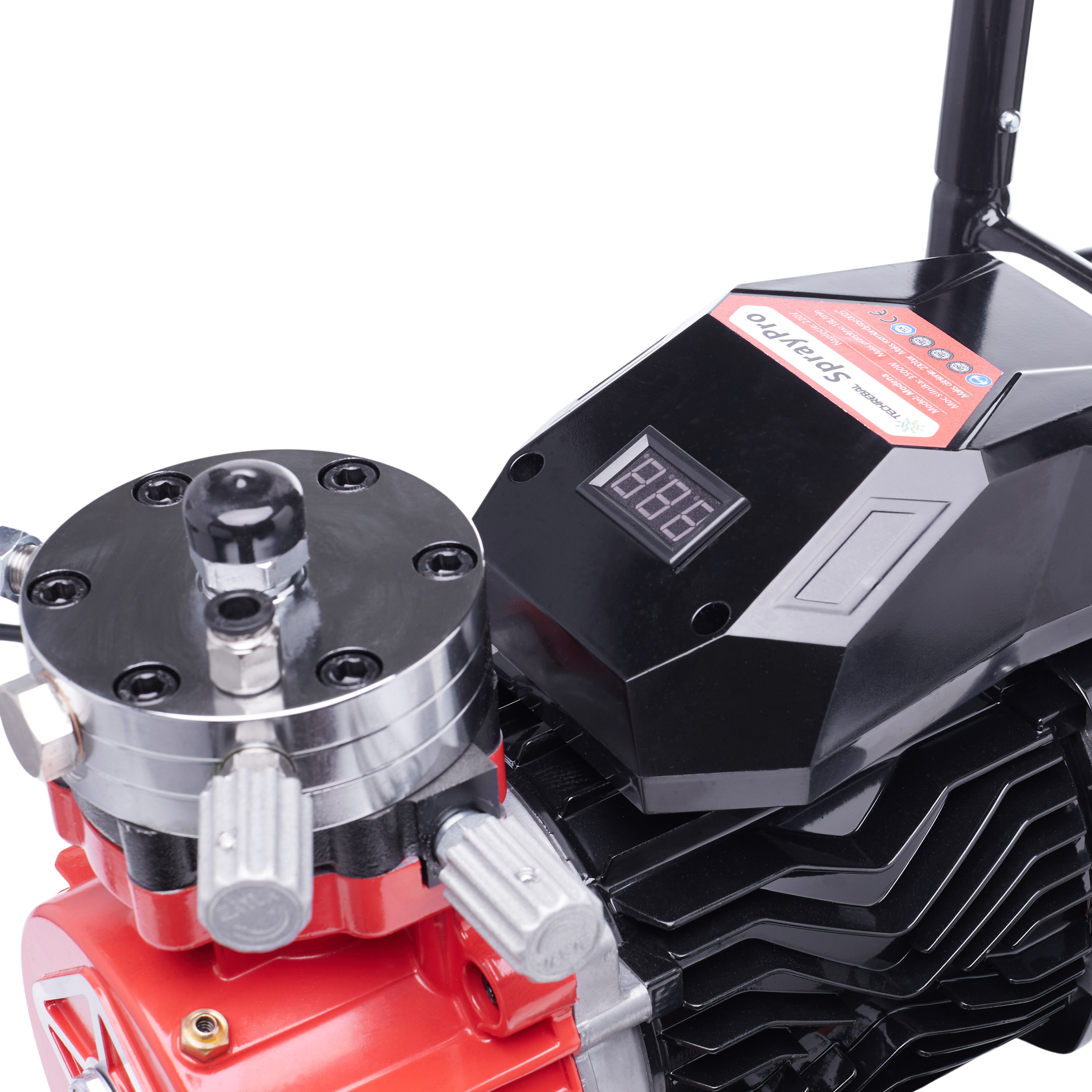

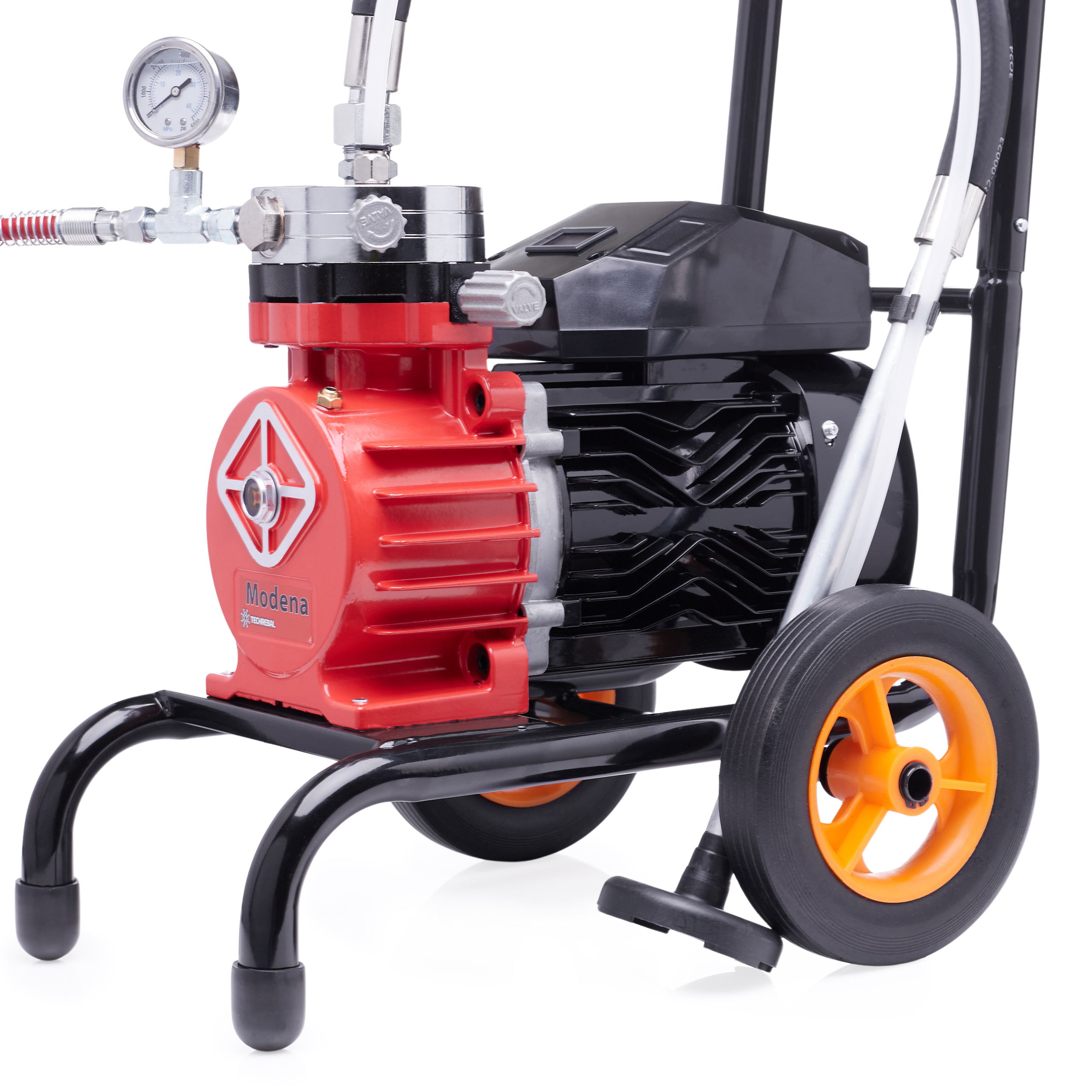

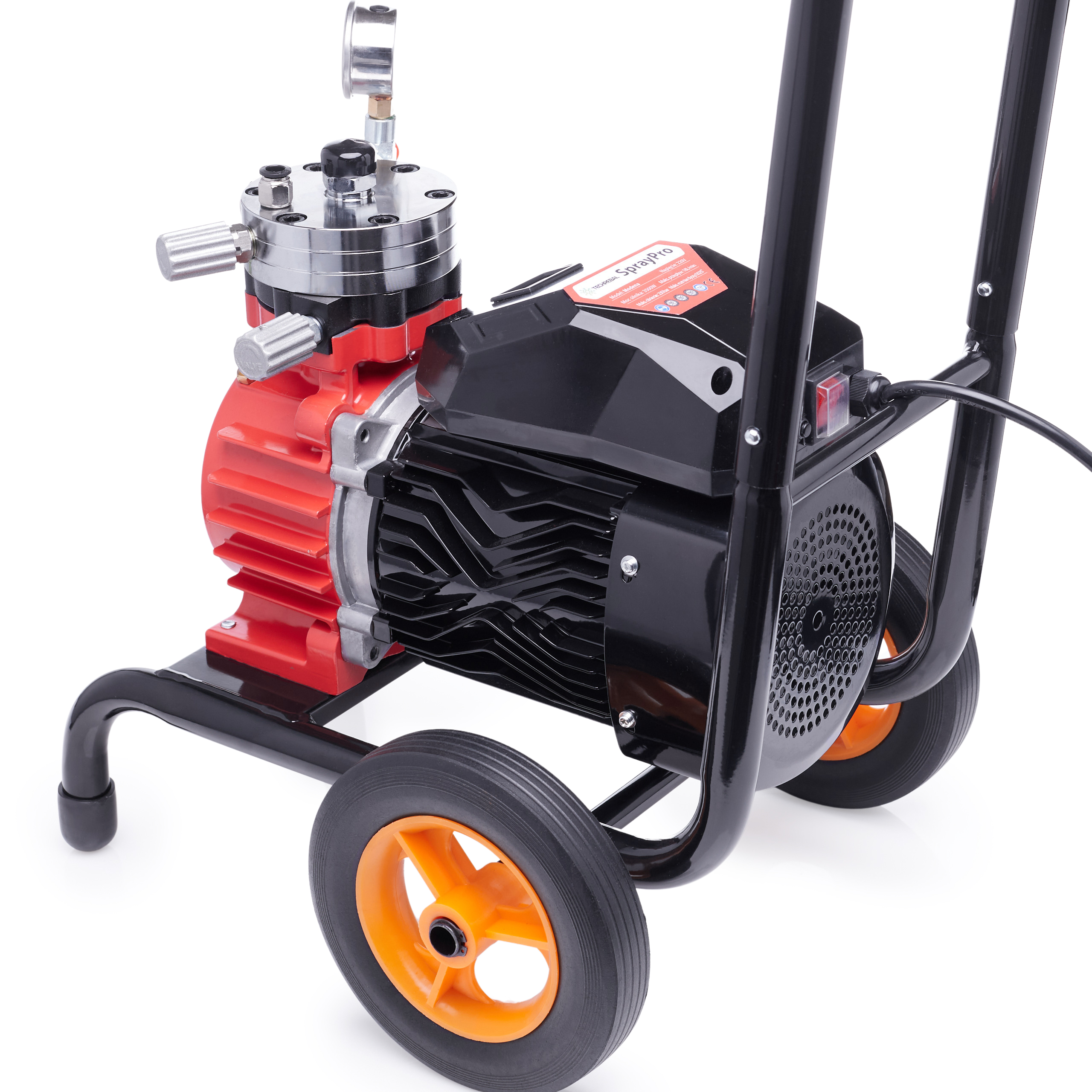

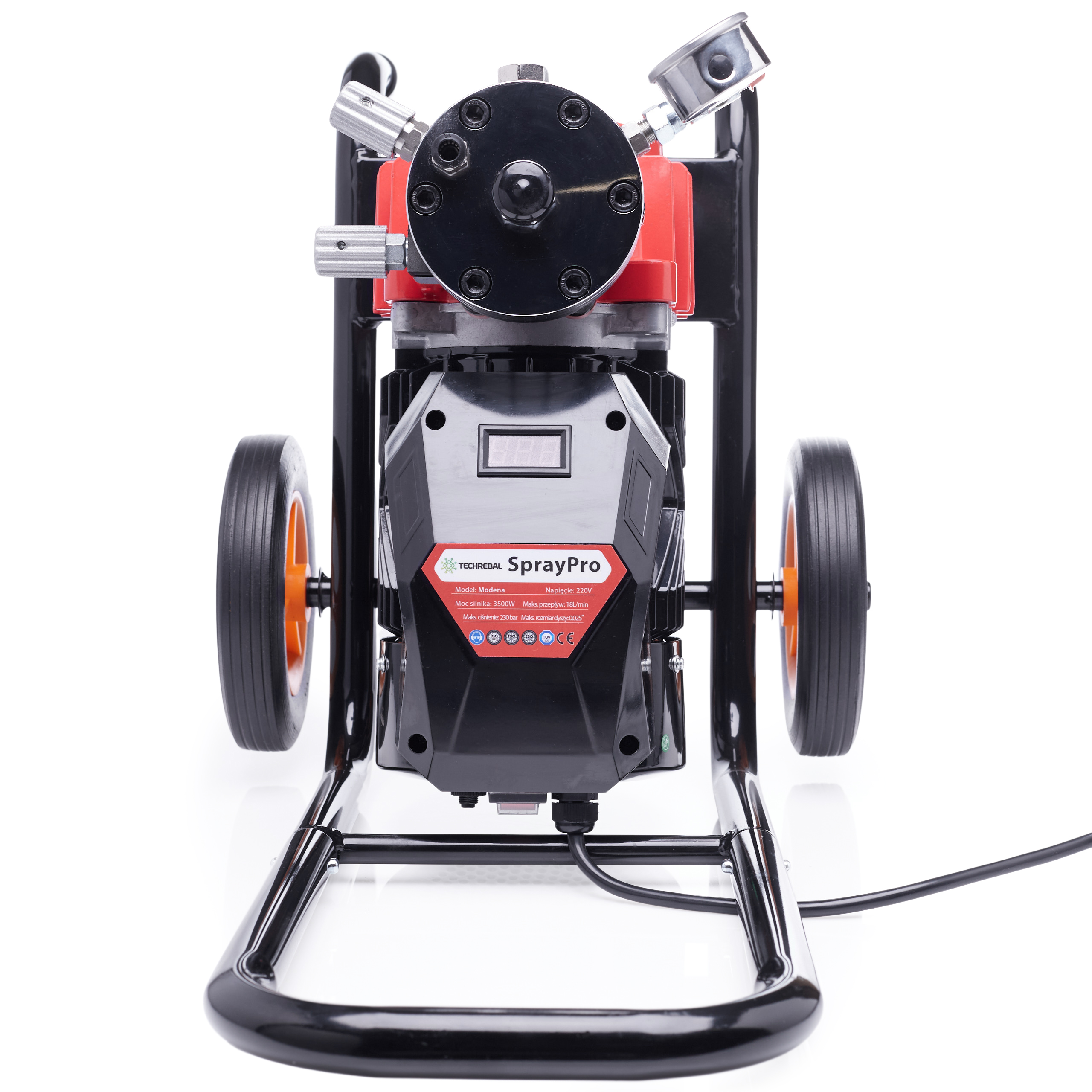

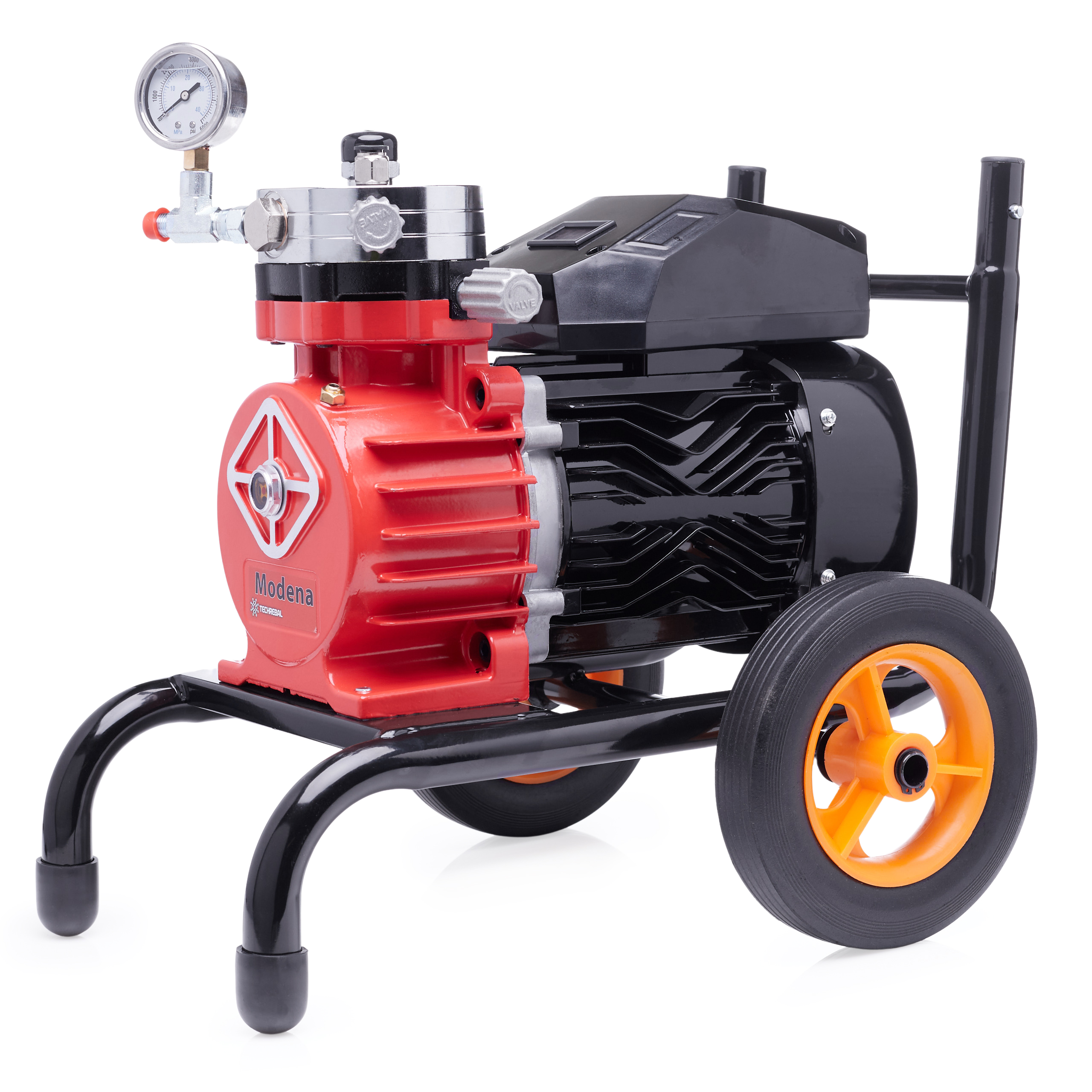

TECHREBAL MODENA 3500W HYDRODYNAMIC PAINTING UNIT

The paint unit is the perfect solution for professionals and do-it-yourselfers who appreciate quality and efficiency. Thanks to its state-of-the-art spraying technology, it enables even paint distribution, eliminating streaks and drips. The 3500 W power ensures high productivity, even with intensive use. The robust construction and careful design make the unit reliable and easy to use.

❇️ Product features:

✅Advanced hydrodynamic technology ensures uniform surface coverage, eliminating the need for rollers and brushes, significantly reducing work time and increasing efficiency.

✅ The 3500 W motor offers outstanding performance, allowing for long, trouble-free operation even on large surfaces, increasing comfort and saving energy.

✅ The diaphragm spray system ensures stable working pressure with precise paint distribution and reduced material waste, ideal for professionals.

✅ The 18 l/min capacity allows for fast painting, making the unit ideal for large projects, saving time and increasing productivity.

✅ The professional gun allows the paint flow to be adjusted according to the type of surface and specific job, ensuring excellent end results.

✅ Durable construction in robust materials ensures long unit life, making the membrane unit suitable even for difficult working conditions.

✅ Ease of use and mobility make the unit comfortable to use for both professionals and those new to spray painting.

⚙️ TECHNICAL DATA

Unit power: 3500 W
Working pressure: up to 230 bar/3300 psi
Unit capacity: 18l/ min
Spraying capacity (with kit gun): 4l/min
Maximum nozzle size: 0.025" (0.63 mm)
Motor type: brushless
Compression mechanism: diaphragm pump
Length of gun hose: 8 m
Maximum supported hose length: horizontal 30m / vertical 15m
Unit weight: 24 kg
Gross weight with accessories: 29 kg
Dimensions: 53x36x72 cm
Maximum diameter of inspectable nozzle: 0.025″.
Power supply: 230V
Hose connection: 1/4
Wheel diameter: 19 cm

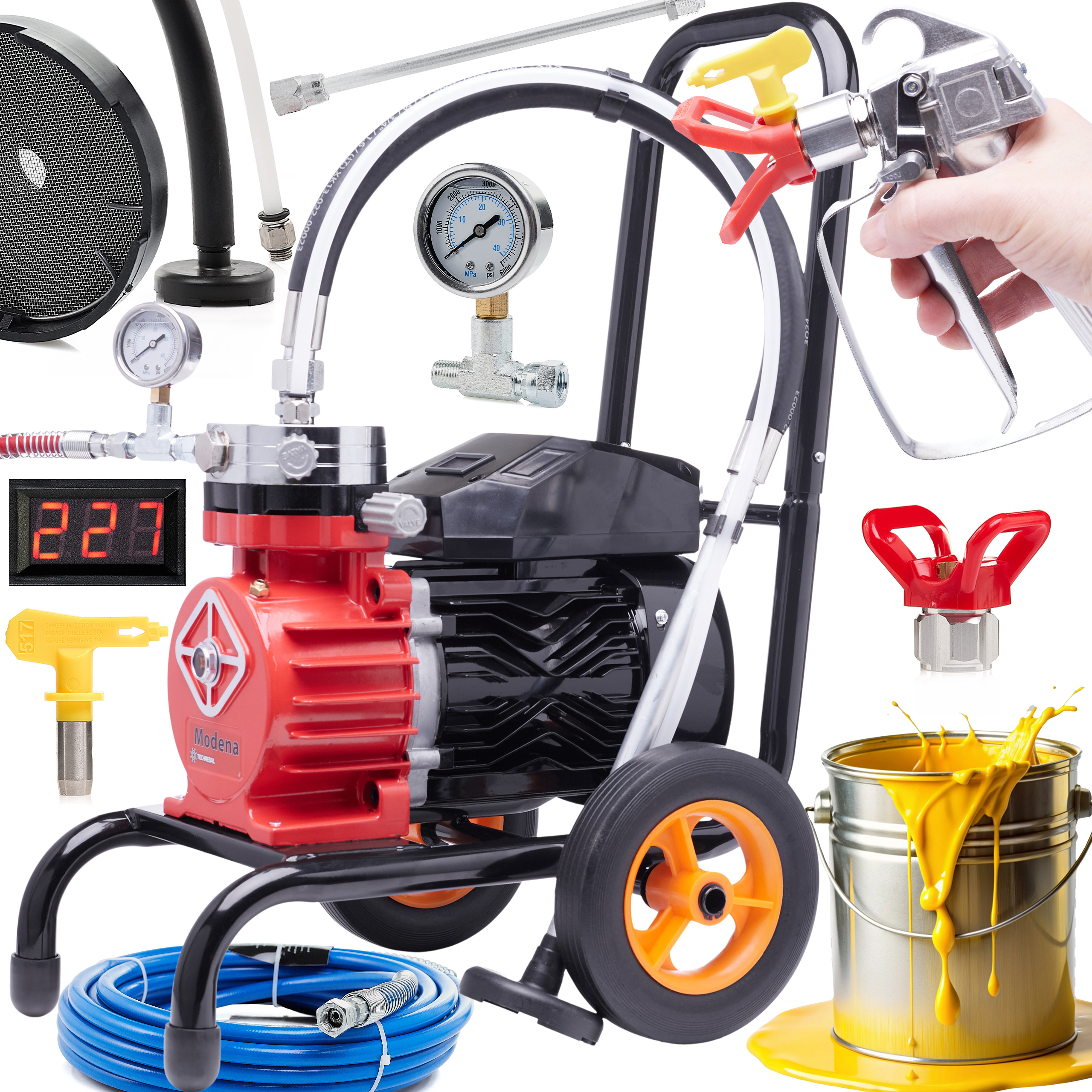

In the set you will receive:

Techrebal 1100 painting unit
Aggregate gun 4l/min

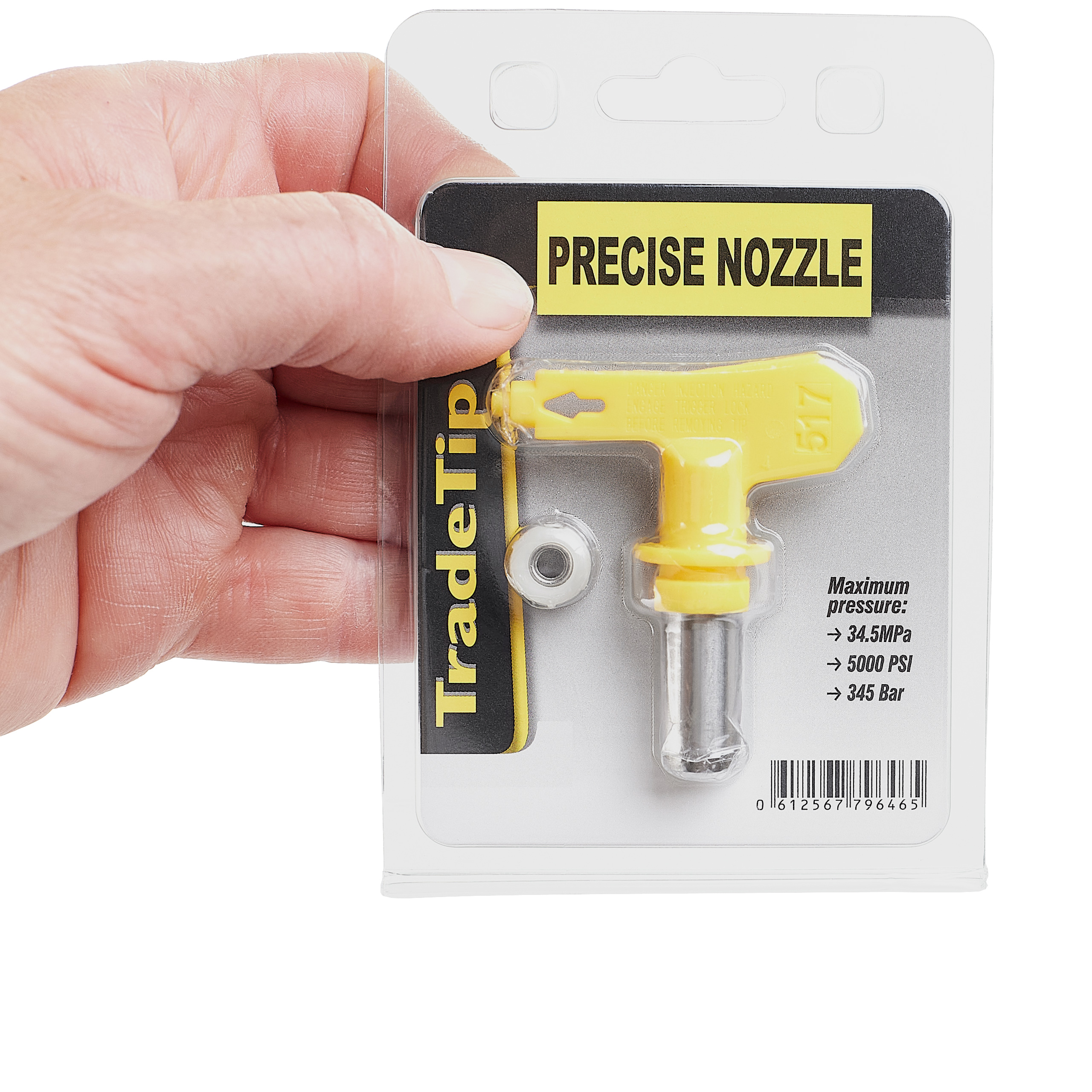

Paint nozzle model 517
Nozzle gasket
Nozzle cover
Lance 50 cm
Paint spray gun hose 8 m
Suction hose 90 cm with filter
Overflow pipe 83 cm
Pressure gauge
Operating manual in Polish

✅ High standards and quality workmanship

Our appliance stands out from the competition by meeting strict standards and certification requirements. It is certified to confirm its high quality and safety:

✅ ISO 9001

✅ ISO 45001

✅ ISO 14001

✅ TÜV SÜD

✅ Powerful 3500W - reliability and efficiency

The 3500W power ensures stable and smooth operation even under high load conditions. This makes the unit capable of handling a wide range of paints, from water-based emulsions to thicker decorative coatings. You will not have to worry about overheating or a drop in performance: the membrane unit is designed for prolonged use. The high motor power allows you to paint large areas in a short period of time, making your projects much faster.

✅ Modern hydrodynamic technology

With the hydrodynamic spraying system, you can paint faster and more precisely than ever before. Without the need for rollers or brushes, time is saved and the surface is evenly and aesthetically coated with paint. This type of technology also reduces material waste, so less paint is used, which translates into real savings. The paint unit is ideal for painting walls, ceilings, façades or fences.

✅ Performance up to 18 l/min - fast and efficient painting

With an application speed of up to 18 l/min, large areas can be covered without interruption. The high application speed makes painting much more efficient than conventional methods. This makes the paint unit ideal for both renovation and construction sites, where time and quality count. (Performance depends on the gun used)

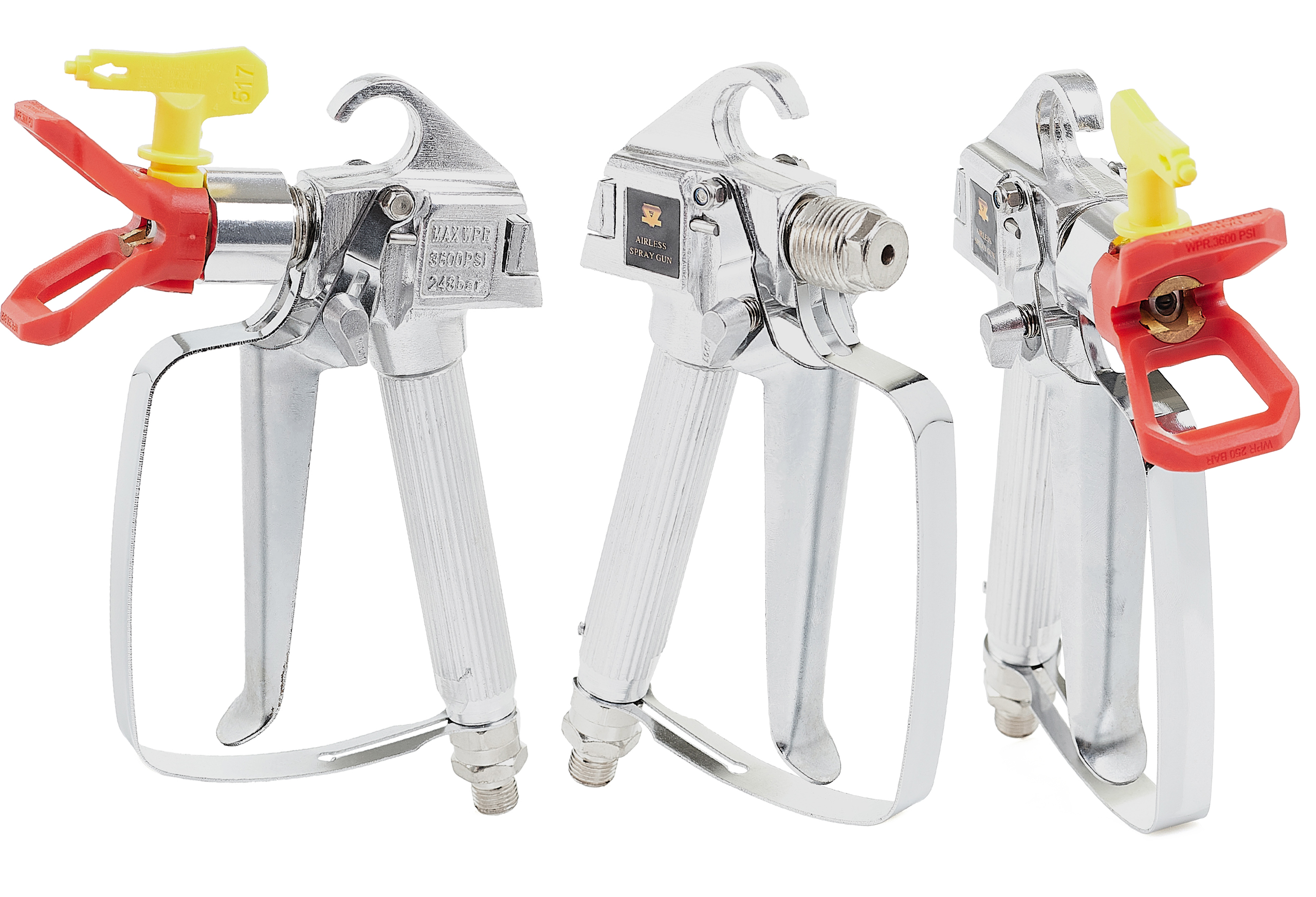

✅ Precision spray gun - full painting control

A professional 4 l/min spray gun is included that allows you to adjust the paint flow. This allows the spray intensity to be adapted to the surface to be painted, ensuring maximum precision. The gun is comfortable to use and minimises hand fatigue even with prolonged work. The ergonomic design facilitates accurate painting of corners, edges and hard-to-reach areas.

✅ Ideal choice for professionals and do-it-yourselfers

Whether you are professionally renovating or planning to paint your home, the paint unit will meet your expectations. Thanks to its high performance, precision and ease of use, it is an equipment that works in any situation. You can paint walls, ceilings, façades and even wooden and metal parts, achieving excellent results effortlessly.

Save time and material

With the hydrodynamic spray system, you will not only speed up painting, but also reduce paint consumption. Traditional methods often lead to unnecessary waste, and brushes and rollers do not guarantee a perfectly even layer. The membrane unit eliminates this problem, giving you full control over paint application.

⚪️ Cleaning

When not working for a few minutes, it is important to lock the gun trigger and immerse the nozzle in a container of suitable solvent or water (if using water-based paints). This will prevent the paint from drying in the nozzle. Also, do not forget to release the pressure in the unit before starting to break.

If the nozzle becomes clogged, turn it 180 degrees from the SPRAY position (arrow pointing towards the gun outlet) to the CLEAN position (arrow in the opposite direction). Then clean the nozzle to remove any obstructions. If the problem persists, check the filter located in the gun handle - this may also need cleaning.

Are you thinking of replacing a traditional brush or roller with a modern solution?

With the TECHREBAL paint unit you get:

✅Speed - the high pressure allows you to cover large areas with paint in no time.

✅ Perfect coverage - precise paint distribution guarantees an effect like that of a professional.

✅ Versatility - suitable for paints, primers, stains and even very thin fillers.

✅ Working comfort - the ergonomic design and ease of use make painting easy and pleasant.

Forget about uneven coverage and fatigue after manual painting. Choose the Techrebal unit and get a perfect result in much less time!

ATTENTION!

We are the manufacturer of the Techrebal units and provide full service for the equipment we offer.

✳️ Choosing the right nozzle is easy with us! Here are some steps to help you make the right choice:

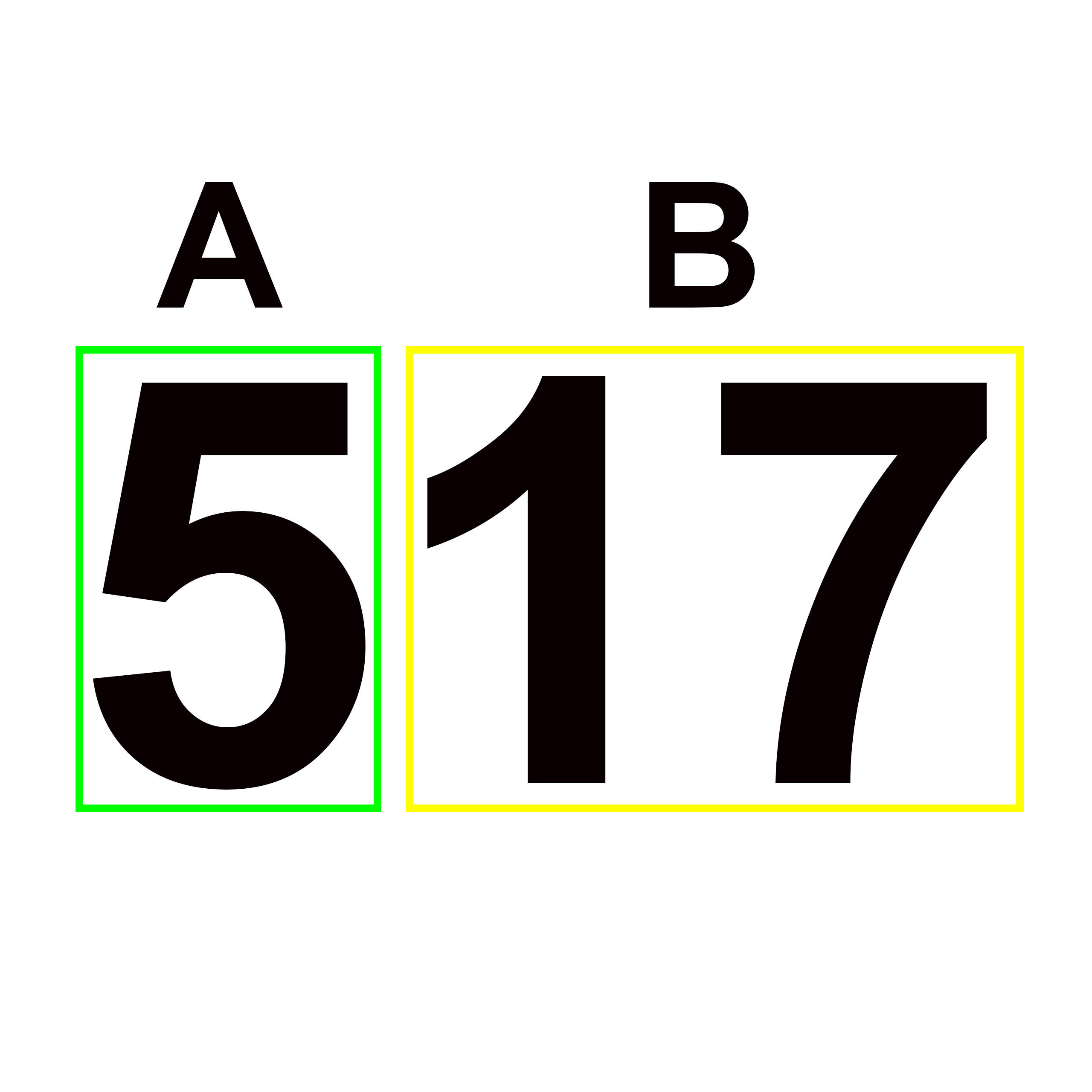

1️⃣ The first digit (A) determines the width of the paint jet, which we call 'A'. To calculate the jet width, simply multiply the first digit by 5 cm. The result indicates the width of the paint jet if the gun is 30 cm from the surface to be painted. It can be written as:

Jet width = A x 5 cm

Example: If the first digit of "A" is 5, the spray width is: Spray width = 5 x 5 cm = 25 cm.

This means that holding the gun 30 cm from the surface will give a spray width of 25 cm.

2️⃣ The last two numbers (B) refer to the size of the nozzle opening and the type of paint that can be applied. The higher the number, the thicker the paint that the nozzle can process. For example, a '517' nozzle means a spray width of 25 cm and a nozzle opening diameter of 0.017 inch.

✳️ Range of nozzle orifices for different types of sprayed material:

Pigments: 0.009″
Stains, varnishes and oils: 0.009″ - 0.011″.
Primers: 0.013
Urethanes, epoxides: 0,013″ - 0,015″.
Enamels, emulsions: 0,015″.
Acrylics: 0.015″ - 0.019″.
Latex: 0,017″ - 0,019″.
Exterior and facade paints: 0,021″ - 0,029″.
Waterproofing paints: 0,023″ - 0,031″.
Multicoloured building paints: 0,023″ - 0,031″.
Flame retardants: 0,029″ - 0,035″.
Elastomers: 0,025″ - 0,033″.
Putties, smoothing compounds: 0,027″ - 0,035″.
Bituminous masses: 0.055″ - 0.065″.
