GRUF™ | Enduro Motorcycle Complete LED Speedometer Kit - MPH & KM/H With Sensor

12v LED Speedometer

This speedometer is an all-in-one device. It has an anti-glare display. Forged in a rugged sealed casing, which is suitable for harsh weather conditions.

Fitment:

This has a wiring configuration that suits the enduro light kits we have available (plug-and-play).
Not suitable for the Kurz RT1 and Kurz FS 250 (2021 onwards) as the wiring configuration is different – See ‘KURZ Speedometer Kit’ instead.
It may be used on many other bikes, should you have the skill to determine your wiring configuration.

Functions:
Night-Light-Display
Speed display (mph or km/h)
Trip/total distance
Neutral & gear indicator light
Turn signal lights
High beam light
Low beam light
Rev counter
Battery voltage
Programable settings menu (Instructions included)

Technical data:
Front wheel size compatibility: 12″, 14″, 17″, 19″, 21″
Unit dimensions: 139 x 44 x 36 mm (length x width x height)
Sensor wire length: 760mm
Unit mount bolts: 16mm total length, 70mm centres (M6 x 7.5mm thread length, 8mm diameter x 8.5mm shaft)
Plug 1: 3 wires for wheel speed sensor
Plug 2: 7 wires for 12v power, ground, turn signal, neutral, high beam, rev counter
Plug 3: 6 wires for gear indication

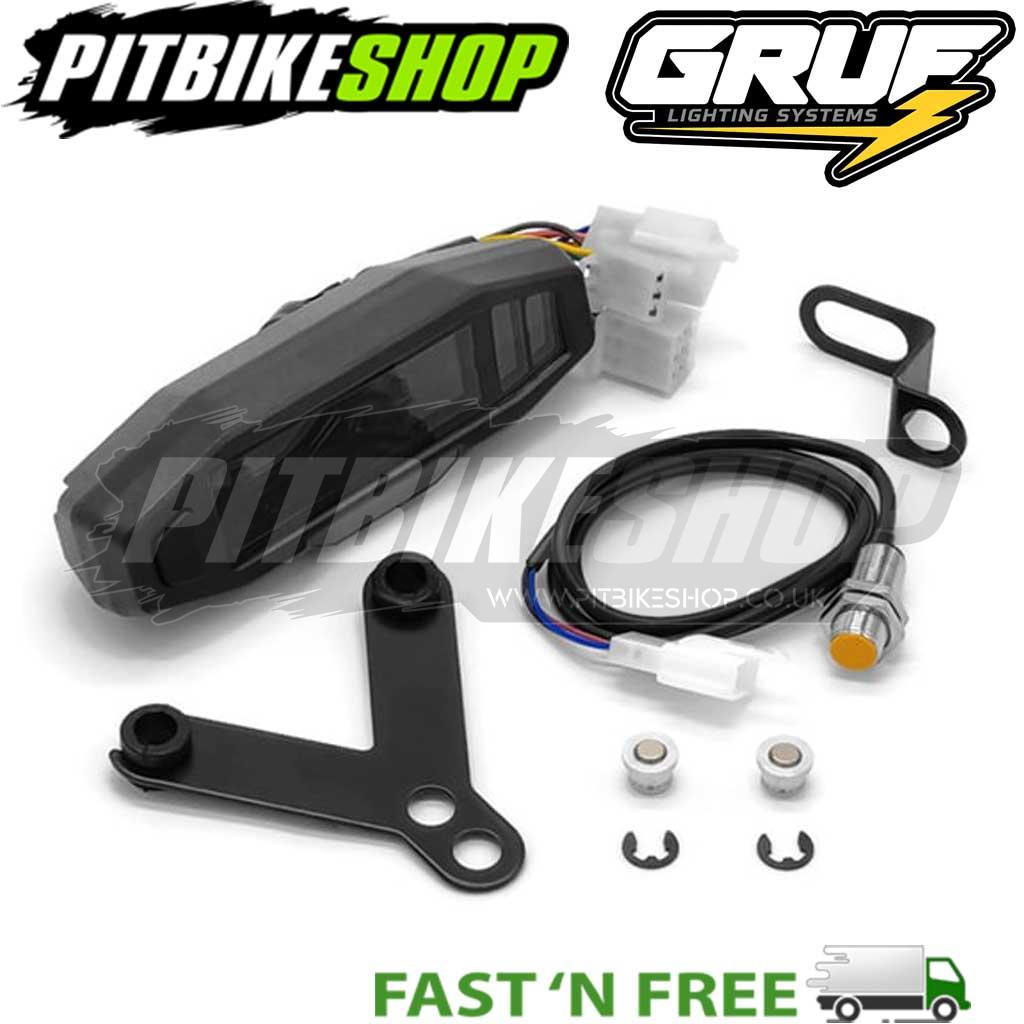

Included:
Speedometer
Sensor and wire
2x Brake disc magnets with retaining clips (to be drilled/glued into the disc if no holes are already present)
Sensor bracket
Speedometer bracket

FAQ:
Q: Can I fit this speedometer on a KTM bike?
A: Yes, this may be used as a universal fitment to most motorcycles with a 12V power supply. To wire it for a speedometer only, simply connect power to the 12v feed wire and ground the earth wire to power the unit, then install your wheel speed sensor near your brake disc, insert the 4 brake disc magnets that are provided, and away you go.

Colours and specifications may be subject to change without notice.
