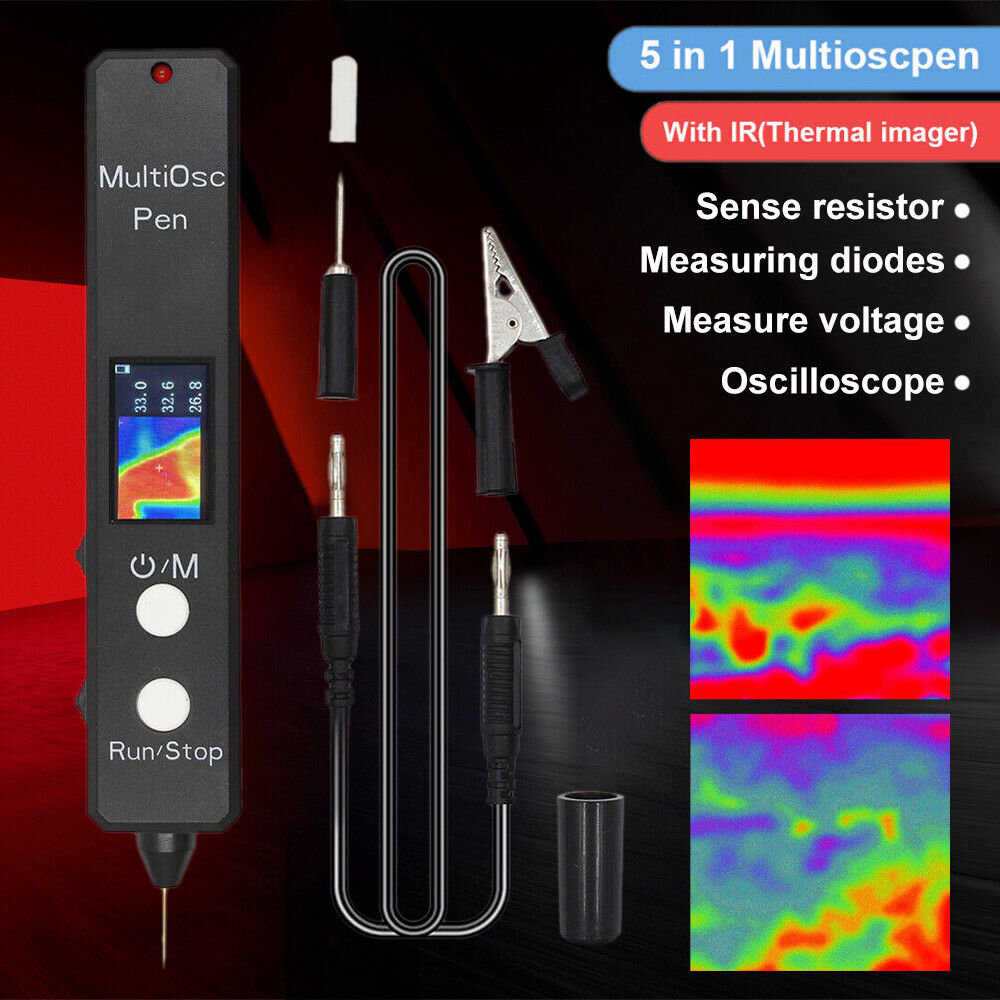

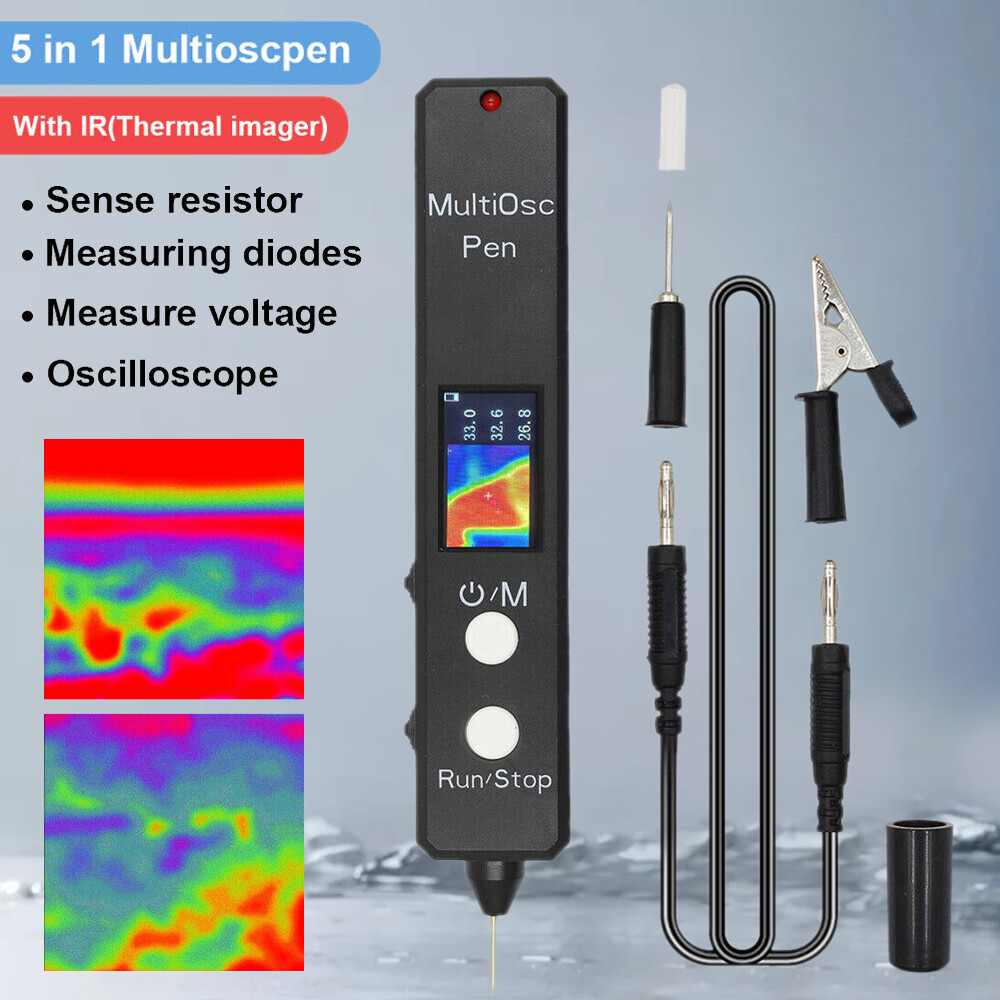

5in1 Mini Oscilloscope Pen MuItiOsc Pen Thermal Imager Portable Multifunction
Items Description
Features:
1. Integrated High-Precision Voltage Measurement: This multifunctional product is equipped with an advanced high-precision voltage meter, capable of measuring up to 24V with an accuracy of ±1.5% or ±0.15V. It is designed to meet the needs of precise electrical diagnostics, making it invaluable for both professional and DIY applications.
2. Advanced Thermal Imaging: Featuring a high-resolution thermal imager, this pen can measure temperatures ranging from -40°C to 300°C with an accuracy of ±3°C at its middle point range (0~100°C). The device displays middle, max, and min temperatures and supports a refresh rate of 4HZ, providing real-time thermal diagnostics for a variety of applications including electrical and mechanical maintenance.
3. Multi-Functional Oscilloscope: The built-in oscilloscope with a sampling rate of 2Ms/s and 400KHz bandwidth offers an efficient way to visualize electronic signals. With features such as 4KBit storage depth, auto trigger mode, and a vertical sensitivity range from 50 mV/div to 10 V/div, it ensures versatility in signal measurement and analysis.
4. Versatile Resistance and Diode Testing: This multifunctional pen allows for resistance measurement in the range of 10Ω to 5MΩ with an accuracy of ±2%, ensuring reliable and accurate testing. Additionally, the built-in diode tester allows users to perform quick and easy on-off measurements, simplifying the process of validating diode functionality.
5. Compact and Rechargeable Design: The pen’s lightweight and ergonomic design, combined with a convenient Type-C charging interface, ensure ease of use and portability. The device boasts a compact dimension of 160x27x26mm and includes a 1.14-inch TFT display for clear and precise readings. The rechargeable battery offers long-lasting performance, making this multifunctional pen a reliable tool for continuous use.

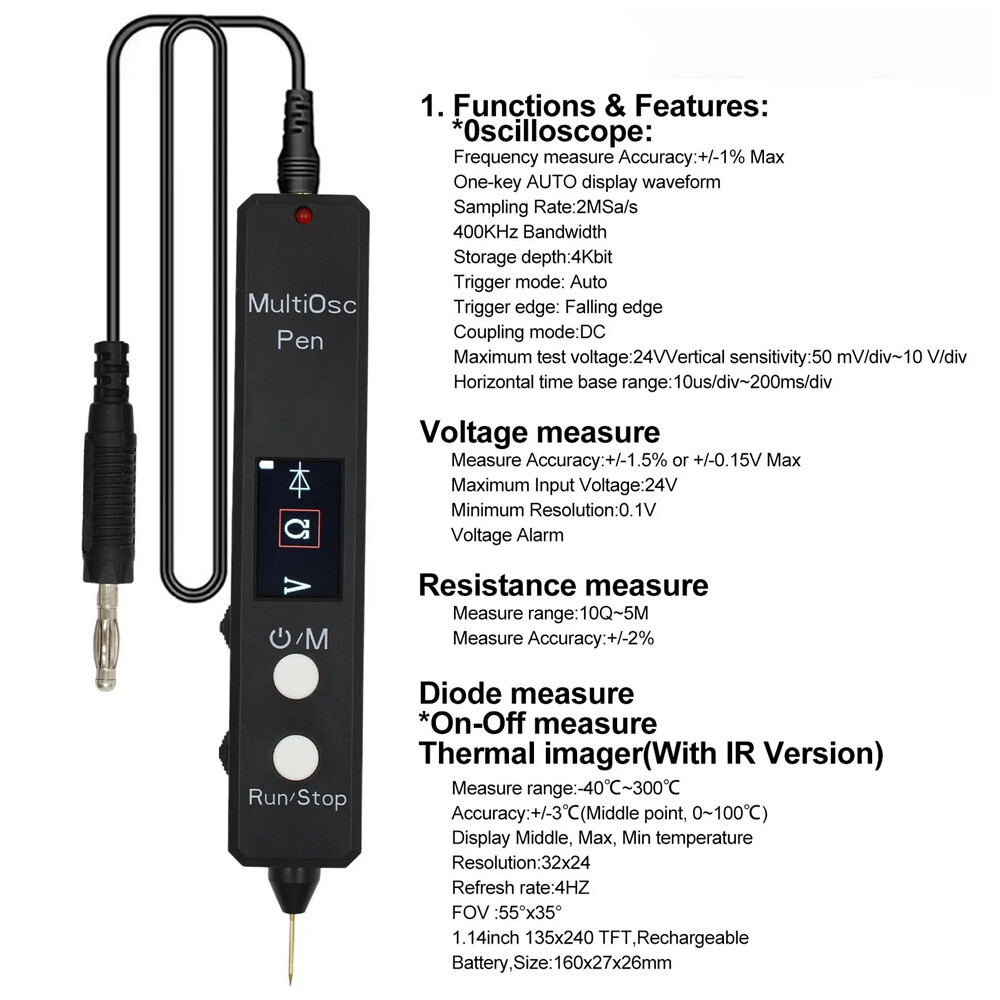

Specifications:

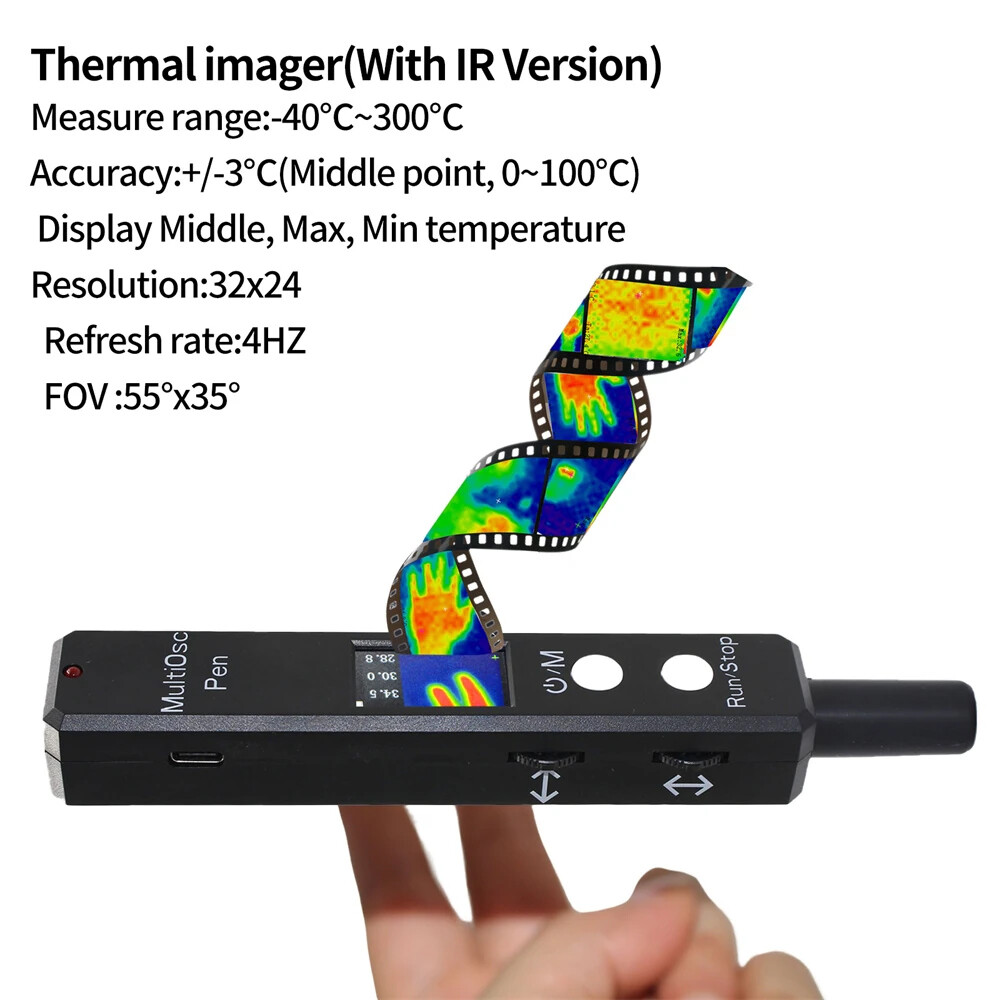

Thermal Imager (With IR Version):
Measure Range: -40°C to 300°C
Accuracy: ±3°C (Middle point, 0~100°C)
Resolution: 32x24
Refresh Rate: 4HZ
Field of View (FOV): 55° x 35°
Oscilloscope: Frequency Measure Accuracy: ±1% Max
Sampling Rate: 2Ms/s
Bandwidth: 400KHz
Storage Depth: 4KBit
Maximum Test Voltage: 24V
Vertical Sensitivity: 50 mV/div to 10 V/div
Horizontal Time Base Range: 10us/div to 200ms/div
Voltage Measure:
Measure Accuracy: ±1.5% or ±0.15V Max
Maximum Input Voltage: 24V
Minimum Resolution: 0.1V
Resistance Measure:
Measure Range: 10 to 5M
Measure Accuracy: ±2%

Package Included:
1 x Multifunctional Pen
1 x Test Lead
1 x Type-C Charging Cable
