✅ KEY SPECIFICATIONS

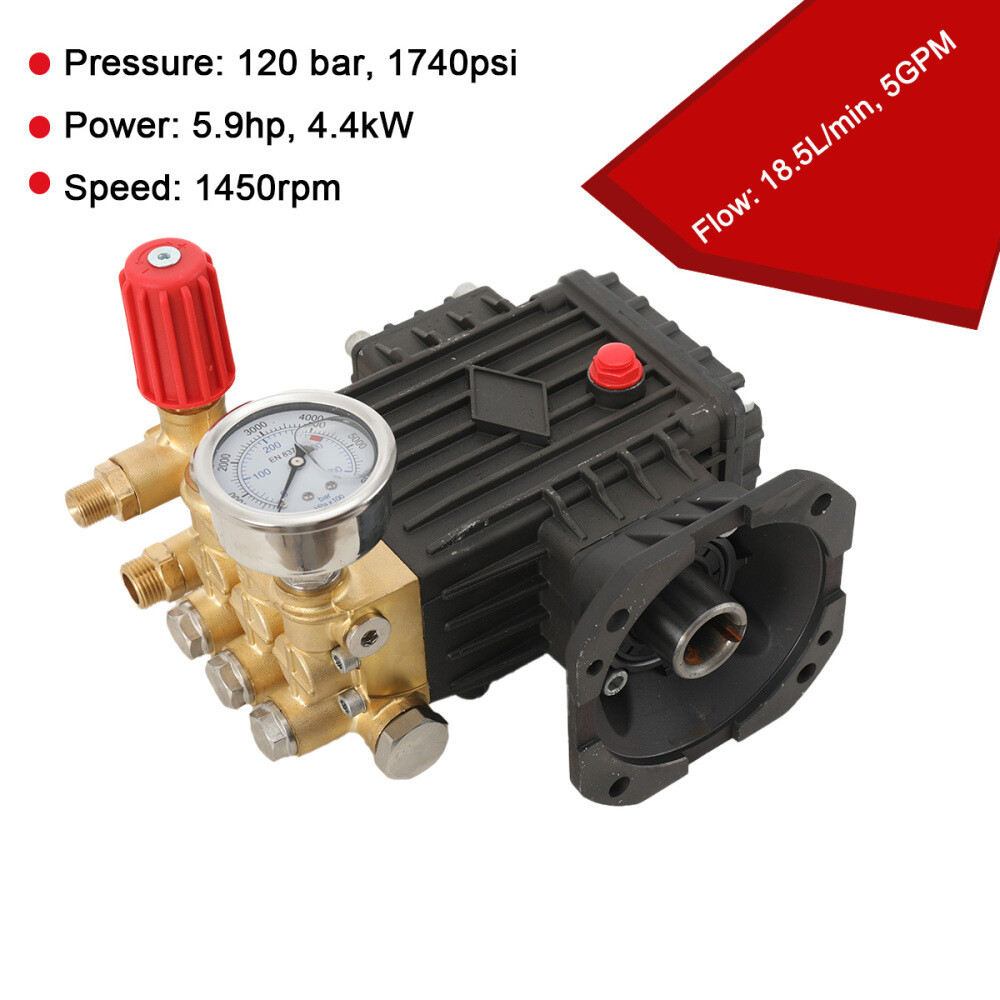

Model: SJM2014-C24
Max Pressure: 120 bar / 1740 PSI

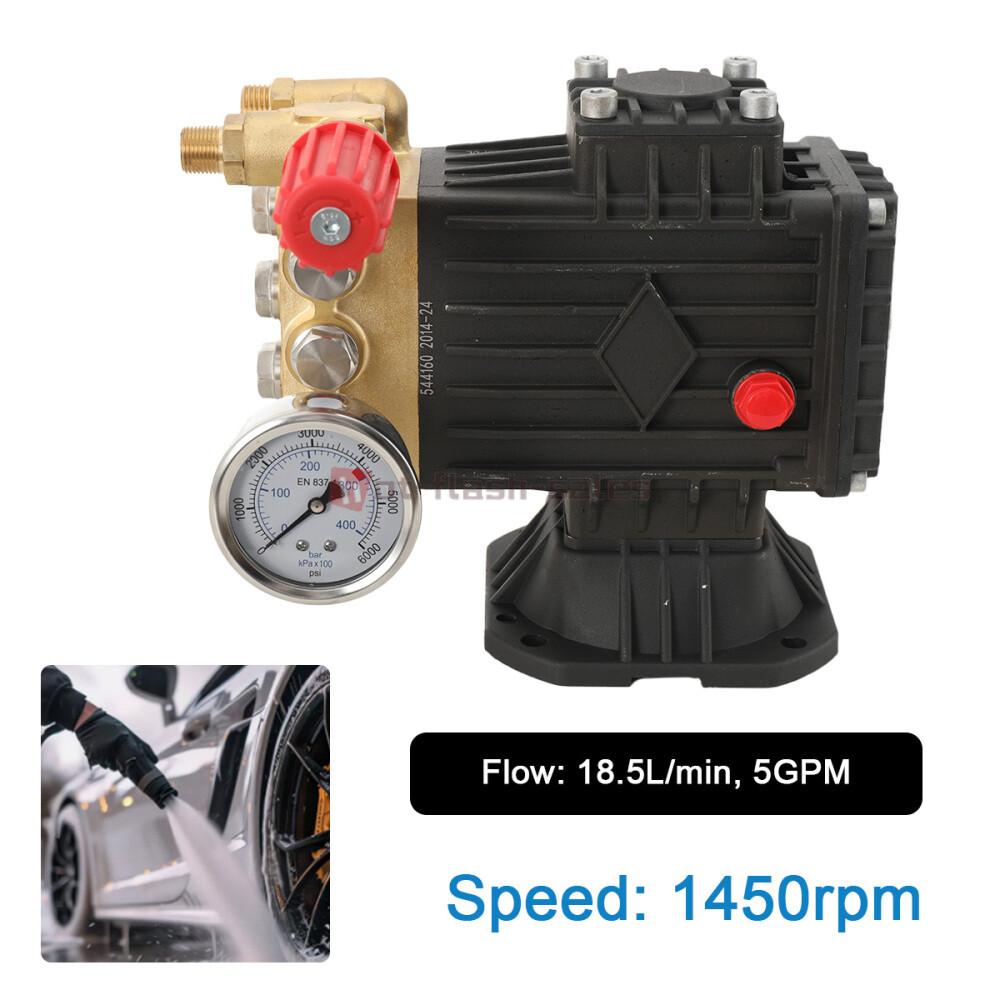

Max Flow: 18.5 L/min / 5 GPM
Power Requirement: 5.9 HP / 4.4 kW Engine/Motor
Speed: 1450 RPM
Oil Type: SAE 15W-40
Inlet: 1/2"
Outlet: 3/8"

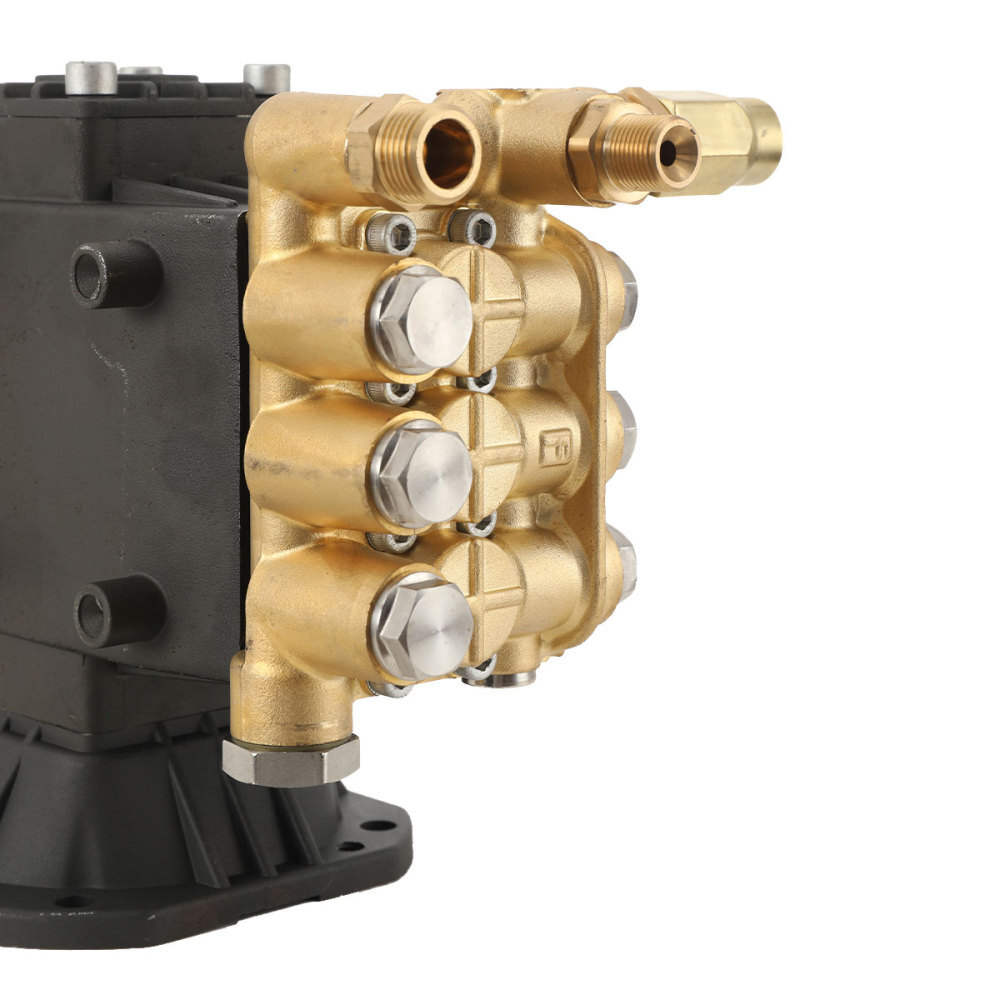

Construction: Brass & Aluminum with Black Oxide finish
Gross Weight: 7.5 kg / 16.53 lbs
✅ KEY FEATURES

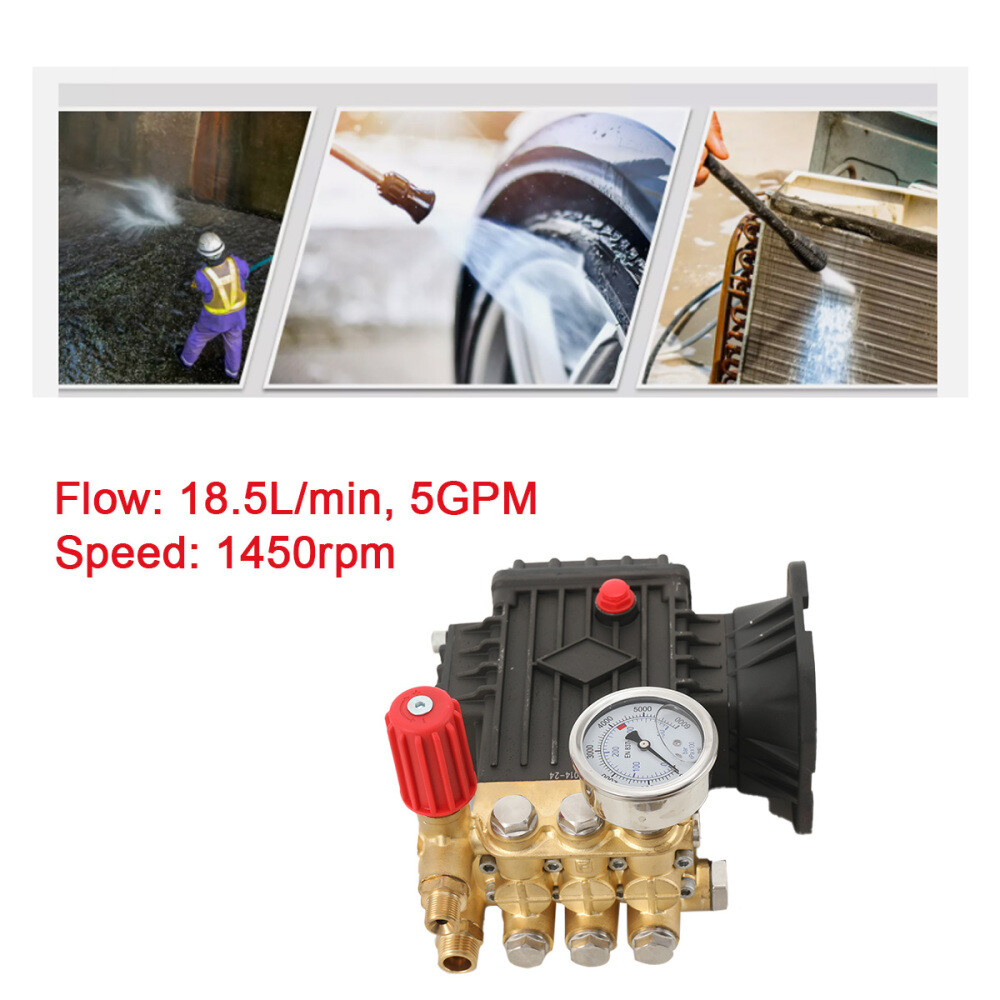

HIGH-PRESSURE INDUSTRIAL PERFORMANCE: Delivers 1740 PSI (120 bar) at a strong flow of 5 GPM (18.5 L/min), ideal for demanding commercial and industrial cleaning tasks.
ROBUST & CORROSION-RESISTANT: Built with durable brass and aluminum components and a protective black oxide coating for long life in harsh environments.
POWERFUL DRIVE REQUIRED: Designed to be driven by a ~6 HP (4.4 kW) gasoline engine or equivalent electric motor (not included). Ensure proper shaft coupling.
COMPLETE PUMP UNIT: Comes as a fully assembled pump core with all necessary ports, ready for professional installation onto your engine/motor frame and high-pressure plumbing.
⚠️ CRITICAL SAFETY & INSTALLATION WARNINGS
POWER SOURCE MANDATORY: Requires a ~6 HP engine or 4.4 kW motor. Professional installation with correct shaft alignment, mounting, and plumbing is essential.
SAFETY FIRST – MANUFACTURER'S WARNINGS:
Design the installation to be safe and risk-free, considering all mounting, energy transmission, and required safety guards.
Never exceed the pump's rated pressure (120 bar) to increase performance.
Stop immediately if you detect a leak from pressurized lines.
Winterize by running the pump dry with the outlet open if ambient temperatures are near freezing.
OIL & MAINTENANCE: Requires SAE 15W-40 oil (not included). Regular maintenance is crucial.
HIGH-PRESSURE HAZARD: This pressure can cause severe injury. Use only rated hoses, fittings, and nozzles. Always follow high-pressure equipment safety protocols.
📦 PACKAGE INCLUDES

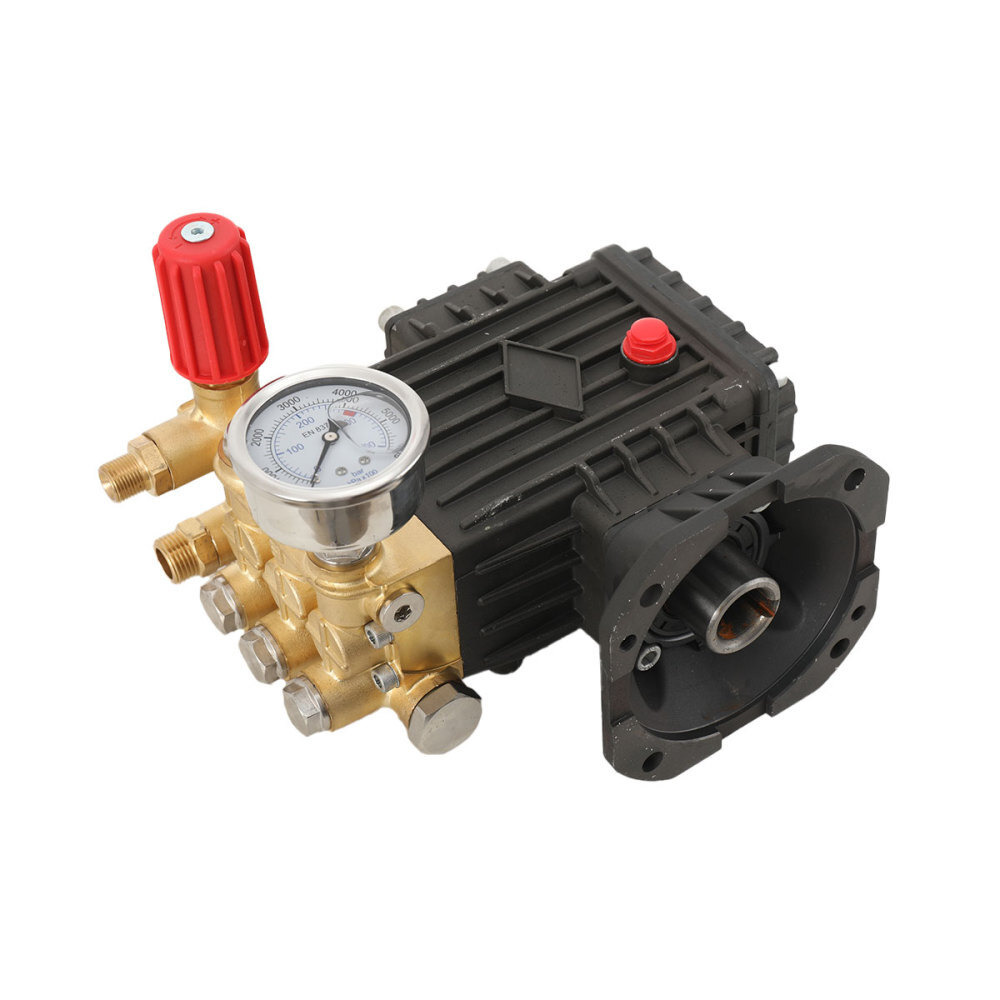

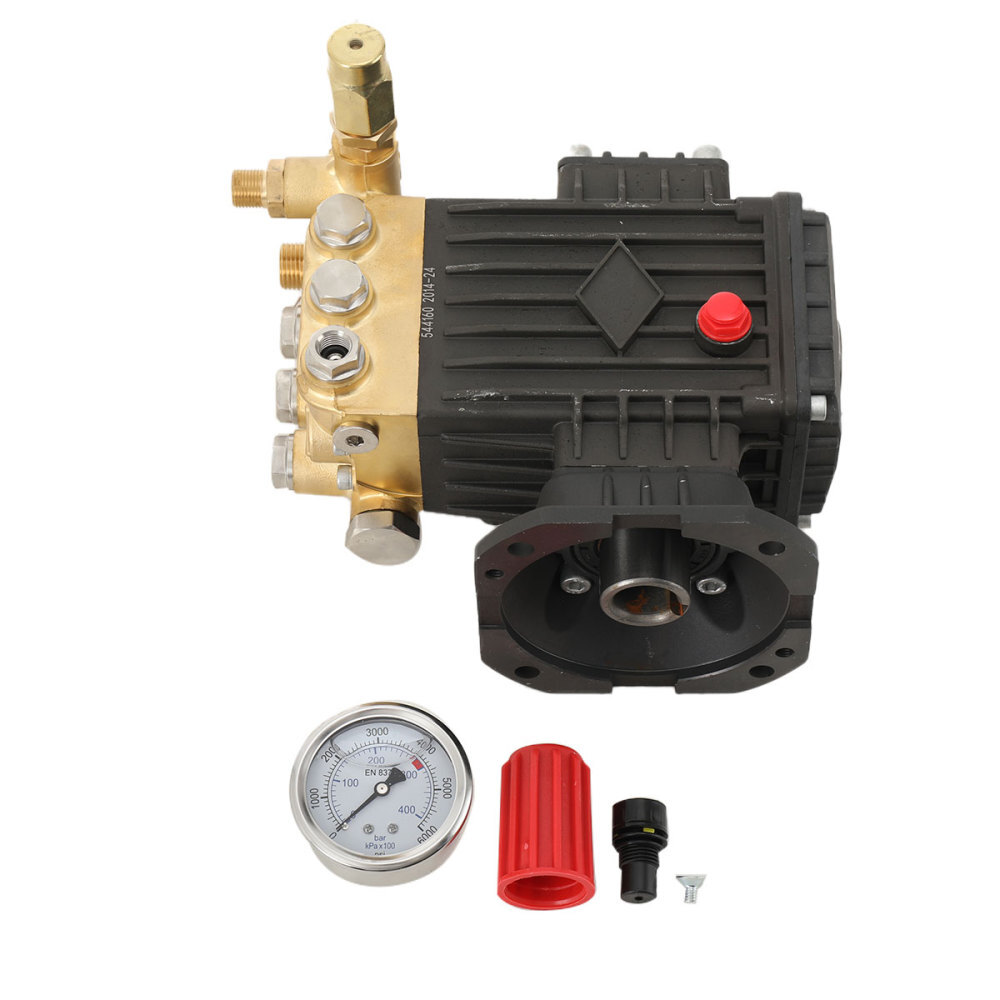

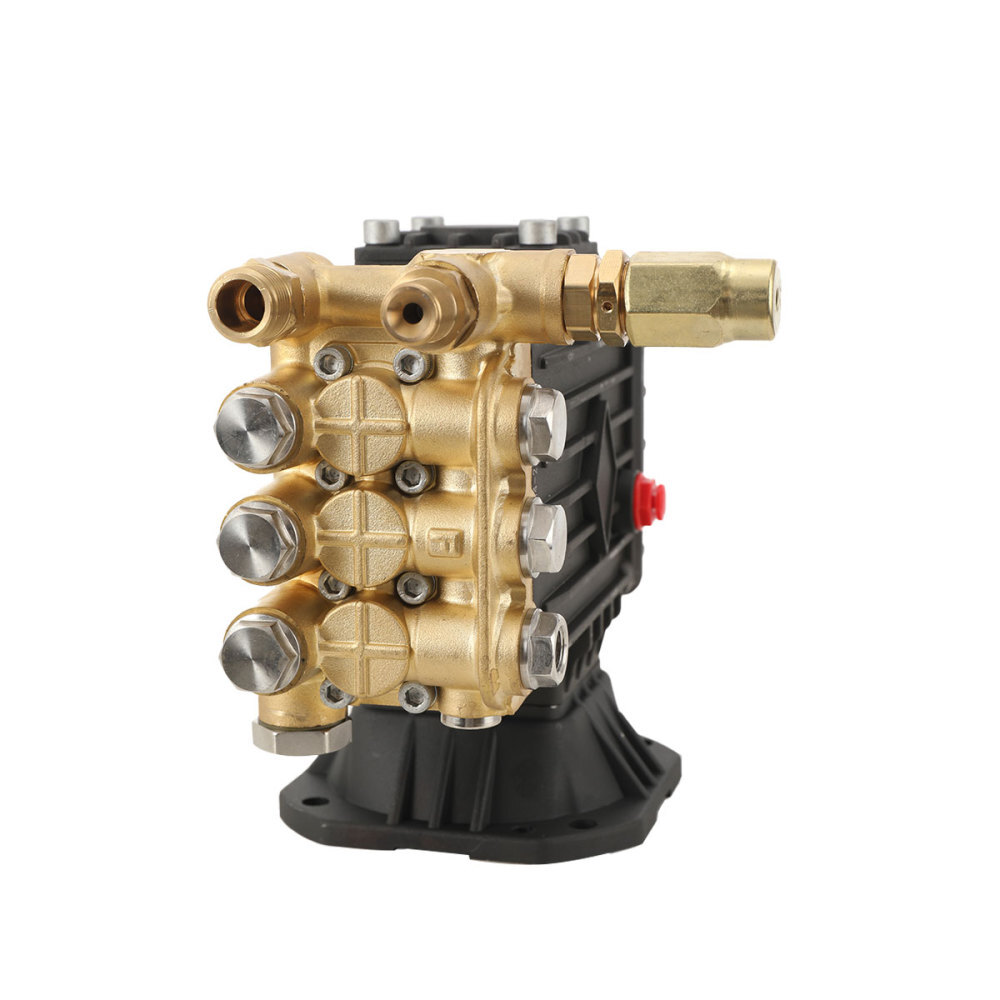

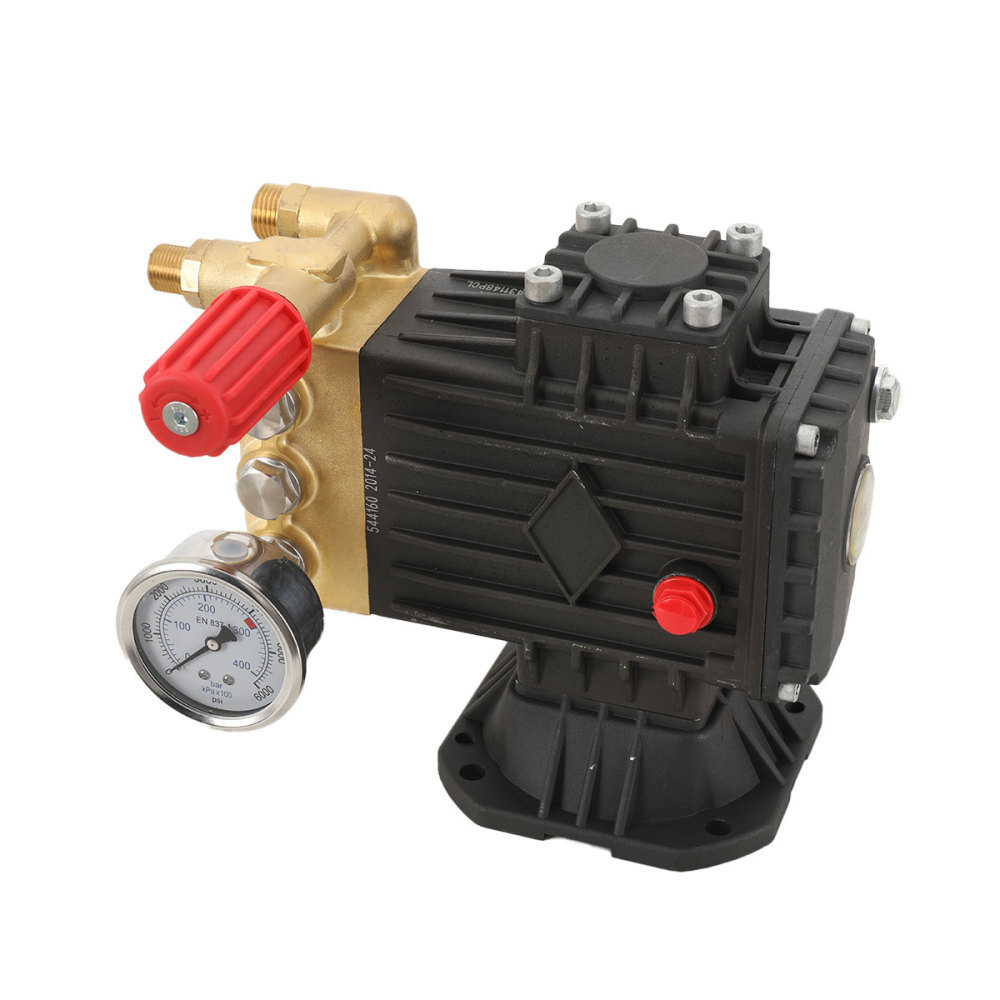

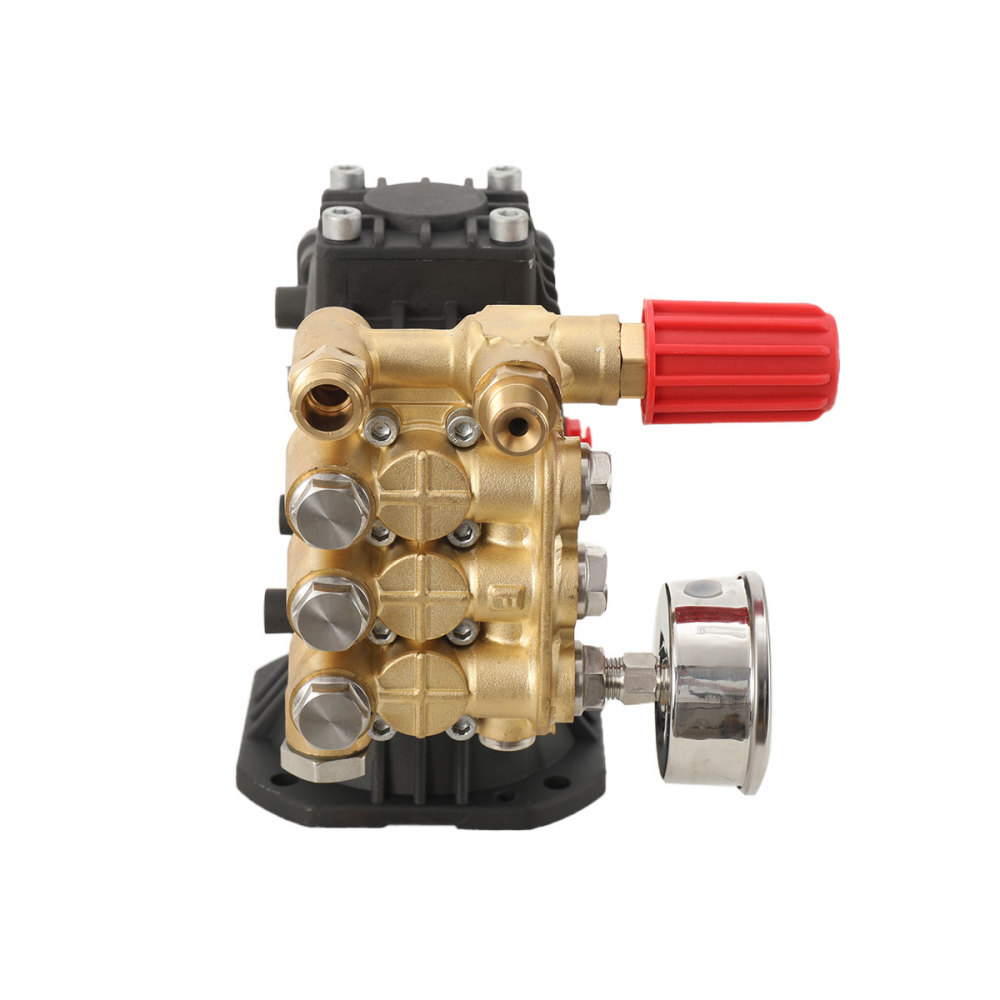

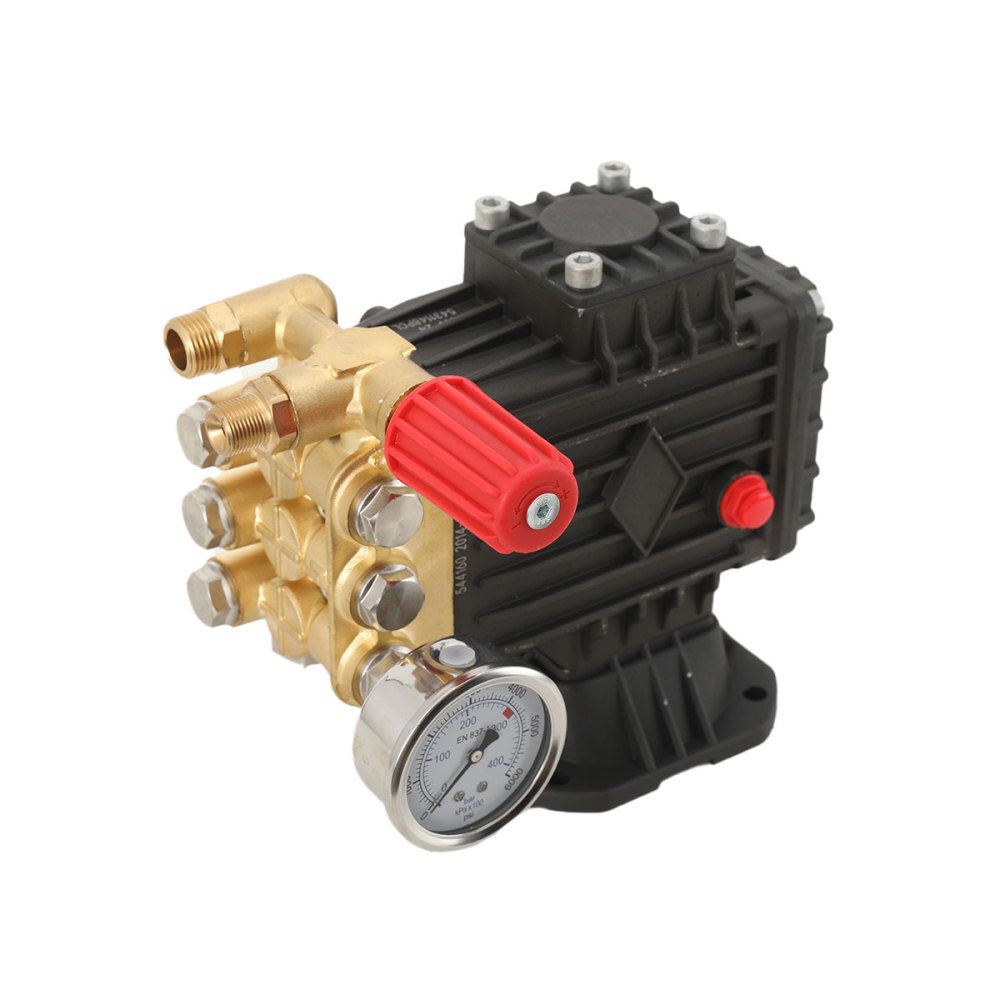

1 x High-Pressure Pump Unit (Model SJM2014-C24)
Note: Engine/Motor, hoses, gun, wand, nozzles, oil, and frame are NOT included.
