R for 06-15 HONDA CIVIC DX EX R18A GT28 TURBO KIT CHARGER T2 MANIFOLD HR-V R20A




~~~WANSMOKE~~~

Fast Shipping, 100% Customer Satisfaction !

     WANSMOKE delivers top-tier performance parts at the industry's best prices. We never compromise on safety, using precision machining and high-standard manufacturing to build lift and leveling kits that last. While others lower their standards to lower their prices, we stay committed to quality. Choose WANSMOKE and lift your vehicle the right way.

Compatible vehicles equipped with the Honda R18A1, R18A4, R18Z1, R18Z6, R18Z9, R20 Sohc 4-cylinder engine or Turbo Swap

2006–2015 Honda Civic 1.8L
2016–2022 Honda HR-V 1.8L

FA1 / FG1 / FN1 / FK2 / FB2 / FG3

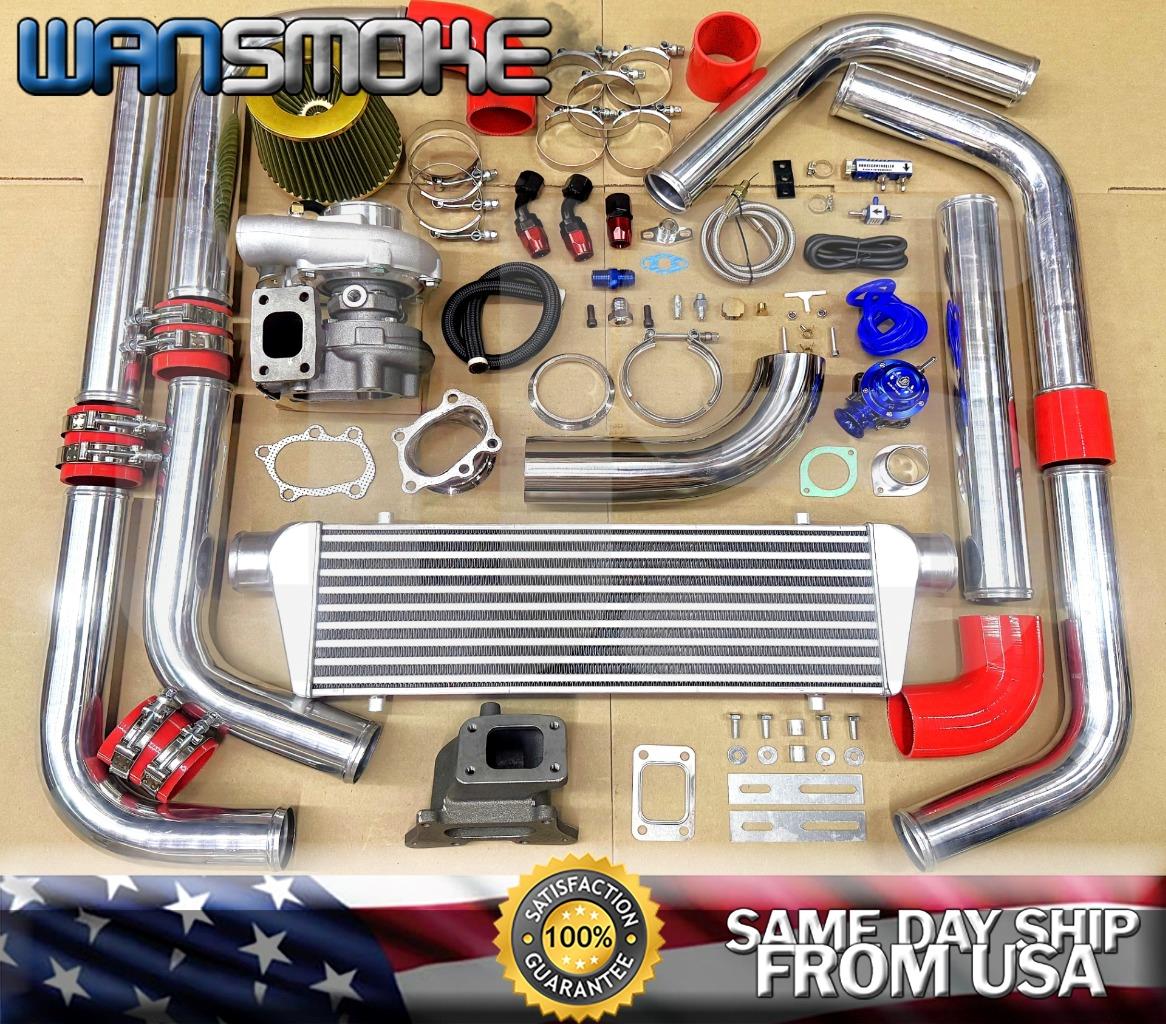

Includes - GT28 Turbocharger
Includes - Turbo Manifold
Includes - Front Mount Intercooler
Includes - Intercooler Mounting Kit
Includes - Piping Kit
Includes - Silicone Coupler
Includes - T-Bolt Clamp
Includes - Air Intake Filter
Includes - Blow off Valve
Includes - BOV adapter Flange
Includes - Actuator Conversion Wastegate
Includes - Steel Down Tube Tube
Includes - Turbo Exhaust Conversion Adapter
Includes - Manual Boost Controller
Includes - Oil Feed Line
Includes - Oil Restrictor Adapter
Includes - Oil Return Drain Line
Includes - Oil Pan Drain Plug Adapter
Includes - T2 4 Bolt Gasket
Includes - T2 5 Bolt Gasket

TURBOCHARGER
GT28 Turbocharger! High Quality Guaranteed! Cast housing with durable steel. Capable of boosting horse power up To 350+ BHP, standard 4 bolt exhaust T2 Flange. CNC machined flanges. Internal wastegate setting: 8 PSI. High quality .64 Turbine Turbine, .60 Compressor with a forged turbine propeller wheel!

Turbine Specs:
Trim: 76
A/R: 0.64
Inducer Diameter: 53.8mm
Exducer Diameter: 47mm

Compressor Spec:
Trim: 48
A/R: 0.60
Inducer Diameter: 49.2mm
Exducer Diameter: 71 mm

Bearing Type: Wet Float
Cooling Type: Water + Oil
Wastegate: Internal Wastegate
Oil Restrictor Size: inside diameter 2mm
Oil Feed Size: 12mm
Oil Inlet: M12*1.25
Oil Drain Size: 14mm
Oil Outlet: M14 & 2*M8*1.25
Oil Drain Thread Pitch: 40mm
Water Thread Size: M18*1.5
Horse Power: Boost Horse Power up to 350BHP

TURBO MANIFOLD:
1. Made of High Quality Cast Iron Material
2. Forward facing Design, Comes with T2 Turbo Flange inlet
3. CNC Machine Flange for MAX Strength and Durability
4. Increase Engine Exhaust Output and Efficiency.
5. High-quality parts for maximum durability and performance.
6. Computerized Mandrel-Bended to Maximize Air Flow Smoothness.

INTERCOOLER:
1. 6061 Light Weight Billet Aluminum Construction.
2. Tube & Fin Light Weight Design.
3. Construction: Machine Cut and Stamped Hand Welded.
4. Working Pressure: 5~50PSI.
5. Pressure Drop:2~5psi@35psi;0.2~0.5psi@15psi.
6. Hot Air Temperature: 32°F~302°F (0°C~150°C)
7. Compress Air Flow Rate: < 350 Cubic Feet/Min Rated to 500 Max HP.
8. Overall Size - 27" x 7" x 2.5"
9. Core Size - 21" x 6.5" x 2.5"
10. In/Outlet - 2.5" OD / 2.25" ID

PIPING:
1. Made of High quality T-6061 LIGHTWEIGHT Aluminum Piping.
2. Powder-Coated Surface Finish.
3. 2.5" Piping Diameter.
4. 2.0mm Pipe Thickness.
5. Increase 65% Air Flow comparing with other Standard Piping.

SILICONE COUPLER:
1. Made of high quality silicone material.
2. Thickness of wall:5 mm, 4 ply reinforced.
3. Working Pressure: 0.3 Mpa (43.5 PSI) to 0.9 Mpa (130.5 PSI).
4. Bursting Pressure: 2 Mpa.
5. Working Temperature: -76°F (-60°C ) to +500°F (+260°C).
6. Size tolerance:+/-0.5 mm

T-BOLT CLAMP:
1. Made of High quality 301 SS Stainless Steel Clamp.
2. Stainless steel construction resists corrosion.
3. Provide uniform sealing pressure for a positive.
4. Polished finish increases engine bay aesthetics.

AIR FILTER:
1. Oil-free filter Micro cotton gauze type filter material washable with water or soap and reusable.
2. Improves Up to 95% Filtration Efficiency.
3. Designed to increase horsepower and acceleration.
4. Width: 6" Inlet: 3.0" Overall Tall: 6.5" Mesh Tall: 4.5"

BLOW OFF VALVE:
1. Aggressive JDM racing discharge sound.
2. 8 Discharge ports that draw in surrounding air and release a unique discharge sound.
3. 40mm hard-anodized valve for increased airflow.
4. Dual spring system promoted response and allows for high boost pressures.
5. Support up to 30 PSI boost pressure.

OIL LINE:
1. OIL DRAIN FEED LINE.
2. 10AN Fittings.
3. Inner Diameter: 0.50"
4. Length: 17.00"
5. CNC Machined Turbo Adapter Plate.
6. Weldable 10AN Oil Pan Fitting Included.
7. Inner Diameter: 0.25"
8. Length: 36.00"
9. 1/8 NPT Fittings Natural Polish Finish.
10. CNC Machined Turbo Adapter Plate.
11. Brass Fitting Block Fitting and Port Cover Included.

BOOST CONTROLLER:
1. Allows to adjust PSI ratings without changing the wastegate springs as well as replacing the wastegate springs.
2. High Performance Manual Boost Control From 0~30 psi Capacity.
3. CNC Machined Light Weight and Resistant to Rust.
4. Hose clamp and all necessary hardware for complete installation.
5. 1-30 PSI Adjustable.

ACTUATOR WASTEGATE:
1. High strength Alloy aluminum body with steel head.
2. Comes with 12 psi spring installed.
3. Protect the turbo system from over boosting.
4. Complete install kit included.

TURBO CONVERSION ADAPTER:
1. Rust proof, wear resistant and durable, providing excellent strength.
2. 304 Stainless Heavy Duty Steel Alloy Material
3. Bigger diameter to Increase Flow
4. Low-profile for adequate clearance in turbo installations
5. CNC Machine Flange for Strength and Durability
6. Size Apex.: 3" V-Band Flange

EXHAUST Down Tube TUBE:
3.0" OD steel TIG welded Down Tube. Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing. This provides a simple starter solution for connecting your turbo's exhaust to your existing exhaust system. The pictured metal composite Flange is included!
ATTENTION:
1. For emissions related items please check with your local jurisdiction for emission specific requirements before purchasing. NO installation instruction included unless otherwise specified. If item is questionable please consult your local professional/mechanic before making purchase.
2. Color may randomly selected depend on hand or inventory.
3. NO instructions included. modification might required for complete installation.
4. Professional TURBO INSTALLER is Highly recommend. Any damage during installation will not be refunded.
5. Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive.
6. The piping that comes with this kit is universal, and will have to be modified to fit most applications
7. Don't hesitate to contact us if item stuck, unknown or fault installation !!




Purchase now for only $866.99!
