for TOYOTA 1ZZ-FE COROLLA MATRIX CELICA MR2 TURBO KIT T3 MANIFOLD .63 CHARGER BK




~~~WANSMOKE~~~

Fast Shipping, 100% Customer Satisfaction !

     WANSMOKE delivers top-tier performance parts at the industry's best prices. We never compromise on safety, using precision machining and high-standard manufacturing to build lift and leveling kits that last. While others lower their standards to lower their prices, we stay committed to quality. Choose WANSMOKE and lift your vehicle the right way.

Compatible the vehicles running 1ZZ-FE DOHC 1.8L 1794cc 4-Cylinder or engine swap.

1998-2008 TOYOTA COROLLA 1ZZ
2003-2008 TOYOTA MATRIX 1ZZ
2000-2005 TOYOTA MR2 SPYDER 1ZZ
2000-2005 TOYOTA CELICA 1ZZ
1998-2002 CHEVY PRIZM 1ZZ
2003-2008 PONTIAC VIBE 1ZZ

***DOES NOT FIT 2ZZ, 2ZZ-GE 1795cc Models

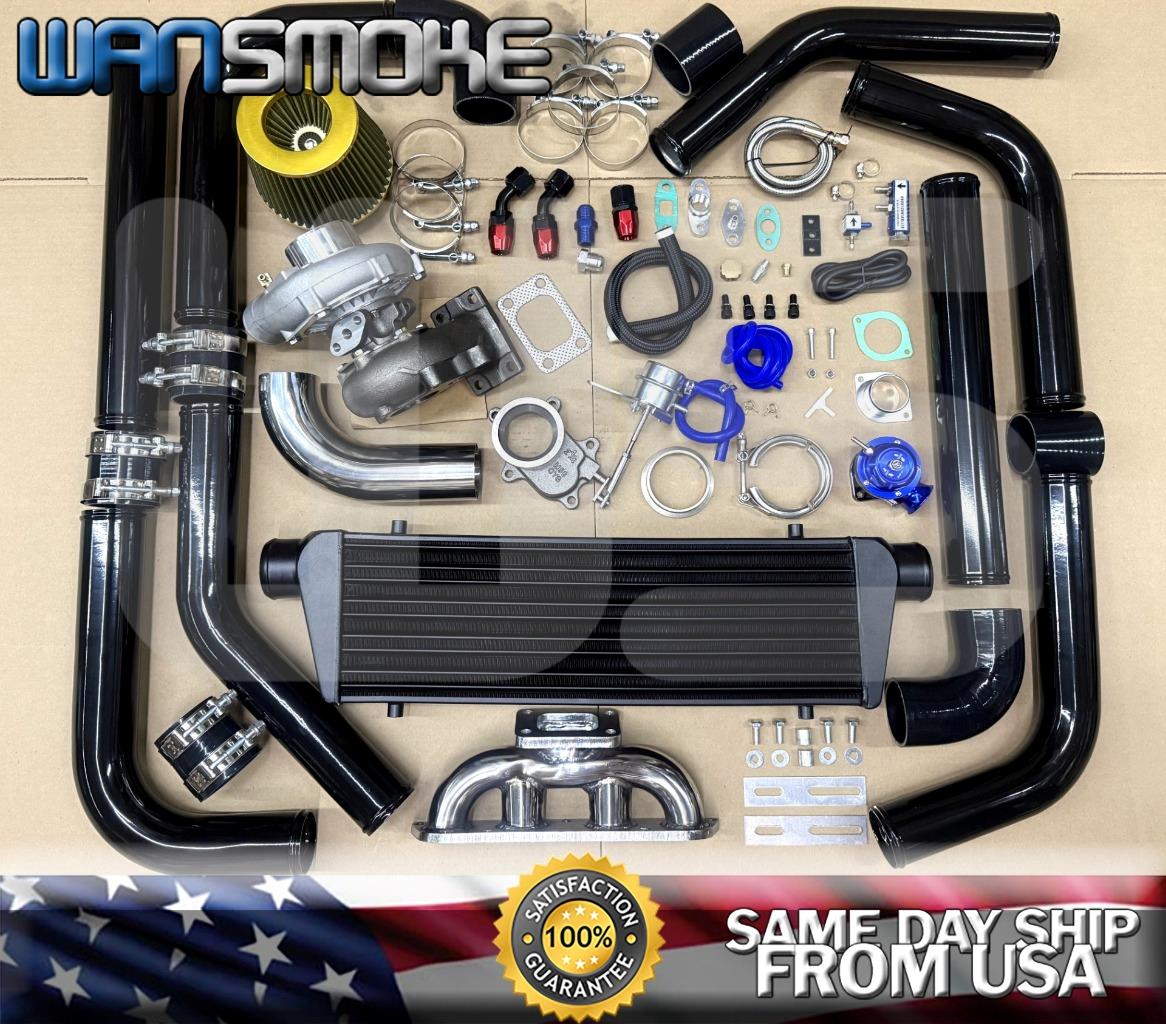

Includes - T3/T4 Turbocharger
Includes - Turbo Manifold
Includes - Front Mount Intercooler
Includes - Intercooler Mounting Kit
Includes - Wastegate Conversion Actuator
Includes - Piping Kit
Includes - Silicone Coupler
Includes - T-Bolt Clamp
Includes - Air Intake Filter
Includes - Blow off Valve
Includes - BOV adapter Flange
Includes - Steel Down Tube Tube
Includes - Manual Boost Controller
Includes - Oil Feed Line
Includes - Oil Restrictor Adapter
Includes - Oil Return Drain Line
Includes - Oil Pan Drain Plug Adapter
Includes - T3 4 Bolt Gasket
Includes - T3 5 Bolt Flange + Gasket

TURBOCHARGER
T3/T4 Turbocharger! High Quality Guaranteed! Features a cast housing and durable steel components, forged turbine propeller wheel for high oxidation stability and resistance to extreme temperatures, built for longevity and strength, even under demanding conditions. Capable of boosting horsepower up to 450+ HP, Equipped with a standard T3 4-bolt exhaust flange and CNC machined flanges !!

Specification
T3 flange
Bearing: Wet Float Bearing
Turbine
-T3 Turbine flange
-Turbine .63 A.R.
-2.205" Minor and 2.570" Major Propellar
-2.274" Outlet
-12 Blade Type Turbine
Compressor
-3" Compressor Inlet
-2.130" Inducer
-2.755" Major
-2" Compressor Outlet
-T04B/T4 Type Compressor Housing
-Compressor .49 A.R.
-Compressor .50 Trim
-8 Blade Type T4 Compressor Wheel

TURBO MANIFOLD:
1. Made of High Quality 304 Stainless Steel Material
2. Forward facing Design, Comes with T3 Turbo Flange inlet
3. CNC Machine Flange for MAX Strength and Durability
4. Increase Engine Exhaust Output and Efficiency.
5. High-quality parts for maximum durability and performance.
6. Computerized Mandrel-Bended to Maximize Air Flow Smoothness.
7. TIG Welded CNC Machined Flange for Resistance against Cracking and Wearing.

INTERCOOLER:
1. 6061 Light Weight Billet Aluminum Construction.
2. Tube & Fin Light Weight Design.
3. Construction: Machine Cut and Stamped Hand Welded.
4. Working Pressure: 5~50PSI.
5. Pressure Drop:2~5psi@35psi;0.2~0.5psi@15psi.
6. Hot Air Temperature: 32°F~302°F (0°C~150°C)
7. Compress Air Flow Rate: < 350 Cubic Feet/Min Rated to 500 Max HP.
8. Overall Size - 27" x 7" x 2.5"
9. Core Size - 21" x 6.5" x 2.5"
10. In/Outlet - 2.5" OD / 2.25" ID

WASTEGATE CONVERSION ACTUATOR:
1. High strength Alloy aluminum body with steel head.
2. Comes with 12 psi spring installed.
3. Protect the turbo system from over boosting.
4. Complete install kit included.
5. 2.5" v-band outlet

PIPING:
1. Made of High quality T-6061 LIGHTWEIGHT Aluminum Piping.
2. Powder-Coated Surface Finish.
3. 2.5" Piping Diameter.
4. 2.0mm Pipe Thickness.
5. Increase 65% Air Flow comparing with other Standard Piping.

SILICONE COUPLER:
1. Made of high quality silicone material.
2. Thickness of wall:5 mm, 4 ply reinforced.
3. Working Pressure: 0.3 Mpa (43.5 PSI) to 0.9 Mpa (130.5 PSI).
4. Bursting Pressure: 2 Mpa.
5. Working Temperature: -76°F (-60°C ) to +500°F (+260°C).
6. Size tolerance:+/-0.5 mm

T-BOLT CLAMP:
1. Made of High quality 301 SS Stainless Steel Clamp.
2. Stainless steel construction resists corrosion.
3. Provide uniform sealing pressure for a positive.
4. Polished finish increases engine bay aesthetics.

AIR FILTER:
1. Oil-free filter Micro cotton gauze type filter material washable with water or soap and reusable.
2. Improves Up to 95% Filtration Efficiency.
3. Designed to increase horsepower and acceleration.
4. Width: 6" Inlet: 3.0" Overall Tall: 3.5" Mesh Tall: 2.5"

BLOW OFF VALVE:
1. Aggressive JDM racing discharge sound.
2. 8 Discharge ports that draw in surrounding air and release a unique discharge sound.
3. 40mm hard-anodized valve for increased airflow.
4. Dual spring system promoted response and allows for high boost pressures.
5. Support up to 30 PSI boost pressure.

OIL LINE:
1. OIL DRAIN FEED LINE.
2. 10AN Fittings.
3. Inner Diameter: 0.50"
4. Length: 17.00"
5. CNC Machined Turbo Adapter Plate.
6. Weldable 10AN Oil Pan Fitting Included.
7. Inner Diameter: 0.25"
8. Length: 36.00"
9. 1/8 NPT Fittings Natural Polish Finish.
10. CNC Machined Turbo Adapter Plate.
11. Brass Fitting Block Fitting and Port Cover Included.

BOOST CONTROLLER:
1. Allows to adjust PSI ratings without changing the wastegate springs as well as replacing the wastegate springs.
2. High Performance Manual Boost Control From 0~30 psi Capacity.
3. CNC Machined Light Weight and Resistant to Rust.
4. Hose clamp and all necessary hardware for complete installation.
5. 1-30 PSI Adjustable.

WASTEGATE:
1. High strength Alloy aluminum body with steel head.
2. Comes with 8 psi spring installed.
3. Protect the turbo system from over boosting.
4. Complete install kit included .

EXHAUST DOWN TUBE:
2.5" OD steel TIG welded Down Tube. Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing. This provides a simple starter solution for connecting your turbo's exhaust to your existing exhaust system. The pictured metal composite Flange is included!
ATTENTION:
1. For emissions related items please check with your local jurisdiction for emission specific requirements before purchasing. NO installation instruction included unless otherwise specified. If item is questionable please consult your local professional/mechanic before making purchase.
2. Color may randomly selected depend on hand or inventory.
3. NO instructions included. modification might required for complete installation.
4. Professional TURBO INSTALLER is Highly recommend. Any damage during installation will not be refunded.
5. Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive.
6. The piping that comes with this kit is universal, and will have to be modified to fit most applications
7. Don't hesitate to contact us if item stuck, unknown or fault installation !!




Purchase now for only $1014.99!
