Product Description

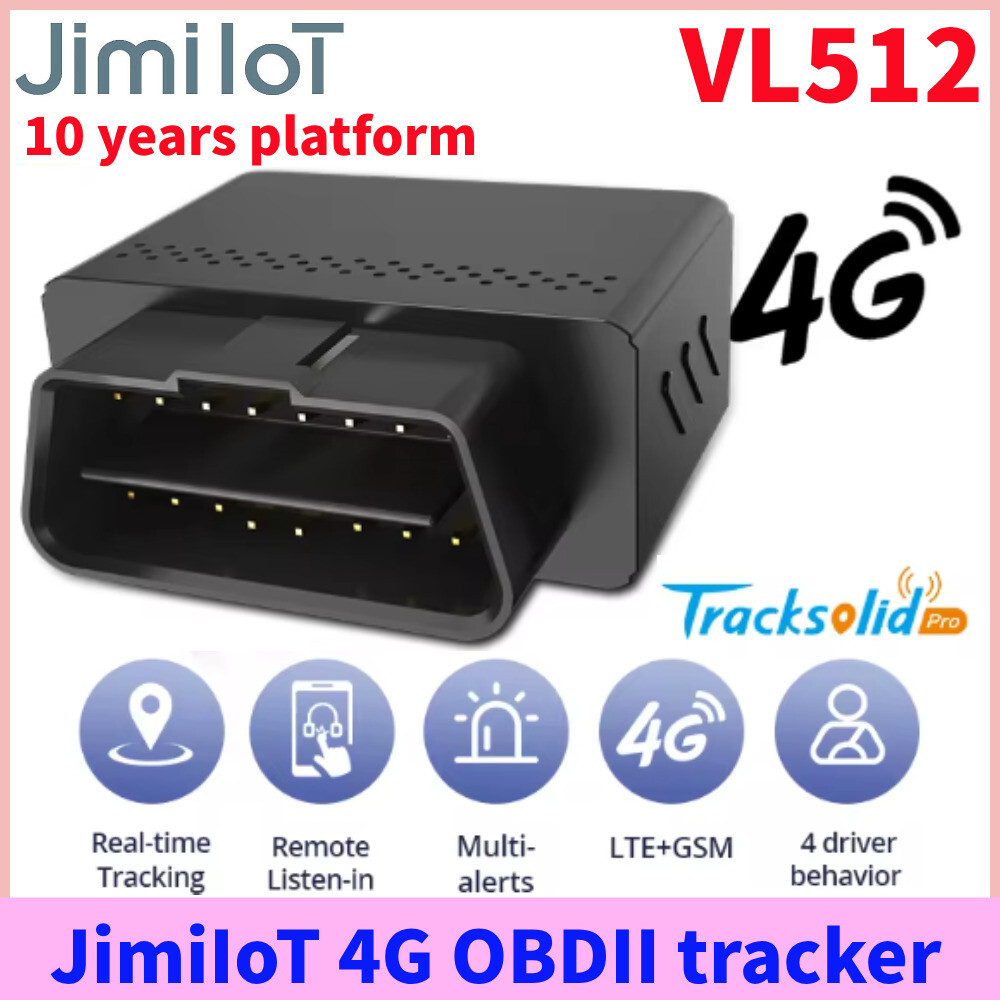

Jimi VL512 GPS Tracker 4G OBDII tracker OBD 10 years platform Tracksolidpro APP

overview

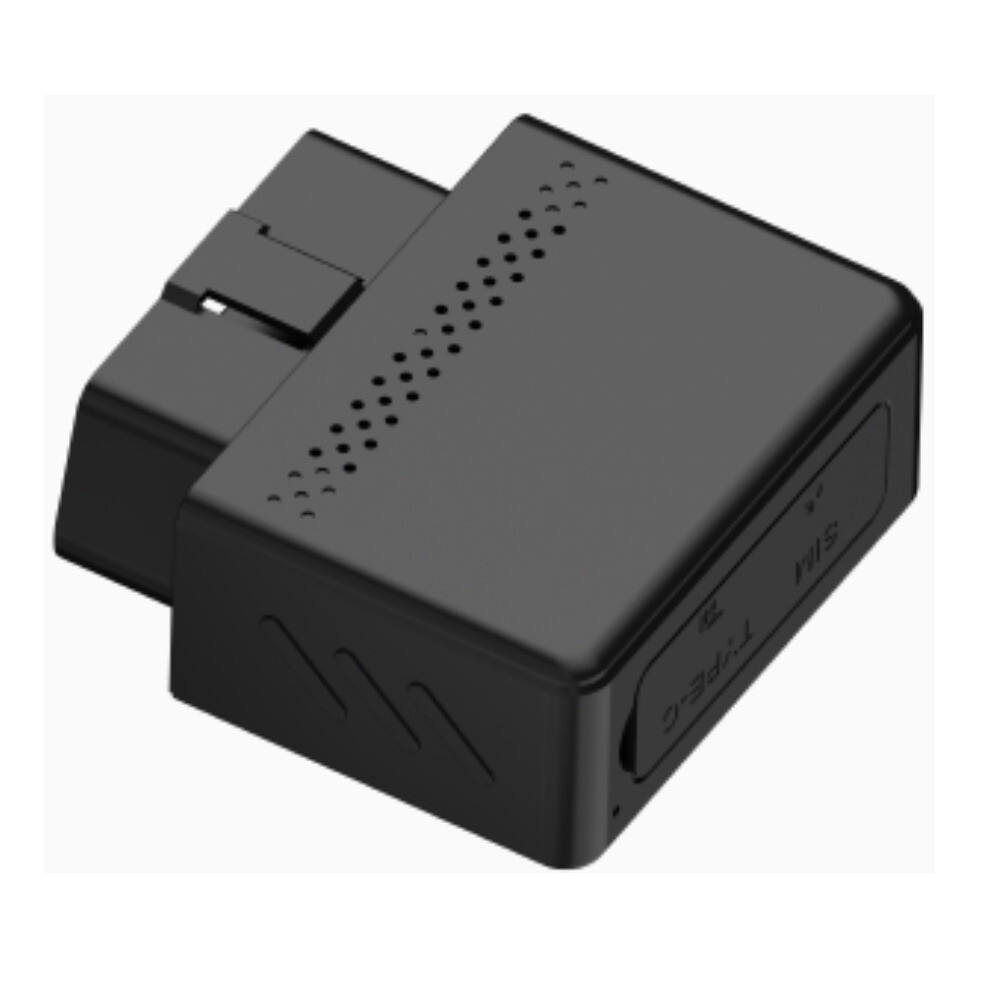

The VL512 is a 4G OBDII tracker designed specifically for use in vehicles. Featuring a compact size body and OBD port, this device is easy to install on virtually any passenger car and ideal for fleet management. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the GPS+BDS positioning system provides more accurate positioning capability, helping you stay informed about the location or condition of your fleet, telling you exactly where any of your vehicles has been, where it’s heading and how fast it’s traveling.



Feature

  • LTE & GSM Network

Communication via 4G LTE networks with 2G GSM fallback.

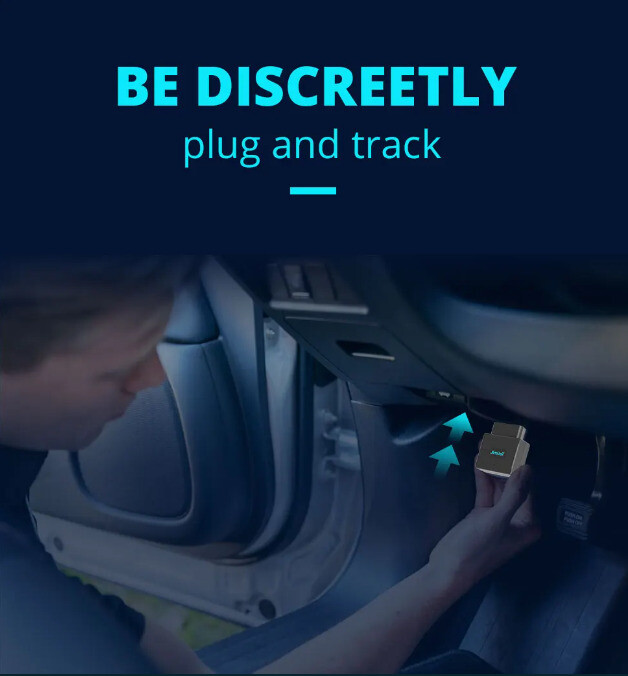

  • Effortless Installation

Simply plug this device into OBDII socket, you don't have to turn to professionals.

  • GPS & BDS Positioning

Two complementary positioning systems ensure the locations to be accurately displayed on cloud platform.

  • Driving Behavior Analysis (Basic)

Receive alerts when any of 4 kinds of dangerous driving behavior is detected.

  • Remote Listen-in

Inconspicuous mic allows for remote monitoring and recording of ambient sounds around the device.

  • Multiple Alerts

Instant alerts for atypical events such as vehicle movement, speeding, geo-fence entry/exit, etc.




Specifications

GNSS


Positioning system

GPS/BDS

Positioning accuracy

＜2.5m CEP

Tracking sensitivity

-165 dBm

Acquisition sensitivity

-148 dBm (cold) /-163 dBm (hot)

TTFF (open sky)

Avg. hot start ≤1sec
Avg. cold start ≤32sec

Cellular


Communication network

  LTE Cat 1 + GSM

Frequency

  LTE FDD: B1/B3/B7/B8/B20/B28
  LTE TDD: B34/B38/B39/B40/B41
  GSM: 850/900//1800/1900MHz

Power


Battery

50mAh industrial-grade LiCo battery

Input voltage

9-36VDC

Interface


LED indication

GNSS (Blue), Cellular (Green)

Connector

OBDII port

SIM

Nano-SIM

USB

1 x USB Type-C for configuration

Data storage

16+16MB

Physical specification

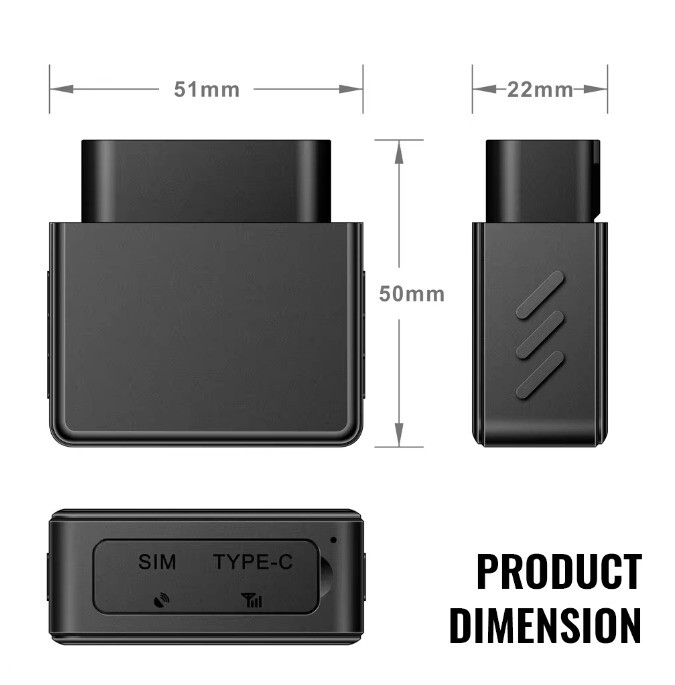

Dimensions

51.0 x 50.0 x 22.0mm

Weight

42g

Operating environment


Operating temperature

-20°C to 70°C

Operating humidity

5%～95%, non-condensing

Feature


Voice monitoring range

≤5 meters

Sensors

Accelerometer

Ignition detection

External Power Voltage

Scenarios

Vehicle movement alert, Speeding alert, Geo-fence, Voice-monitoring, Vehicle battery detection, Power supply disconnection

Driving behavior analysis

Harsh acceleration, Harsh braking, Harsh cornering, Collision
