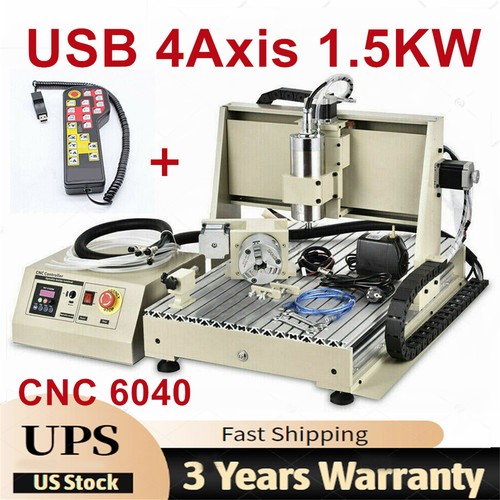

USB 4 Axis 6040 CNC Router Engraver 3D Drill Engraving Milling Machine VFD & R/C
Welcome to our store~
USB 4 Axis CNC 6040 Router Engraver Engraving Drilling Milling Machine 1.5KW VFD
Description:
1. This 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
2. It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.
3. It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models,
instrument panels, wooden products, etc.
4. The mini router Frame is movable. The machine can connect with computer as other external device such as printer, scanner...
5. With the assist of the ROUTER 6040T, your design idea will be real-time display.
engraving machine parameters:
X, Y, Z Working Area: 600(Y)*390X*120(Z)mm
Outside dimension: 865*680*570mmL*W*H
Table size: 770Y*490Xmm
Lathe structure: 6061/6063 Aluminium alloy
Max. Feeding height: ≤100mm
Drive unit:
X axis---1605 Ball Screws
Y axis---1605 Ball Screws
Z axis---1204 Ball Screws
Sliding unit:
X axis---High intensity Chromeplate shaft
Y axis---High intensity Chromeplate shaft
Z axis---High intensity Chromeplate shaft
Stepping motor: 57 two-phase 3A 150N.cm
X, Y, Z Working Area: 600(Y)*390X*120(Z)mm
Outside dimension: 865*680*570mmL*W*H
Table size: 770Y*490Xmm
Lathe structure: 6061/6063 Aluminium alloy
Max. Feeding height: ≤100mm
Drive unit:
X axis---1605 Ball Screws
Y axis---1605 Ball Screws
Z axis---1204 Ball Screws
Sliding unit:
X axis---High intensity Chromeplate shaft
Y axis---High intensity Chromeplate shaft
Z axis---High intensity Chromeplate shaft
Stepping motor: 57 two-phase 3A 150N.cm
Spindle motor
tips1. The spindle motor must connect with the VFD.
2. It cannot directly connect with the supply voltage (AC220V).
3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.
1. Water cooled spindle motor can work longer time than air cooled motor.
2. Water cooled spindle motor has higher stability and better concentricity than air cooled motor.
Outside dimension: 65*158mm
Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket
VOLTS, current, power: AC220V, 60Hz, 5A, 1.5 KW VFD
Spindle motor: 1.5 KW Water Cooled
Spindle speed: 24000 rpm
Max working frequency: 400Hz
Principal axis collet: ER11collet, Standard configuration :6mm
Nut Model: ER11-A
Cooling: Water-cooling
Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
Lubrication way: lubricated by high grease
Spindle speed: 24000 rpm
Max working frequency: 400Hz
Principal axis collet: ER11collet, Standard configuration :6mm
Nut Model: ER11-A
Cooling: Water-cooling
Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
Lubrication way: lubricated by high grease
Repeat accuracy: 0.05mm
Spindle precision: radial beat acuities 0.03mm
Carving Instructions: G code / TAB files / nc file / NCC files
Communication interface: through USB connection with computer
Working Speed: 50-1500mm / min(different material with different speed settings)
Maximum Idle speed: 0-1500mm/min
Control box parameters:
Operating Voltage: AC220V
Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive
Computer connection: USB port
Command code: G code
Protection: Emergency stop button
1. The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced
the processing abilty of the machine and can be used to process aluminum alloy and hard wood.
2. water cooling spindle works more stable and durable.
3. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.
Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive
Computer connection: USB port
Command code: G code
Protection: Emergency stop button
About software:
Friendly reminder:
The engraver will come with Installment SoftwareFree Version, if you followed the installation tips offered by us, it works like full version.)
tips:
The software perform better on the Windows XP/Windows 7 and 32 bites system computer, it will not work on Win 8/10 and 64 bites system computer.
Please close the firewall and antivirus software on the computer before DOWNLOAD AND install the software.(This is very important)
Otherwise, the antivirus will regards the CNC software is virus and stop the installation.
PS:
Please don't update the software when installed, then it will not need the license Numbers.
Free Version means---Free version does not have the copyright but the function is same with the genuine version.
Friendly reminder:
The engraver will come with Installment SoftwareFree Version, if you followed the installation tips offered by us, it works like full version.)
tips:
The software perform better on the Windows XP/Windows 7 and 32 bites system computer, it will not work on Win 8/10 and 64 bites system computer.
Please close the firewall and antivirus software on the computer before DOWNLOAD AND install the software.(This is very important)
Otherwise, the antivirus will regards the CNC software is virus and stop the installation.
PS:
Please don't update the software when installed, then it will not need the license Numbers.
Free Version means---Free version does not have the copyright but the function is same with the genuine version.
Feature:
1. The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced
the processing abilty of the machine and can be used to process aluminum alloy and hard wood.
2. water cooling spindle works more stable and durable.
3. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.
CNC RouterEngraver Remote Controller
Industrial engraving machine controller was designed for Mach system
Do not need to install any and driver, Spring can be stretched to 3 meters
Waterproof design, very durable, anti-dirt, oil spray
Power by USB port
The usb self-check light, you can type the " scroll" on the keyboard to activate it.
Directional motion control: X+, X-, Y+, Y-, Z+, Z-, A+, A-
Feed rate control: F+, F-
Jog rate: J+, J-
Spindle speed: speed up, slow down
Programming: E-stop, cycle start, spindle on/off, Redo, single step, original point
Package Include
1 * Remote controller
1 * Cable
How to USE:
1. Assembling and locating the engrving machine on steady desk well.
2. Make sure that your computer has a 25pin USB port output.
3. Place the contral box in a ventilated dry place where there is no dust,no moisture
4. Connecting the control box with the engrving machine and you computer and make sure the plug will not come off.
5. Correctly connect the machine with the controller. Don't suspended the cable which connect the Spindle motor with axis(X,Y,Z,A).Otherwise. It will damage the driver of the controller.
6. Correctly instal the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current to check whether the water-cooling system working well.
7. Before turn on the machine, please check all the cable and water- cooling system to make sure they are working fine.
10. You can enjoy making you dream with using our engrving machine now.
