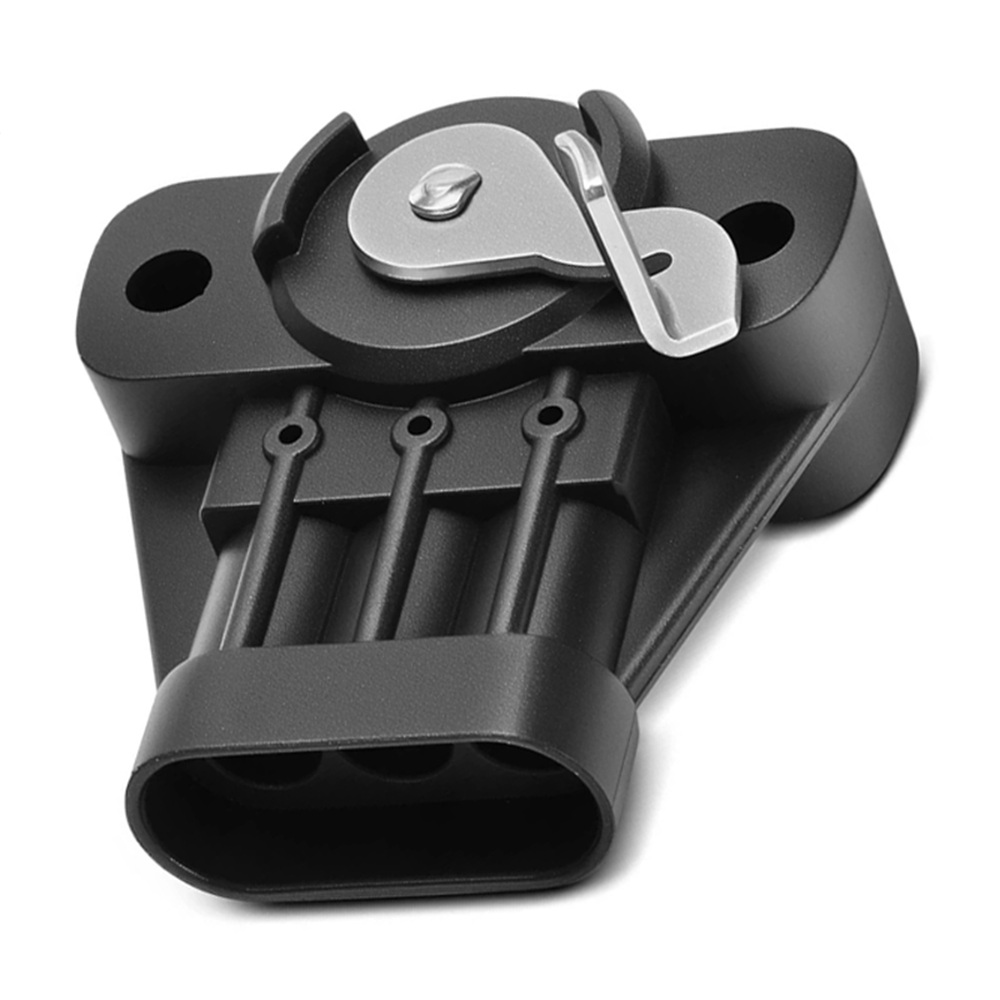

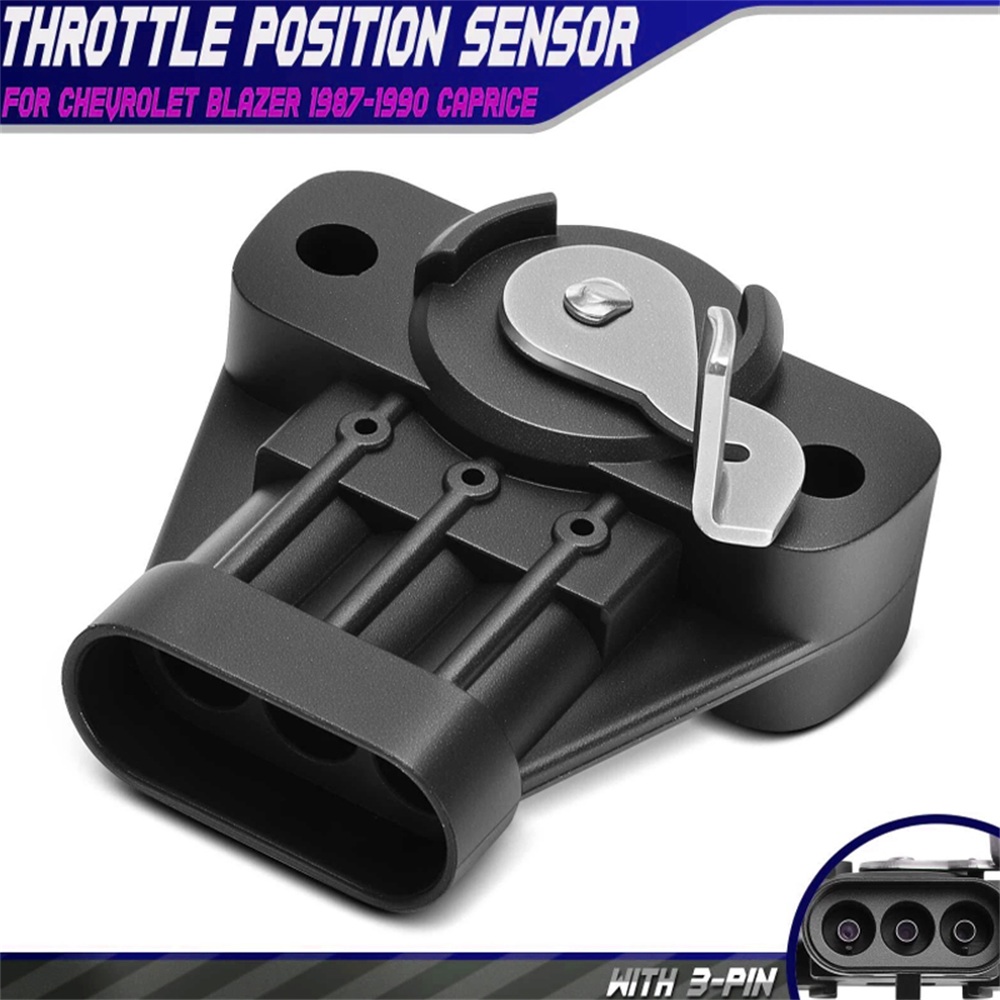

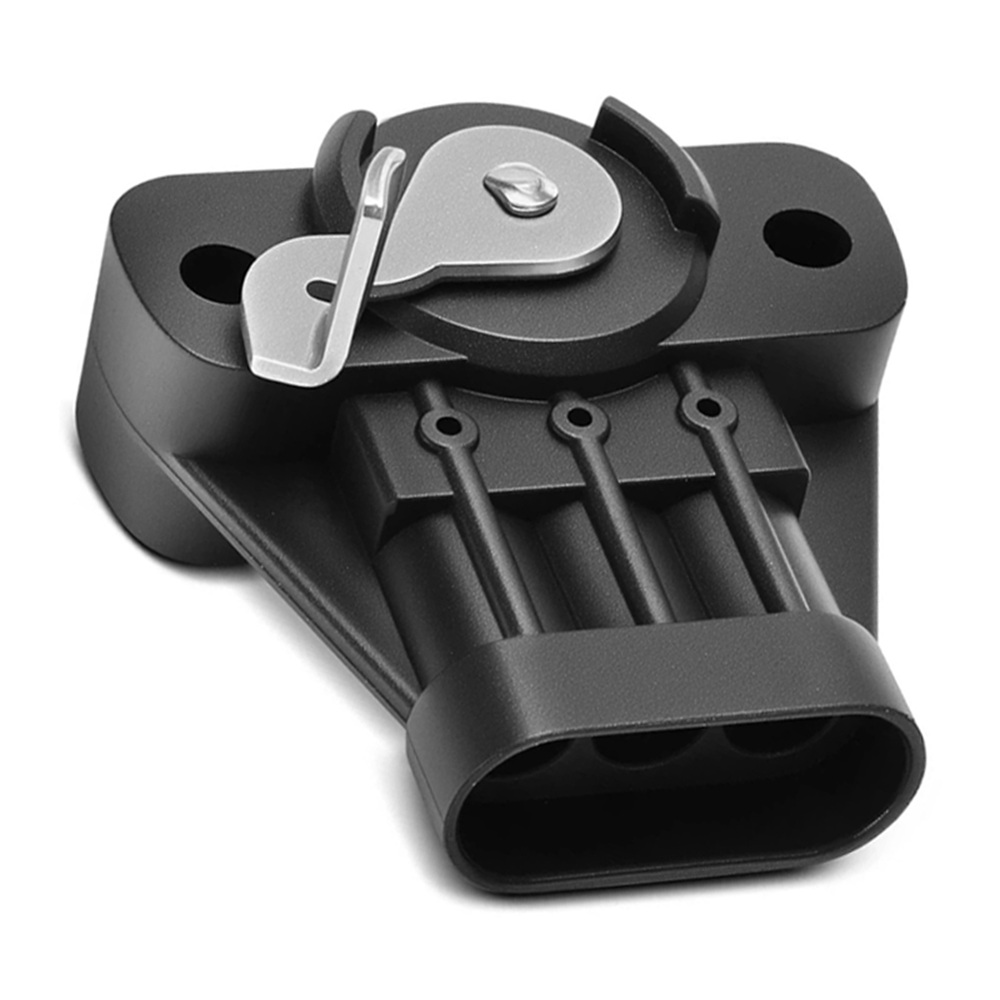

PART DETAILS:

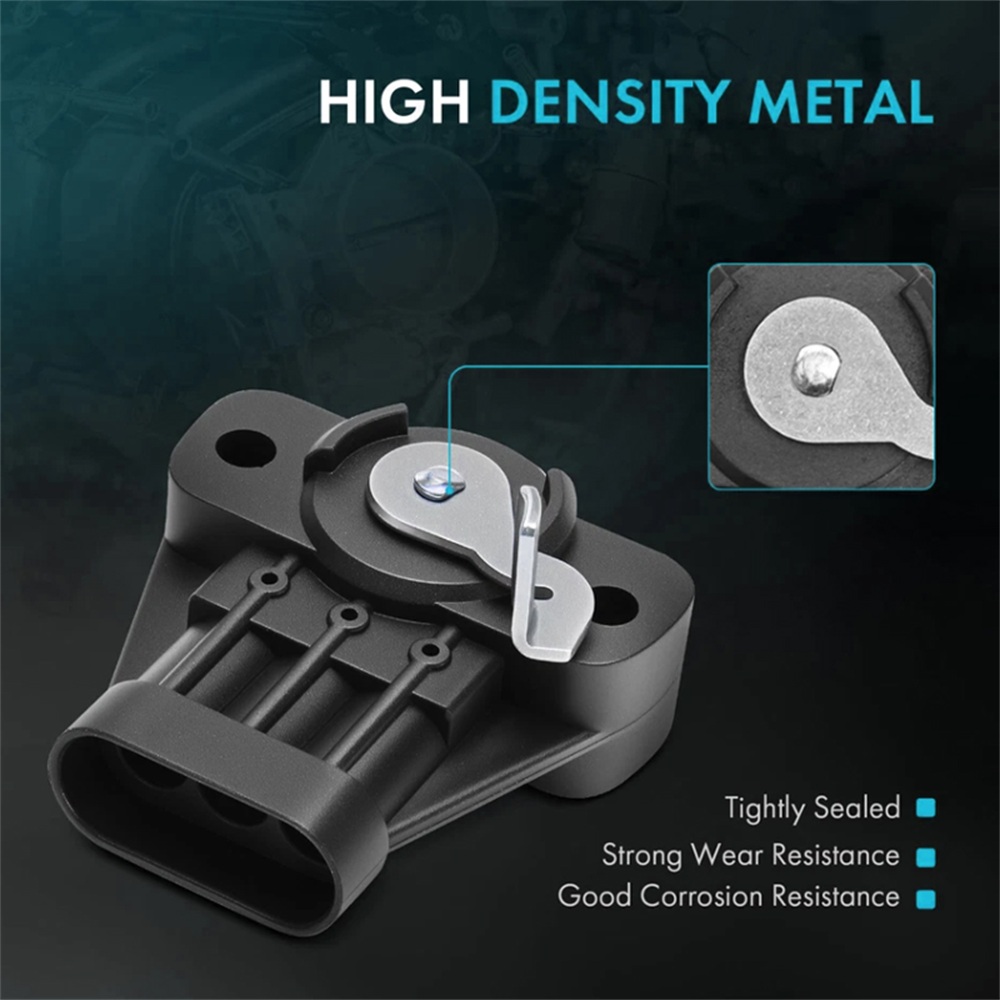

THROTTLE POSITION SENSORS are variable voltage type sensors that are located near the base of the throttle body.    This sensor provides the PCM with throttle plate movement necessary to optimize engine performance.    Over time, the THROTTLE POSITION SENSOR can fail due to excessive temperature, faulty wiring harnesses, contamination or normal wear and tear.    Typical failure signs are hesitations during acceleration, engine struggles to idle efficiently, poor engine power, difficulty or delay in gear shifting and unusual surges while accelerating.

APPLICATIONS:
Throttle Position Sensor for 1988-1990 Chevrolet Truck C1500, 1988-1990 Chevrolet C2500 Truck and 1988-1990 Chevrolet C3500 Truck utilizing Multi-point or Throttle Body Injection fuel delivery for the following years/engines:
1988 Chevrolet C1500 Truck 4.3L, 5.0L and 5.7L throttle position sensor
1989 Chevrolet C1500 Truck 4.3L, 5.0L and 5.7L throttle position sensor
1990 Chevrolet C1500 Truck 4.3L, 5.0L and 5.7L throttle position sensor
1988 Chevrolet C2500 Truck 4.3L, 5.0L and 5.7L throttle position sensor
1989 Chevrolet C2500 Truck 4.3L, 5.0L and 5.7L throttle position sensor
1990 Chevrolet C2500 Truck 4.3L, 5.0L and 5.7L throttle position sensor
1988 Chevrolet C3500 Truck 5.7L throttle position sensor
1989 Chevrolet C3500 Truck 5.7L throttle position sensor
1990 Chevrolet C3500 Truck 5.7L throttle position sensor

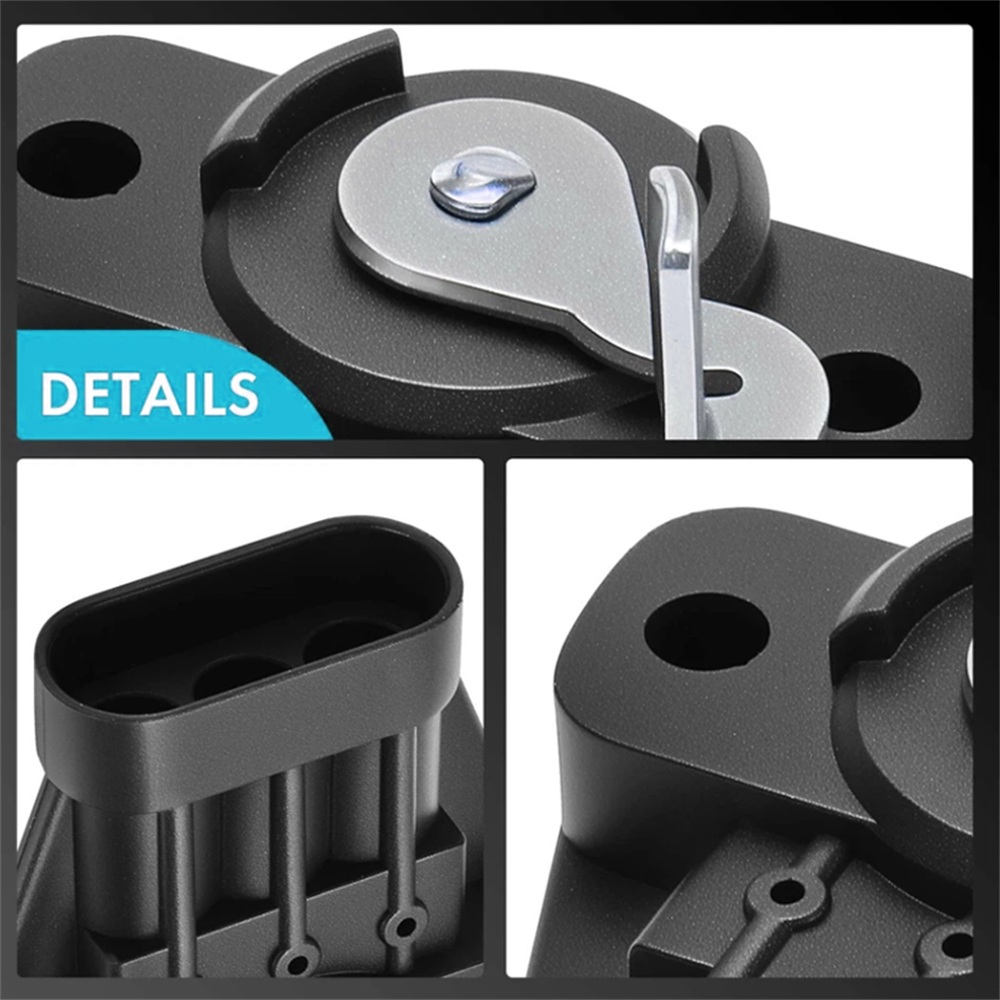

FEATURES:
Rotary design
Non-adjustable mounting body
External lever arm rotor actuation
Positive rotor stops
Dustproof and moisture resistant housing
Clockwise rotor rotation
Spring return rotor
Field tested
Custom configuration available

SPECIFICATIONS:
Operating temperature: -40º to 150º C.
Voltage in: 5 to 10 vdc
Total resistance: > 4k ohms or as specified
Electrical rotation: 100º max.
Mechanical rotation: 120º max.
Operating life: > 1,000,000 cycles
