TWIN TURBO KIT TT FOR 427 454 396 502 BIG BLOCK CHEVY CAMARO CORVETTE C/K T4




~~~WANSMOKE~~~

Fast Shipping, 100% Customer Satisfaction !

     WANSMOKE delivers top-tier performance parts at the industry's best prices. We never compromise on safety, using precision machining and high-standard manufacturing to build lift and leveling kits that last. While others lower their standards to lower their prices, we stay committed to quality. Choose WANSMOKE and lift your vehicle the right way.

Compatible with vehicles equipped with 366 / 396 / 402 / 409 / 427 / 454 / 496 / 502 V8 Big Block Chevy BBC V8 engines (factory or engine swaps)

**5.7L / 6.0L / 6.5L / 6.6L / 6.7L / 7.0L / 7.4L / 8.1L Chevy Big block Mark IV, Gen V, Gen VI (BBC-based engines) Twin Turbo Hot Part

1965-1974 Chevrolet Corvette
1965–1975 Chevrolet Chevelle
1967–1972 Chevrolet Camaro
1968–1970 Chevrolet Nova

1970–1975 Chevrolet Monte Carlo
1970–1975 Chevrolet El Camino
1970–1975 GMC Sprint

1965–1976 Chevrolet Biscayne
1965–1976 Chevrolet Bel Air
1965–1976 Chevrolet Impala
1965–1976 Chevrolet Impala SS
1965–1976 Chevrolet Caprice

2001–2007 Chevrolet Silverado 2500/3500HD
2001-2007 GMC Sierra 2500/3500HD
2002–2006 Chevrolet Avalanche 2500
2001–2006 Chevrolet Suburban
2001–2006 GMC Yukon XL 2500

2001–2002 Chevrolet C3500HD
2001–2002 GMC C3500HD
2001–2002 Chevrolet Express
2001–2002 GMC Savana 3500

1985–2000 Chevrolet C/K 2500 3500
1996–1999 Chevrolet Suburban 2500
1996–1999 GMC Suburban 2500

1996–2000 Chevrolet Express
1996–2000 GMC Savana 3500

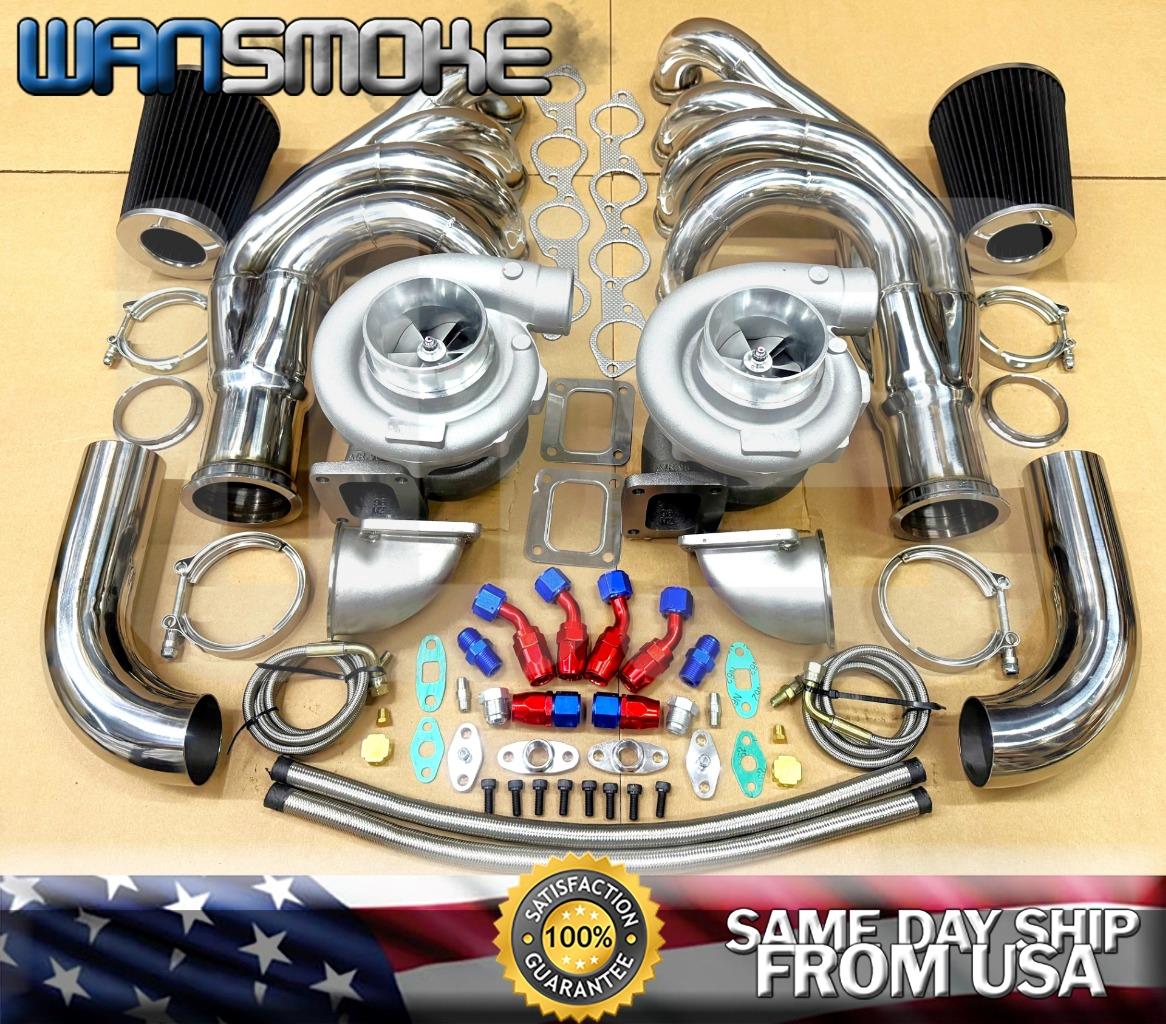

Includes - T76 Turbocharger x (2)
Includes - Turbo Manifold (Pair)
Includes - 3" Stainless Turbo Exhaust Down Tube x (2)
Includes - 90 Degree Conversion Adapter x (2)
Includes - 4" Air Intake Filter x (2)
Includes - Oil Feed Line x (2)
Includes - Oil Restrictor Adapter Flange  x (2)
Includes - Oil Return Drain Line  x (2)
Includes - Oil Pan Drain Plug Adapter  x (2)
Includes - T4 4-Bolt Gasket x (2)
Includes - 3.5" V-band Flange x (2)
Includes - 3.0" V-band Flange & Clamp x (2)

Turbocharger
T76 Turbocharger! High Quality Guaranteed! Features a cast housing and durable steel components, forged turbine propeller wheel for high oxidation stability and resistance to extreme temperatures, built for longevity and strength, even under demanding conditions. Capable of boosting horsepower up to 650+HP, Equipped with a standard T4 4-bolt exhaust flange and CNC machined flanges !!

Specification
T4 flange
Floating Bearing Bearing Type
Turbine
-Exhaust Inlet Flange: T4 Flange
-Exhaust Outlet Flange: V-Band (fit 3" V-band Kit)
-Inducer Diameter: 73.5
-Exducer Diameter: 64.3
-Trim: 76.5
-A/R: 0.96
-12 Blade Type Turbine wheel
Compressor
-Trim: 56.1
-Inducer Diameter: 76.6
-Exducer Diameter: 102.3
-A/R: 0.8
-Air Outlet: 107mm
-Air Inlet: 130.9mm
-12 Blade Type Compressor wheel

Turbo Manifold
1. Made of High Quality 304 Stainless Steel Material
2. Forward facing Design, Comes with T4 Turbo Flange inlet
3. CNC Machine Flange for MAX Strength and Durability
4. Increase Engine Exhaust Output and Efficiency.
5. High-quality parts for maximum durability and performance.
6. Computerized Mandrel-Bended to Maximize Air Flow Smoothness.
7. TIG Welded CNC Machined Flange for Resistance against Cracking and Wearing.

Turbo Exhaust Pipe
90 Degree Stainless mandrel bent module.
Made of Heavy Duty Stainless Steel Material for Strength and Durability.
Fit with 3" V-band exhaust or that matter
3.0" Primary Tube.

Conversion Adapter
1. 3" V Band to T4 Flange 90 degree Bend Tubing Adapter
2. Material: 304 stainless steel / Mild Steel weldable flange
3. Compatible flat Hole: Fits M10x1.5mm or M10x1.25mm bolt (not included)
4. Type: Turbo Elbow Adapter Flange
5. Size Apex.: 3" OD Tubing

Oil Line Kit
1. OIL DRAIN RETURN & FEED LINE.
2. 10AN Fittings.
3. Inner Diameter: 0.50"
4. Length: 17.00"
5. CNC Machined Turbo Adapter Plate.
6. Weldable 10AN Oil Pan Fitting Included.
7. Inner Diameter: 0.25"
8. Length: 36.00"
9. 1/8 NPT Fittings Natural Polish Finish.
10. CNC Machined Turbo Adapter Plate.
11. Brass Fitting Block Fitting and Port Cover Included

Air Filter
1. Oil-free filter Micro cotton gauze type filter material washable with water or soap and reusable.
2. Improves Up to 95% Filtration Efficiency.
3. Designed to increase horsepower and acceleration.
4. Stands Roughly Around: 6" , Overall Tall: 8.25" , Inlet: 4.0"


Attention:
1. This is not a complete kit. Additional components, such as an intercooler or cooling kit, might be required for full installation and optimal performance
2. NO instructions included. modification might required for complete installation.
3. Professional TURBO INSTALLER is Highly recommend. Any damage during installation will not be refunded.
4. Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive.
5. Don't hesitate to contact us if item stuck, unknown or fault installation!!
6. For emissions related items please check with your local jurisdiction for emission specific requirements before purchasing. NO installation instruction included unless otherwise specified. If item is questionable please consult your local professional/mechanic before making purchase.




Purchase now for only $1109.5!
