Name: Portable High Pressure Pump

Model: GX-E-CS2

Power converter: optional

Power converter voltage: 110V / 220V

Operating voltage: 12V

Power: 250W

Motor speed: 2700rpm

Maximum current: 25A

Air output volume: 12L/min

Speed of air supply:

0.5L container, from 200 BARS to 300 BARS takes 6 minutes

0.5L container, from 0 BARS to 300 BARS need 18-20 minutes

Weight: 8kg

Machine size: 24*21*12.5cm

Versions:

A1: Without Power Converter (12V)

A2: With Power Converter (110V / 220V)

Instructions：

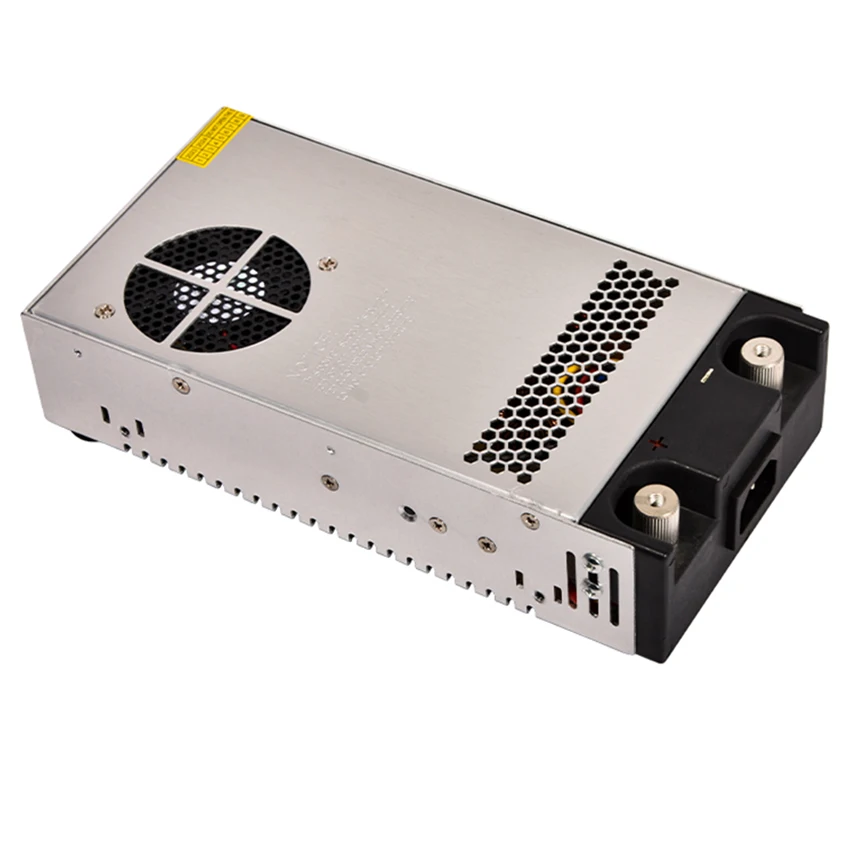

1. If you need to use the machine at home, please use our conversion power supply device,

the conversion power supply device has a built-in toggle switch on the side, and 110V and 220V signs,

to use the voltage of the location toggle switch, if the location is 110V, please toggle the switch to 110V,

if 220V, please toggle the switch to 220V. The entire power converter will be damaged if it is mistaken;

2. After confirming the voltage, clip on the machine power cord first, making sure that

red is connected to the positive pole (+) and blue or black to the negative pole (-);

3. Plug in the power supply, the power converter lights up before you can start the machine

4. For safety, please use oil-free lubrication high-pressure pump
