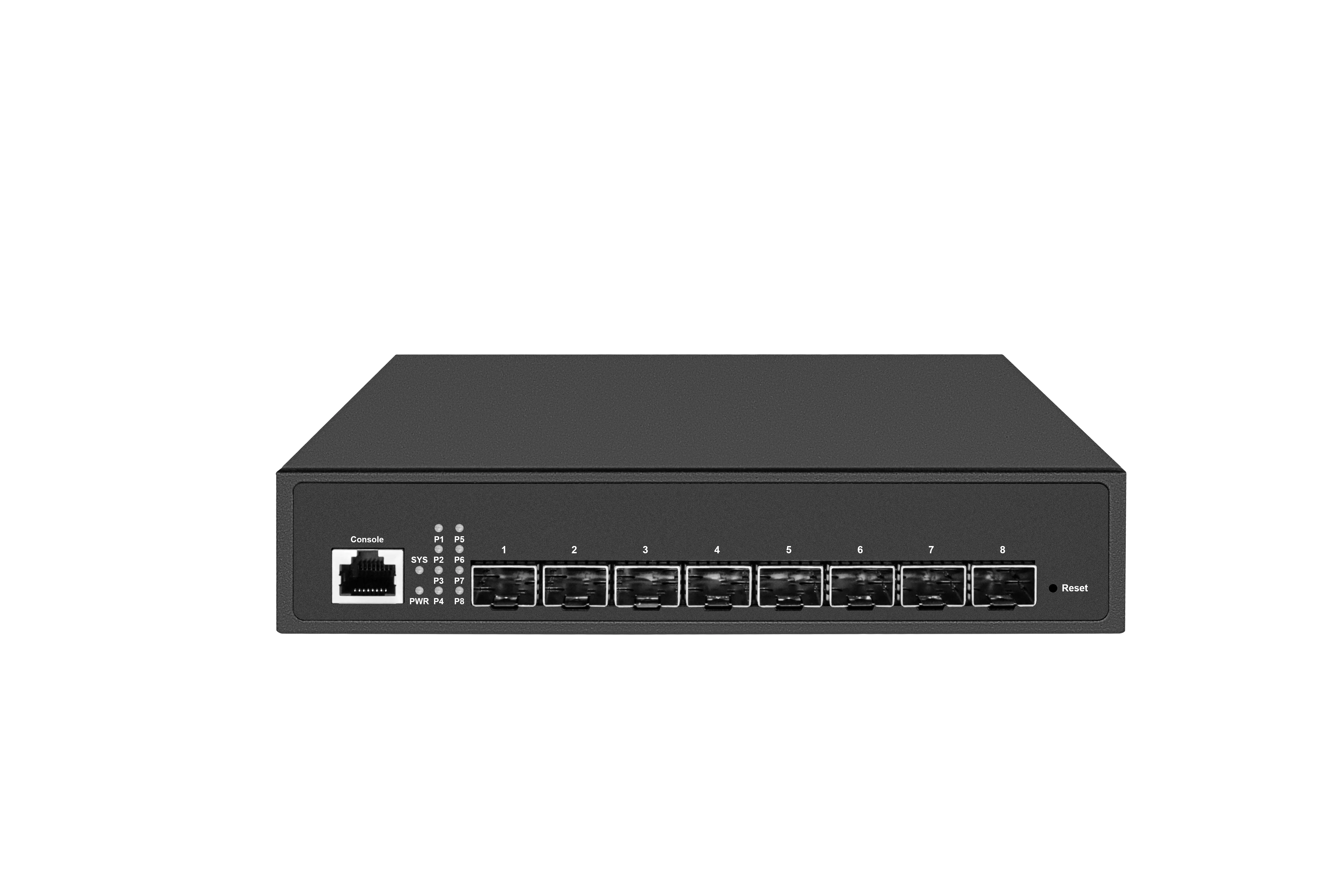

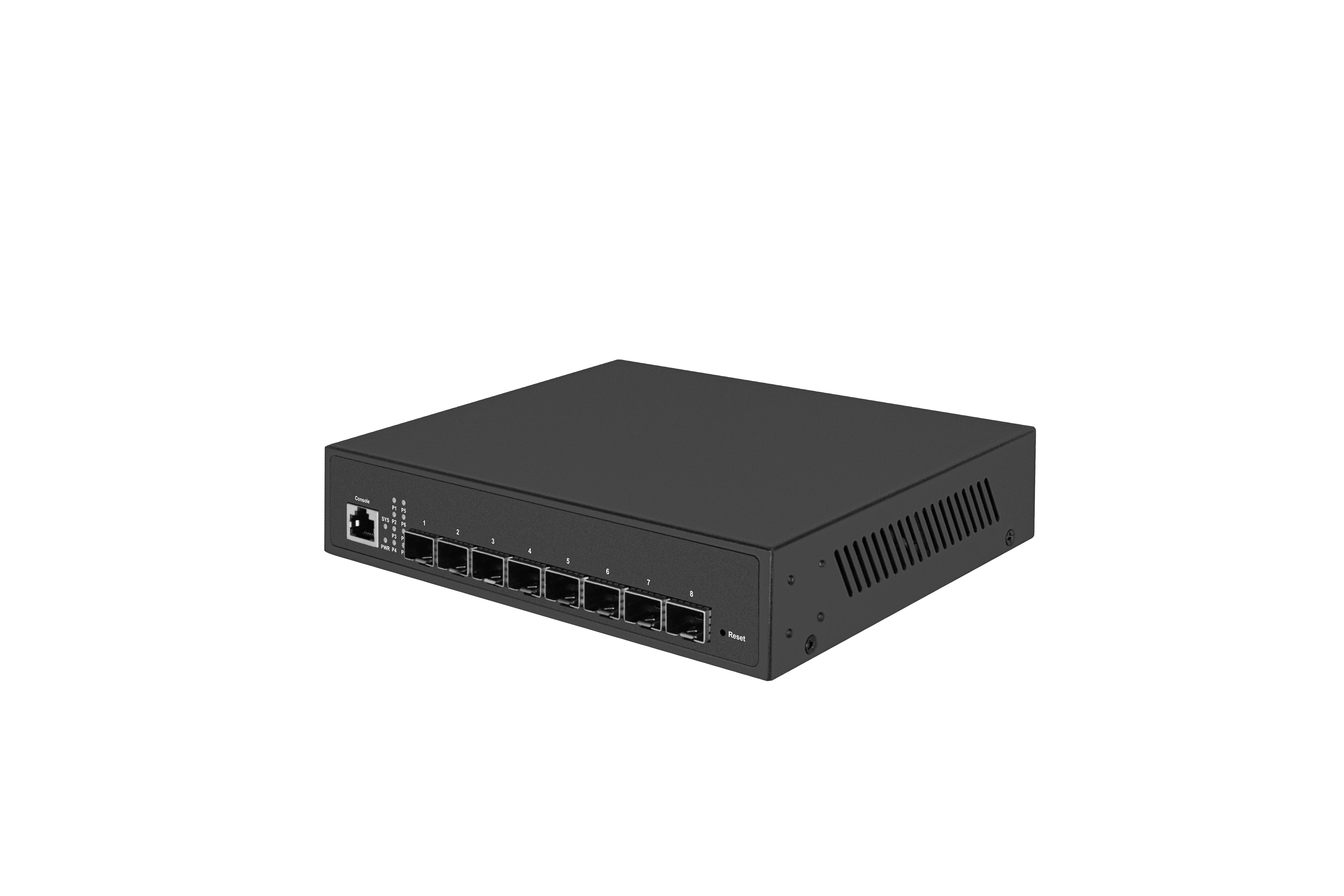

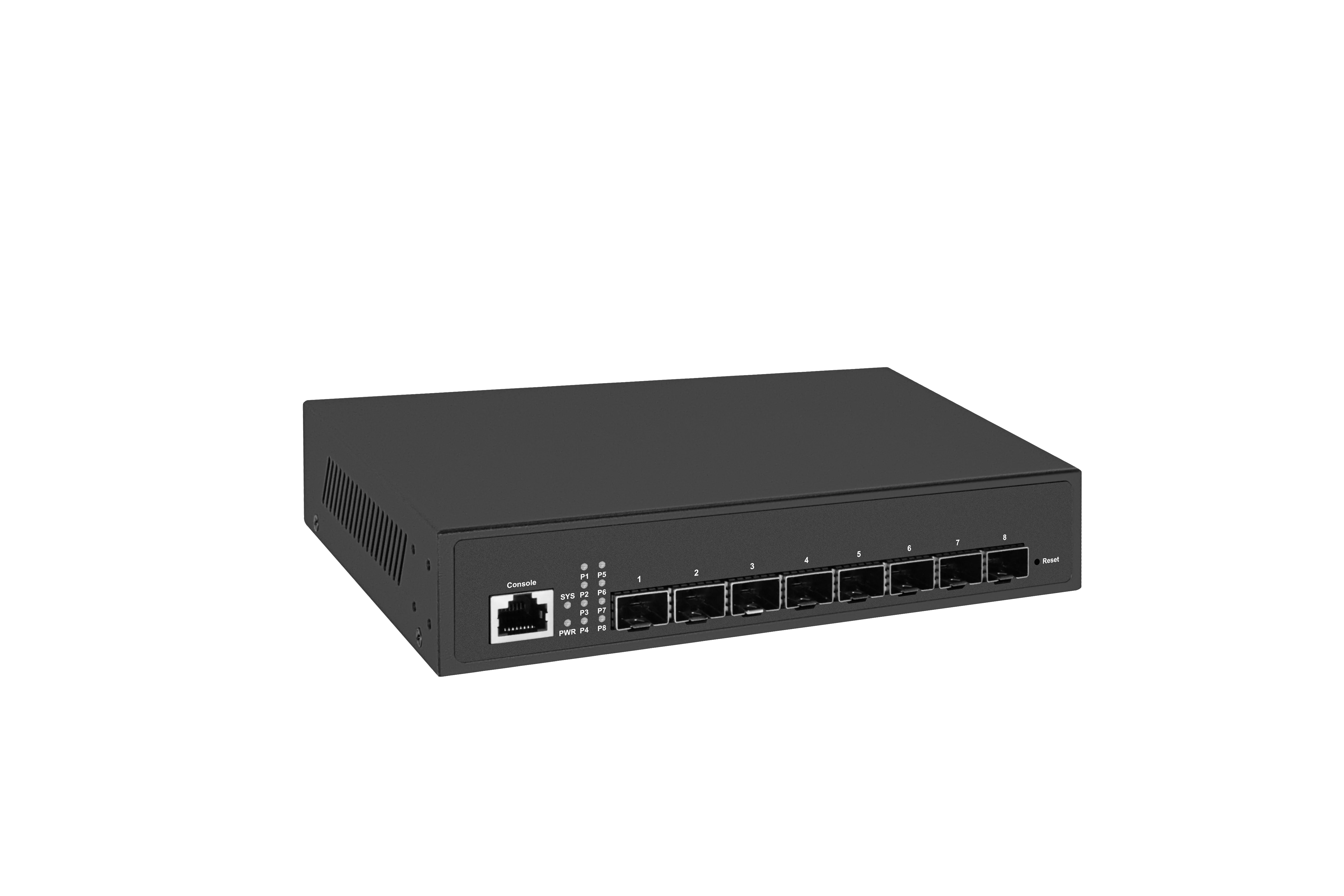

8 Port 10G SFP+ Switch L3 Managed with IPv6 (SR-ST3808F)
Product Description
Enterprise-Grade 8-Port 10G SFP+ L3 Managed Switch
Key Features & Benefits
High-Density 10G Connectivity
8 × 10G SFP+ fiber ports for maximum bandwidth
160Gbps switching capacity for wire-speed performance
Support for both multimode and singlemode fiber (up to 10km)
Ideal for backbone connections and server aggregation
Advanced Layer 3 Management
Complete IPv4/IPv6 routing capabilities
Static routing and dynamic routing protocols
Advanced QoS with multiple priority modes and scheduling algorithms
Comprehensive VLAN support including Voice VLAN
Enterprise Security Suite
802.1X authentication for secure network access
ACL policies for granular traffic control
IP Source Guard and ARP protection
Port security and isolation features
HTTPS, SSL, and SSH encryption for secure management
Carrier-Class Reliability
STP/RSTP/MSTP for loop prevention and redundancy
Link aggregation for increased bandwidth
Comprehensive monitoring and diagnostics
All-metal housing with built-in power supply
Technical Specifications
Port Configuration: 8 × 10G SFP+, 1 × Console
Switching Capacity: 160Gbps
Forwarding Rate: 119.04 Mpps
MAC Address Table: 16K entries
Management: Layer 3, Web, CLI, SNMP

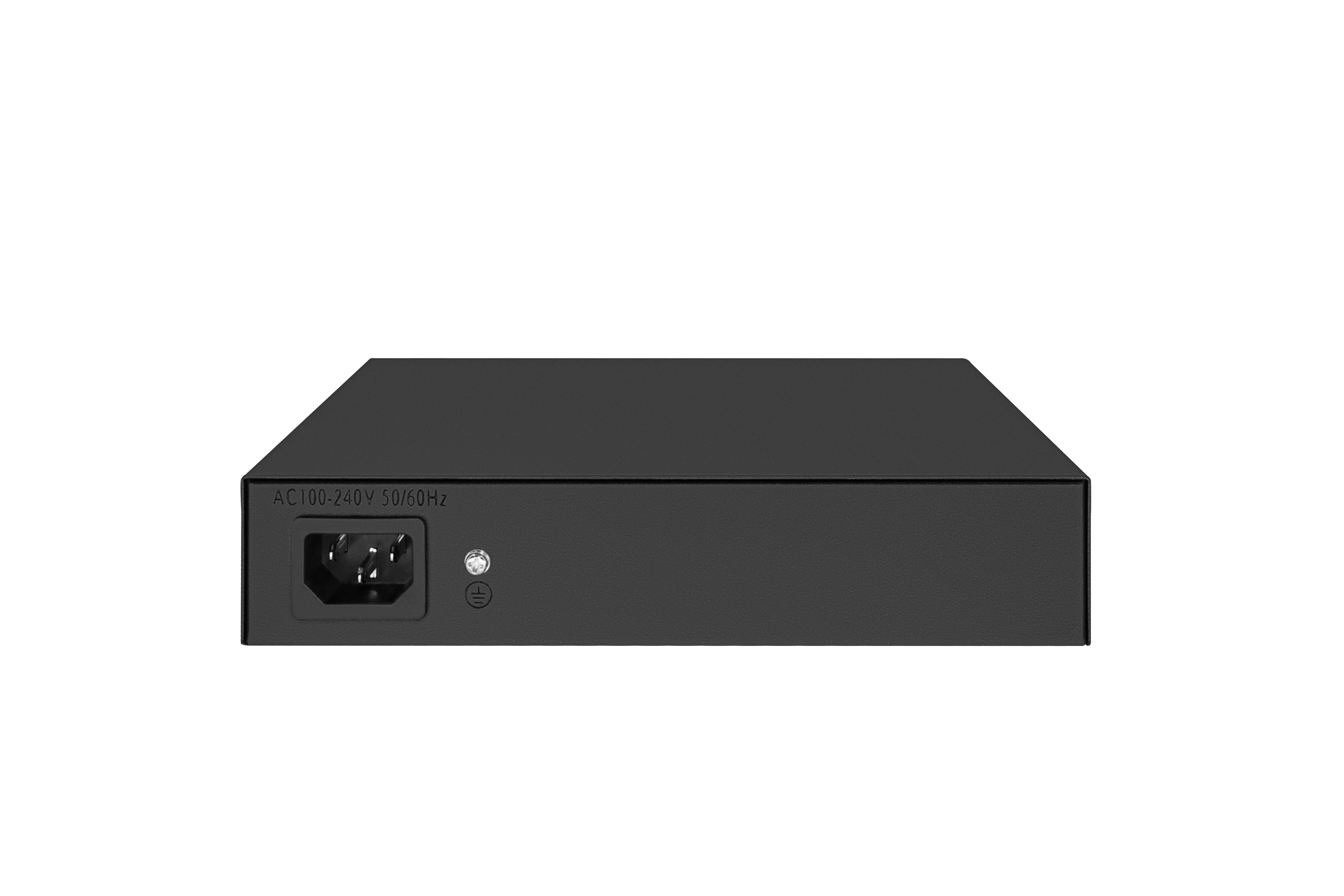

Power Supply: AC 100-240V, 50/60Hz
Dimensions: 195 × 165 × 40mm (rack mountable)
Management & Monitoring
Multiple Management Interfaces
Intuitive Web GUI for easy configuration
CLI via Console, Telnet, or SSH
SNMP v1/v2/v3 support
LLDP for automatic topology discovery
Comprehensive Monitoring
RMON for detailed traffic analysis
System logs and port statistics
CPU and memory monitoring
Real-time performance metrics
Advanced Features
IGMP snooping for optimized multicast
Port mirroring for network analysis
Cable diagnostics and fault detection
Dual image support for reliable updates
Ideal Applications
Enterprise Networks
Campus network aggregation
Data center access layer
Server farm connectivity
Network backbone infrastructure
Service Providers
Business services aggregation
Metro Ethernet deployments
Cloud connectivity solutions
Specialized Environments
High-performance computing
Video production and streaming
Financial trading networks
Research and education networks
Why Choose This Switch?
Future-Proof Performance
10G connectivity ready for next-generation applications and increased bandwidth demands.
Enterprise-Grade Security
Comprehensive protection mechanisms safeguard your network infrastructure and data.
Simplified Management
Multiple management options cater to both novice and expert network administrators.
Proven Reliability
Industrial-grade components and robust design ensure continuous operation in demanding environments.
Technical Specifications Table
| Specification | Details |
|---|---|
| Port Configuration | 8 × 10G SFP+, 1 × Console |
| Switching Capacity | 160Gbps |
| Forwarding Rate | 119.04 Mpps |
| MAC Address Table | 16K entries |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions | 195 × 165 × 40 mm |
| Standards | IEEE 802.3, 802.3z, 802.3ae |
| Buffer Memory | 12 Mbit |
| Jumbo Frame | 12 KB |
| Management | Web, CLI, SNMP v1/v2/v3 |
| Operating Temperature | 0℃ ~ 45℃ (32℉ ~ 113℉) |
Elevate your network infrastructure with the SR-ST3808F – the perfect combination of 10G performance, Layer 3 intelligence, and enterprise-grade reliability for today’s demanding network environments.
Software Specifications
| Feature Category | Specifications |
|---|---|
| VLAN Features | • Supports IEEE 802.1Q VLAN • Supports Private VLAN • Supports Protocol VLAN • Supports Flexible QinQ • Supports VLAN Translation • Supports N:1 VLAN Translation • Supports Voice VLAN • Supports MAC VLAN |
| DHCP | • Supports DHCP Snooping, DHCP Relay • Supports DHCP Client • Supports Option 82 |
| Reliability | • Supports STP, RSTP, MSTP • Supports Multi-process MSTP • Supports LACP Load Balancing • Supports G.8032 Standard Ring Network Protocol • Supports VCT, DDM • Supports ULDP (provides functionality similar to Cisco UDLD) • Supports Alarm Function |
| Multicast | • Supports IGMP v1/v2/v3 Snooping, IGMP Fast Leave • Supports MLD v1/v2 Snooping |
| Quality of Service (QoS) | • Supports flow classification based on ACL flow, VLAN ID, COS, TOS, DSCP, IPv6 FlowLabel • Supports PolicyMap binding based on port and VLAN • Supports rewriting of DSCP, COS/802.1p priority, TOS fields • Supports 8 queues per port • Supports SP, WRR, SWRR, DWRR queue scheduling algorithms |
| Access Control List (ACL) | • Supports IP ACL, matching based on source/destination IP, IP protocol type, IP priority, TCP/UDP source/destination port, etc. • Supports Custom ACL • Supports ACL binding based on port and VLAN • Supports MAC ACL, matching based on source/destination MAC, VLAN ID, COS, etc. |
| Routing | • Supports IPv4/IPv6 Static Routing |
| Security | • Supports Port Rate Limiting • Supports broadcast storm control based on packet count and byte count • Supports Port/MAC Binding, MAC Filtering • Supports MAC address number limiting based on port and VLAN • Supports Anti-ARP Spoofing • Supports DHCP Snooping, DHCP Relay • Supports DAI (Dynamic ARP Inspection) • Supports Standard IEEE 802.1x, Extended IEEE 802.1x • Supports TACACS+ |
| Management & Maintenance | • Supports CLI • Supports Ethernet Management Port • Supports IPv4/IPv6 HTTP/HTTPS • Supports IPv4/IPv6 SNMP • Supports RADIUS authentication for Telnet username/password over IPv4/IPv6 • Supports IPv4/IPv6 SSH • Supports Syslog • Supports SNMPv1/v2c/v3 • Supports MIB interface, supports Traps • Supports Dual IMG and multiple configuration files • Supports LLDP • Supports Port Mirroring • Supports One-Key Reset to factory defaults • Supports RMON 1, 2, 3, 9 (four groups) |
