PreAsion®

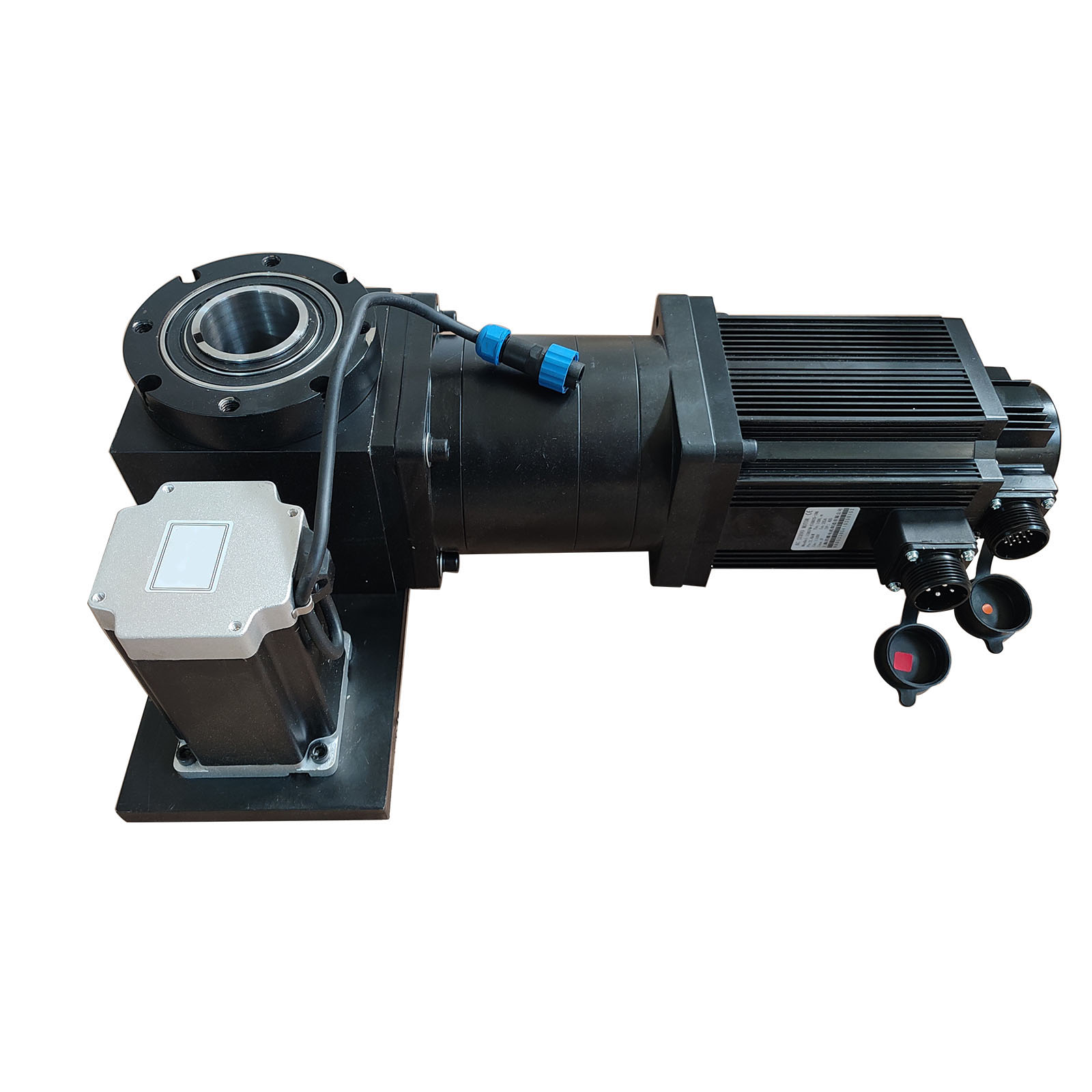

110V XDT50 Portable Line Boring and Welding Machine

Servo Line Bore Welder European Connector NO Welder
Portable boring machine is a processing equipment mainly developed for on-site maintenance of engineering, energy, and chemical equipment. It is mainly used for processing small pipe inner holes and concentric spacing holes. It is widely used in excavators, cranes, loaders, and cranes.
　
Combined with the actual needs of on-site processing, the equipment structure has been continuously improved and perfected, and the XDT50 portable boring and welding machine has been developed. It combines high-end equipment with multiple function modes for welding holes, boring holes, and end face processing.

　
Specification:
　
Operating Voltage：AC 110V/50hz
Welding machine: European connector
(Note: The welding machine needs to be equipped by yourself)
Maximum welding hole diameter: Ф230mm
Minimum welding hole diameter: Ф60mm
Maximum boring diameter: Ф260mm
Minimum boring diameter: Ф55mm
Maximum processing stroke: 240mm
Maximum infeed depth: 3mm on one side (A3 steel)
Surface roughness: Ra3.2
Hole roundness error ≤0.02mm
Boring bar: 50*1500MM
Welding bar: 30*1200mm
Power: 3KW
　
Work Environment:

　

Ambient  Temperature：-10℃～+55℃

Storage  temperature：-25℃～+70℃

Relative humidity：≤85％

　
Direction:




　
110V Excavator Press Sleeve and Press Chain Machine

70T Hydraulic Crawler Pin Dismantler

for Repair Maintenance of Engineering Machinery
https://topseller365.com/data/prd/022/583/0000.jpg
Function:
　

Crawler pin remover for chain dismounting machine, using the principle of converting hydraulic energy into mechanical energy, is a special tool for dismantling the crawler pin of the crawler excavator.

The electric pump is used as the power source to make the hydraulic jack move forward.

Therefore, the pin shaft can be removed smoothly, which is a special tool for the maintenance and assembly of the crawler excavator.

　
Product Information:

　

　https://topseller365.com/data/prd/022/583/2b-1.jpg

https://topseller365.com/data/prd/022/583/24b-1.jpg
Parameter:
  • Product Name:70T crawler pin dismantling machine/ electric chain pinning machine / excavator maintenance pressing sleeve pressing chain integrated machinee
  • Rated voltage:110V
  • Rated power:1500W
  • Weight:283.73lbs+87.3lbs
  • Chain range:<35mm/1.38in
  • Pressure sleeve range:<120mm/4.72in
  • Screw diameter：40/50mm(1.57in/1.96in)
  • Screw length:1000mm/39.37in
  • Cylinder stroke:100mm/3.937in
  • Operating pressure:0-63Mpa
  • Pump station volume:16L
  • Note:There will be a little error in manual measurement.
  • The product pump station is equipped with a plug.
  • The tank should be filled with hydraulic oil, and then powered on to start, otherwise the pump station will be damaged and pay for itself.
  • The pump station needs to add 46 # or 68 # anti-wear hydraulic oil by yourself.
Applications:

https://topseller365.com/data/prd/022/583/1aaa.jpg
Product Advantages:
　

Improve replacement efficiency and reduce labor intensity.

Does not damage the track, and can prolong the service life of the track compared to the traditional way of replacing the track.

One machine for two purposes, efficient and fast.

　
Product Photograph:

　

https://topseller365.com/data/prd/022/583/3.jpg

　

https://topseller365.com/data/prd/022/583/6.jpg

https://topseller365.com/data/prd/022/583/9.jpg

https://topseller365.com/data/prd/022/583/13.jpg

　

https://topseller365.com/data/prd/022/583/14.jpg

https://topseller365.com/data/prd/022/583/15.jpg

　
Item Included:(022583+022204)
　

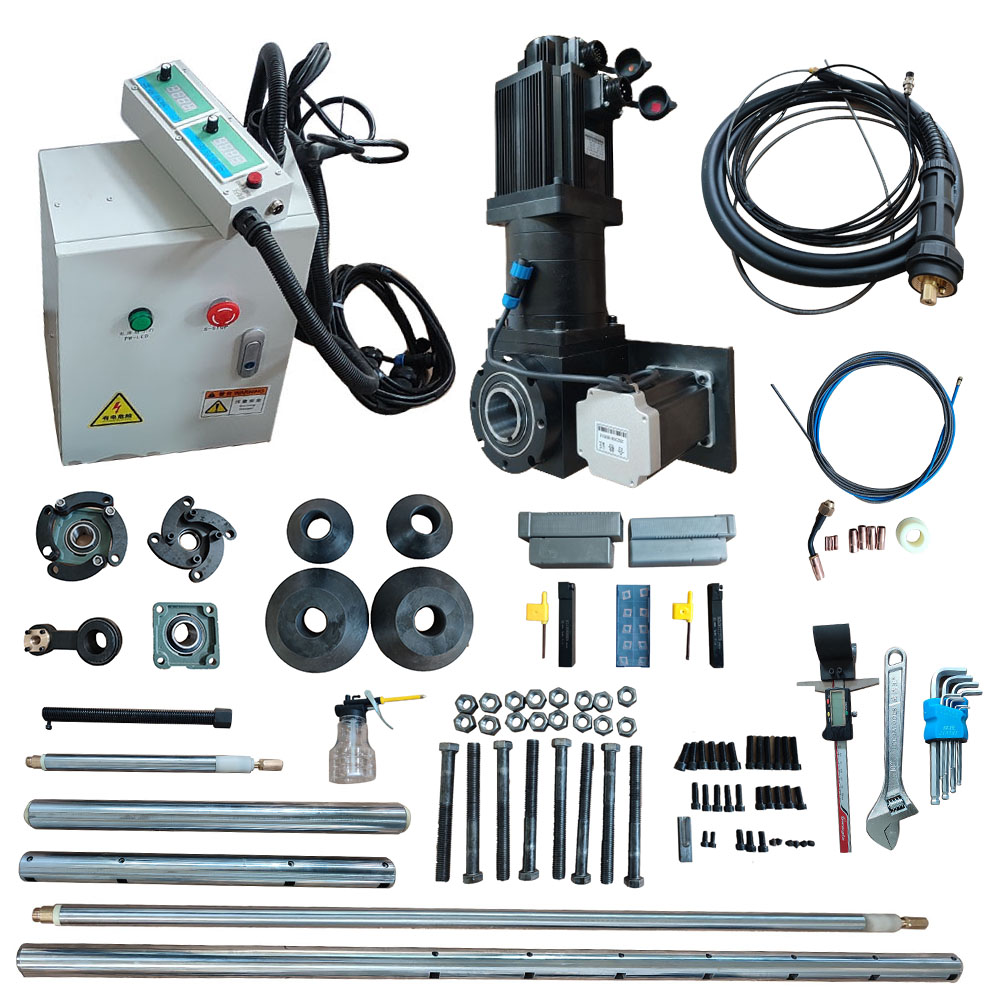

1* 110V XTD50 Line Boring and Welding Machine

1* 70T Excavator Crawler Pin Remover 110V Electric Press Sleeve Press Chain Machine

　
