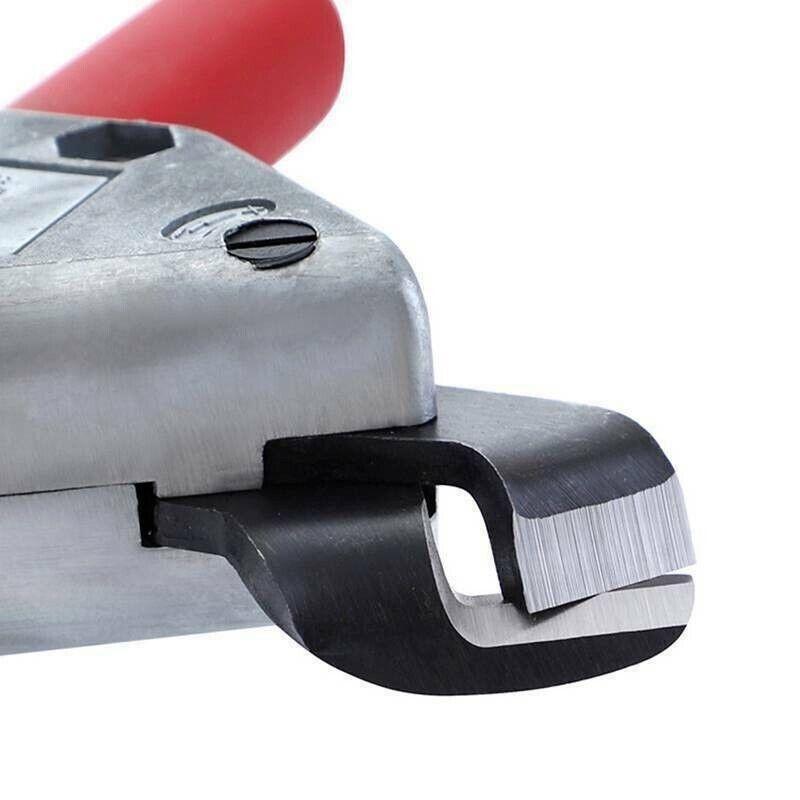

HT201533 Metal Sheet Cutter Electric Drill to Tin Scissors Stainless Steel Wire Scissors

Product Description:

Feature:

Quickly attaches to a minimum 1200 RPM, with 12-vlot cordless or A/C drill

It is not necessary to remove or replace the existing drill chuck as the drive shaft of the F2008-1 inserts directly into a standard 3/8" or larger capacity drill

Tool head hardness up to 58-60: this cutter is more convenient than others, cutting speed is excellent, and no burr

Hexagon handle does not slip, precision operation: small body, great action, strong power, easy to conquer the work / life problems

Cutting capacity:

Iron plate: ≤ 1.2mm

Stainless steel plate: ≤ 0.8mm

Copper, aluminium alloy plate: ≤ 1.8mm

Plastic plywood: ≤ 1.8mm

Note: do not cut more than the required thickness, do not modify it without permission

How to replace the cutting head:

Use a scraper or blade to push the handle up

Remove the three screws on the back using a 5mm hexagonal wrench

Use a 4mm hexagonal wrench to tighten the tip of the blade and the saw will naturally open

Align the two bits with the holes, then put them in, note that firstly put the two holes, and then put the one hole, loaded up, tighten the screw, the you can continue to use

Details

Model Number:Turbo Shear

Dimensions:18cmx17.5cmx6cm

Weight:1.2kg

Material:Carbon Steel

Colour:Sliver & Red

Shank:Hex Shank

Shank Diameter:7mm

Handle Length:90mm

Package includes:

1 x Cutting tool(Power tool not included)
