Model
Parameter
EPEVER WiFi 2.4G RJ45 D
Working voltage
5V± 0.5V(Powered by RS485 com. port)
Power consumption
Peak emission: 150mA; Idle: 310uA
Enclosure
IP30
Communication method
RS485
Communication parameters
115200Bps, 8N1
Interface standard
EPEVER communication standard V1-1.0
Work frequency
2.4 ~ 2.4835GHz
Work temperature range
-40℃~ 85℃
Dimension
63mm x 19mm x 10mm
Net weight
7.7g
- BluetoothModule: EPEVER BLE RJ45 D
PS : this item only can be use for epever brand item,can't be use for others.
| |||||||||||||||||||||||||
WiFi Adapter EPEVER WiFi 2.4G RJ45 D
Overview:

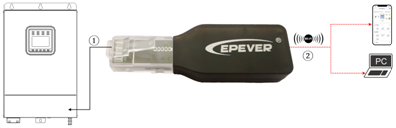

Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.
Features:
1,Applicable to EPEVER controllers, inverters, or inverter/charger with RJ45 port
2,Use immediately after connecting; easy and convenient operation
3,Directly powered by the communication port
4,Up to 20 meters of communication distance
5,Support the Local monitoring and "EPEVER Cloud" working mode.
Specifications：
Features:
1,Support communication via phone APP
2,Support data encryption
3,Use immediately after connecting; easy and convenientoperation
4,Feature fast communication and strong anti-interferenceability
5,Directly powered by the communication port
6,Up to 10 meters of communication distance
Specifications :
Parameter | EPEVER BLE RJ45 D |
Working voltage | 5V± 0.5V (Powered by RJ45 port) |
Power consumption | Average: 5V@10mA; Peak: 5V@60mA |
Communication distance | ≤ 10m |
Serial port baud rate | 115200bps |
Communication method | RS485 to Bluetooth |
Connection port | RJ45 |
Bluetooth protocol | Bluetooth 5.0 |
Dimension (L x W x H) | 63mm x 19mm x 13.8mm |
Work temperature | -20℃~70℃ |
Enclosure | IP30 |
Net Weight | 8.0g |
