GPD WIN 4 WIN 5 5 Handheld Gaming PC: Configuration Comparison
Unleash ultimate portable power with the GPD WIN 5. Choose the configuration that perfectly matches your performance and storage needs.
| Basic Information | |||||
| Model | WIN 4 8840U(32GB+1TB) | WIN 4 HX 370(32GB+2TB) |
WIN 5 Ryzen AI Max 385 (32GB+1TB) |
WIN 5 Ryzen AI Max+ 395 (32GB+2TB) |
WIN 5 Ryzen AI Max+ 395 (64GB+2TB) |

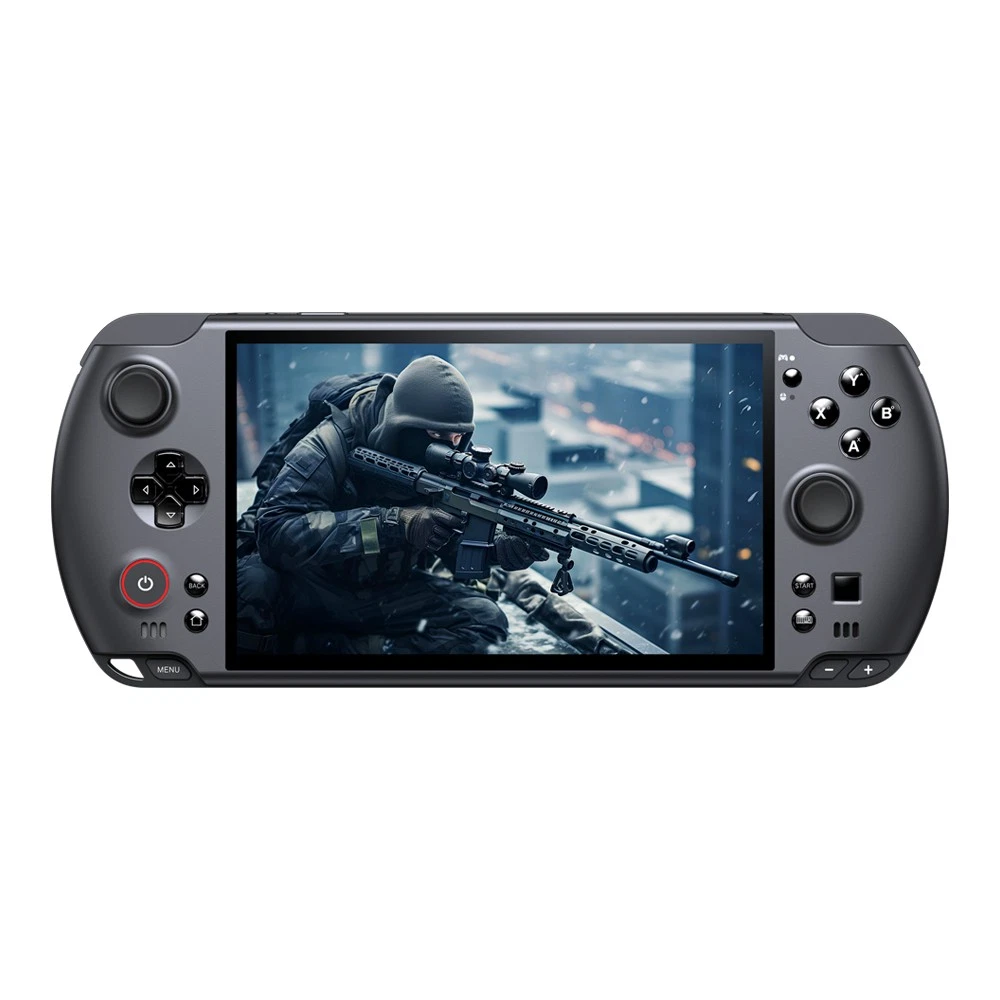

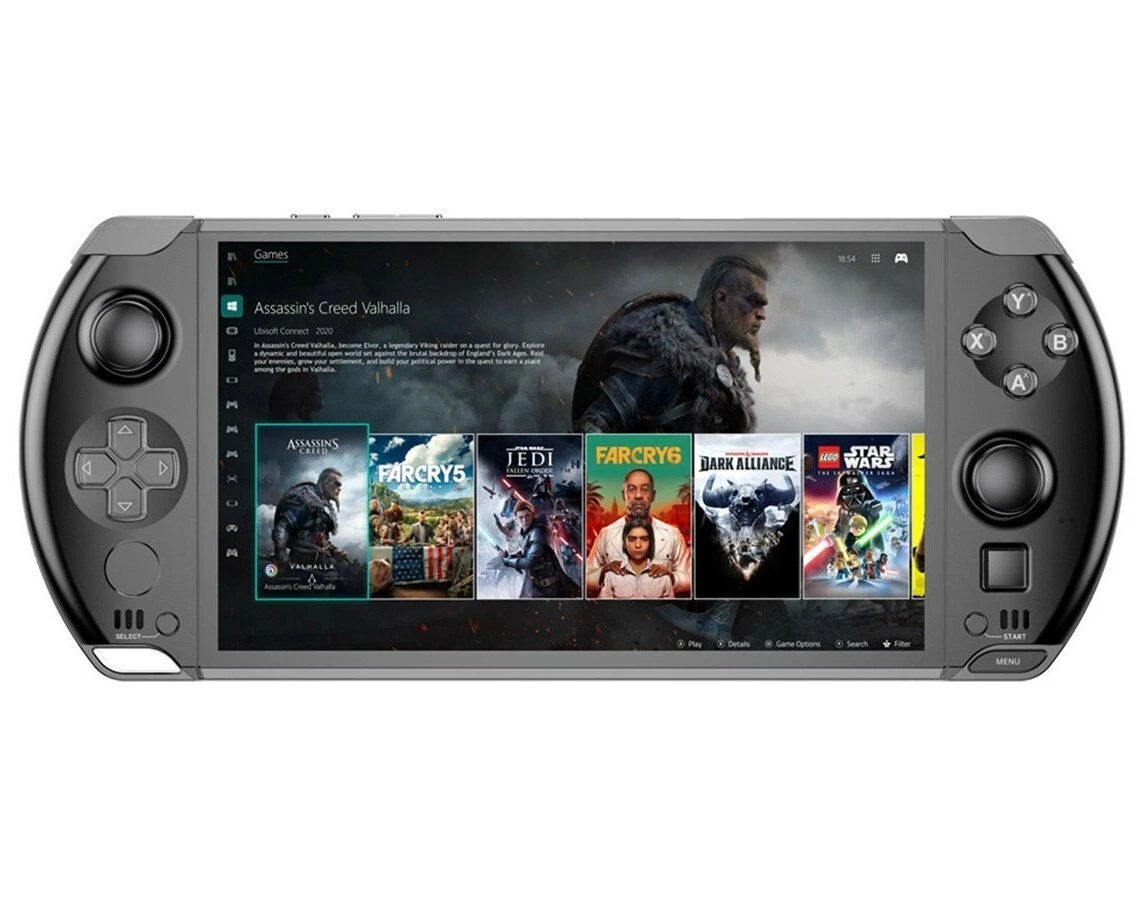

| Product Picture |  |
|
|
 |
|
Lunch Date |
12 / 2024 |
12 / 2024 |
10 / 2025 |
10 / 2025 |
10 / 2025 |
Operating Syste |
|
Pre-Installed With Windows 11 (25H2) Home 64-bit |
|||
Product Positioning |
Handheld Game Console |
||||
| Display | |
||||
| Touch Panel | 10-point Touch Control |
10-point Touch Control |
|||
Screen Type |
Corning Gorilla Glass 5，H-IPS Technology | The Sixth Generation Of Corning Gorilla Glass, LTPS Technology, 500nit |
|||
| Screen Size | 6 Inches, Native Landscape Mode, DC Dimming |
7 inches, Native landscape orientation | |||
| Refresh Rate | 60Hz |
120Hz |
|||
Aspect Ratio |
16：9 |
16：9 |
16：9 |
16：9 |
16：9 |
| Screen Resolution | 1920x1080 |
1920x1080 |
|||
| Pixels Per Inch | 368 PPI | 315 PPI | |||
| CPU | |||||
# of CPU Cores / # of Threads |
8C / 16T |
12C / 24T |
8 C / 16 T |
16 C / 32 T |
|
Base Clock |
3.3 Ghz |
2.0 GHz |
3.6 GHz |
3.0 GHz |
|
| Max. Boost Clock | 5.1 GHz |
5.0 GHz |
5.1 GHz |
||
AI Performance |
16 TOPS |
50 TOPS |
50 TOPS |
50 TOPS |
50 TOPS |
Total Processor Performance |
38 TOPS |
80 TOPS |
106 TOPS |
126 TOPS | |
Total Cache |
24.5 MB |
36.75 MB |
40.5 MB |
81.25 MB | |
| Architecture | Zen 4 |
Zen 5&Zen 5c |
Zen 5（Strix Halo） |
||
Process Size |
4nm |
4nm |
4nm |
4nm | |
TDP |
15W-35W | 45W-75W | |||
| GPU | |||||
| Processor Graphics | AMD Radeon 780M |
AMD Radeon 890M |
AMD Radeon 8050S |
AMD Radeon 8060S | |
| Graphics Frequency | 2700 MHz |
2900 MHz |
2800 MHz |
2900 MHz | |
Compute Units |
12CU |
16 CU |
32 CU |
40 CU | |
| Shading Units | 768 |
1024 |
2048 SU |
2560 SU | |
Floating-point Performance |
17.82 TFlops（FP16） 8.92 TFlops（FP32） 556.8 GFlops（FP64） |
23.76 TFLOPS（FP16） 11.88 TFLOPS（FP32） 742.4 GFLOPS（FP64） |
782.33 GFLOPS（FP64） 11.76 TFLOPS（FP32） 25.73 TFLOPS（FP16） |
858.41 GFLOPS（FP64） 14.82 TFLOPS（FP32） 29.73 TFLOPS（FP16） |
|
| Pixel Rate | 92.80 GPixel/s |
92.80 GPixel/s |
149.4 GPixel/s |
149.4 GPixel/s | |
Texture Rate |
139.2 GTexel/s |
185.6 GTexel/s |
298.9 GTexel/s |
373.6 GTexel/s | |
Video Memory |
|
|
System Shared |
System Shared |
System Shared |
DP |
|
|
7680 x 4320 @60Hz |
7680 x 4320 @60Hz |
7680 x 4320 @60Hz |
DirectX |
|
|
12 Ultimate (12_2) |
12 Ultimate (12_2) |
12 Ultimate (12_2) |
| Vulkan | |
|
1.3 |
1.3 |
|
OpenGL |
|
|
4.6 |
4.6 |
4.6 |
| Storage | |||||
Memory |
32GB |
32GB |
32GB |
32GB |
64GB |
Memory Types |
LPDDR5x 7500 MT/s |
LPDDR5x 7500 MT/s |
LPDDR5x 8000 MT/s |
LPDDR5x 8000 MT/s |
LPDDR5x 8000 MT/s |
| Memory Channel | Dual Channel |
||||
| Hard Disk Type | M.2 SSD |
||||
Hard Disk Port |
M.2（Socket 3）× 1 |
||||
| Supported Specifications | M.2 NVMe 2280 × 1 |
||||
| Standard Capacity | |
2TB × 1 |
1TB × 1 |
2TB × 1 |
2TB × 1 |
| Bus Specification | PCIe 4.0 × 4 |
||||
Battery |
|||||
Battery Type |
Li-polymer |
||||
Battery Capacity |
45.62Wh | 80Wh |
|||
Battery Life |
2 Hours Of Heavy Use, 3-6 Hours Of Moderate Use, 10 Hours Of Light Use, Depending On The Specific Environment Of Use |
|
|||
| Removable battery |
NO | NO |
Yes | Yes |
Yes |
