Pre-shopping Notes:
- Before purchasing, Please kindly provide your car's model /manufacture year /system /screen size, and the pictures of car display screen and control panel. This will help us to send right item to you and finish the installation. Thank you.
- This unit does NOT have radio function, you can use your vehicle's radio!!!
- This display with Linux system (not android system) don't support Youtube, Netflix, don't support install any apps.
- You can play video via USB drive or Mirrorlink.
- lf you don't have relevant installation experience, please find a professional installer to help youlf you want to install it by yourself, please read manual carefully and contact us to get support.
- Please do not finalize install until you have tested every function on your car.
Applicable Models & Years:

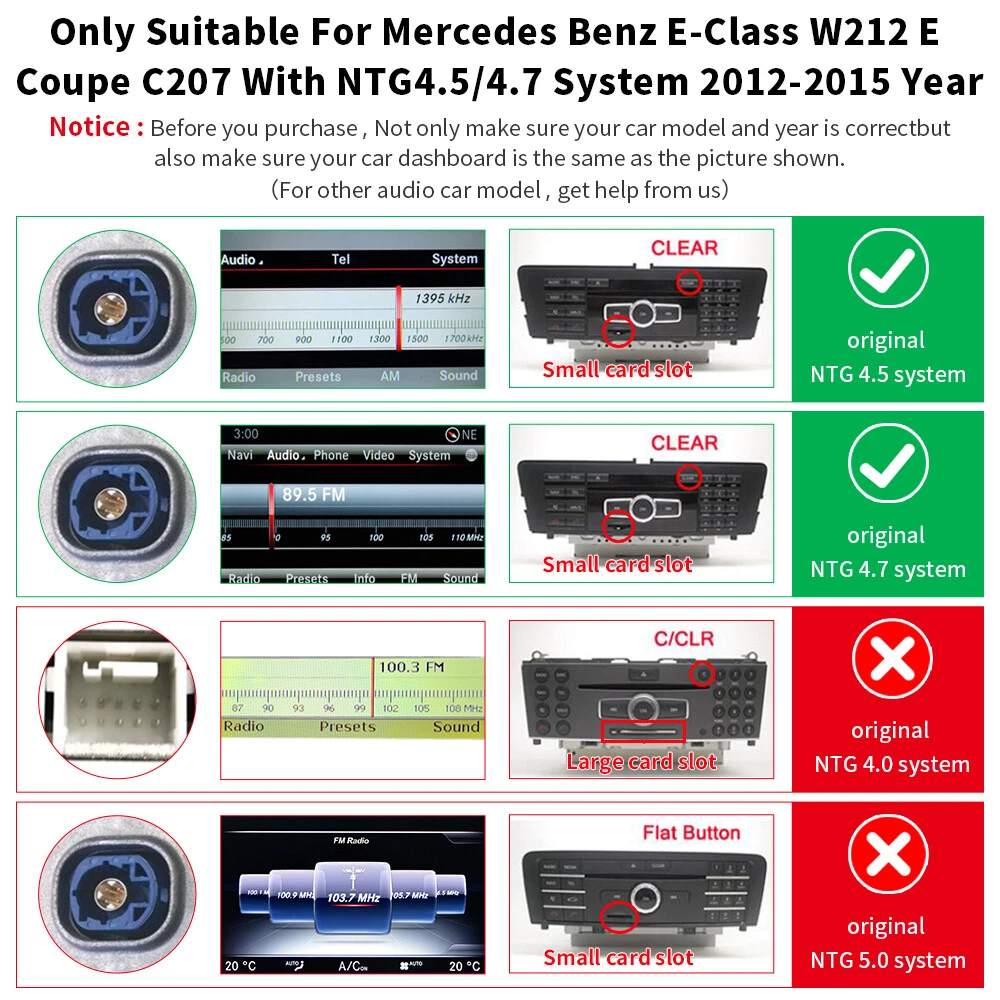

- For Mercedes Benz E-Class W212 2012-2015 With NTG4.5/4.7 System
- Please send your car model and year and car main radio interface picture to check after you place order.
Specification: - Main chip:Sunplus 8368XU with 2Gb DDR3
- Flash:1Gb nand flash
- WI-FI:2.4Ghz/5.8Ghz ; IEEE 802.11 ac/a/b/g/n
- Bluetooth :2.4Ghz/BT5.0
- Power supply parameters:
Voltage: 10V~12V
Maximum working current <3A - Temperature Range.
Operating temperature: -30℃ ～ +80℃
Storage temperature: -40℃ ～ +85℃ - Operation System:Linux 4.9
- Screen Size：10.25 inch
- Two different methods of sound transmission, which includes AUX cable transmission and Bluetooth transmission.
Features
- TFT 1920*720 High Resolution
- Supports Full HD 1080P Video 30fps
- Built-in 4G Module - Support 99% Carriers Worldwide
- Support Wireless & Wired Apple CarPlay (Bluetooth / USB Cable Connection)
- Support Wireless & Wired Android Auto (Bluetooth / USB Cable Connection)
- Support Wireless & Wired Mirrorlink(IOS Airplay/Android Autolink)
- Built-in USB
- Built-in MIC,Support factory MIC(via bluetooth)
- Built-in DSP
- Bluetooth - Hands Free Call and Music
- Light perception:Synchronization of light-sensitive functions to the original headlamps(Day and Night Mode)
Original Functions Retained:
iDrive System Retained; Amplifier System Retained;
Original Car Information Display:
Original Radio/CD Player/Bluetooth/Steering Wheel Control Function/Backup Camera Display
iDrive System Retained; Amplifier System Retained;
Original Car Information Display:
Original Radio/CD Player/Bluetooth/Steering Wheel Control Function/Backup Camera Display
- Package:
1*Touch screen - 1*Power cable
- 1*LVDS/USB cable
- 1*Bracket
