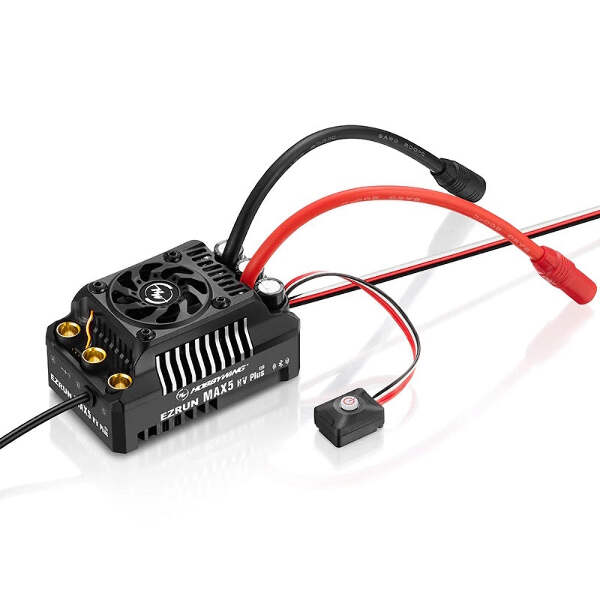

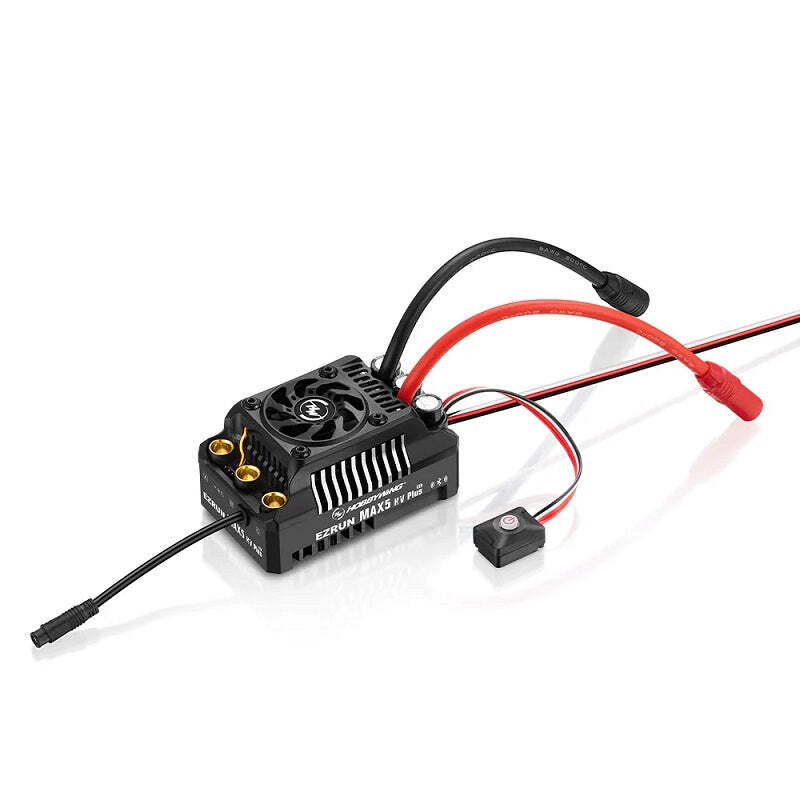

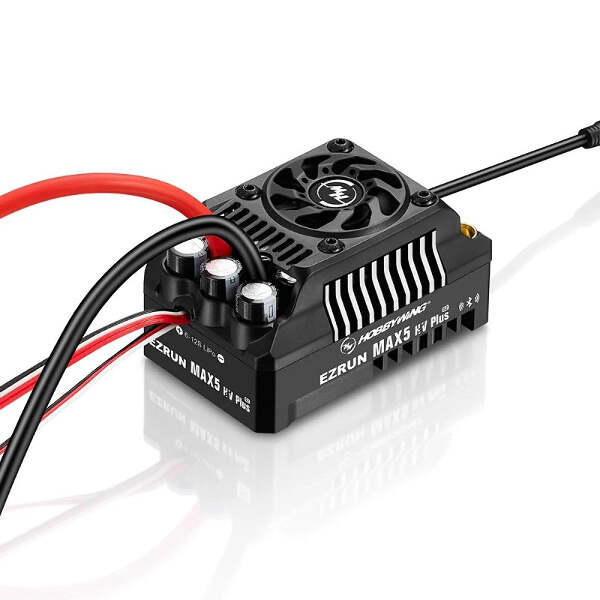

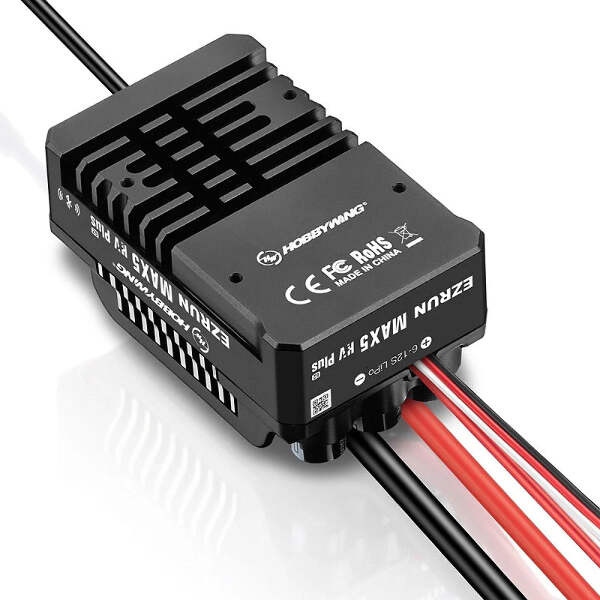

Hobbywing HWI30104300 Ezrun Max5 HV Plus ESC

HWI30104300

Ezrun Max5 HV Plus ESC
The ESC features an innovative waterproof sensor interface, enhancing its overall waterproof and dustproof performance. It easily handles harsh conditions, including sediment, ice, snow, and water accumulation.

Includes:
(1) Ezrun MAX5 HV PLUS ESC
(1) Double side tape
(2) Heat shrink tube
User's manual
A HOBBYWING decal

Features:
Built-in ultra-powerful switch-mode BEC with support for 6V/7.4V/8.4V switching, compatible with a wide range of powerful, high-voltage servos.
Supports turbo timing settings, delivering remarkable timing response when paired with a compatible motor.
The built-in Bluetooth function (integrated into the switch) allows users to configure and upgrade the ESC directly via the mobile app, eliminating the need for additional devices and making the process simpler and more convenient.
Includes a data logging function to view various performance metrics on the HW LINK app.
Supports firmware upgrades for the ESC, ensuring access to the latest features and enhancements.

ESC Specifications:
Cont. / Peak Current: 330A / 2000A
Motor Type: Sensored and sensorless brushless motor
Applications: 1. 1/7 and 1/8 vehicles for Extreme Speed / 2. 1/5 Truck, Monster for Extreme Bashing
Motor Limit: With 8S LiPo: KV< 2500 / With 12S LiPo: KV< 1600
LiPo Cells: 6-12S LiPo
BEC Output: 6V/7.4V/8.4Vadjustable, continuous current 8A (Switch-mode)
Cooling Fan: Powered by the BEC voltage
Size: 94.5(L) x 59.4(W) x 51.6(H)mm
Weight: 450g (Included wires & connectors)
Programming Method: iOS or Android smart phone (installed with the HW Link App)
