ST-1-20B Digital Torque Meter Screw Driver Wrench Measure Tester Force Gauge High Precision Physical Force Measuring Instrument

Specifications:
Name: Digital Torque Tester
Model:
ST-1-20B N.m: 20.000/0.01
ST-1-10B N.m: 10.000/0.001
ST-1-5B N.m: 5.000/0.001
ST-1-2B N.m: 2.000/0.001
ST-1-1B N.m: 1.0000/0.0001
Measuring range:
Kgf.cm: 203.9/0.1
Ft.lbf: 14.75/0.1
In.lbf: 177.0/0.1
Test connector: 1/2 3/8 1/4 3/4
Sensor structure: built-in sensor
Accuracy:±1%
Transmission function: support USB transmission
Unit selection: N.m/kgf.cm/ft.lbf/ln.Ibf
Operating temperature: 5℃~40℃
Storage temperature: -20℃~70℃
Humidity: up to 90% without condensation
Charger voltage: output: AC220V (voltage adapter can be used) 50/60HZ
output: DC 12V 300/500ma
Purpose: Detect and correct the torq
Package List:
Digital Torque Tester x 1
Joints x 2
Charger x 1
Data cable x 1
Connector x 1
Certificate of Conformity x 1
Instruction manual x1

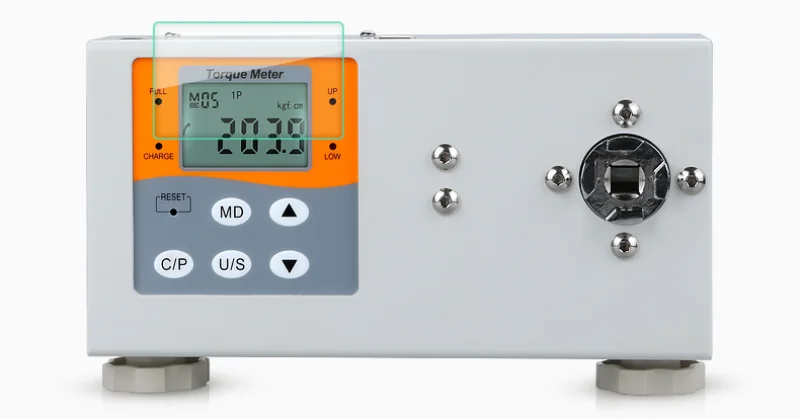

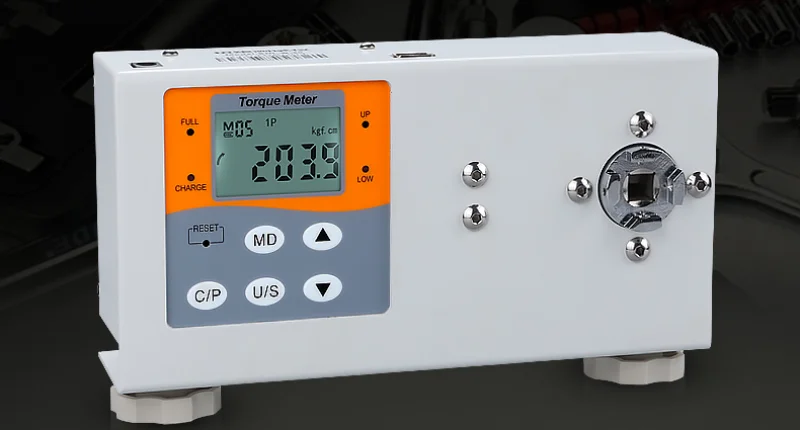

Digital Display Torque Tester
Digital display for accurate measurements
Testing and calibrating products involving tightening forces or torsional damage tests
Digital analogue display
LCD digital display for clear readings, screen with backlight for reading in dark places

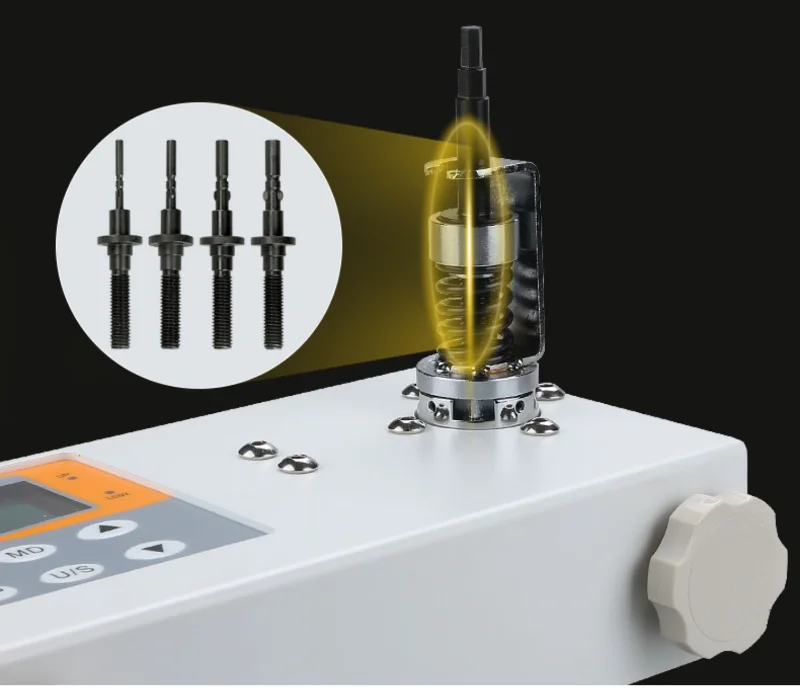

External torque test heads
A wide range of torsion equipment can be tested with different diameter connectors
4 Convertible torque units
Interchangeable on demand, no need for mental conversion

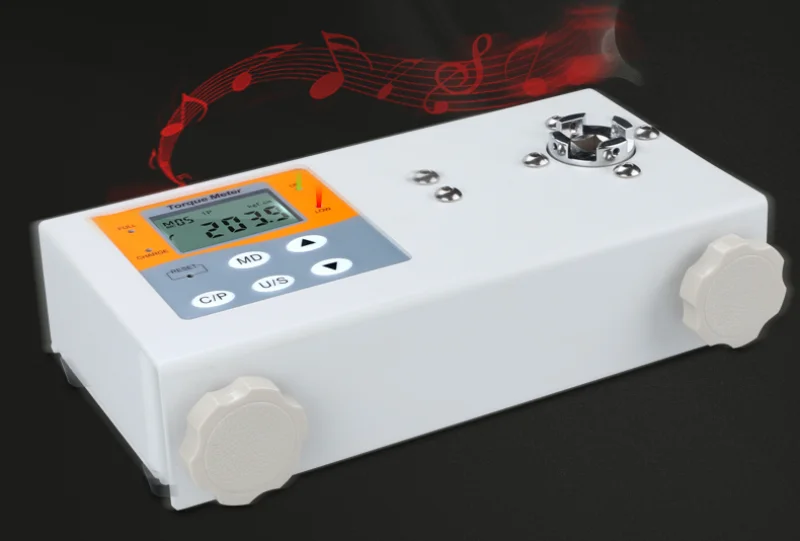

Audible and visual alarms
Preset force values, audible and visual alarms
Three modes of use available
The three usage modes can be adjusted to suit your needs
Real-time mode|Peak mode|Preset mode
Real time mode
[T] Real time mode: the value varies with the applied force
Real time mode
[P] Peak mode: the value stays at the peak after the force is removed
Preset mode
Preset mode: Alarm when force reaches preset valu
AC charging port for rechargeable cycles
7.4V lithium battery, AC charging port for rechargeable cycles
PC cable data output
Software on CD-ROM for PC viewing and analysis
Various force ranges and sizes to suit your needs
Key functions and introduction
【UP】Upper limit indicator
【LOD】Lower limit indicator
【FULL】Charging completion indicator;
【CHARCE】Charging indicator
【▲】Up button
【MD】Mode key
【U/S】Unit/Setting key
【C/P】Power/zero key
【▼】Down button


Note:Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
