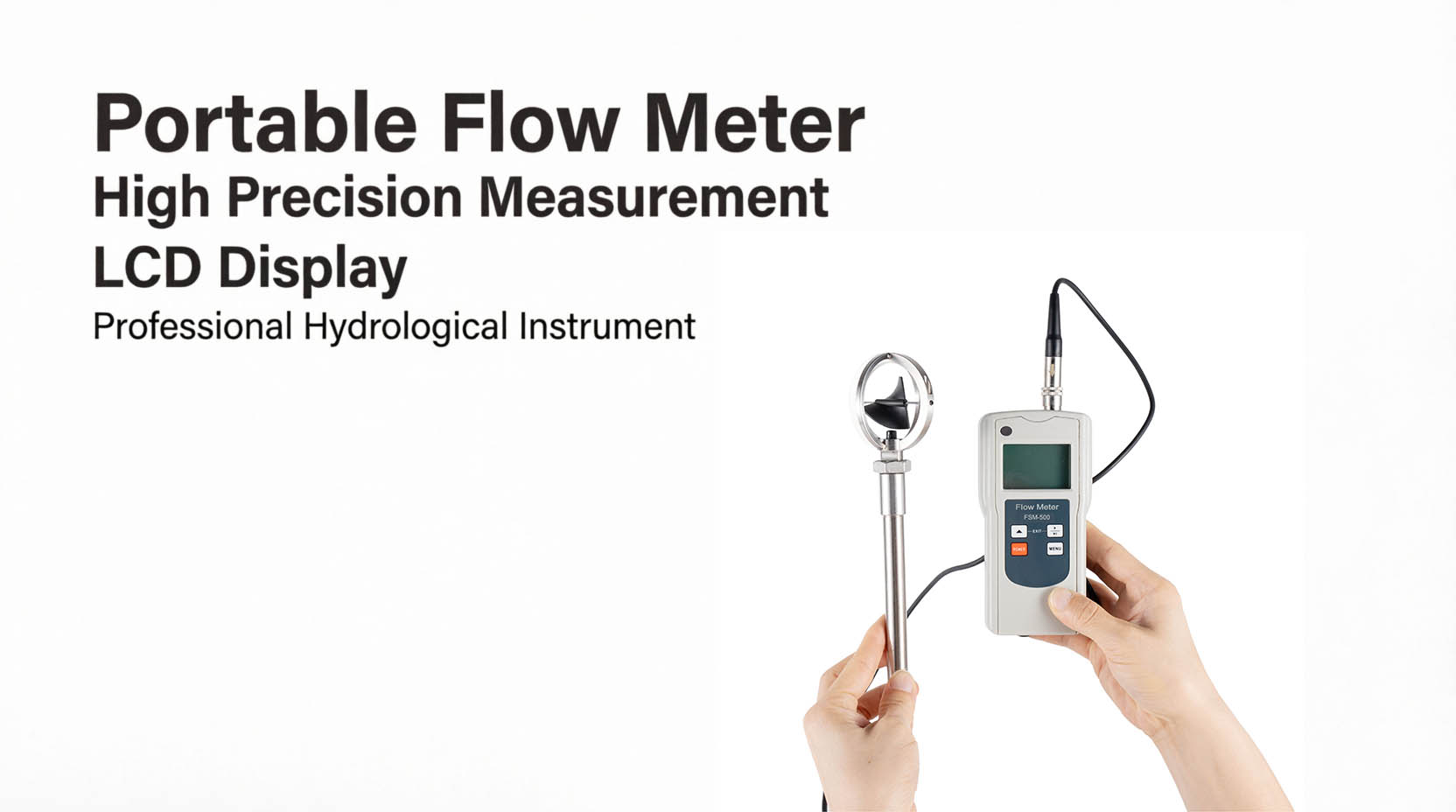

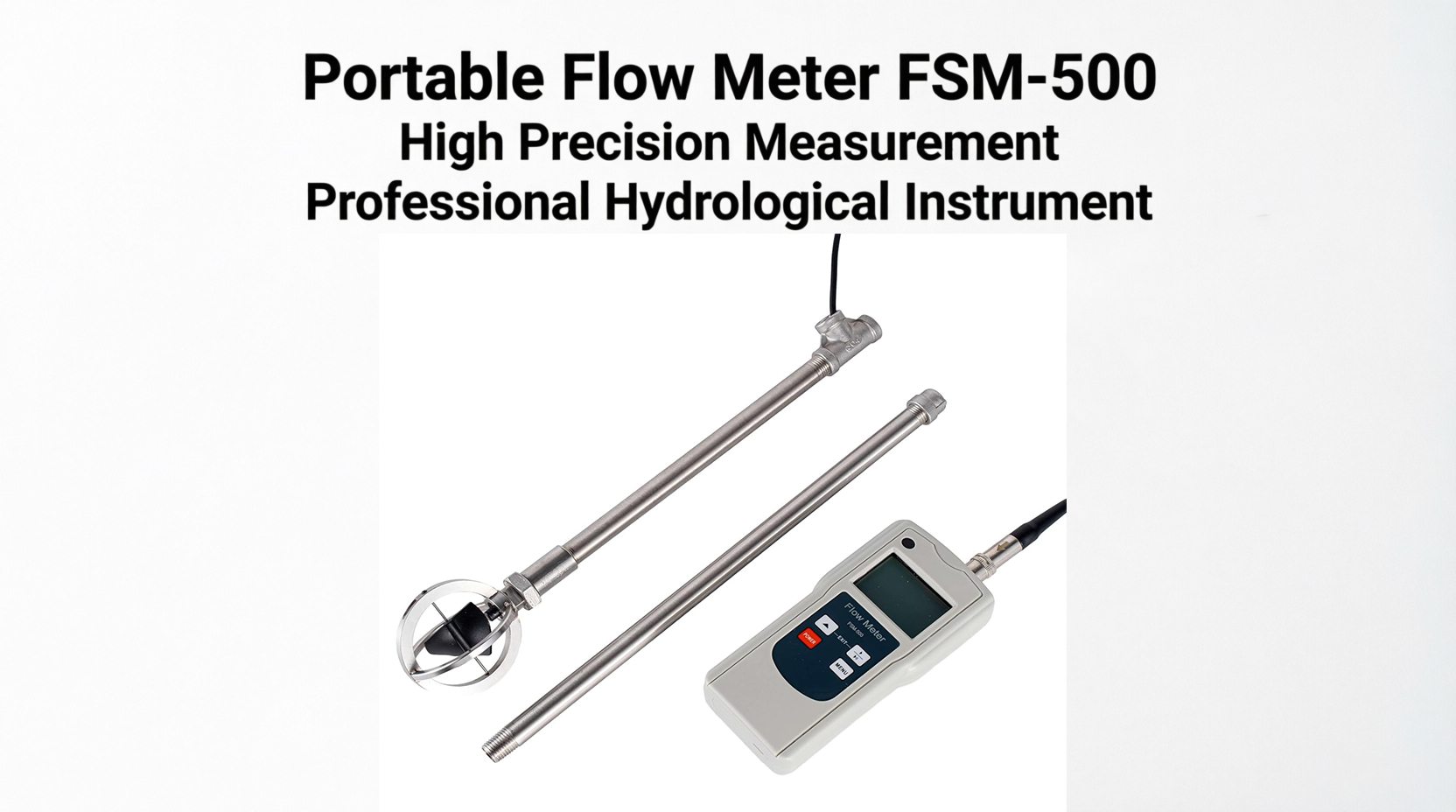

Water Flow Rate Meter Digital Water Velocity Meter with Speed Range 0.01-5.00m/s
Note: Battery not Included During The Shipping !!!
Application:
- This portable flow rate meter (hereinafter referred to as portable flow meter) is designed for hydrological stations, factories and mines, environmental protection monitoring station, farmland irrigation and drainage, hydrogeology survey and other departments in the field of velocity of flow in open channel flow
- Simple structure, light and convenient
- Power consumption, complete functions
- High degree of automation, stable and reliable
- In line with the national high temperature rotary slurry, is a new type of portable velocity measurement instrument.

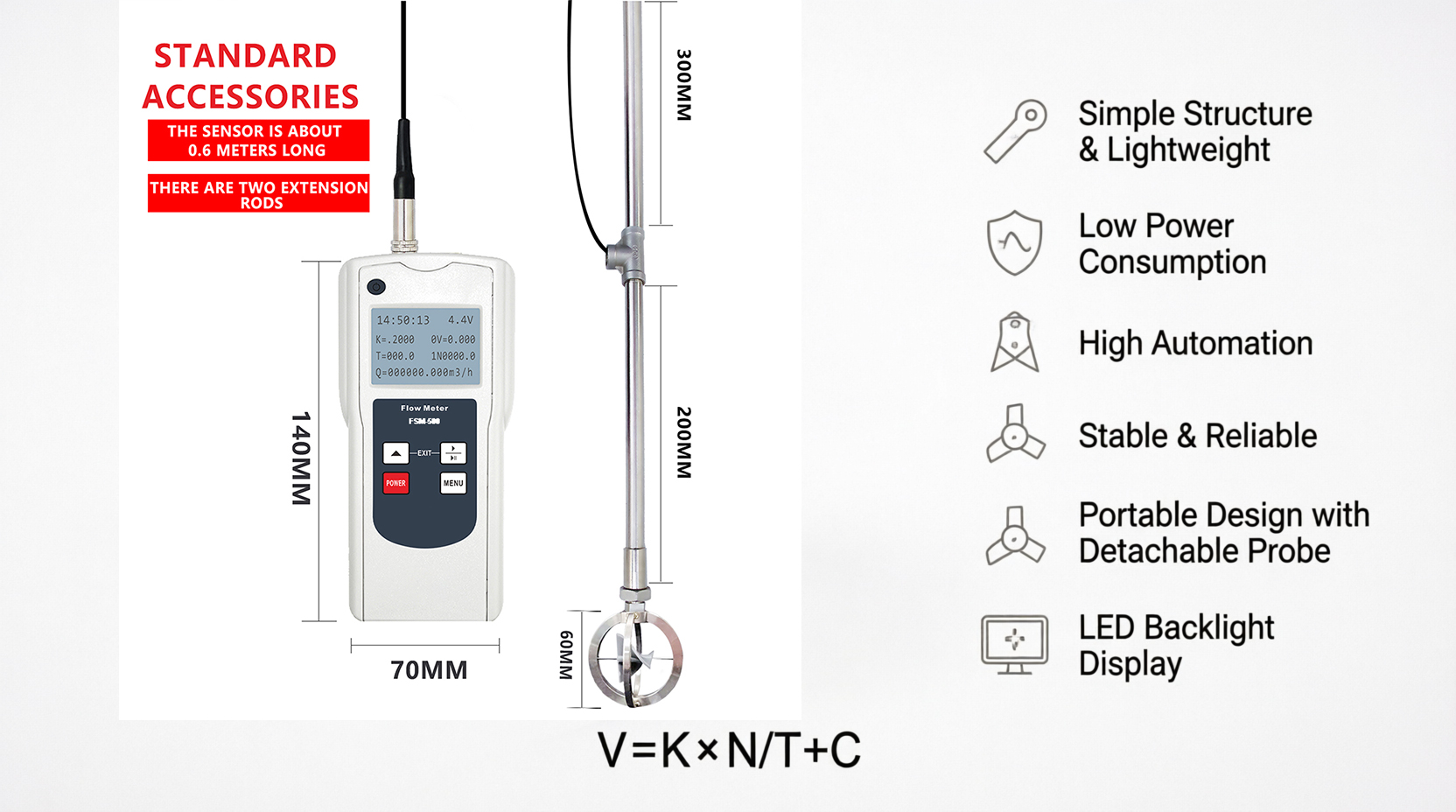

- Formula:V =K*N/T + C (m/s) (automatic computer)
- V: Average flow velocity in flow measurement period (m/s)
- K: blade hydraulic pitch
- C: current meter constant
- T: flow measurement duration (unit: S)
- N: T period
- Instrument:K:0.0500、C:0.0100

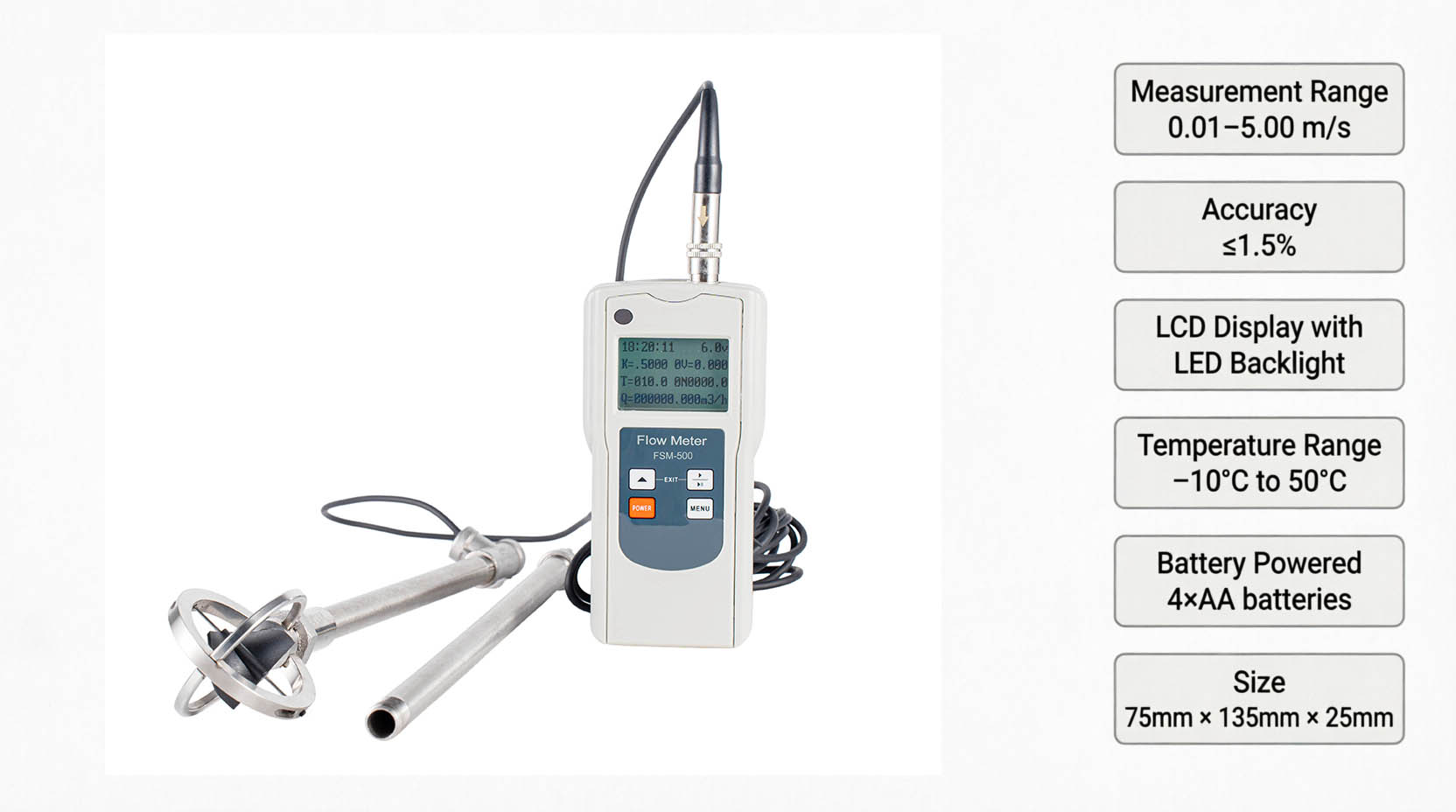

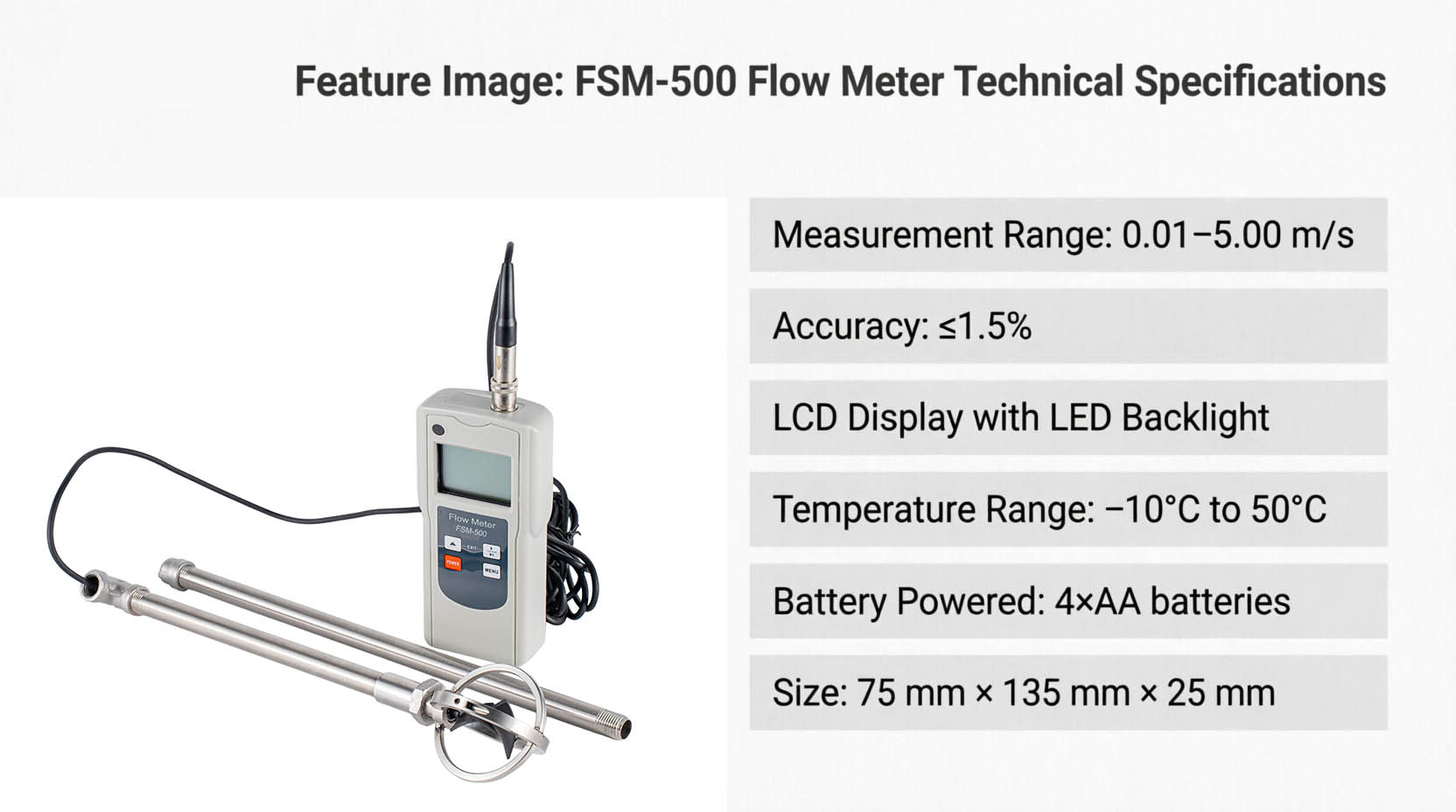

- Speed Range:0.01-5.00 m/s
- Current Measurement Error:≤1.5%
- LCD:LIQUID crystal display
- Measurement Method:pole positioning measurement
- Temperature Range:-10 ° C-50° C
- Power:4 * 7 batteries (There is no battery in the package)
- Backlight：LED backlight
- Host Size： 75mm*135mm*25mm
