Specifications：
Length, width and height (cm):34*22*18
Weight（kg）：4.4kg
Material：Aluminum
Hose Port Type：O-Ring
Power Steering Outlet Thread Size：16X1.5
Power Steering Pump Inlet Attachement Type：Hose Barb
Power Steering Pump Outlet Attachment Type：Threaded
Pulley Attachement Type：Press-on
Pulley Included：NO
Reservoir Included：Yes
Manufacturer Part Number: 20-8748
Interchange Part Numbers：
15054906, 15067317, 15746558, 15754215, 208748F, 26045594, 26055594, 26056604, 26061018
Fitment:
1999-2000 Cadillac Escalade 5.7L
1997-1998 Chevrolet C2500 5.0L
1997-2000 Chevrolet C2500 5.7L
1998 Chevrolet K2500 5.0L
1997-2000 Chevrolet K2500 5.7L
1997-2000 Chevrolet Tahoe 5.7L
1997-1999 Chevrolet C1500 5.0L
1997-1999 Chevrolet C1500 5.7L
1997-1999 Chevrolet C1500 Suburban 5.7L
1997-1999 Chevrolet C2500 Suburban 5.7L
1998 Chevrolet K1500 4.3L
1997-1999 Chevrolet K1500 5.0L
1997-1999 Chevrolet K1500 5.7L
1997-1999 Chevrolet K1500 Suburban 5.7L
1997-1999 Chevrolet K2500 Suburban 5.7L
1997-1998 GMC C1500 4.3L
1997-1999 GMC C1500 5.0L
1997-2000 GMC C1500 5.7L
1997-1999 GMC C1500 Suburban 5.7L
1997-1998 GMC C2500 5.0L
1997-2000 GMC C2500 5.7L
1997-1999 GMC C2500 Suburban 5.7L
1998 GMC K1500 4.3L
1997-1999 GMC K1500 5.0L
1997-1999 GMC K1500 5.7L
1997-1999 GMC K1500 Suburban 5.7L
1998 GMC K2500 5.0L
1997-2000 GMC K2500 5.7L
1998-1999 GMC K2500 Suburban 5.7L
1997-1999 GMC Yukon 5.7L
Package Include:

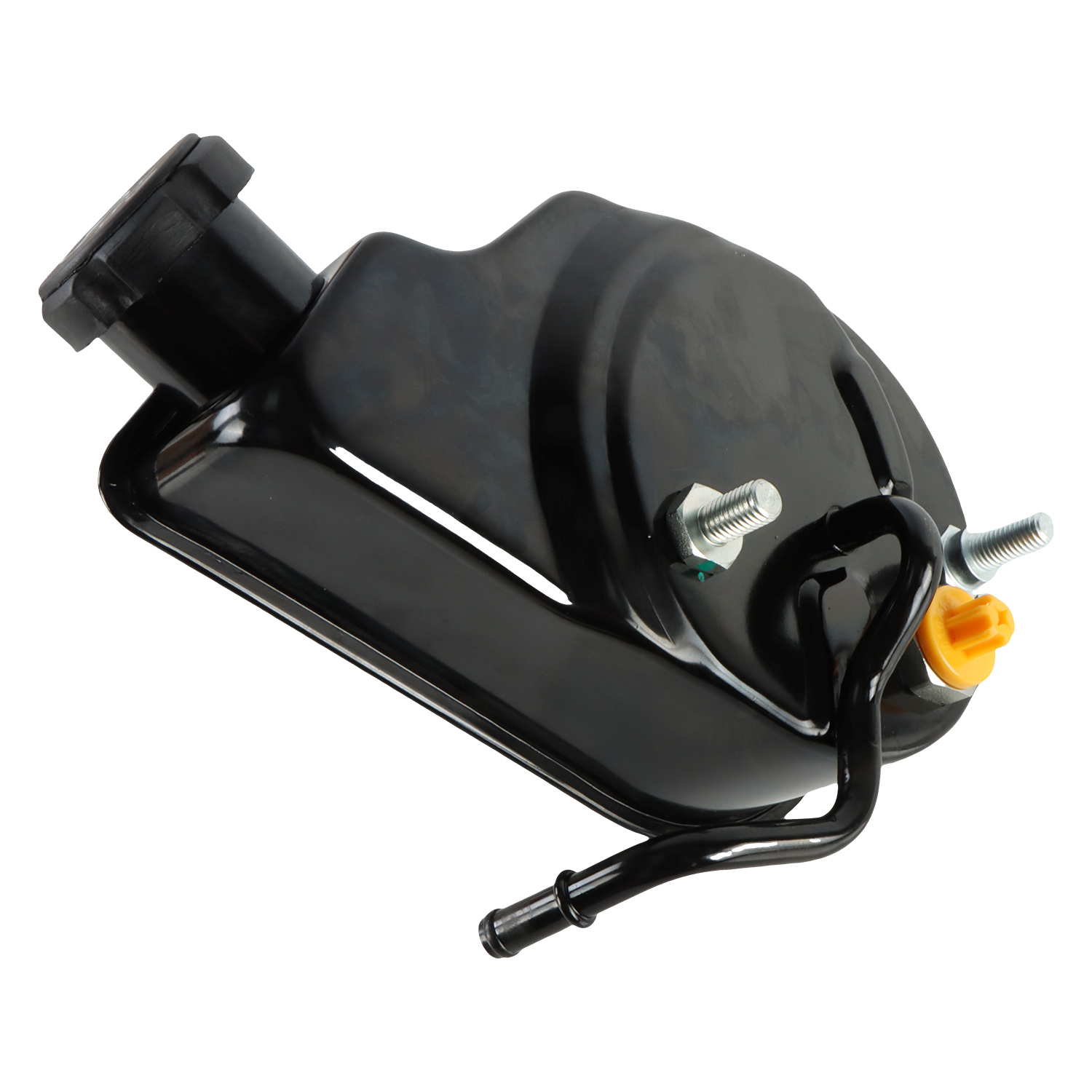

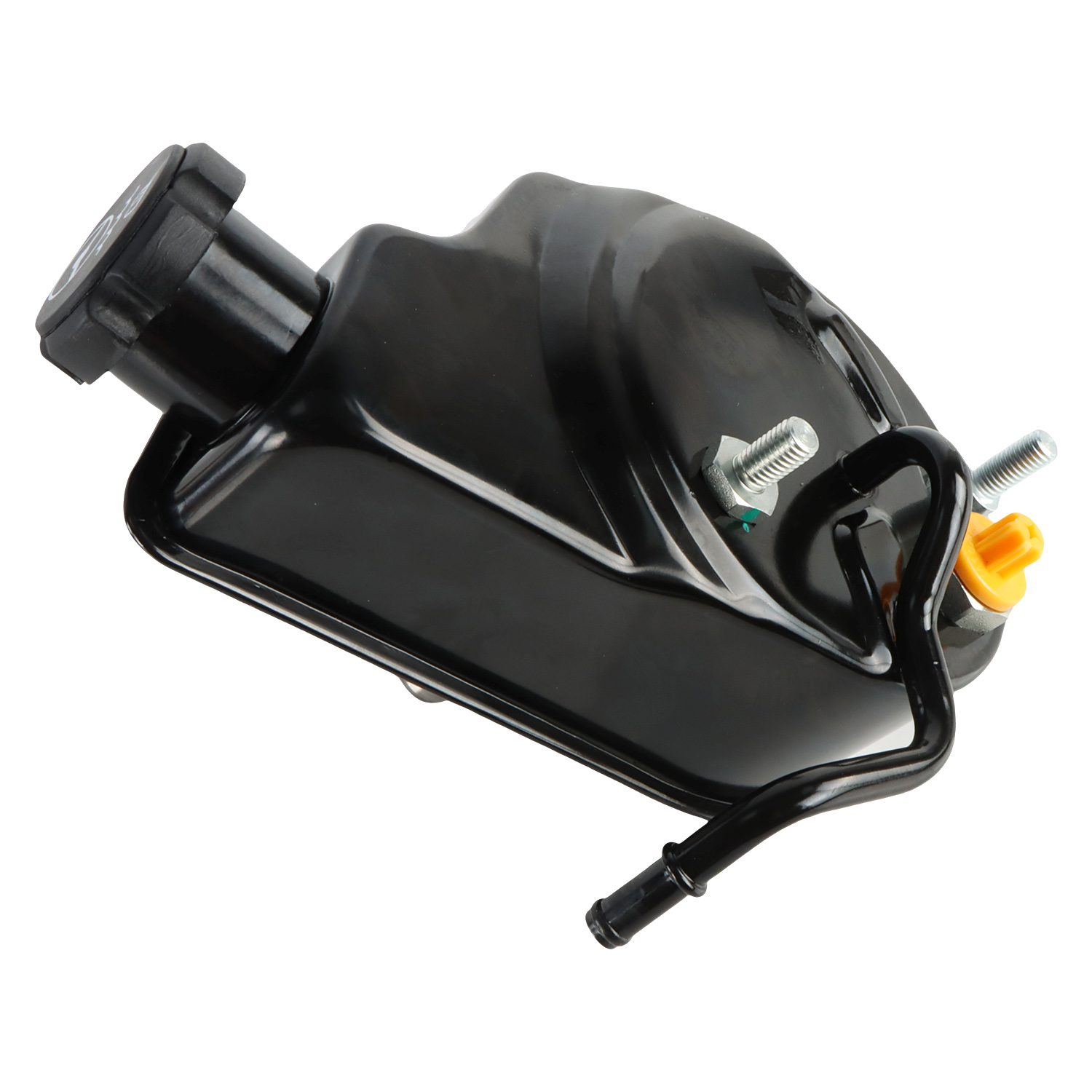

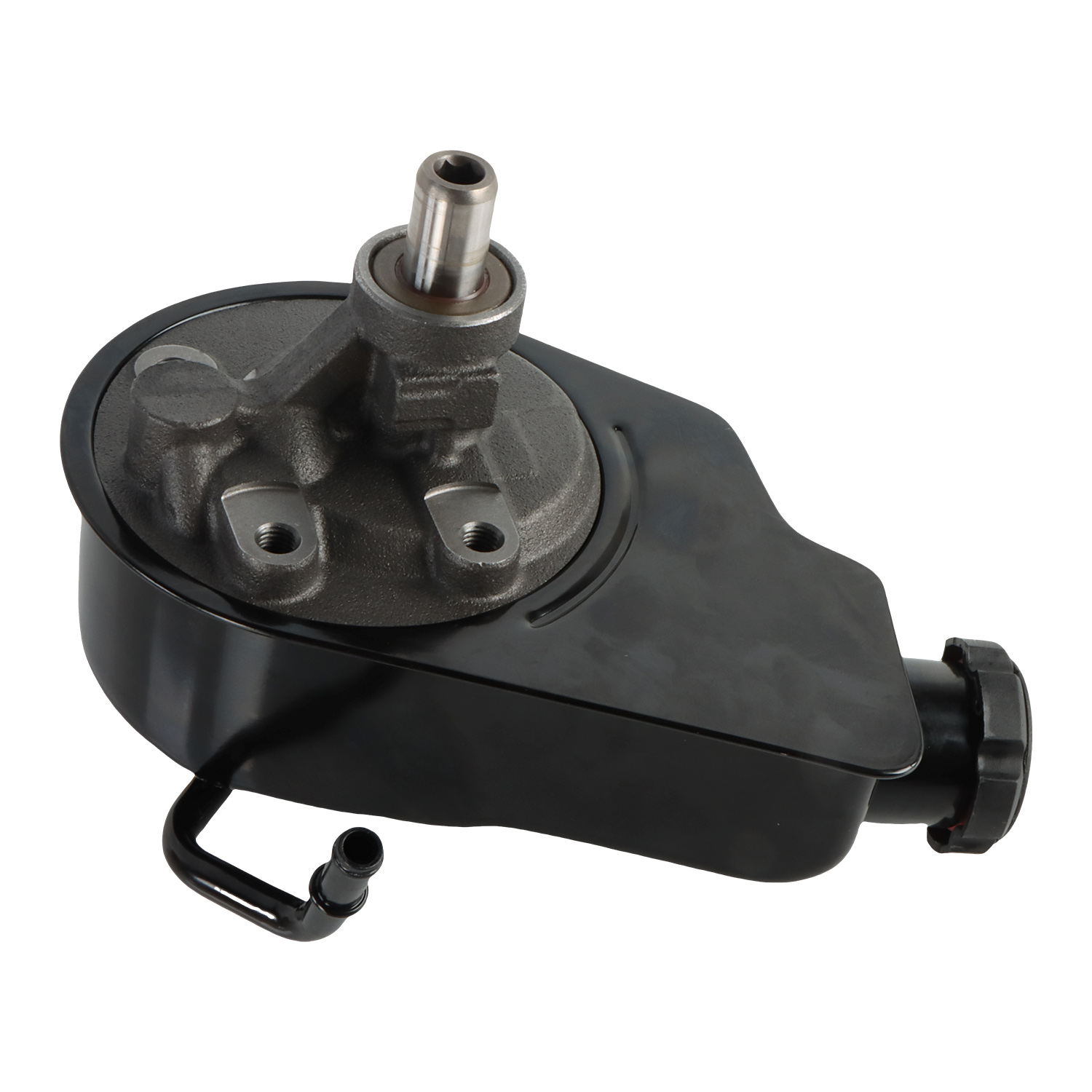

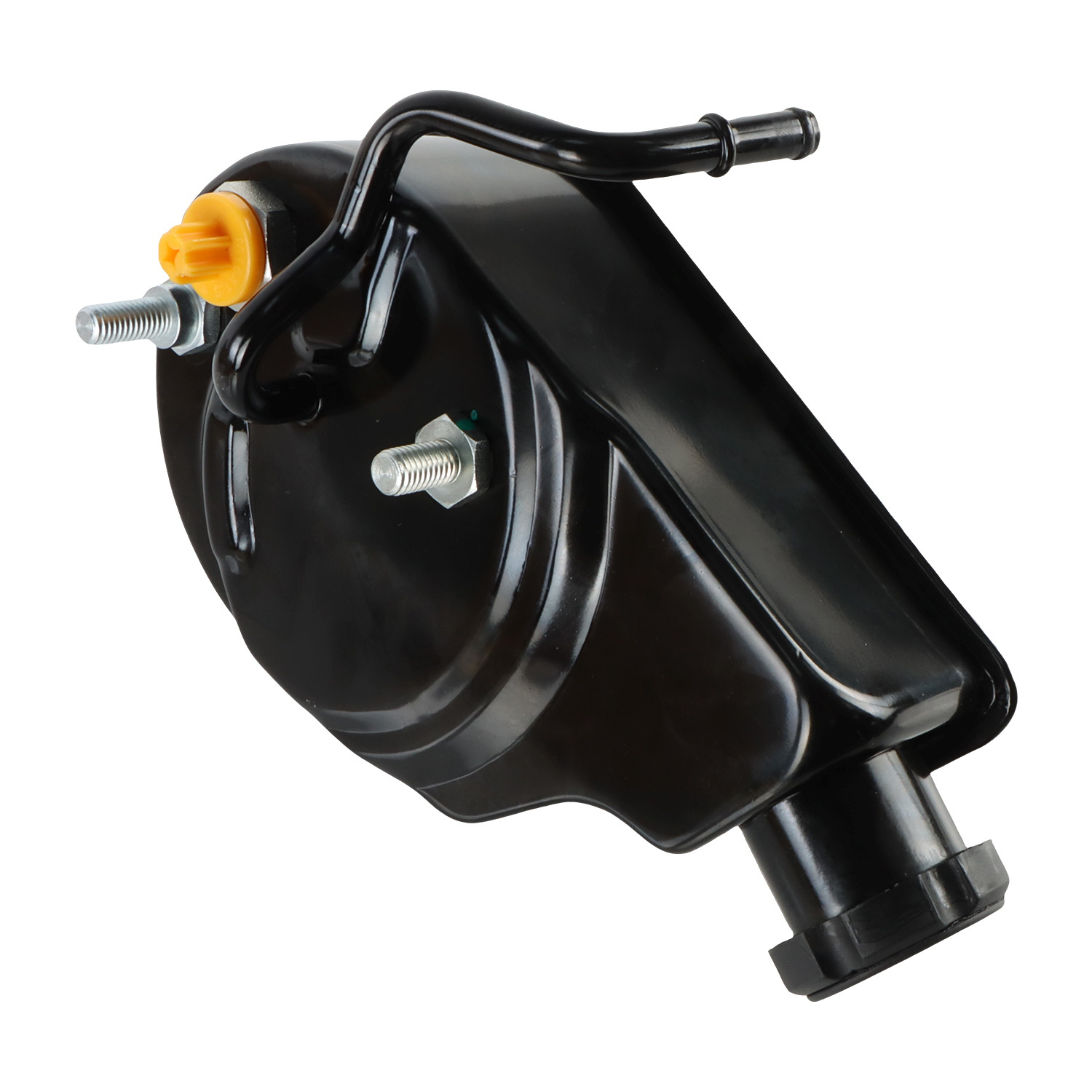

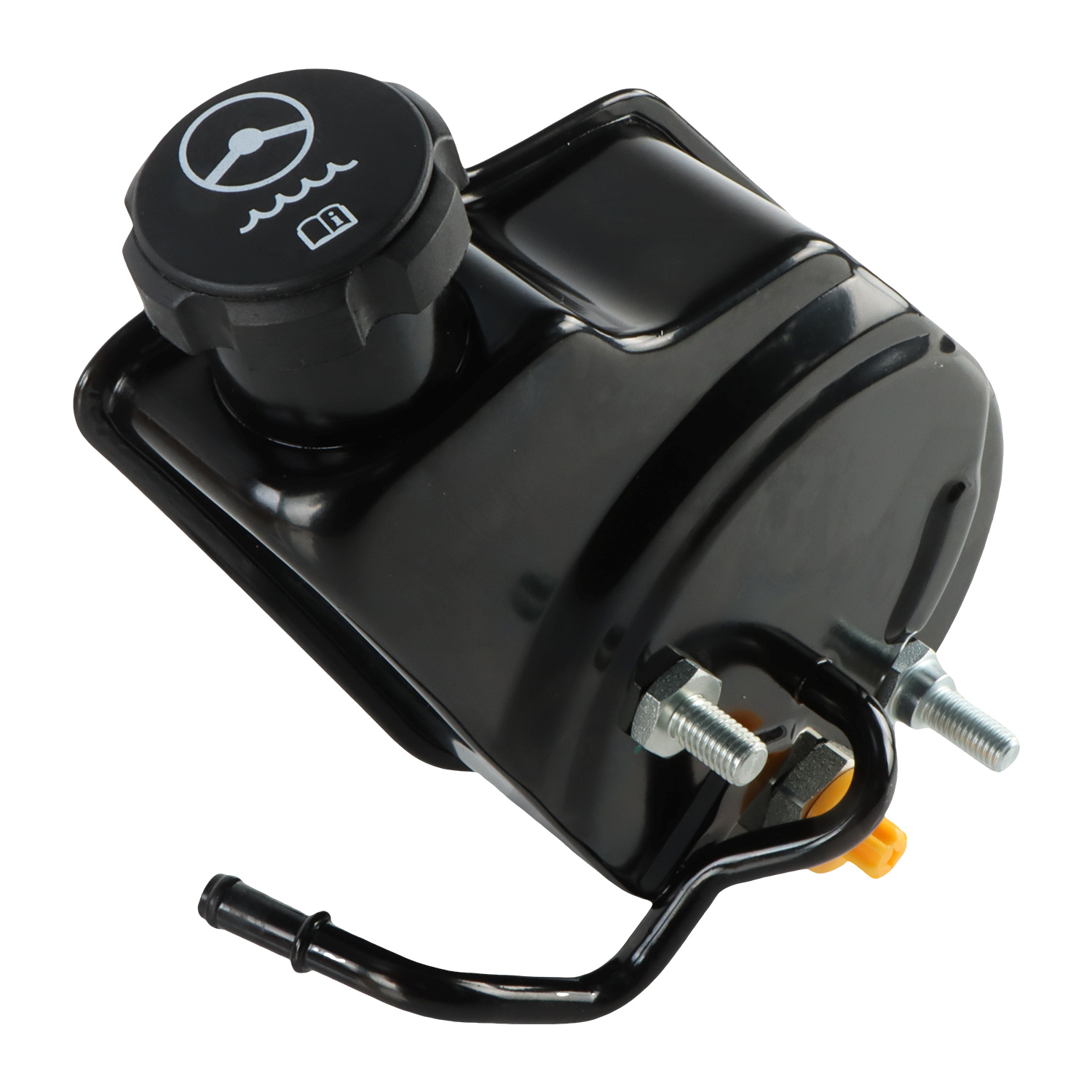

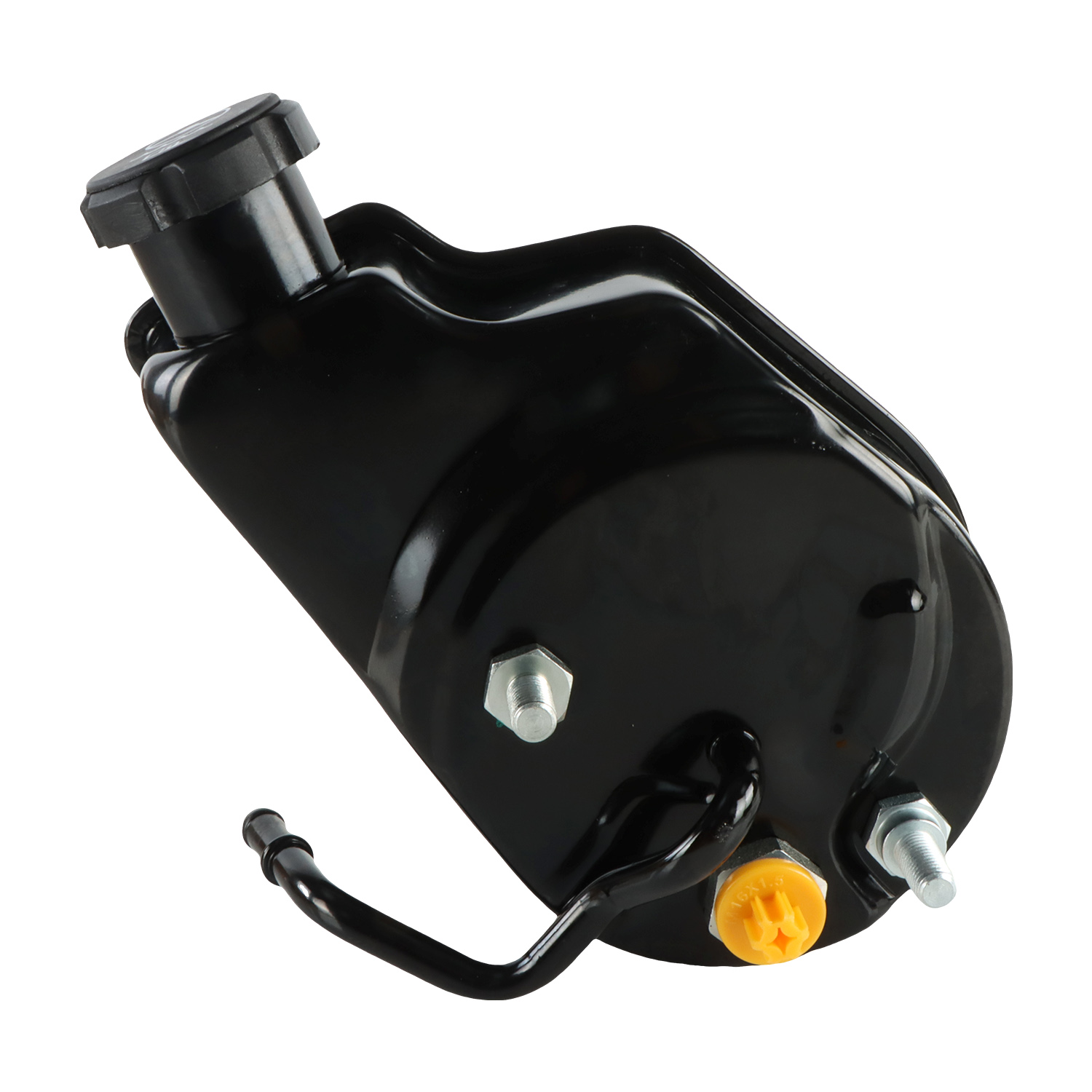

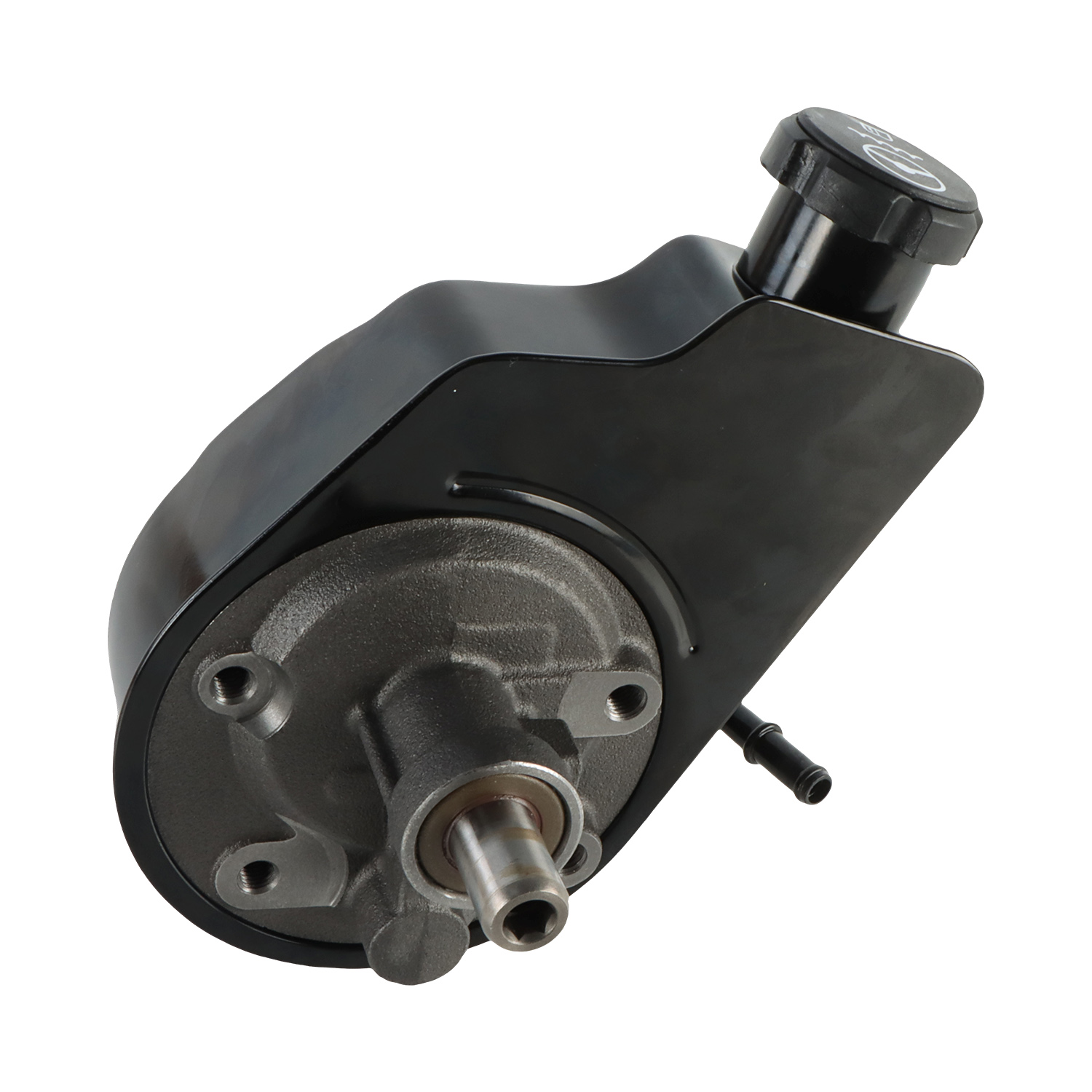

1*Power Steering Pump with Reservoir
Features:
1,Built to strict quality control standards 100% factory tested
2,Approve：IATF16949
3,100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards
4,This steering pump is made of high-quality material and maintains an excellent strength to give the parts long-term performance
5,the reservoir into the steering gear and keeps the wheels running in the right conditions
6,This steering system pump is a direct replacement. If your original power steering pump is failing or leaking, this replacement steering pump could be your solution.
7,If you have symptoms like whining noise while turning the wheel, steering wheel slow to respond, stiff steering wheel,
or squealing & groaning noises when the vehicle starts, and you might need to replace your old Power Steering Pump with this one.
Attention:
1. When disassembling the steering pump of the original car,drain the
original old hydraulic oil at the same time.
2.Clean the oil can and the oil pipe, check whether the oilcan is
damaged,check whether the filter of the oil can isblocked,check whether
the oil inlet hose is hardened andaging, prohibit the oil with impurities, and
prohibit the oil fromturning black and opaque
Ⅱ 1.When installing the steering pump,you must lock the oilinlet pipe clamp
and check whether it is firmly to prevent airintake.
2.Replace the sealing ring of the high pressure oil pipelinking the steering
pump to prevent oil leakage, resulting inmisjudgment of oil leakage from
the steering pump.
Ⅲ note! Follow the process
1. Instali the steering pump
2. Fill the oil pot with oil,
3. After starting the engine, do not turn the steering wheelLet the steering
pump circulate the oil by itself. Observe theoil in the tank and replenish the
oil in time until the properlevel is reached.After the installation is complete,
turn thesteering wheel at last.
Note:
before installation, be sure to clean the oil pot and oil pipe. lfthere are impurities, after the car is running,
the impurities inthe oil pot and oil pipe will enter the steering pump, resultingin the pump not working.
Once the pump does not work.please contact us in time and we will send a video of cleaningthe pump.
Then follow the steps in the video to clean thepump, the pump will be Ok.
