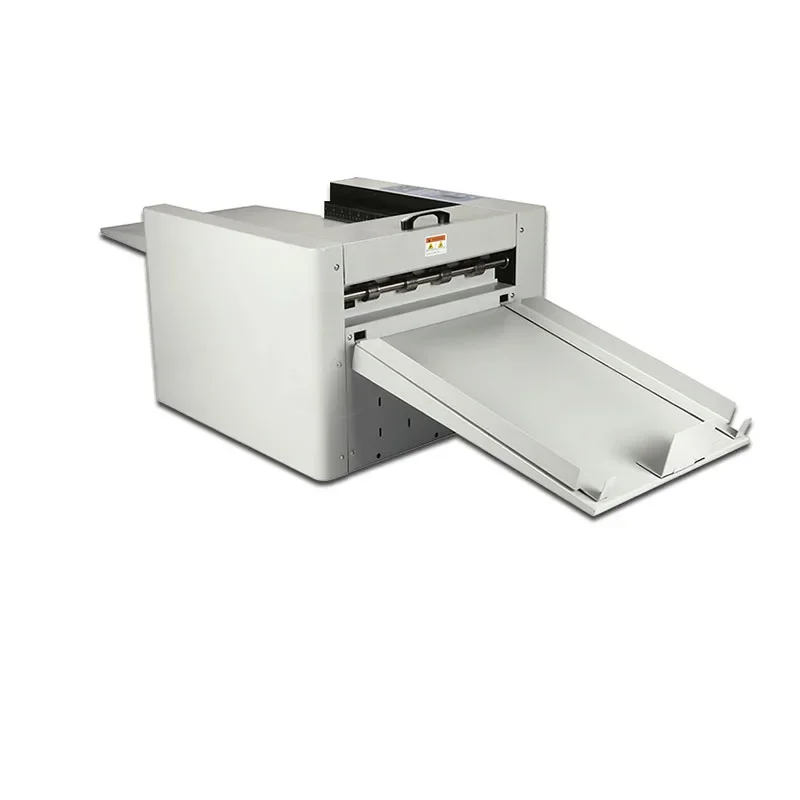

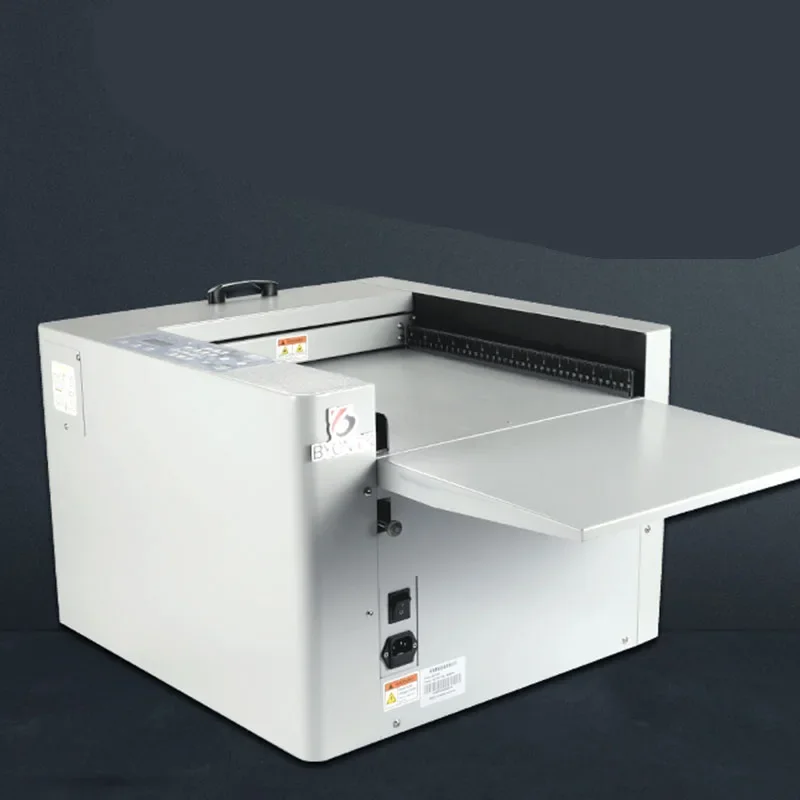

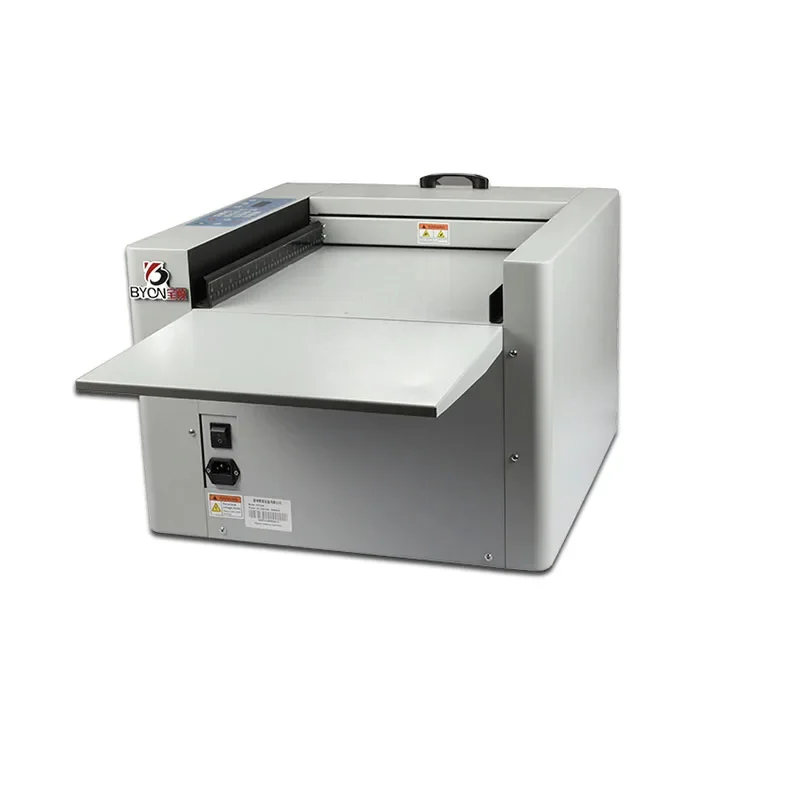

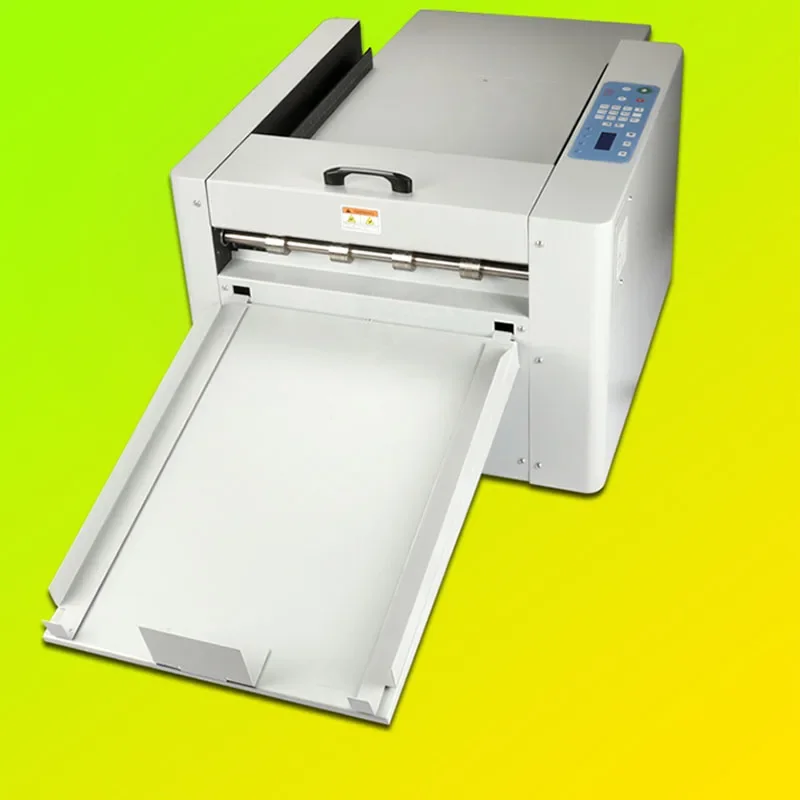

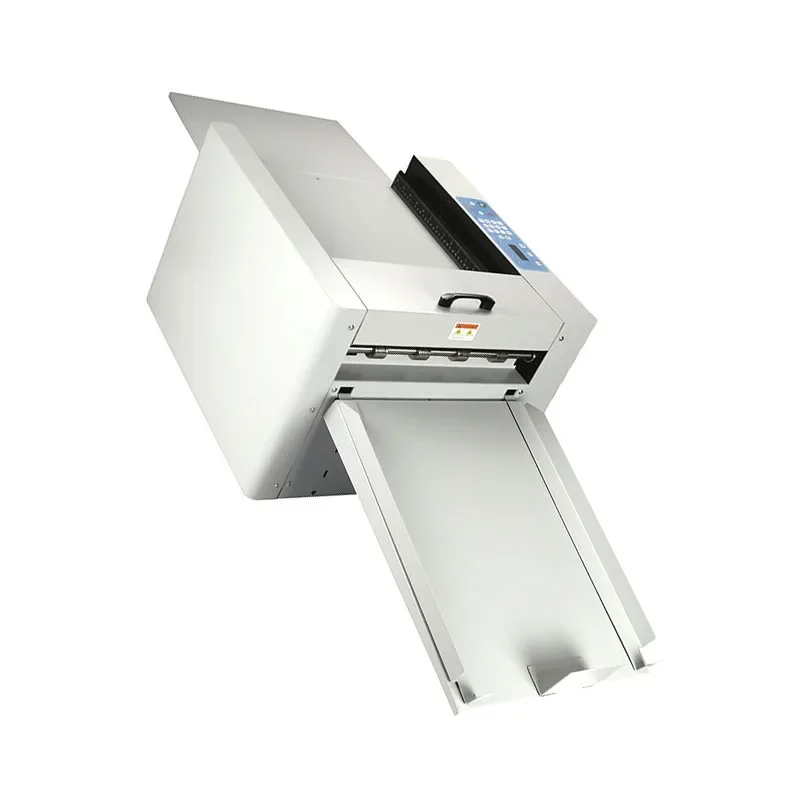

MY-1 A3 Folding Machine Dotted Line Creasing High-speed Digital Creasing Machine

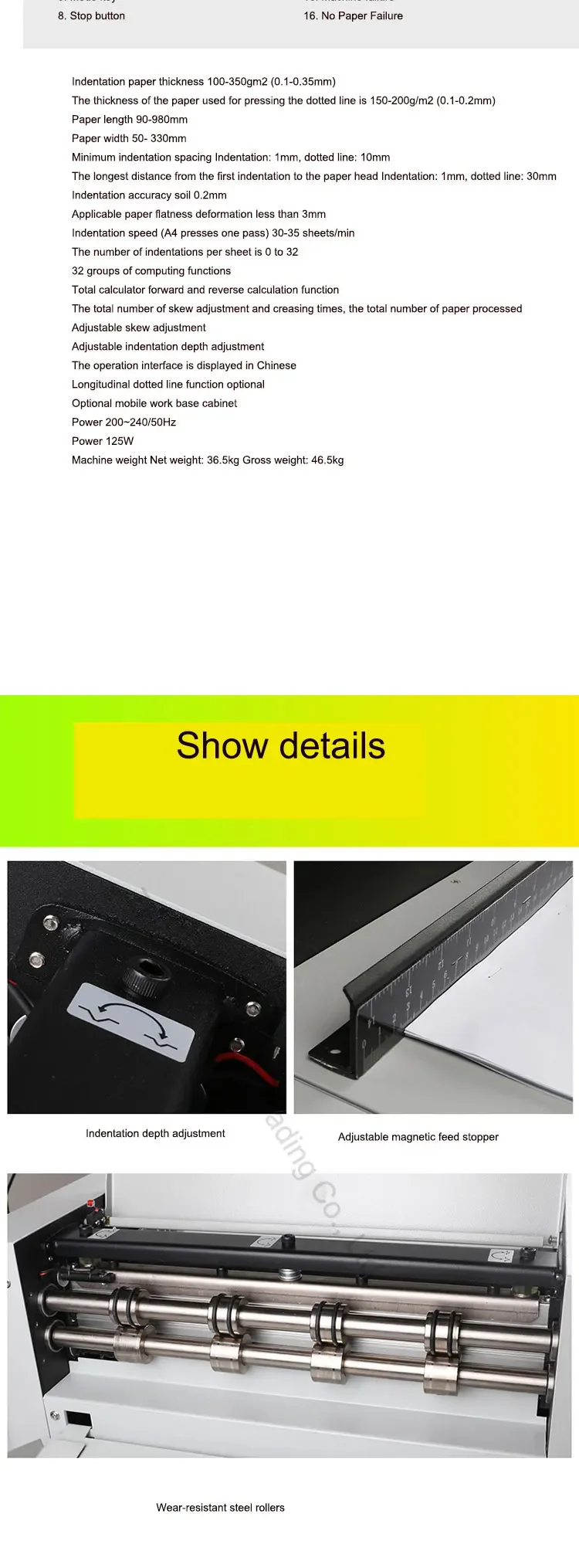

Indentation paper thickness: 100-350gm2(0.1-0.35mm)
Thickness of paper for dashed line: 150-200g/m2(0.1-0.2mm)
Paper length: 90-980mm
Paper width: 50-330mm
Minimum indentation spacing: indentation: 1mm, dotted line: 10mm
The first indentation is the farthest from the paper head; indentation: lmm, dotted line: 30mm
Indentation accuracy: ±0.2mm
Applicable paper flatness: deformation less than 3mm
Indentation speed (A4 press one time): 30-35 sheets/min
Number of creasing per sheet: 0 to 32
Computing function: 32 groups
Total calculator: forward and reverse calculation function
Skew adjustment; total number of indentations, total number of processed sheets
Skew adjustment; adjustable

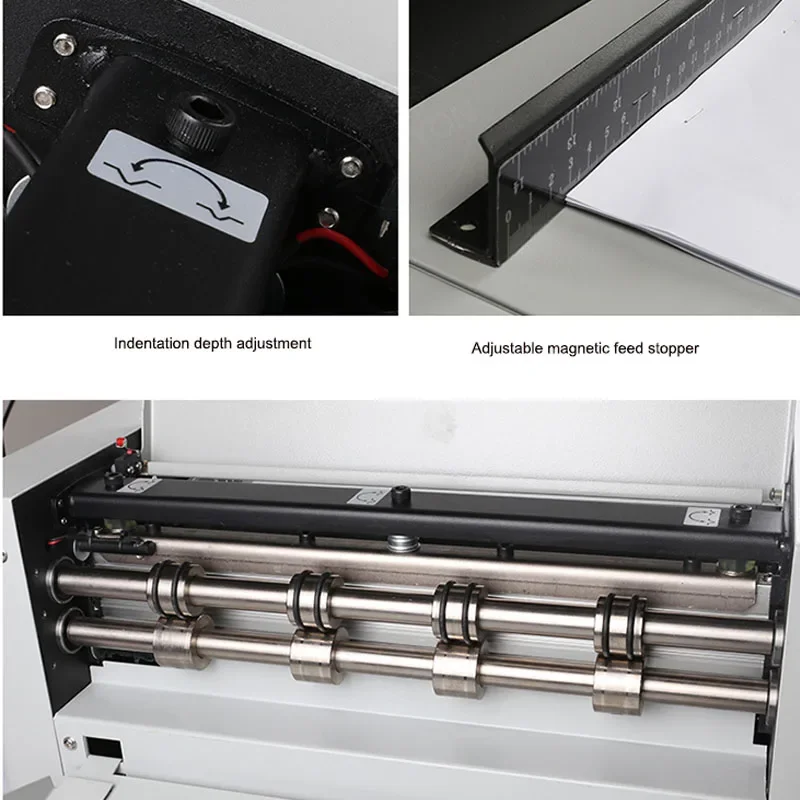

Indentation depth adjustment: adjustable
Operation interface: Chinese display
Longitudinal dotted line function; optional
Power: 200~24Ov/50Hz
Power: 125W
Machine Weight: Net Weight: 36.5kg Gross Weight: 46.5kg
