Description:

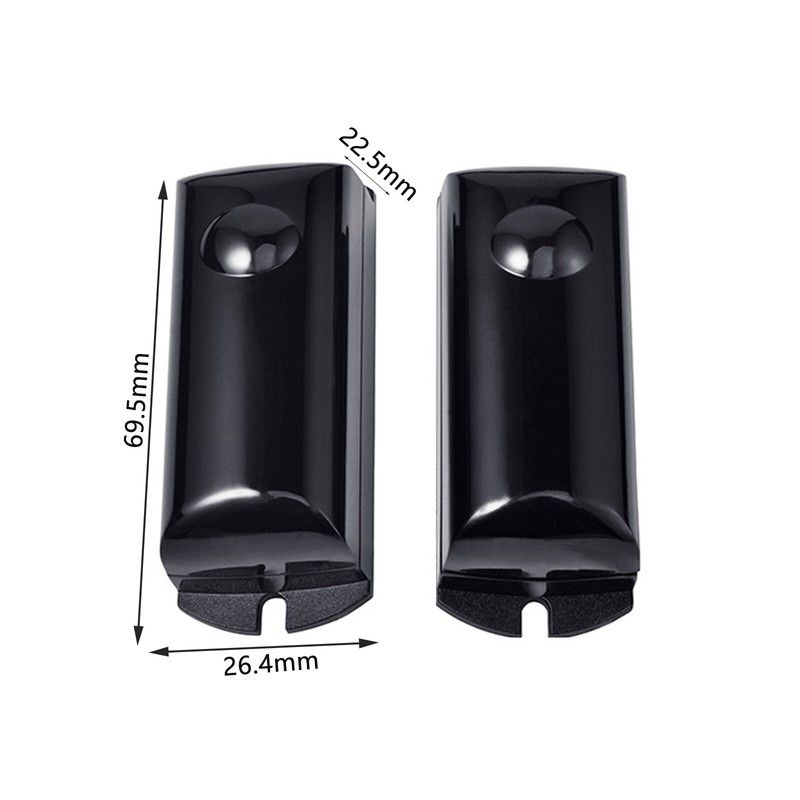

This is a pair of infrared detector. Install them at the opposite positions. Then there is a infrared area between these two detector parts. When someone passes the infrared region for an adjusted response time, the detector will send alarm signal to the security alarm host (which not included here).  Great to be installed for security system in school, office building, hospital, home yard, etc.


Features:
    Four channel frequency adjustment function, suitable for stack installation in the same place.
    Widespread used for alarm system, access control system, etc.
    Small and beautiful appearance for infrared beam detector.
    Unique design of the digital filter circuit.
    With high levels of anti-RFI / EMI capability.
    Professional anti-jamming optical housing.
    Sealed design to anti-rain (fog), dust (worms) and other integrated weather, can keep normal operation in harsh environment.


Specifications:
Condition: 100% Brand New
Model ABO-10F
Alert Distance: 10m
Working Voltage: DC 9-16V
Input Current: R-18mA;T-20mA
Frequency: 38KHZ
Relay Output: 1A 36V
Wave Length: 940nm
Humidity: 5%-95% RH
Operating Temperature: -25℃~55℃
Waterproof level: IP55


Package Includes:
2Pcs Infrared Beam Detector
