Detail
Features:
- Tri-Band, Tri display, tri standby
- 128 channels
- VFO/CHANNEL/MR 3 modes
- DTMF encodinig
- 1750 tone
- Scrambler
- 5K/6.25K/10K/12.5K/20K/25K step selectable
- Battery saving
- Busy channel lock
- Keypad beep
- Voltage display
- Backlight control
- Keypad lock
- Opening setting
- Channel name edit and display mode
- Offset setting
- Boot display options
- Roger
- Scan mode
- Busy channel lock
- VOX
- Wide/narrow bandwidth
- CTCSS/DCS
- 50 groups CTCSS,104 groups DCS and non-stand CTCSS/DCS
- High/Low power
- Low battery alert
- 0-9 Squelch selectable
- TOT
- Reverse frequency
- Emergency alert
- Monitor
Specifications:
|
General |
|
|
Frequency |
136-174MHz, 220-260MHz & 400-470MHz |
|
Channel |
128 |
|
Operating Voltage |
7.4V DC |
|
Operating Temperature |
-10°c ~ +50°c |
|
Frequency Stability |
±2.5ppm |
|
Dimension |
116*53*36mm |
|
Weight |
106g (battery and antenna included) |
|
Antenna Impedance |
50 ohm |
|
Model of Operation |
Simplex or semi-duplex |
|
Transmitter |
|
|
Frequency |
136-174MHz,220-260MHz&400-470MHz |
|
Power |
5W |
|
Modulation Type |
FM |
|
Spurious Power |
≤-15dB |
|
Modulation Noise |
<-40dB |
|
Modulation Distortion |
<5% |
|
Frequency Stability |
5ppm |
|
Max Fr. Deviation |
≤±5KHz |
|
Current |
≤1600mA |
|
Audio response (300-3400Hz) |
+6.5~-14dB |
|
Adjacent Ch Power |
≥65dB |
|
Receiver |
|
|
Frequency |
136-174MHz,220-260MHz & 400-470MHz |
|
Sensitivity |
≤0.2 |
|
Occupied Bandwidth |
≤16KHz |
|
Selectivity |
≥65dB |
|
Intermediation |
≥55dB |
|
Audio Power |
>500mW |
|
Audio distortion |
≤10% |
|
Frequency Stability |
5ppm |
|
Current |
Standby: 60mA working:250mA |
|
Audio Response (300-3400Hz) |
+7~-12.5dB |
|
Note: Specification will be revised without notice due to technical improvement. Thank you. |
|
Package Contains:

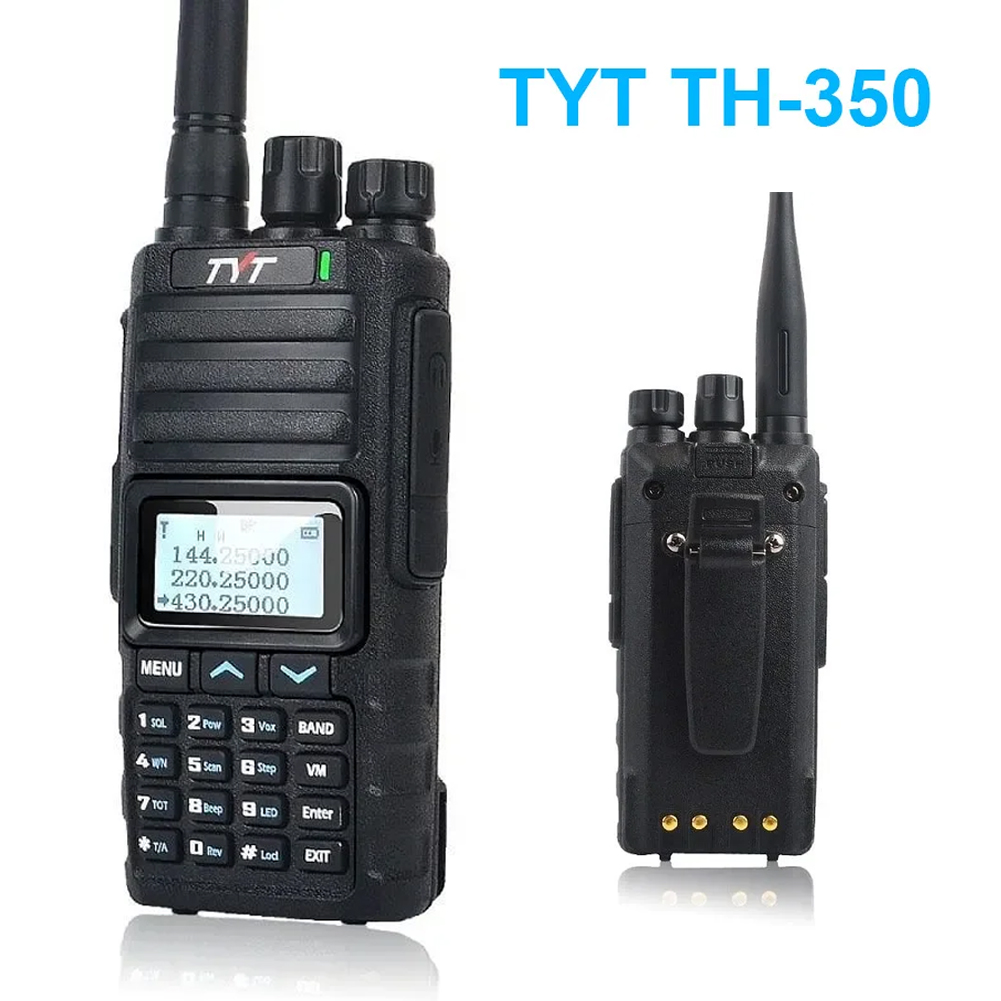

1× TH-350 Tri band Radio Body
1× 1600mAh Li-ion Battery pack
1× SMA-Male 220-260MHzAntenna
1× SMA-Male 136-174&400-470MHz Antenna
1× Ac Adapter
1× Desktop Charger
1× Belt Clip
1× USERS’ MANUAL
