Outrunner Brushless Motor AM32 45A ESC for 1/12 RC Cars MN82 MN99S MN168 MN78 Crawler Upgrade Kit Combo Parts
Features:
Perfectly fit metal and original gearbox, 14x14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
Applicable to Mangniu series models: MN82 MN99S MN168 MN78
After modification, low-speed torque compensation, better linearity, easy to climb
Specification:

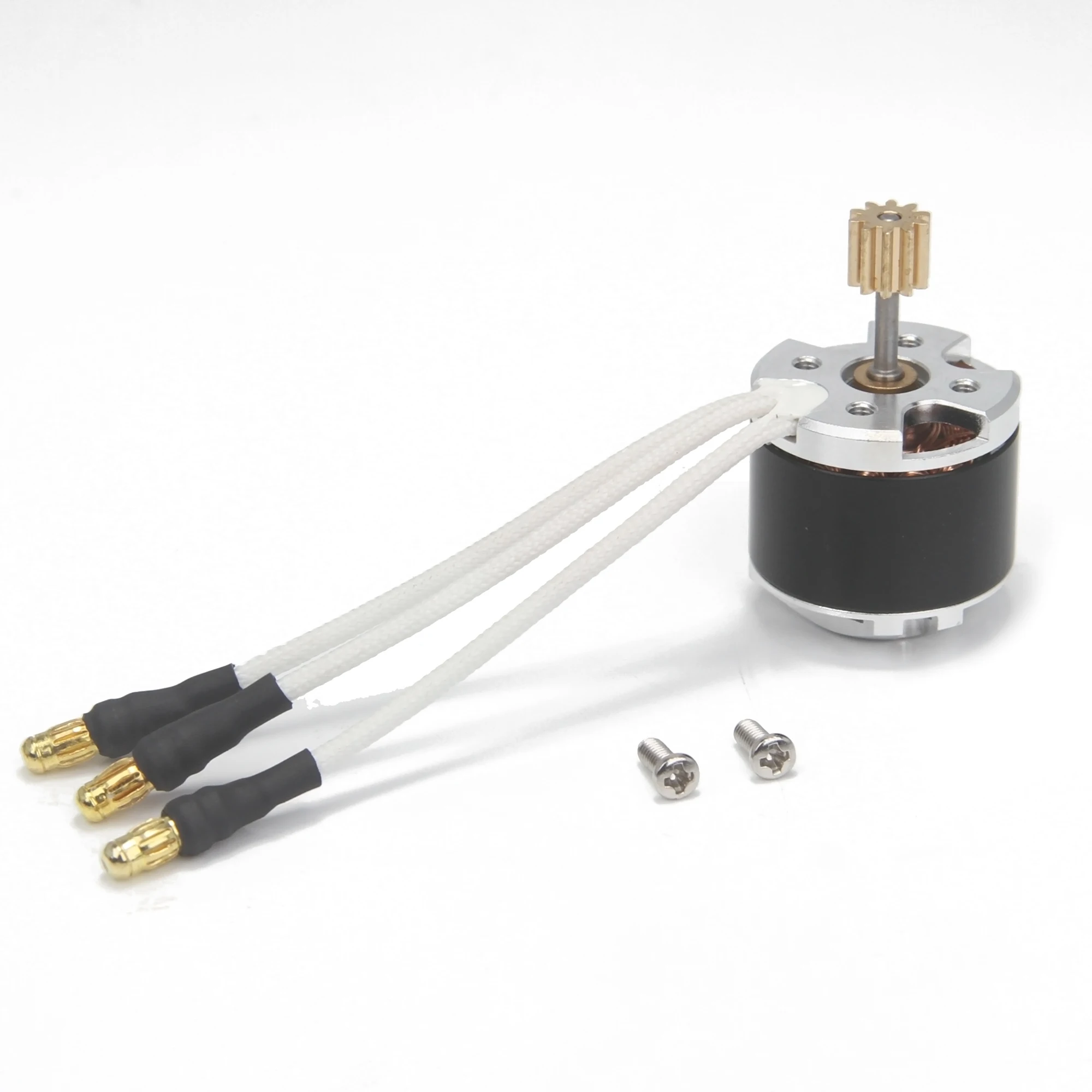

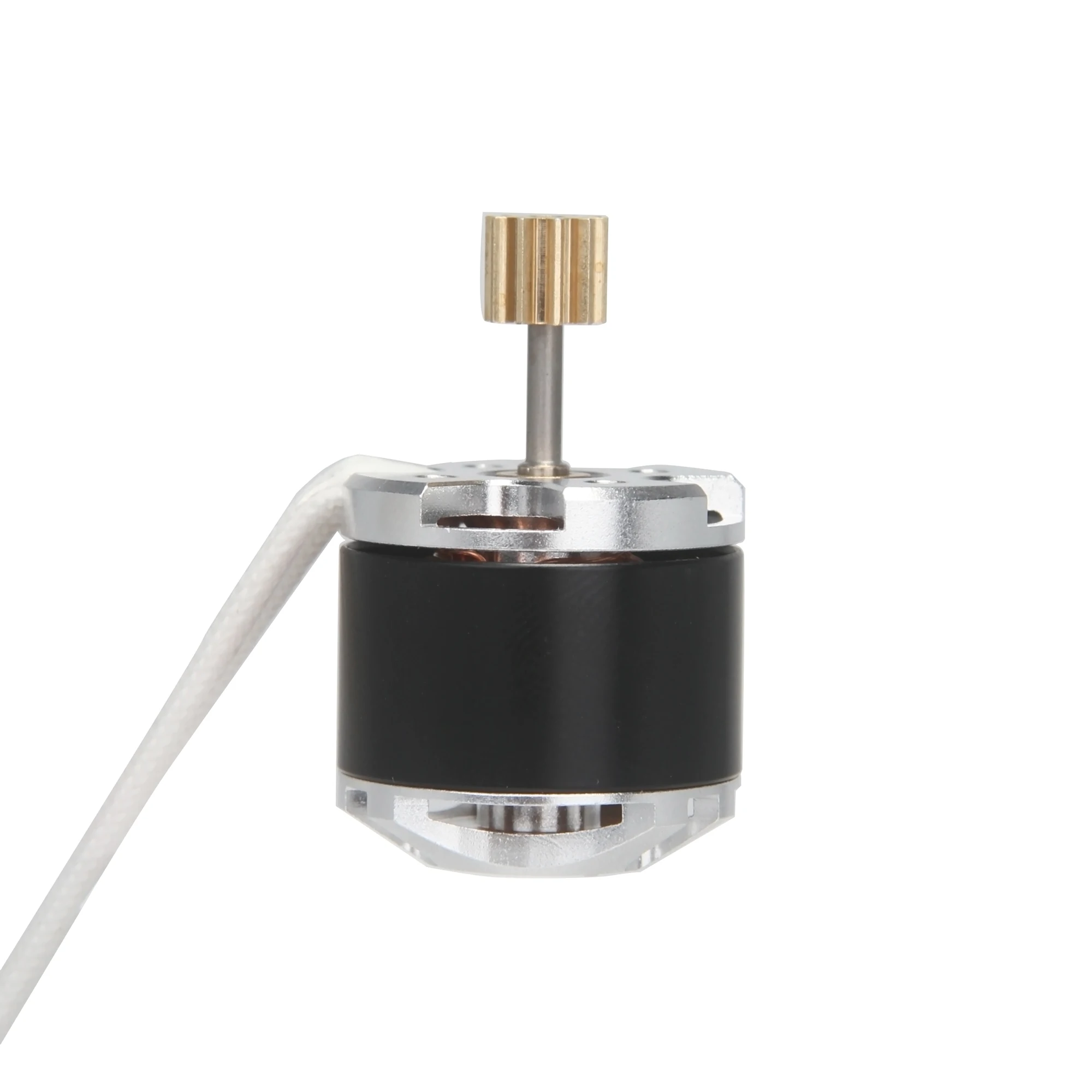

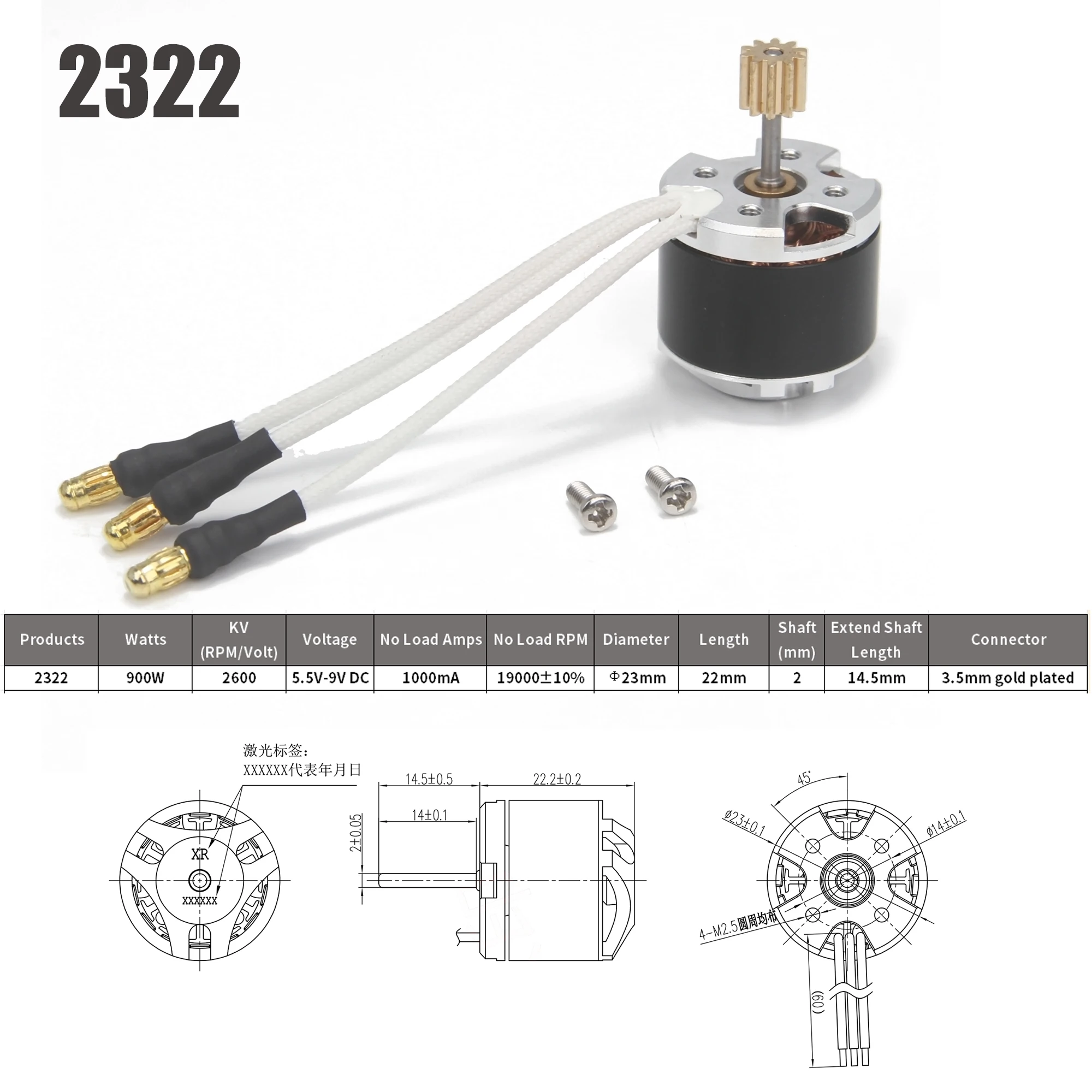

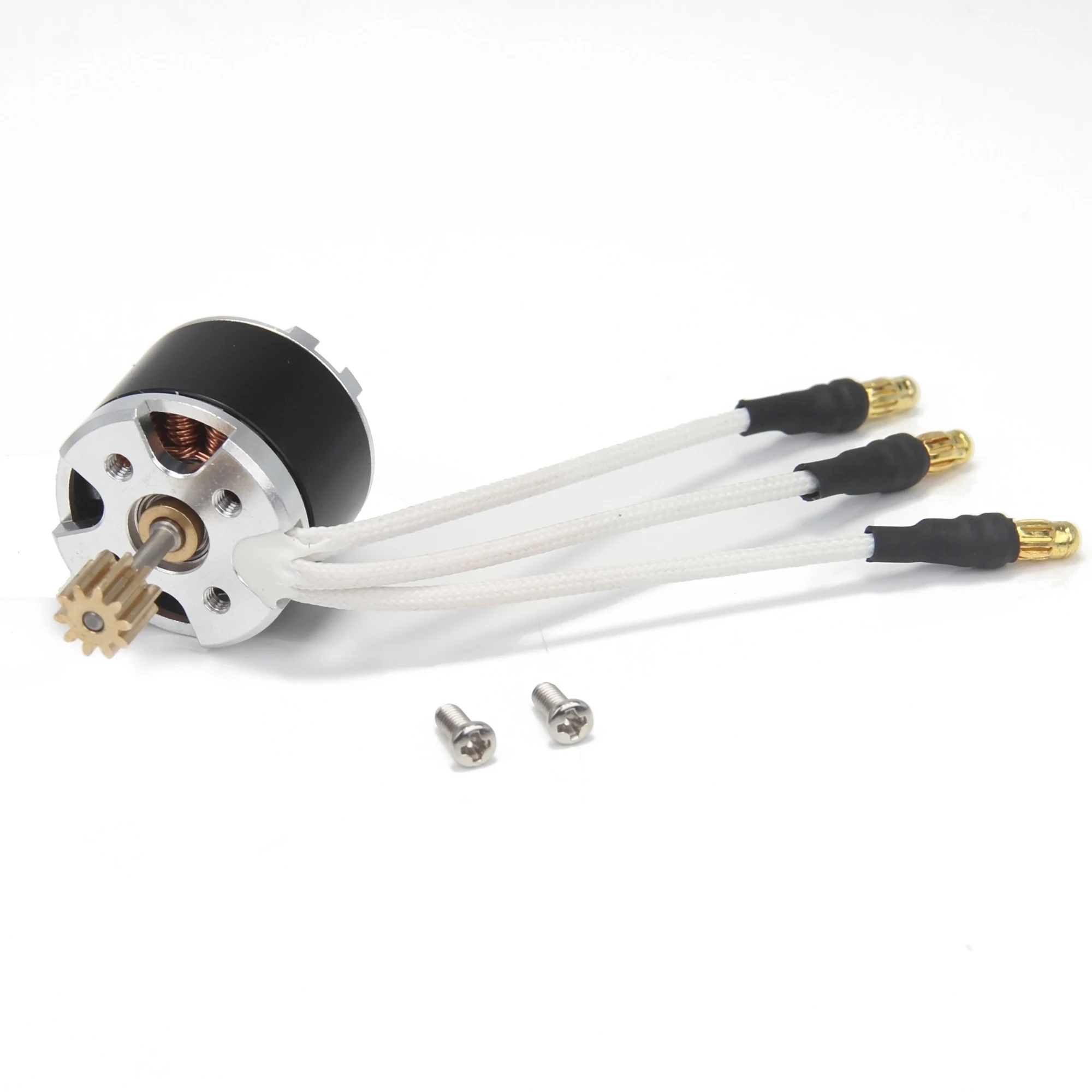

Product:2322 2600KV Outrunner Brushless motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Perfectly fit metal and original gearbox, 14x14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
Applicable to Mangniu series models: MN82 MN99S MN168 MN78
After modification, low-speed torque compensation, better linearity, easy to climb
Specification:
Product:2322 2600KV Outrunner Brushless motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Number of teeth: 10T

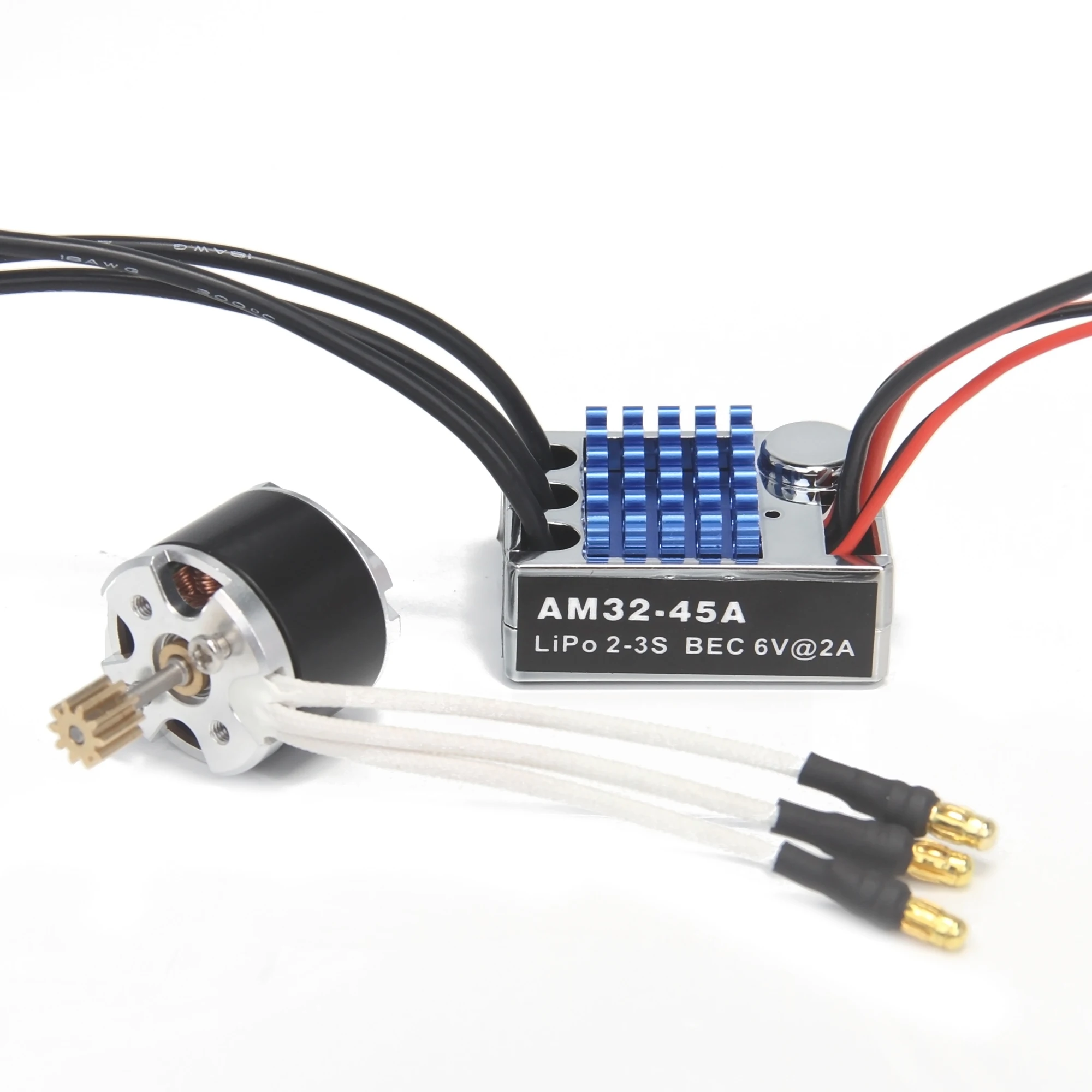

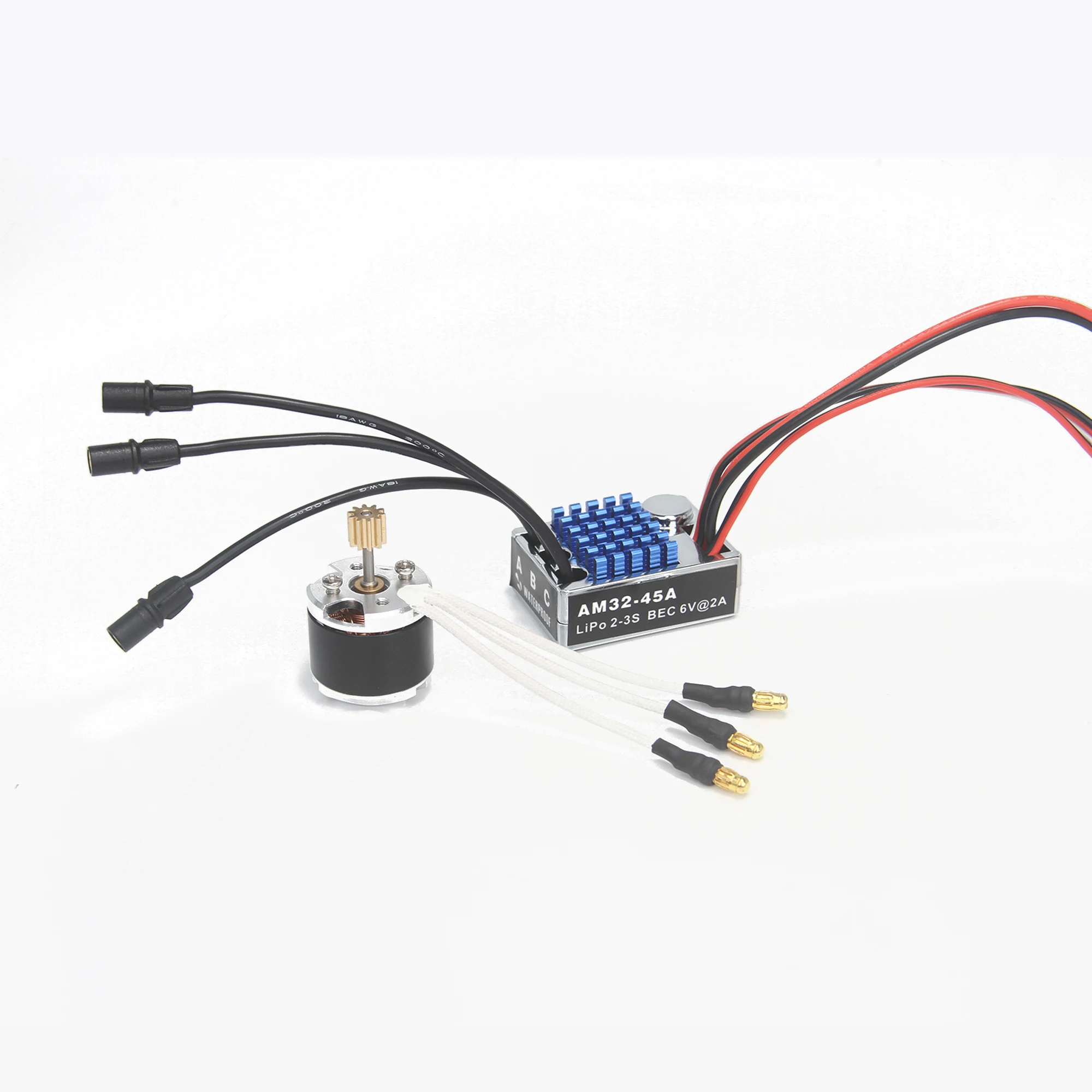

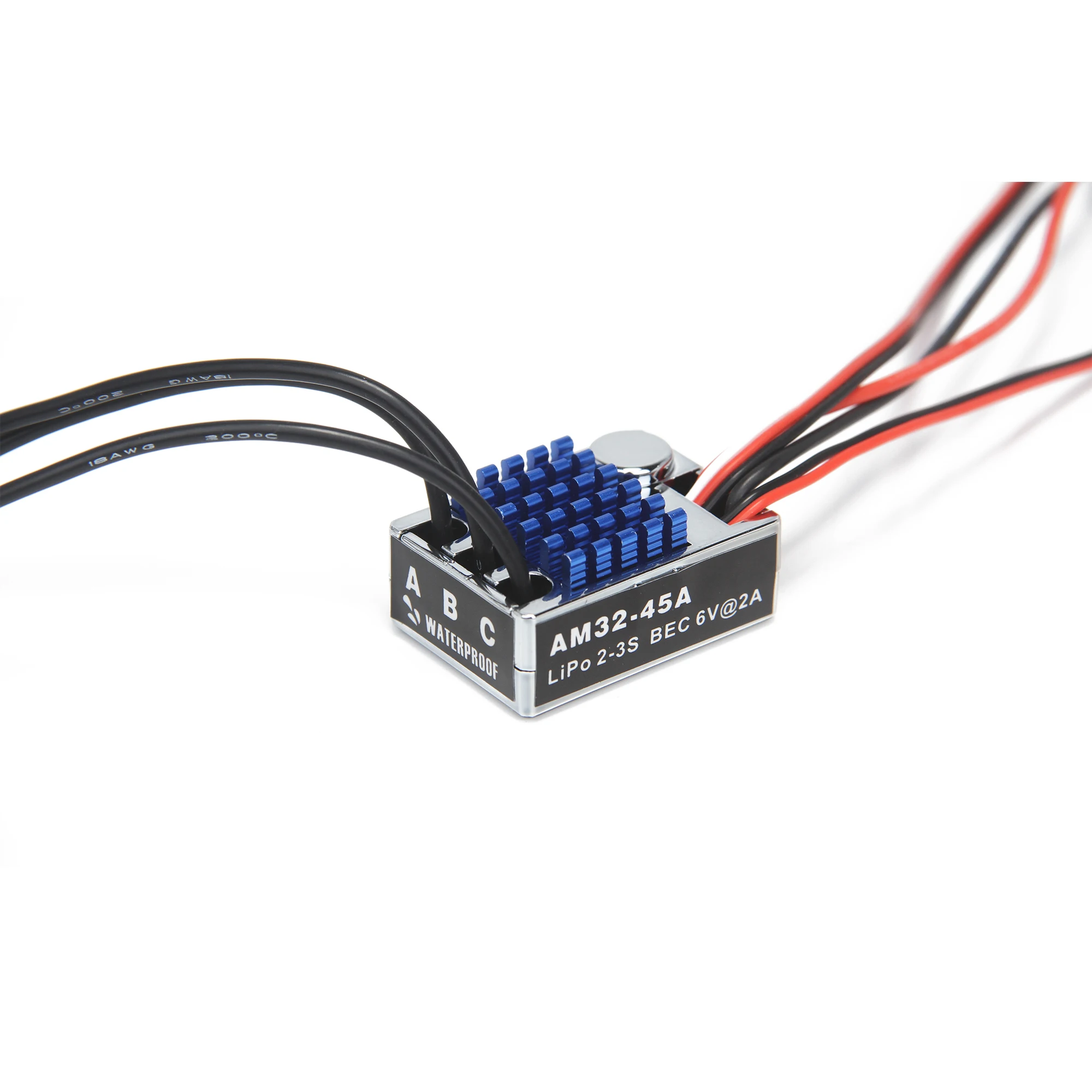

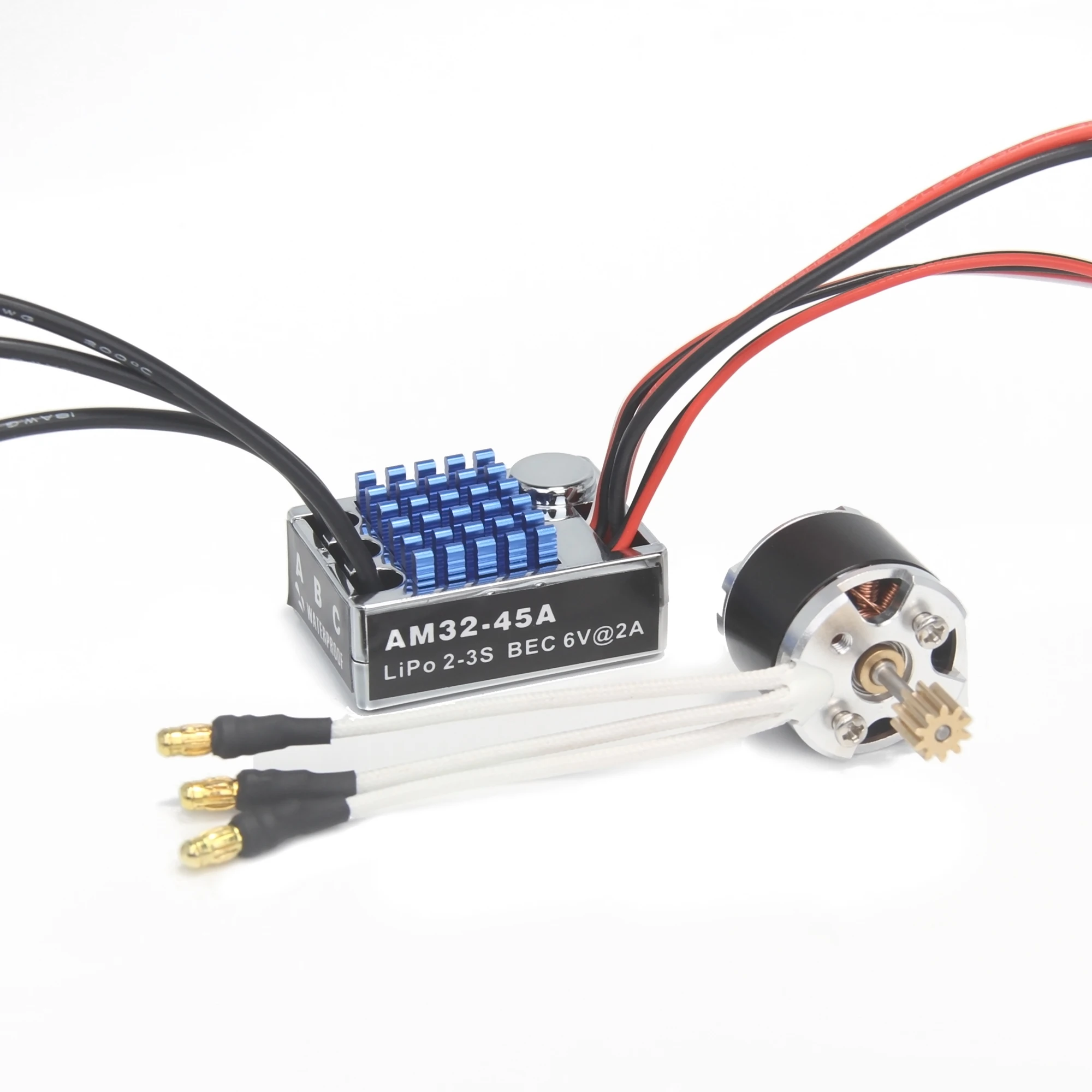

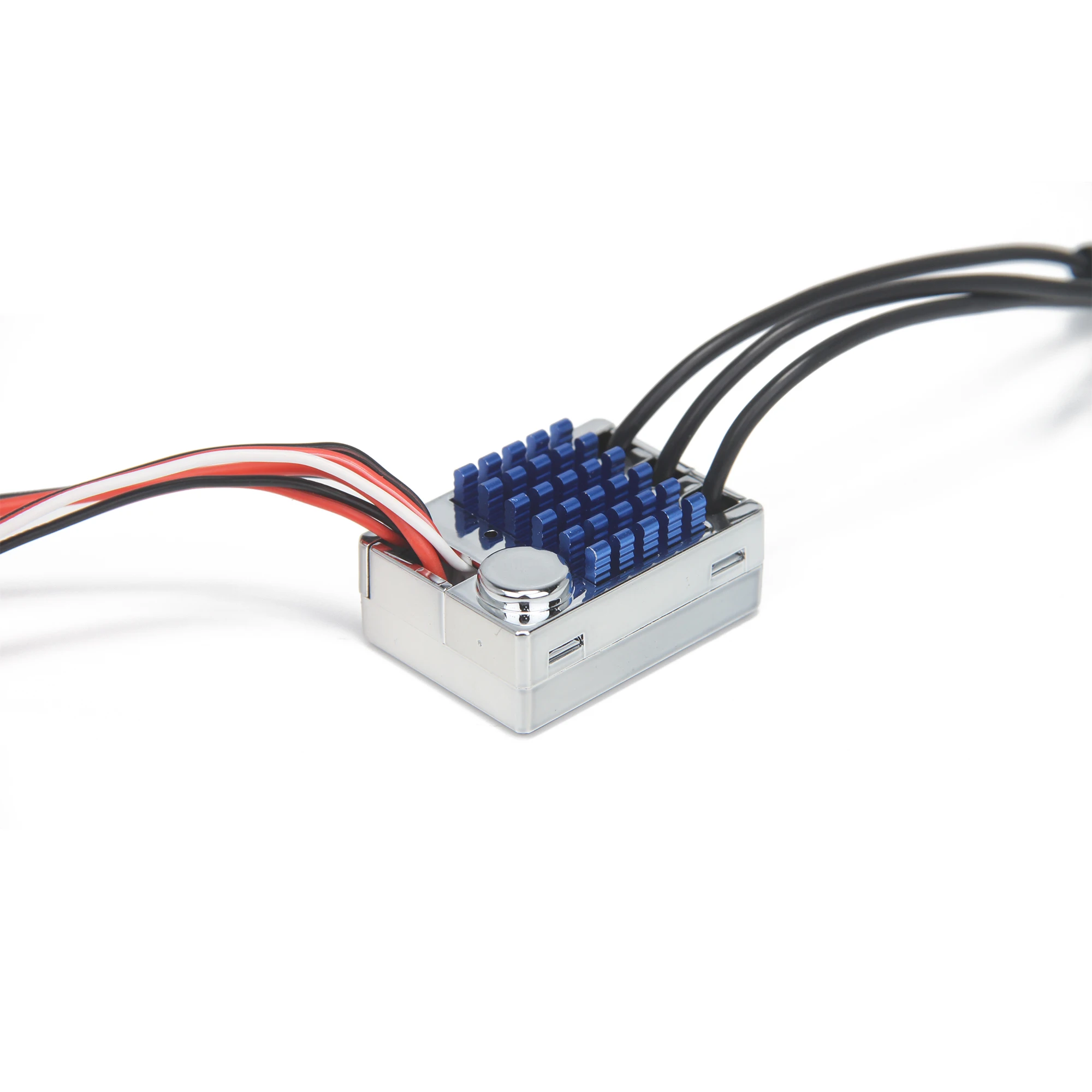

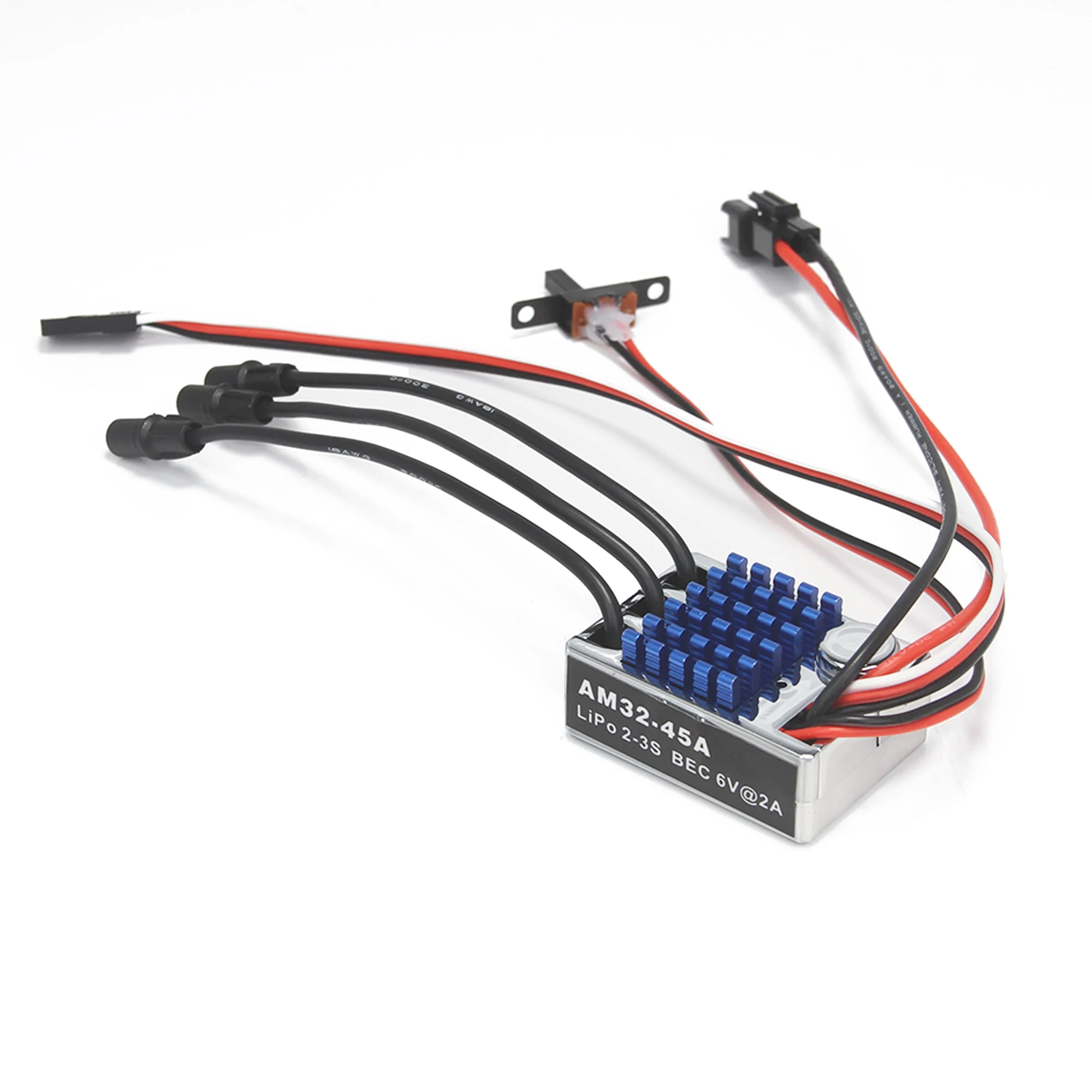

Product:AM32-45A brushless ESC
Using voltage range: 7.4-11.1V
Current: 45A
Using voltage range: 7.4-11.1V
Current: 45A
Battery connector: SM3.0
Size: 38.5*28*18.5mm
Applicable models:MN82 MN99S MN168 MN78
Package include:
1pcs 2322 2600KV
1pcs 10T Gear
1pcs AM32 45A
Note:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
