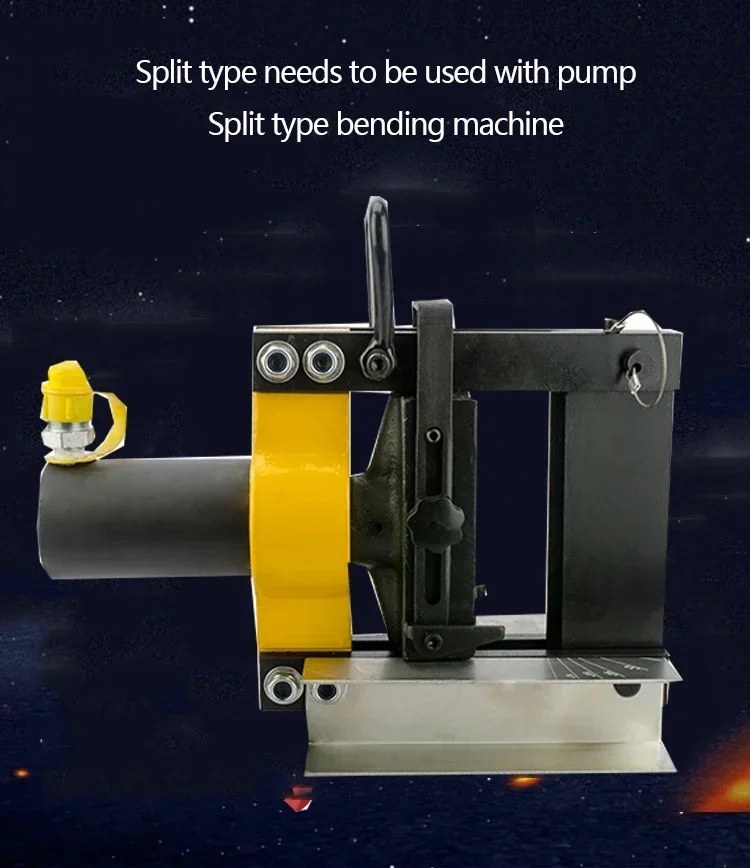

Portable CB-150D Electric Hydraulic Bending Machine Bending Machine Copper Row Aluminum Row Iron Plate Bending Machine Bus

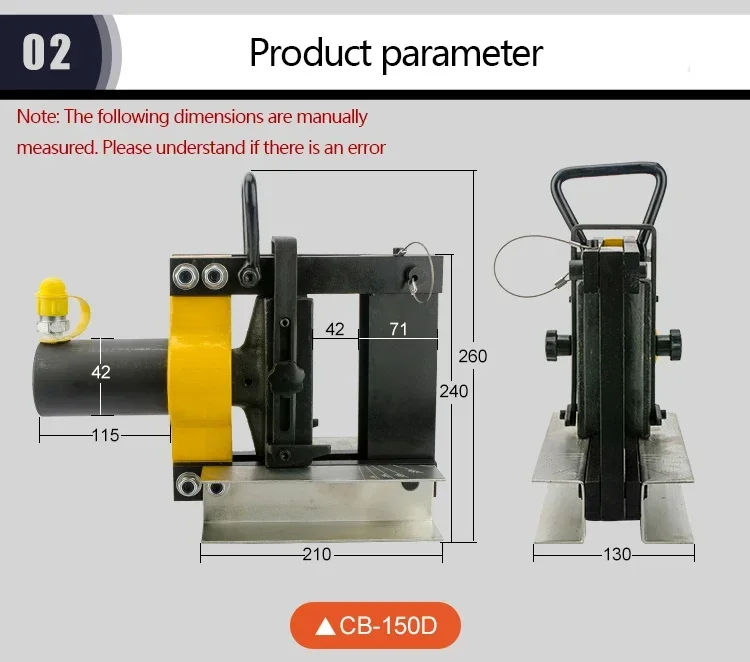

■Product parameter

product code:J100054

Name: Hydraulic bending machine

Model: CB-150D

Package weight: 19KG

Packing size: 40*28*18

Output: 16T

Bending object: copper row, aluminum row

Cutting capacity: width of copper and aluminum bar ≤ 1 50mm thickness of copper and aluminum bar 3-10mm

■product features:

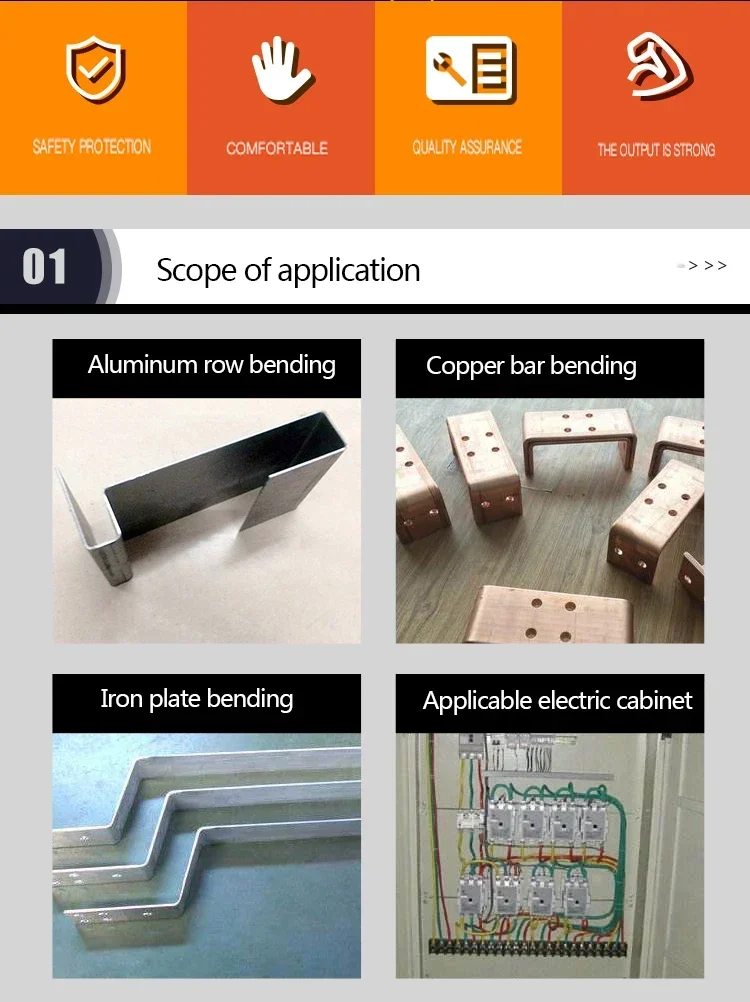

CB-150D hydraulic bending machine is suitable for the bending work of copper and aluminum bars, iron plates and other metal materials.

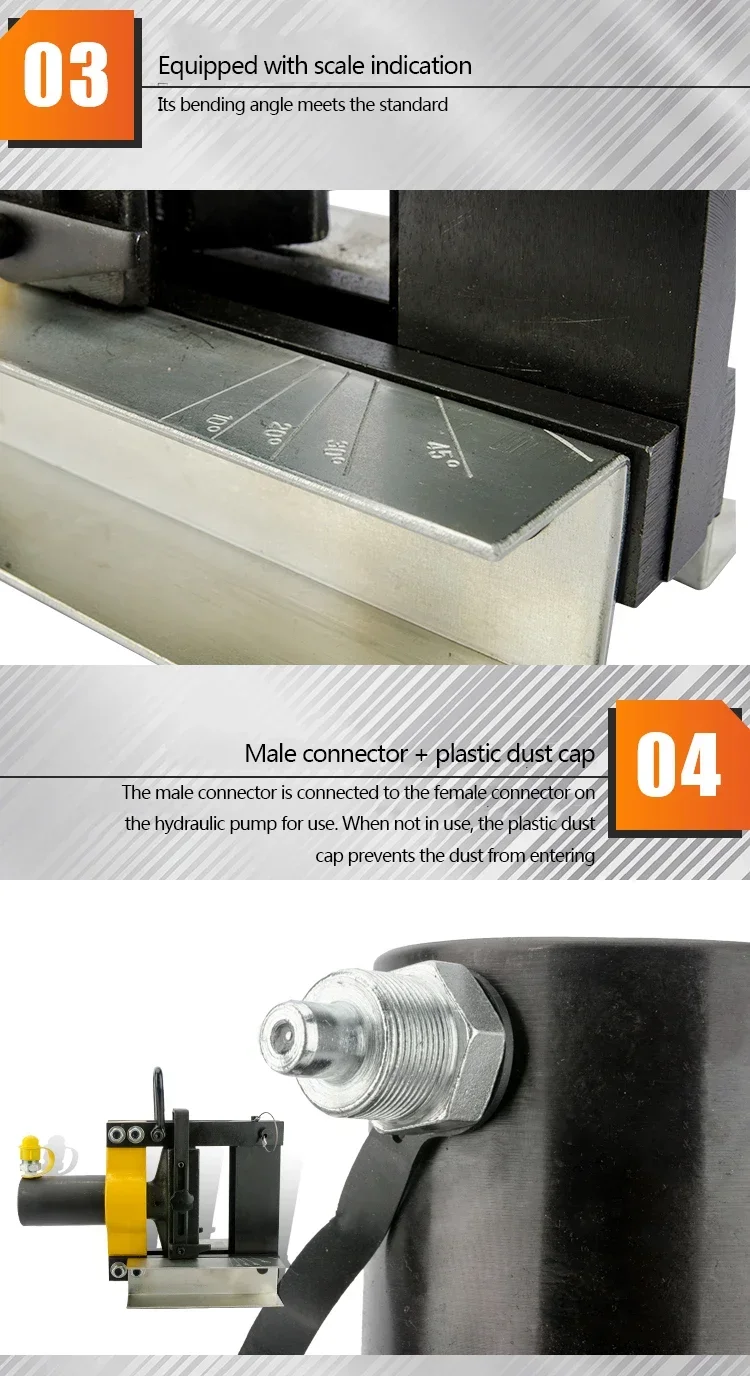

There is a bending angle style, the bus bar will not be twisted after bending, and the work can be easily taken out after bending.

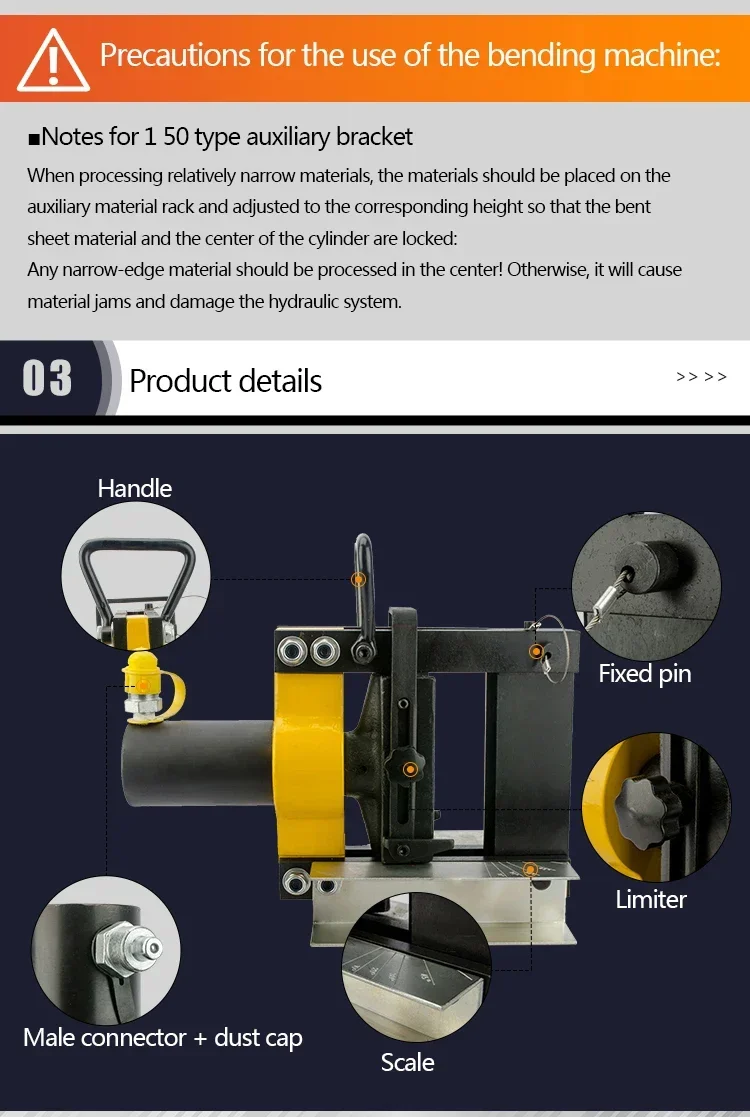

■Notes for 1 50 type auxiliary bracket

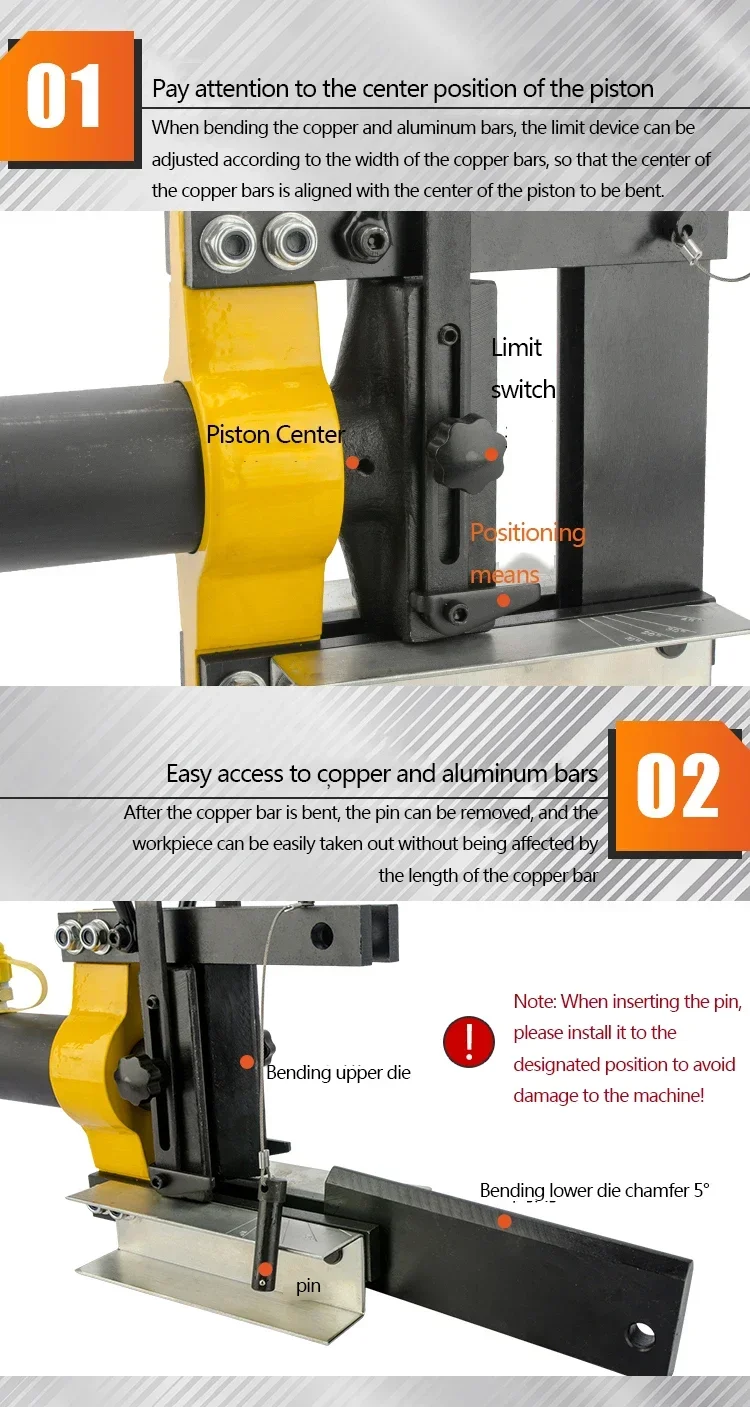

When processing relatively narrow materials, the materials should be placed on the auxiliary material rack and adjusted up to the corresponding height so that the

After bending the sheet and the center of the cylinder, lock it;

Any narrow-edge material should be processed in the center! Otherwise, it will cause material jams and damage the hydraulic system.
