Attributes

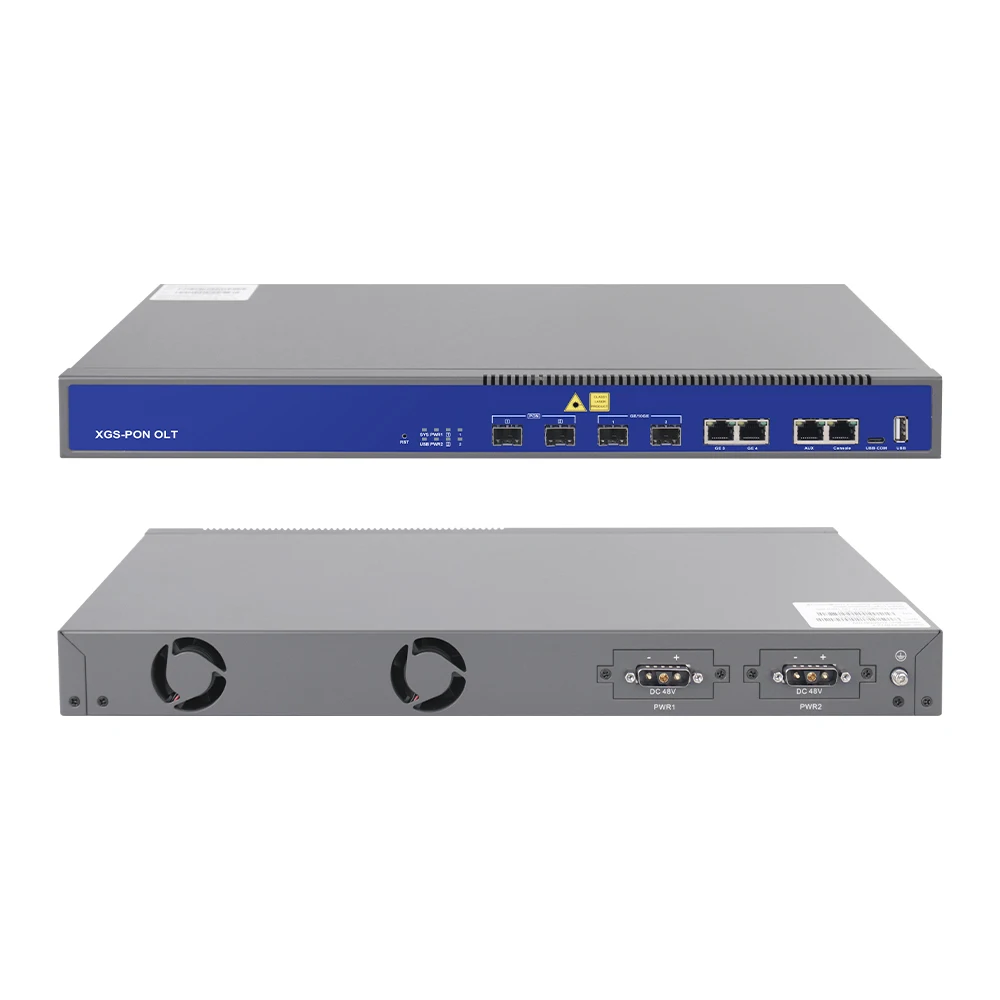

XG(S)-PON Combo OLT

Exchange Capacity

104 Gbps

Packet Forward Rate

77.376 Mpps

Memory and Storage

Memory: 2GB; Storage: 8GB

Management Port

Console

Ports

8*XG(S)-PON/GPON ports, 8*10GE/GE SFP + 2*100G QSFP28

PON Features

Comply with ITU-T G.987/G.988 standard
100KM transmission distance
1:256 Max splitting ratio
Standard OMCI management function
Open to any brand of ONT
ONU batch software upgrade

Ring Network Protocol

Support STP/RSTP/MSTP
Support ERPS Ethernet ring network protection protocol
Support Loopback-detection port loop-back detection

Port Control

Support two-way bandwidth control
Support port storm suppression
Support 9K Jumbo ultra-long frame forwarding

Port Aggregation

Support static link aggregation
Support dynamic LACP
Each aggregation group supports a maximum of 8 ports

Mirroring

Support port mirroring
Support stream mirroring

ACL

Support standard and extended ACL
Support ACL policy based on time period
Provide flow classification and flow definition based on IP header information such as source/destination  address, VLAN,
802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.

QoS

Support flow rate limiting function based on custom business flow
Supports mirroring and redirection functions based on custom business flows
Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority
scheduling function,
support queue scheduling algorithms such as SP/WRR/SP+WRR

Safety

Support user hierarchical management and password protection
Support IEEE 802.1X authentication
Support Radius&TACACS+ authentication
Support address learning limit, support black hole  function
Support port isolation
Support broadcast message rate suppression
Support IP Source Guard Support ARP flood suppression and ARP spoofing protection
Support DOS attack and virus attack protection

Layer 3

Support ARP learning and aging
Support static route
Support dynamic route RIP/OSPF/BGP/ISIS
Support VRRP

System Management

CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0
Support FTP,TFTP file upload and download
Support RMON
Support SNTP
Support system work log
Support LLDP neighbor device discovery protocol
Support 802.3ah Ethernet OAM
Support RFC 3164 Syslog
Support Ping and Traceroute

Environment Temperature

Working Temperature: -10℃～55℃
Storage temperature: -40℃～70℃

Environment Humidity

Operating humidity: 10%～95% (non-condensing)
Storage humidity: 10%～95% (non-condensing)

Environment friendly

China RoHs, EEE

Weight

6.5KG

Fans

Modular fans supply(3PCS)

Power

AC: 100～240V 47/63Hz；
DC: 36V～75V；

Power consumption

90W

Dimensions
(Width * Height * Depth)

440*270*44mm
