Detailed comparison between SPARKLE's Intel Arc™ B580 TITAN OC and B580 GUARDIAN
1. Core Specifications:
| Parameter | B580 TITAN OC | B580 GUARDIAN |
|---|---|---|
| GPU Model | BGM-G21 | BGM-G21 |
| Architecture | Intel Xe² (Battlemage) | Intel Xe² (Battlemage) |
| Compute Units | 20 Xe Cores | 20 Xe Cores |
| Ray Tracing Units | 20 | 20 |
| XMX Engines | 160 | 160 |
| VRAM | 12GB GDDR6 | 12GB GDDR6 |
| Memory Bus Width | 192-bit | 192-bit |
| Memory Bandwidth | 456 GB/s | 456 GB/s |
2. Clock Speeds & Power Consumption
| Parameter | B580 TITAN OC | B580 GUARDIAN |
|---|---|---|
| Base Clock | 2670 MHz | 2670 MHz |
| Boost Clock | 2740 MHz (Factory OC, +2.6%) | 2760 MHz (Slightly higher than TITAN OC) |

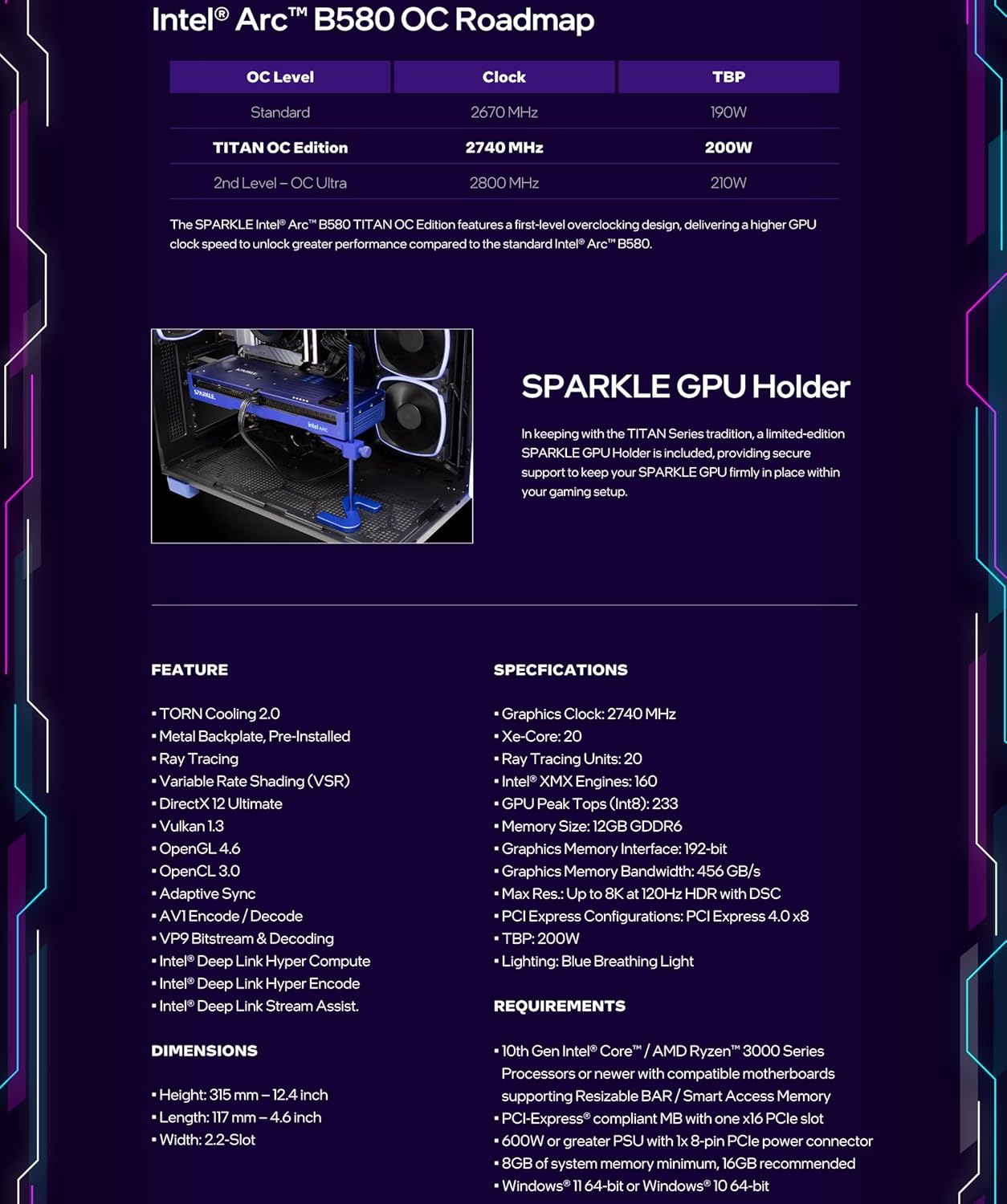

| Max Overclock | 2800 MHz (Manual OC, 210W TBP) | Not supported |
| TBP (Typical Board Power) | 200W (Factory OC) | 190W |
3. Cooling & Design
| Parameter | B580 TITAN OC | B580 GUARDIAN |
|---|---|---|

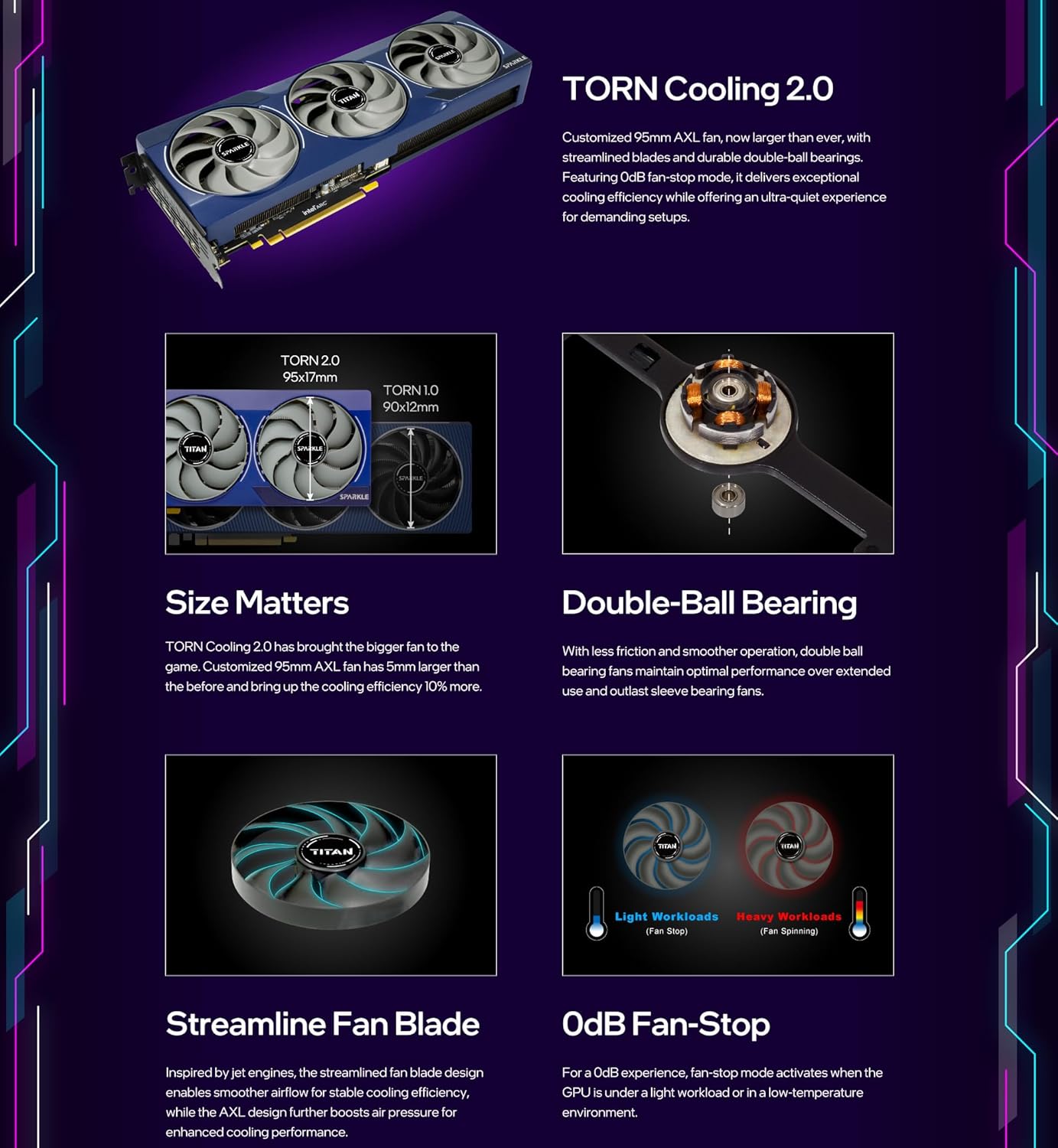

| Cooling Design | Triple-fan (TORN Cooling 2.0) | Dual-fan (95mm Custom Fans) |
| Fan Features | Dual Ball Bearings, 9-Blade Ring Fans | Dual Ball Bearings, Ring Fans |
| Dimensions | 315mm (L) × 117mm (H) × 44mm (T) | 242mm (L) × 105mm (H) × 44mm (T) |
| Weight | 954g | 796g |
| Aesthetic Design | Blue Shroud, White Fans | Blue Shroud, White Fans |
| RGB Lighting | Blue Breathing LED | No RGB Lighting |
4. I/O & Power Supply
| Parameter | B580 TITAN OC | B580 GUARDIAN |
|---|---|---|
| Display Outputs | 1x HDMI 2.1, 3x DisplayPort 2.1 | 1x HDMI 2.1, 3x DisplayPort 2.1 |
| Power Connector | 1x 8-pin | 1x 8-pin |
| Recommended PSU | 600W | 600W |
5. Market Positioning & Pricing
| Parameter | B580 TITAN OC | B580 GUARDIAN |
|---|---|---|
| Positioning | High-end OC version for performance enthusiasts | Standard version for mainstream users |
| Price | $369 | $345 |
Summary
-
B580 TITAN OC focuses on high performance and overclocking capabilities, making it ideal for users seeking extreme performance, especially for white-themed builds.
-
B580 GUARDIAN emphasizes cost-effectiveness and compact design, catering to budget-conscious users or those with limited case space.
