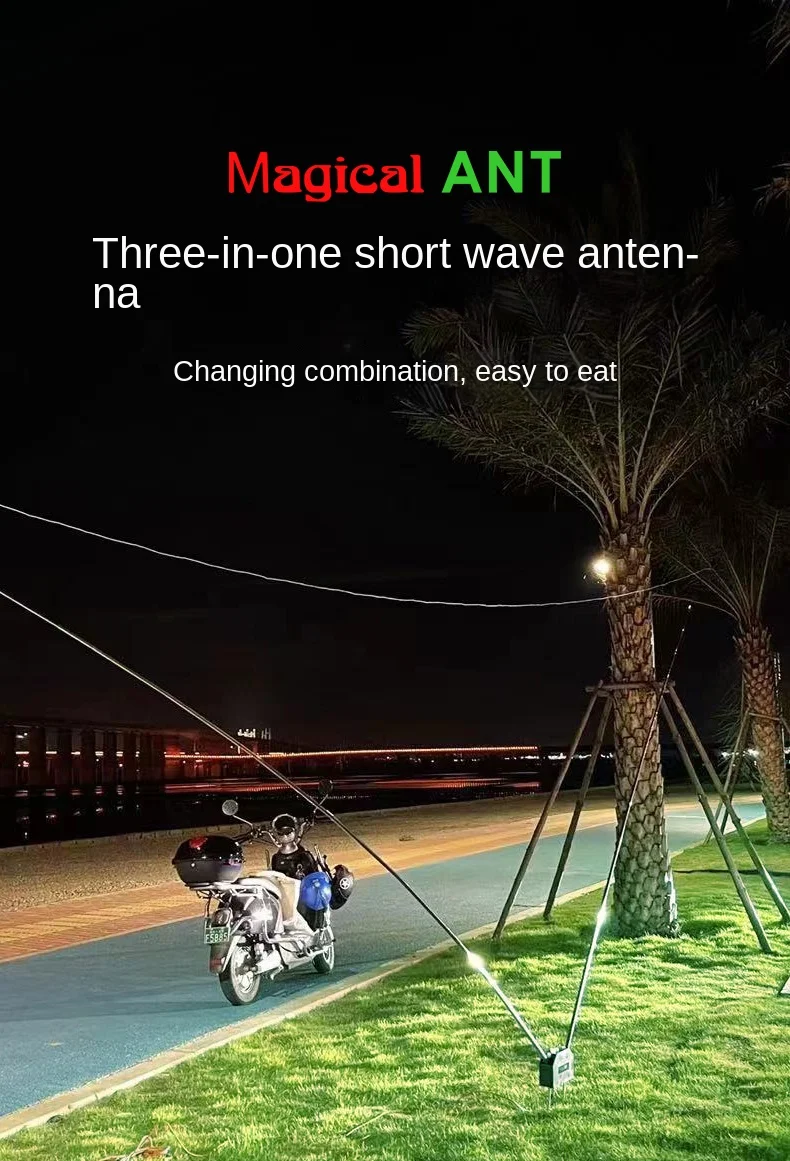

Magical ANT Three-in-one Changing Shortwave Antenna NVIS Near-field Emergency Communication No Blind Spot
Description:

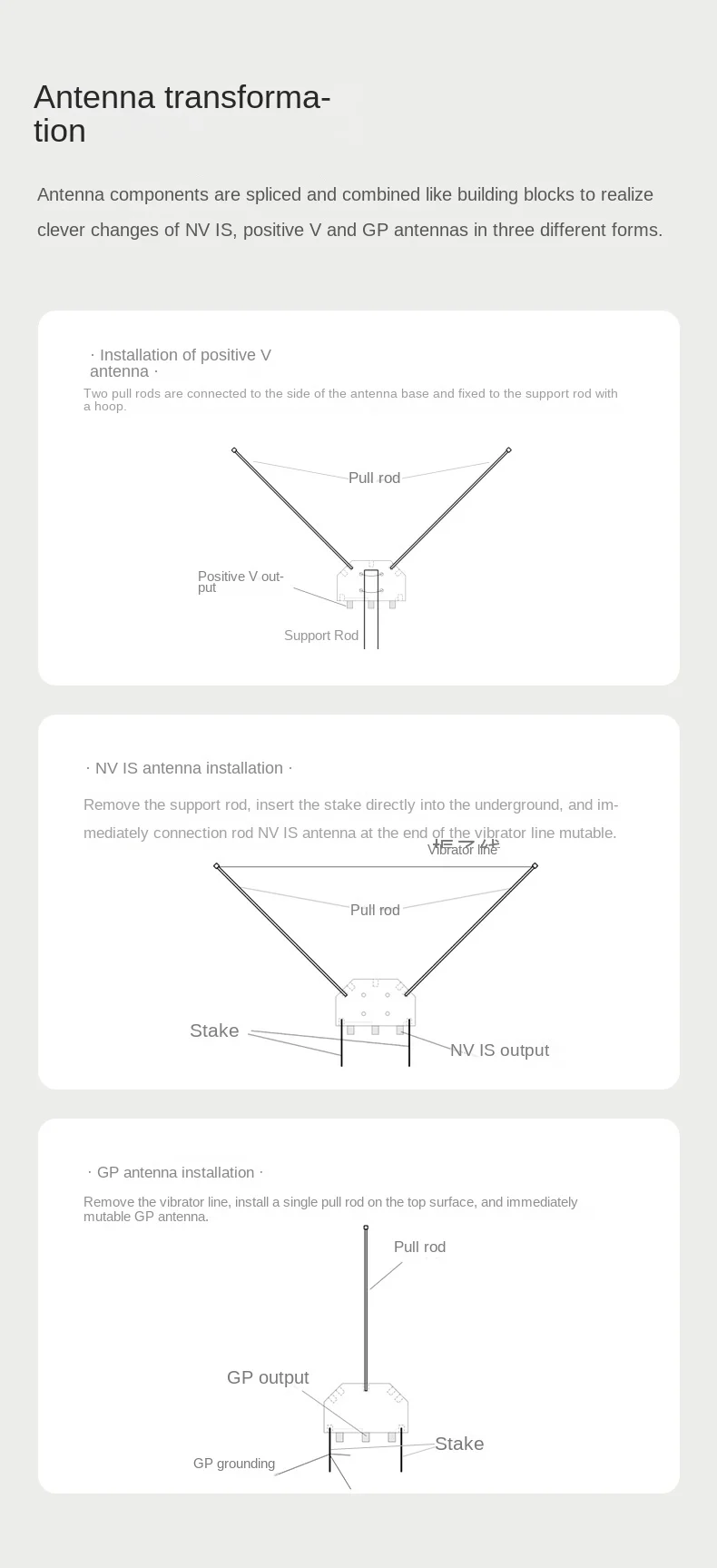

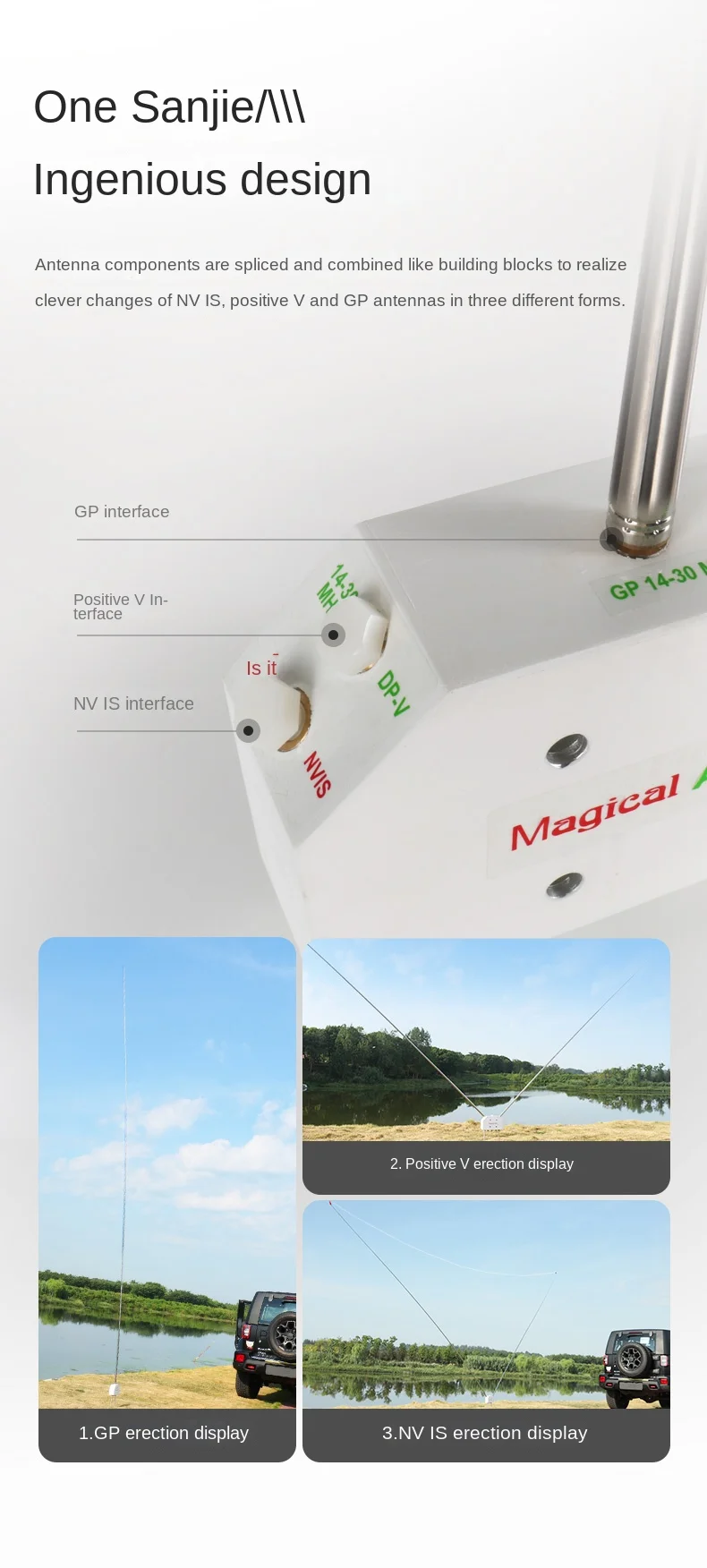

- Antenna components are spliced and combined like building blocks to realize clever changes of NVIS, positive V and GP antennas in three different forms.

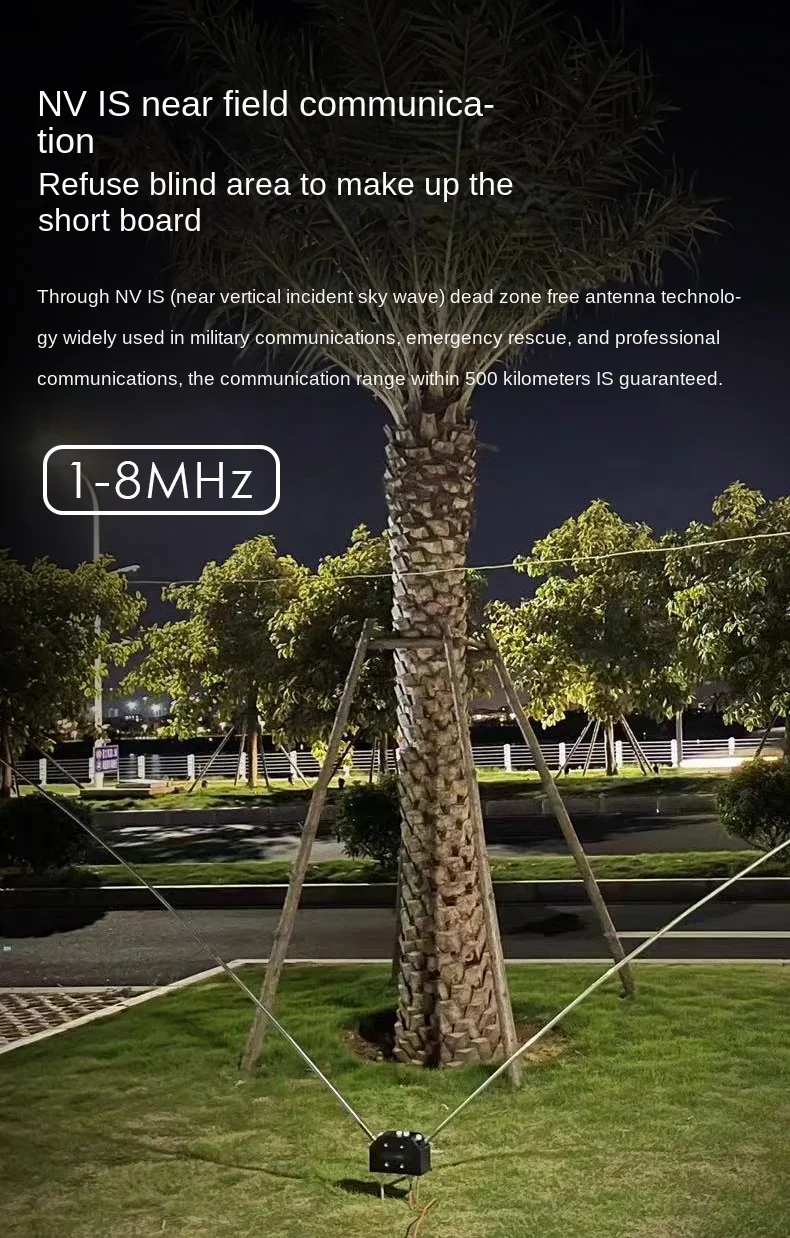

- Through NVIS (near vertical incident sky wave) dead zone free antenna technology widely used in military communications, emergency rescue, and professional communications, the communication range within 500 kilometers is guaranteed.

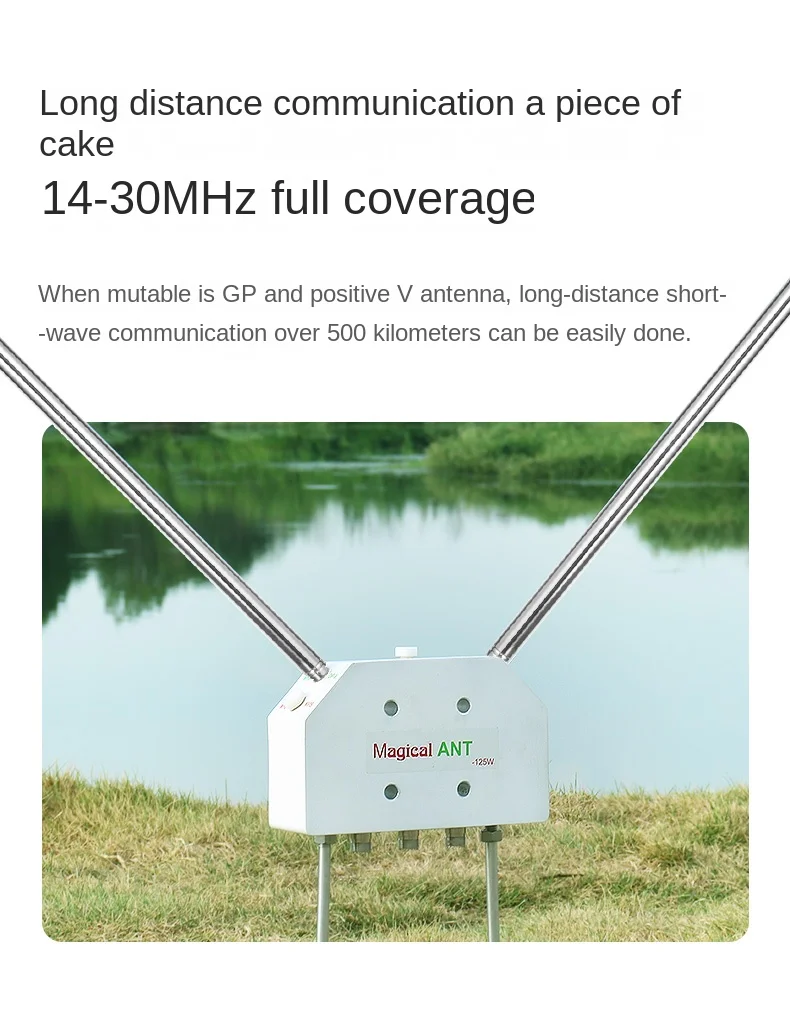

- When mutable is GP and positive V antenna, long-distance shortwave communication over 500 kilometers can be easily done.

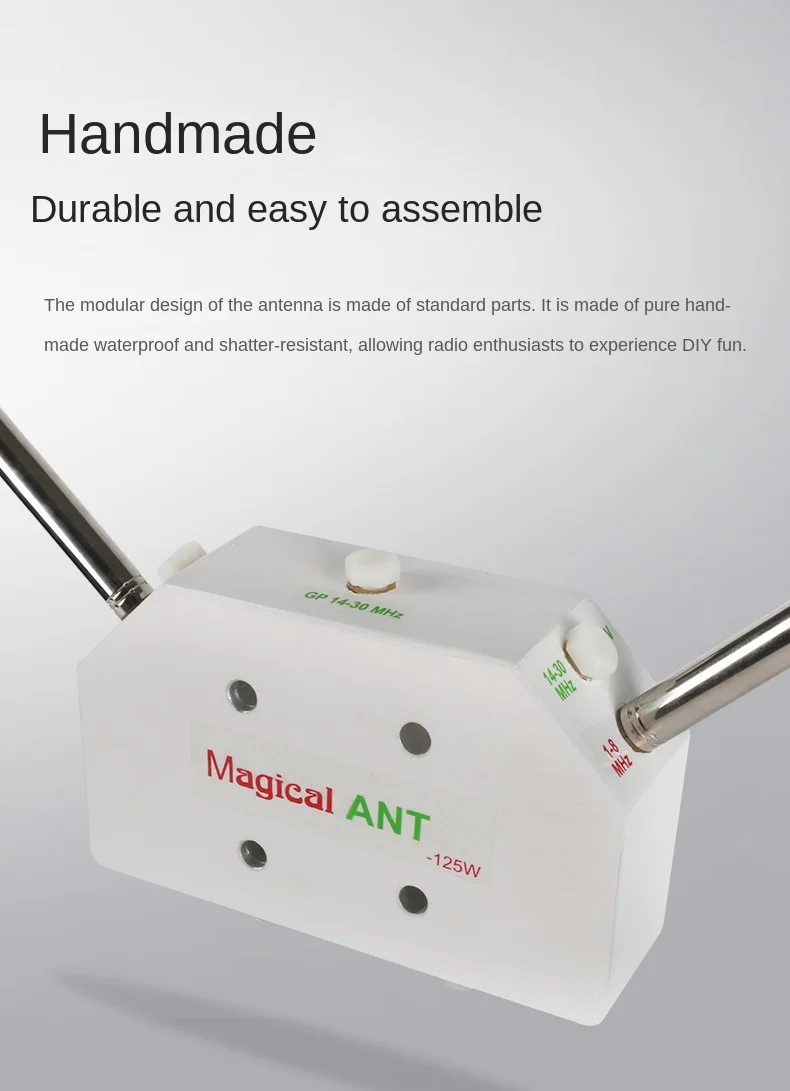

- The modular design of the antenna is made of standard parts. It is made of pure hand-made waterproof and shatter-resistant, allowing radio enthusiasts to experience DIY fun.

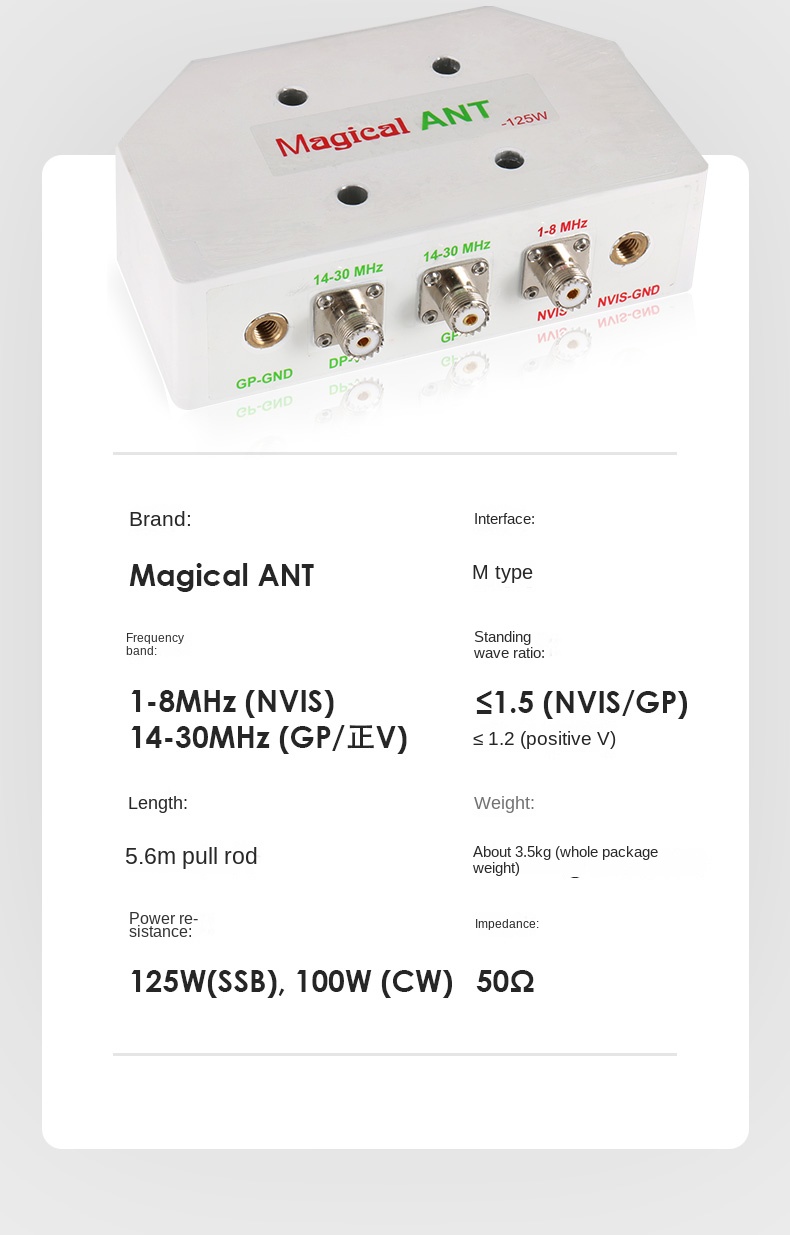

Parameter:
- Frequency band/ Standing wave ratio: 1-8MHz (NVIS) ≤1.5 (NVIS/GP)
14-30MHz (GP/positive V) ≤1.2 (positive V)
- Length: 5.6m pull rod
- Power resistance: 125W (SSB), 100W (CW) 50Ω

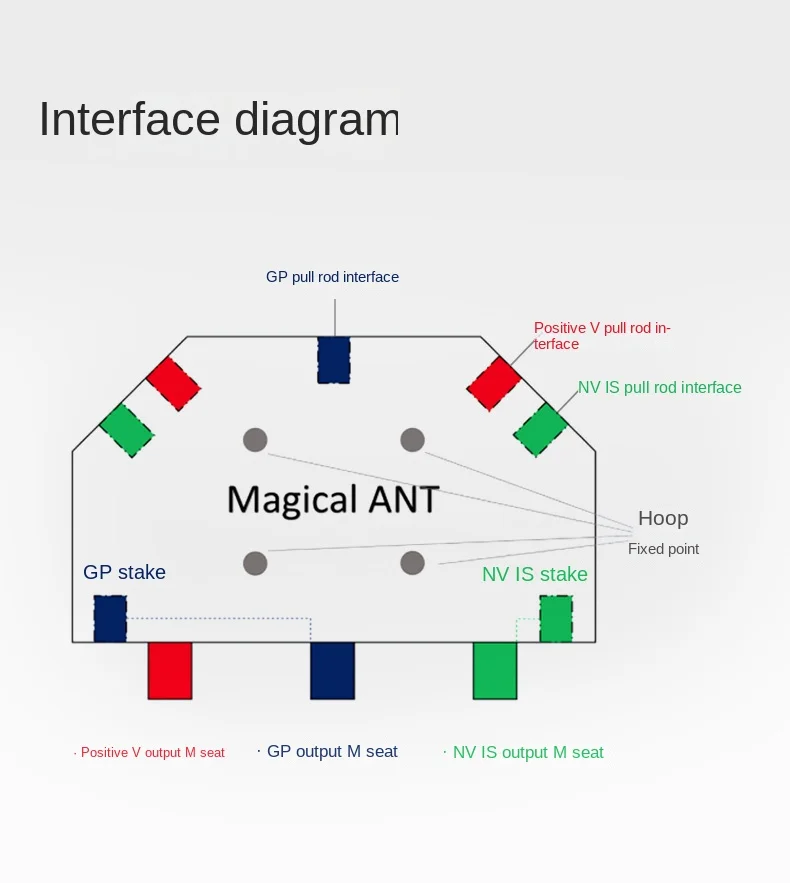

- Interface: M type
- Weight: 3.5kg
- Impedance: 50Ω
Package Included:

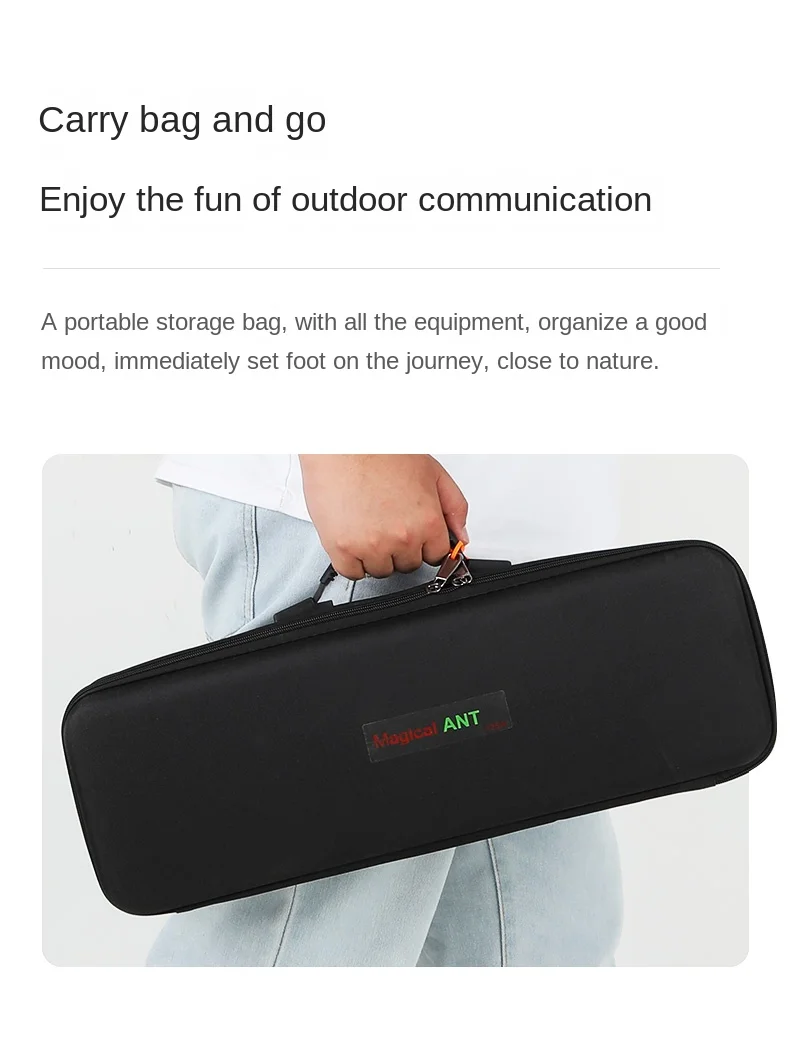

- 1 x Storage bag
- 1 x Instruction manual
- 1 x Antenna base
- 2 x 5.6m Pull rod
- 2 x Stake
- 1 x Ground screen (GP installation)
- 1 x Hoop
- 2 x Hoop clamp
- 4 x Gasket
- 4 x Nut
- 1 x Vibrator line
