Description

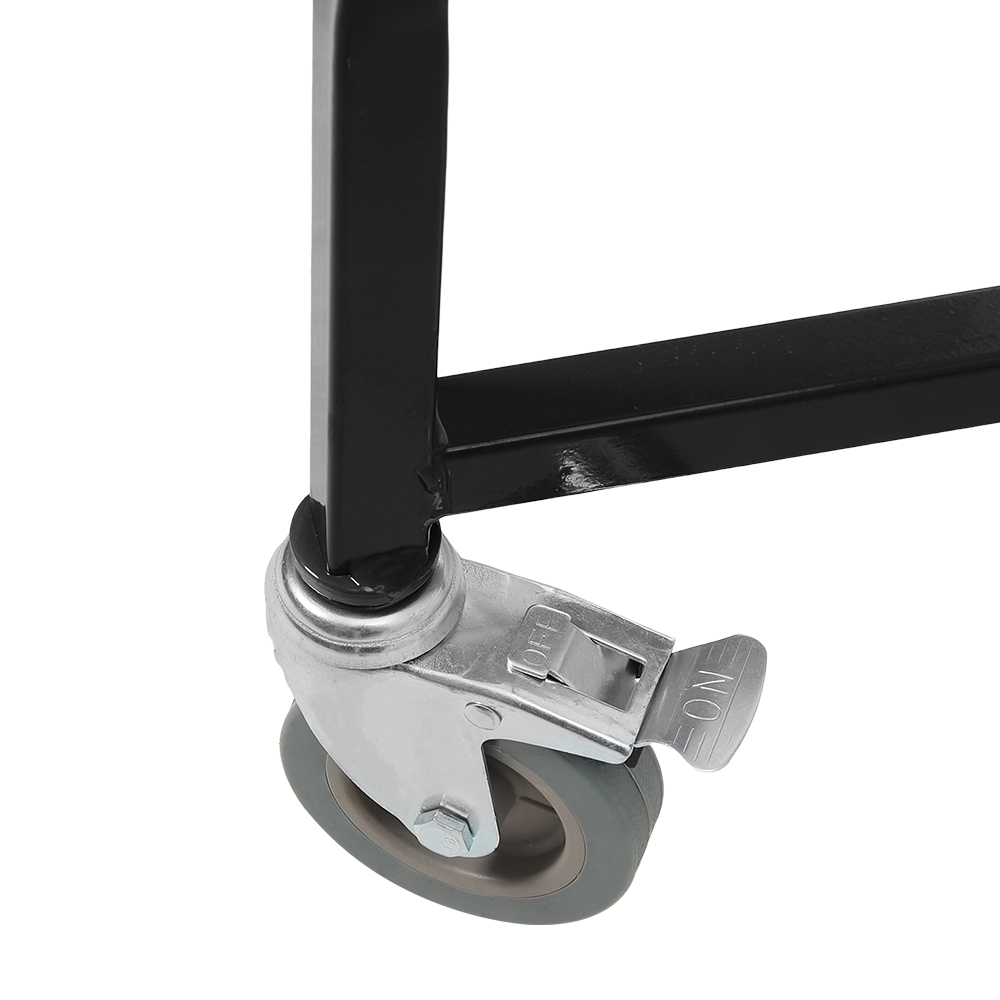

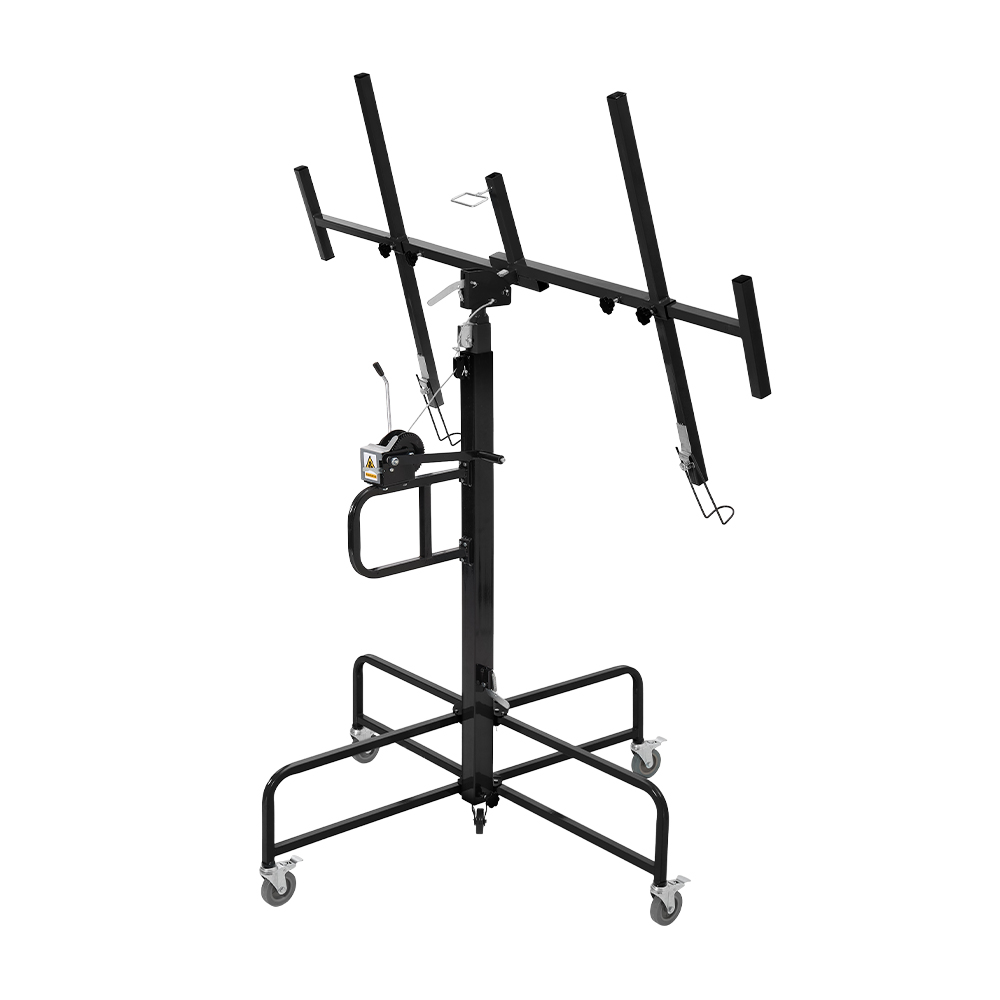

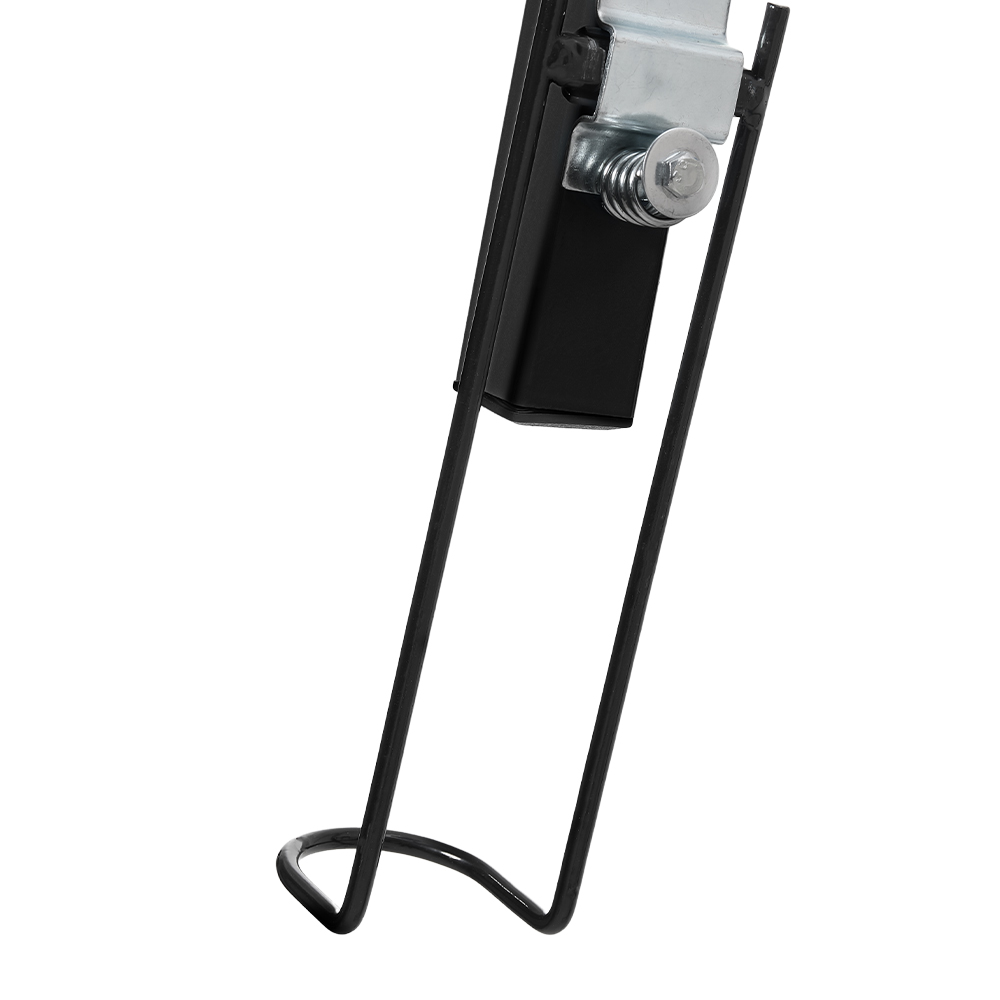

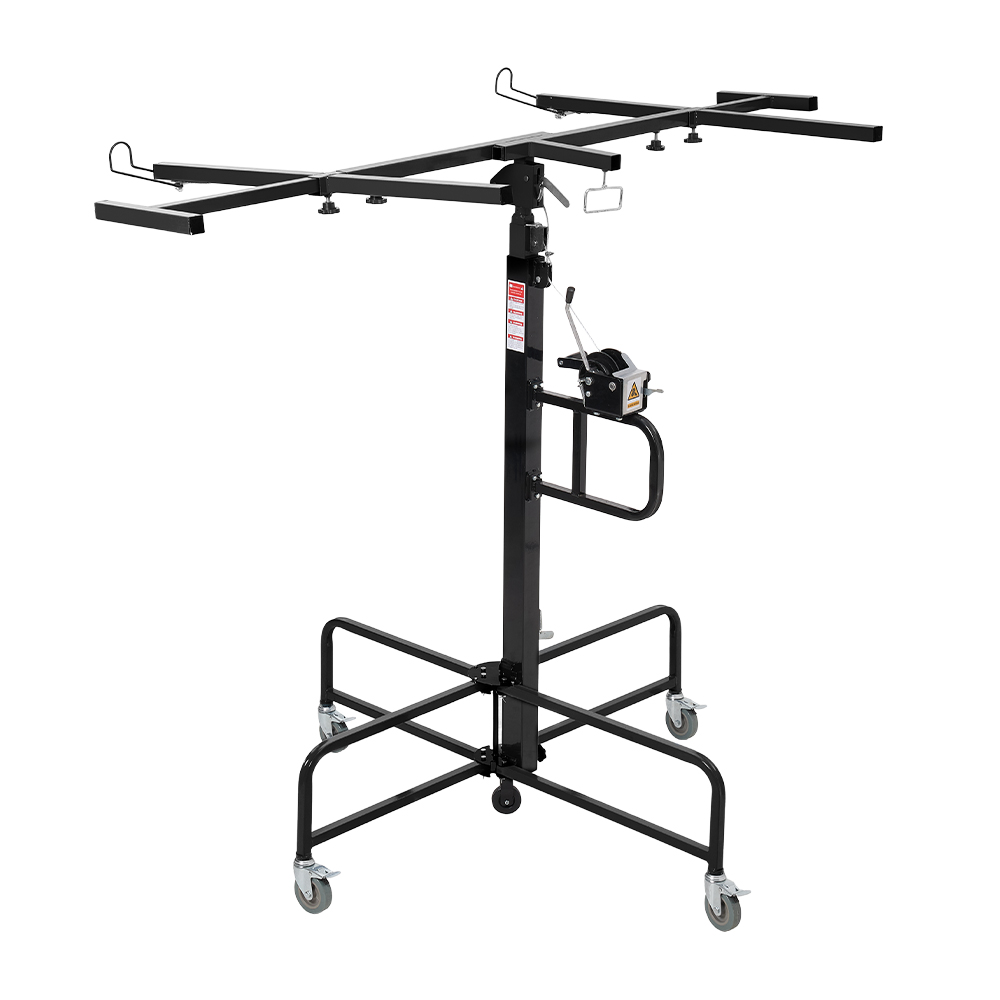

Designed for DIY users and light-duty panel installation, this plasterboard lifter handles boards up to 120 x 280 cm. Crafted from durable carbon steel, it supports loads up to 65 kg. Its secure support hooks ensure stability during lifting, while brake-equipped swivel casters provide smooth mobility and control. Perfect for home improvement or small renovation projects, it improves efficiency, reduces physical strain, and enhances safety during panel setup.

Features

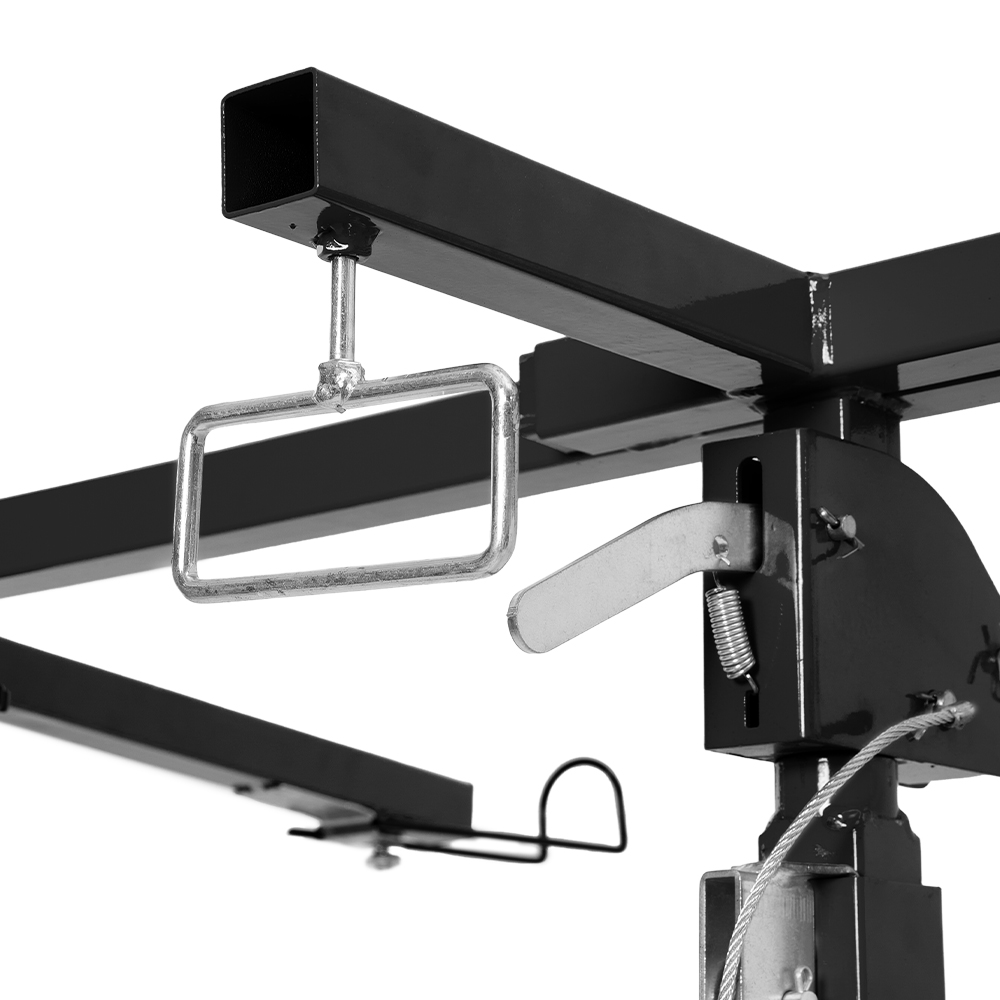

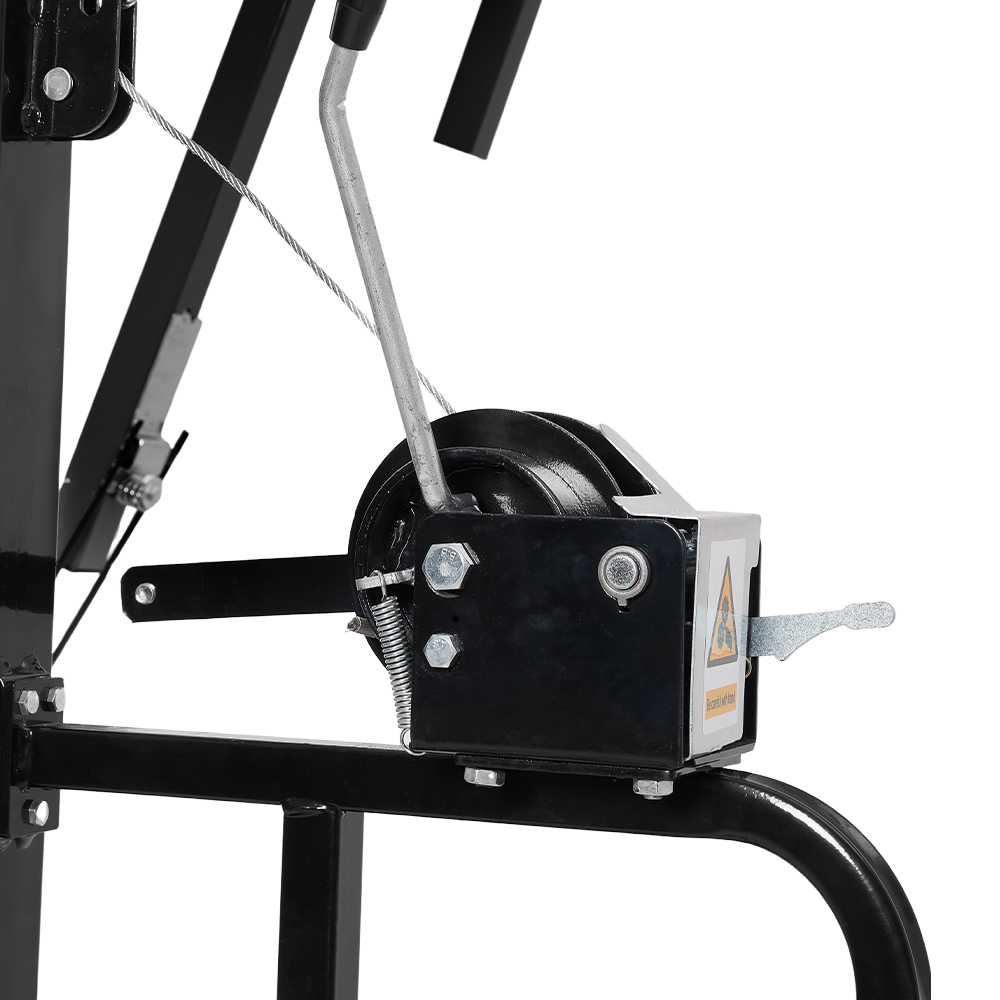

• The lockable winch ensures safe height adjustments and prevents accidental drops.

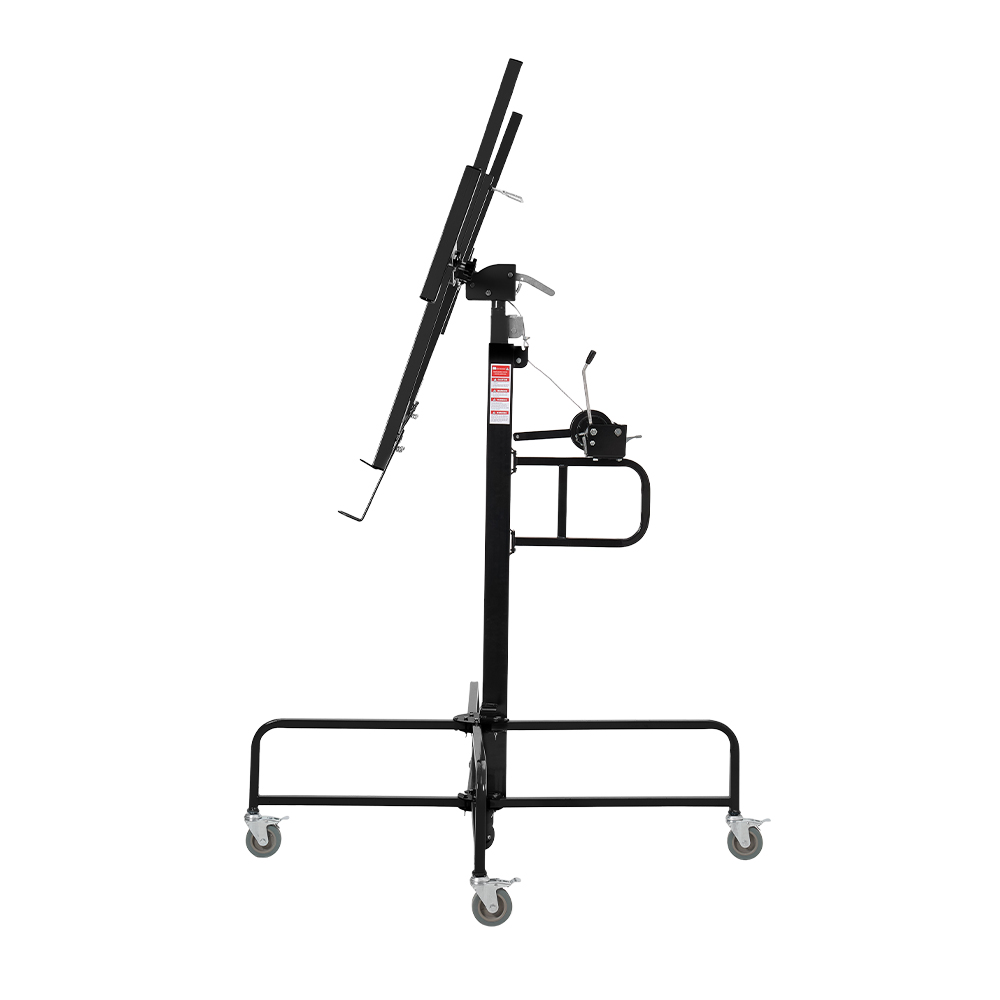

• 360° rotation and 45° tilt provide precise, flexible positioning.
• An extendable arm adjusts from 1.18m to 2.75m, adapting to various workspace layouts.
• From 1.1m for easy panel loading up to 4.0m, perfect for various ceiling applications.

Specifications

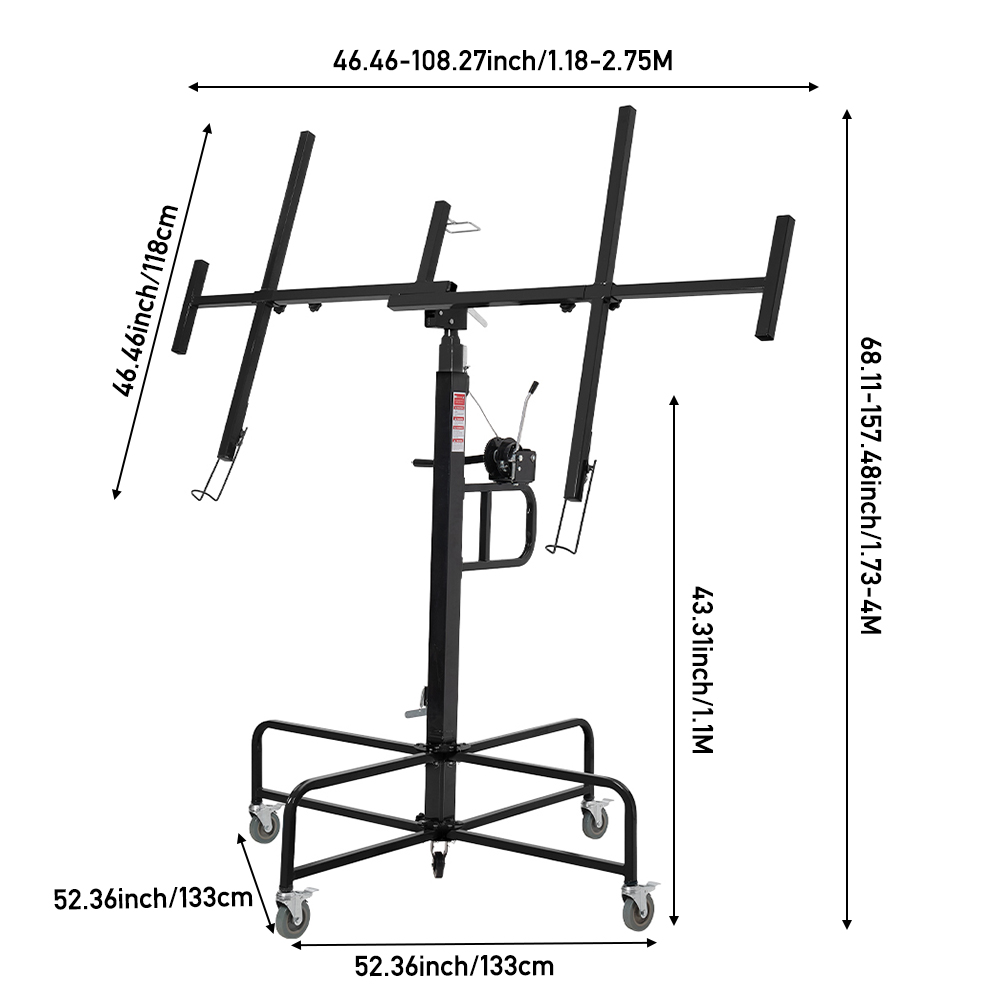

Bottom Width: 133cm

Support Arm with Hook Length: 118cm

Adjustable Height Range: 173-400cm

Horizontal Extension Range: 118-275cm

Material: Carbon Steel

Colour: Black

Product Type: Plasterboard Lifter

Maximum Liftable Plasterboard Size: 120 x 280cm

Max. Load: 65kg

Max. Lifting Height: 400cm

Min. Loading Height: 110cm

Tilting Angle: 45°

Wheels Included: Yes

Number of Wheels Included: 5

Brakes Included: Yes

Orientation: Freestanding

Assembly Required: Yes

Package Contents

1 x Plasterboard Lifter

1 x User Manual

Special safety instructions

1.ALWAYS read the instructions before use, and observe all warnings.
2.ALWAYS inspect the plasterboard lift each day before use and pay particular attention to the condition of the wire.
3.ALWAYS allow the plasterboard lift to reach room temperature before use. If you move the plasterboard lift from a cold room to a warm one, condensation may form, which may affect the function of the brake!
4.Check before use that the brake drum is clean and dry.
5.NEVER use the plasterboard lift unless both arms are secured with the lock tab.
6.ALWAYS keep the work area free of obstructions.
7.ALWAYS wear a helmet when using the plasterboard lift.
8.ALWAYS be aware of obstructions above the plasterboard lift when lifting boards.
9.NEVER use the plasterboard lift for lifting objects other than plasterboards and similar.
10.NEVER lift more than one board at a time. Never lift more than 65 kg.
11.No more than 2 plasterboards during work.
12.Before each use, check the wire rope and pulleys at 2 places and add a little oil to reduce wear.

Maintenance

1.Inspect the wire before each work day. If it shows signs of wear, replace it immediately (see the instructions which accompany the new wire).
2.Lubricate the wire rollers occasionally. Raise the telescopic sections to access the internal wire rollers. The brake drum must not come into contact with any oil or grease!

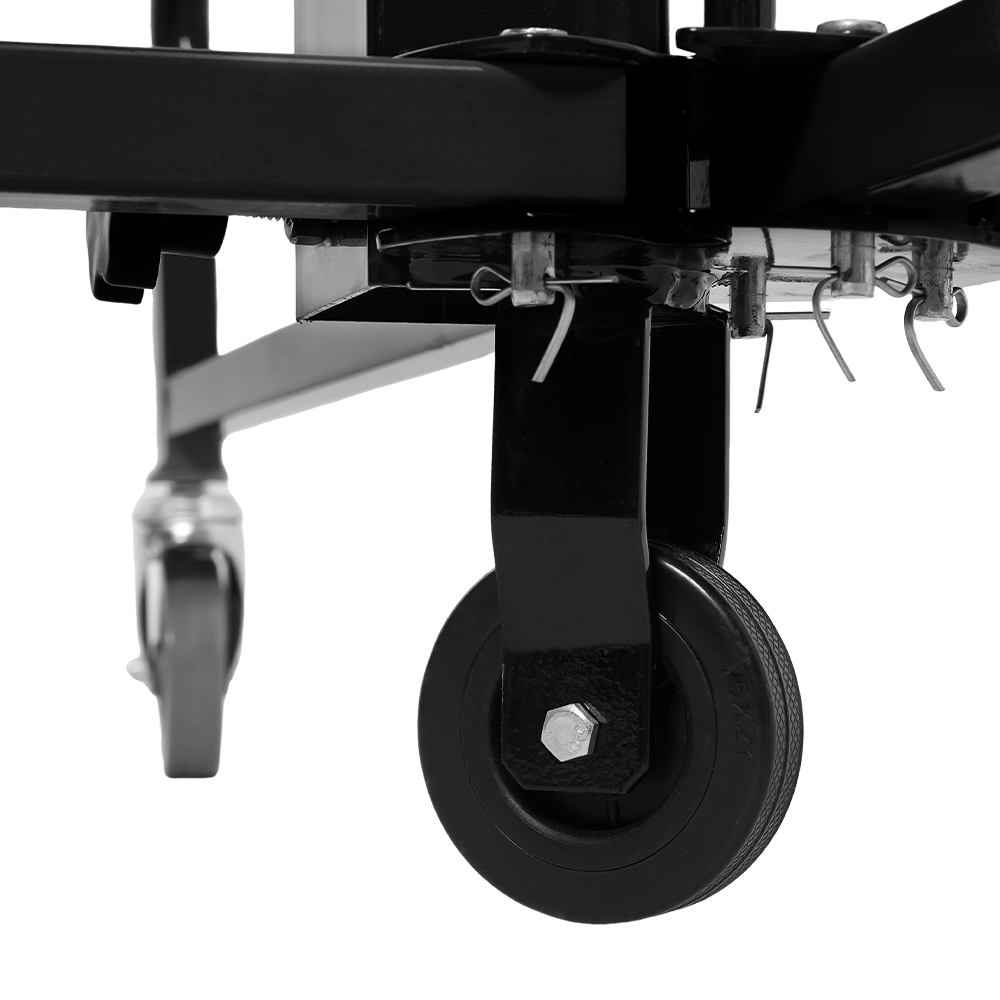

3.Lubricate the wheel bearings on the base occasionally.
4.If the telescopic sections do not run smoothly, lubricate the exteriors with paraffin.
5.Store the plasterboard lift in a clean, dry location.
