Products Description

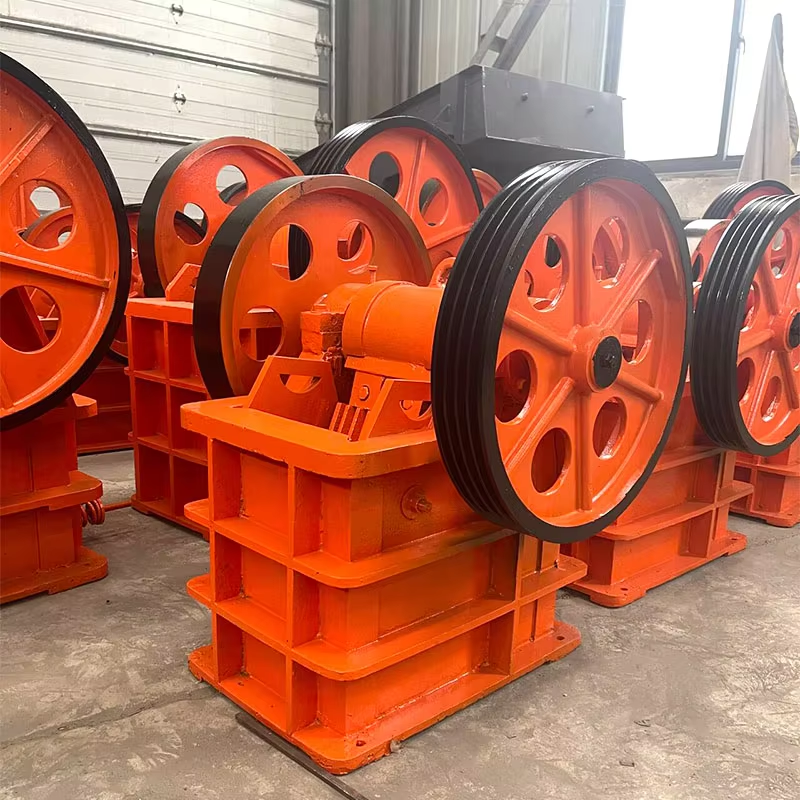

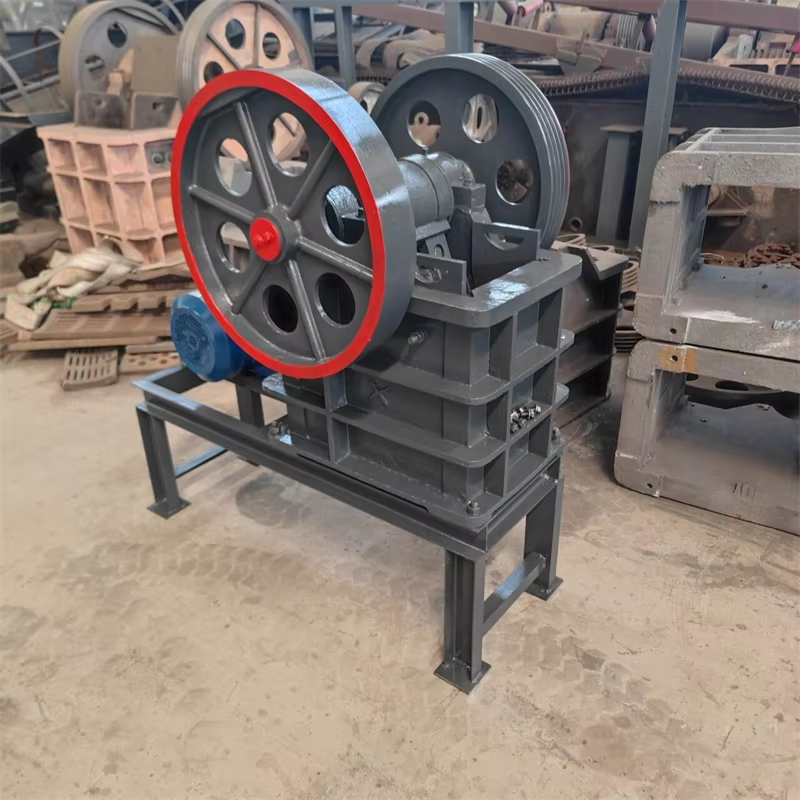

Jaw Crusher, also known is a crusher composed of two jaw plates, a moving jaw and a stationary jaw, which simulates the movement of two jaws of an animal to complete the crushing operation of the material. This series of jaw crusher has the characteristics of large crushing ratio, uniform product size, simple structure, reliable work, easy maintenance and economical operation.
jaw crusher
specificationon


Model

Feeding Size(mm)

Discharge size (mm)

Capacity(t/h)

Motor Power(kw)

Overall Dimension(mm)

PE150×250

≤130

15-45

1-4

5.5

896×745×935

PE200×300

≤150

15-55

3-6

5.5

1050×987×1000

PE250×400

≤210

20-60

5-20

5.5

1215×1520×1030

PE400×600

≤350

40-90

15-60

30

1650×1588×1050

PE500×750

≤425

50-100

40-110

45

1956×1918×1920

PE600×900

≤500

60-125

90-180

55

2250×2733×2280

PE800×900

≤600

80-140

100-220

75

2450×2950×2490

PE750×1060

≤630

60-150

110-380

110

2531×2455×2783

PE900×1060

≤700

100-160

230-390

110

2900×2657×2950

PE900×1200

≤750

110-165

220-450

132

3100×2760×3260

PE1000X1200

≤900

110-185

315-500

132

3200×2760×3260

PE1200×1500

≤950

115-195

550-1000

220

3710×3446×4075

PE1500×1800

≤1200

135-225

600-1200

280

5100×4700×4300

PEX150×750

≤120

10-40

8-25

15

1310×1118×1145

PEX250×750

≤210

15-50

15-35

22

1400×1751×1515

PEX350×750

≤300

15-50

18-40

30

1485×1680×1648

PEX250×1000

≤210

15-60

15-60

30

1550×1964×1380

PEX250×1200

≤210

15-60

20-60

37

1530×1946×1380

PEX300×1300

≤250

25-60

16-105

55-75

2000×2320×1730





* Color can be customized

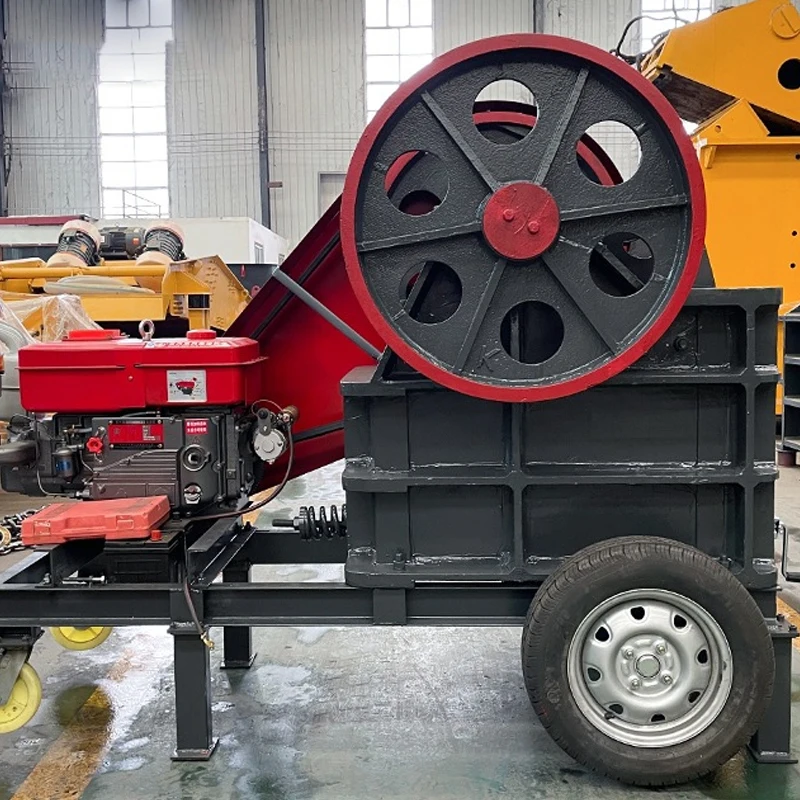

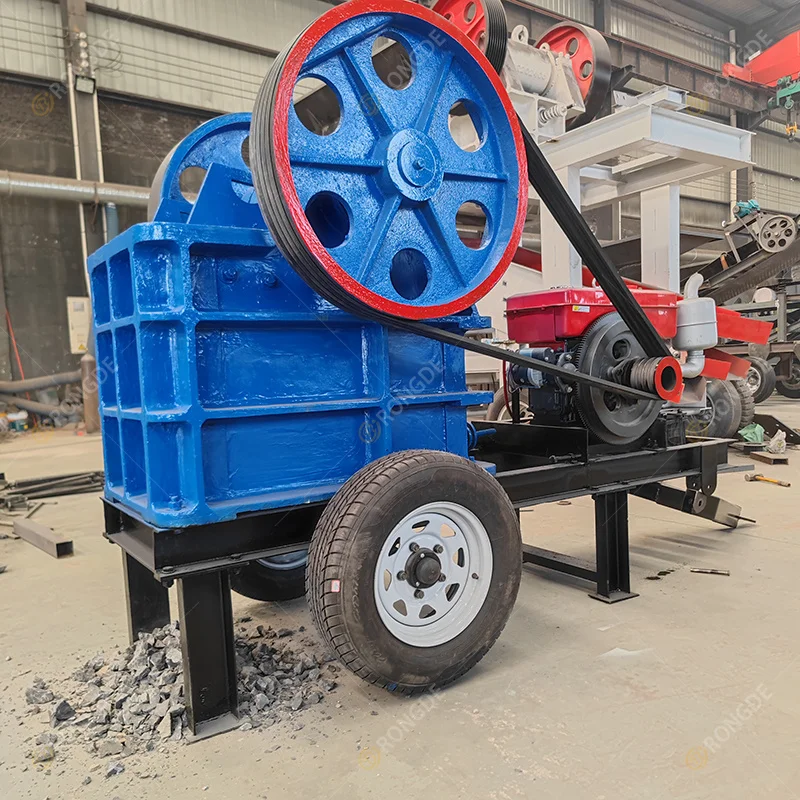

* Power can be configured with motor or diesel engine

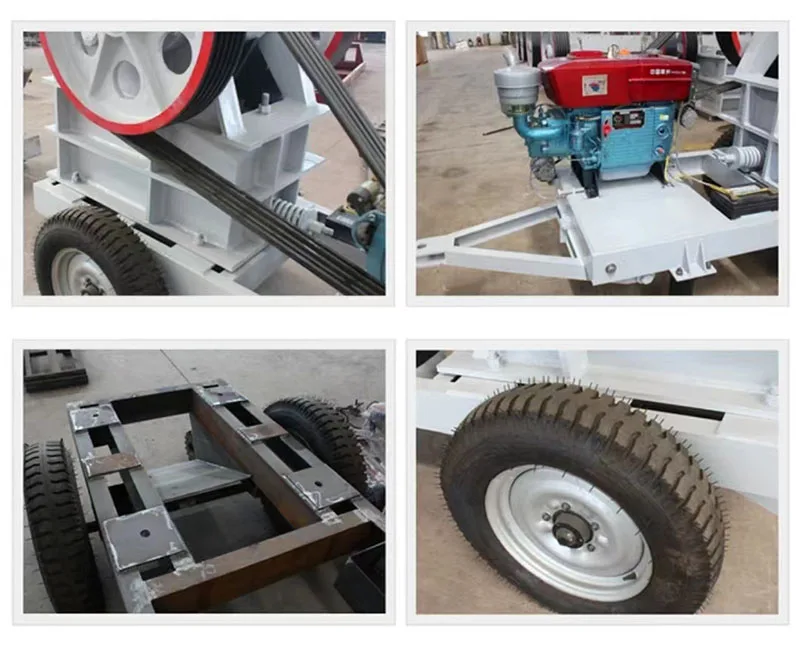

* Can be customized single or mobile crushing production line
Product Applications



Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.Jaw crusher can break the waste construction waste into 10-20mm small stones, but also can separate the steel bar in the construction waste. Reuse of waste can be achieved。
