Professional Multi-Voltage Smart Charger for Ni-MH/Ni-Cd Rechargeable Battery Packs

Intelligent charging solution for Ni-MH and Ni-Cd rechargeable battery packs ranging from 1.2V to 24V. Features automatic voltage detection with built-in IC that recognizes battery voltage and applies optimal charging profile. Perfect for a wide range of battery pack applications.

Key Features

• Wide Voltage Range: Supports 1.2V to 24V Ni-MH/Ni-Cd battery packs
• Automatic Voltage Detection: Intelligent IC recognizes battery voltage automatically
• 5 Charger Types Available: Different output voltage options to match your battery needs
• Intelligent Smart Charging: Optimized charging algorithm for maximum battery life
• Auto-Stop Protection: Automatically stops charging when battery reaches full capacity
• LED Status Indicators: Clear visual indication of charging status
• Multi-Protection System: Built-in safeguards against overcharge, over-current, short circuit, and reverse polarity
• Universal Input: AC 100-240V compatible worldwide
• Compact Design: Portable and easy to use

Technical Specifications

Input Voltage	AC 100-240V, 50/60Hz (Universal)
Battery Type	Ni-MH, Ni-Cd Rechargeable Battery Packs
Voltage Range	1.2V / 2.4V / 3.6V / 4.8V / 6.0V / 7.2V / 8.4V / 9.6V / 10.8V / 12V / 13.2V / 14.4V / 15.6V / 16.8V / 18V / 19.6V / 20.4V / 21.6V / 22.8V / 24V
Charging Method	Intelligent IC-controlled with Auto Voltage Detection
Protection Features	Overcharge, Over-current, Short Circuit, Reverse Polarity
LED Indicator	Green: Standby/Full, Red: Charging, Flashing Green: Error
Plug Type	US / EU / AU / UK (Select option)
Brand	FMA
Condition	Brand New
Certification	CE, FCC, RoHS, GS, PSE, CCC Compliant

Applications

Perfect for charging battery packs used in:

• Power tools and cordless equipment
• RC vehicles, boats, and aircraft
• Electric bikes and scooters
• Emergency lighting systems
• Portable power stations
• Medical equipment
• Industrial instruments
• Backup power systems
• Solar energy storage

LED Indicator Status

• Green LED: Power on (standby) or battery fully charged
• Red LED: Charging in progress
• Flashing Green LED: Wrong polarity connection or battery damaged - reconnect properly

How to Use

1. Select the appropriate AC plug for your region
2. Connect the charger to AC power outlet (Green LED will light up)
3. Connect battery pack to charger (observe correct polarity: Red to +, Black to -)
4. Charger automatically detects battery voltage
5. Red LED indicates charging in progress
6. Green LED indicates charging complete - battery is fully charged
7. Disconnect battery and unplug charger after charging

Package Contents

• 1 × Multi-Voltage Smart Battery Charger
• 1 × AC Power Cable (Select: US / EU / AU / UK)

Note: Please select the appropriate plug type and voltage range for your battery when ordering.

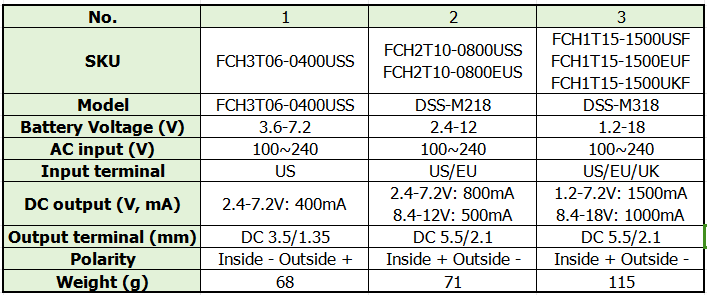

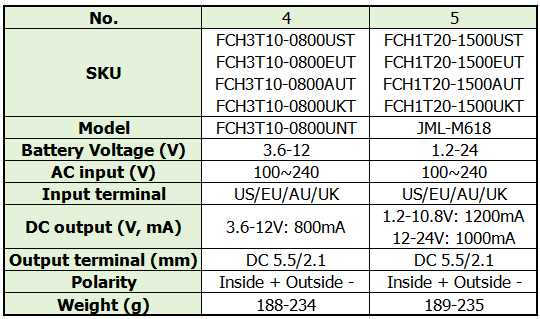

Product Specification

Charging status

Certifications

Our chargers meet international safety and quality standards:

• FCC Certification - USA Standard (Report No.: 16063326)
• CE-LVD, CE-EMC, GS Certification - European Standard (CE Report No.: 16063325, IEC Report No.: DE 2-018390)
• RCM (SAA+C-TICK) Certification - Australian Standard (Report No.: 16064855)
• PSE Certification - Japanese Standard (Report No.: JD 50301812)
• CCC Certification - Chinese Standard (Report No.: 2015010907755103)

Why Choose FMA Chargers?

FMA specializes in professional-grade battery charging solutions. Our multi-voltage chargers feature intelligent charging algorithms with automatic voltage detection, premium components, and comprehensive safety features to ensure your battery packs charge efficiently and safely, extending their lifespan and performance.

Safety Information

Important Safety Guidelines:

• Charging: Never leave batteries unattended while charging. Always charge in a well-ventilated area away from flammable materials.
• Battery Compatibility: Only use with Ni-MH or Ni-Cd rechargeable battery packs. Do not attempt to charge other battery types.
• Voltage Selection: Ensure you select the correct charger voltage range for your battery pack.
• Polarity: Always connect Red wire to Positive (+) terminal and Black wire to Negative (-) terminal. Reverse polarity may damage battery or charger.
• LED Monitoring: If green LED flashes, disconnect immediately and check polarity or battery condition.
• Temperature Monitoring: Discontinue charging if battery or charger becomes excessively hot (>60°C/140°F).
• Inspection: Regularly inspect charger cable and connectors for damage. Do not use if damaged.
• Water Safety: Keep charger away from water and moisture. Do not use in wet conditions.
• Storage: Store charger in cool, dry place when not in use. Unplug from power when not charging.

Shipping & Transportation Notice

Product Classification: This charger is NOT classified as dangerous goods and can be shipped via standard methods including air freight.

• Shipping: Standard delivery available worldwide. Estimated delivery time varies by destination (typically 7-30 business days).
• Packaging: Securely packaged to prevent damage during transit.
• Customs: May be subject to import duties and taxes depending on destination country.
• Tracking: Tracking number provided for all shipments.
