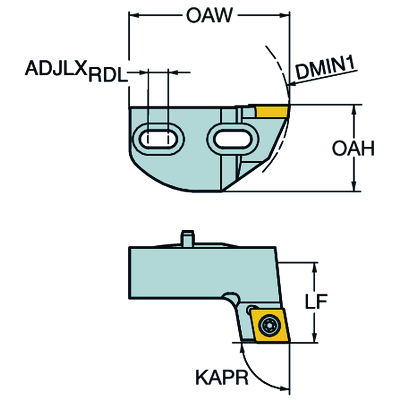

Technical illustrations
Generic representation
Product data
Tool cutting edge angle (KAPR)
90 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 060208
Connection - machine side(ADINTMS)
Duobore slide -size 1
Minimum bore diameter (DMIN)
25 mm
Hand (HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Functional length(LF)
13 mm
Functional width(WF)
11 mm
Overall length(OAL)
19.5 mm
Overall height(OAH)
11.2 mm
Overall width(OAW)
20.5 mm
Torque(TQ)
0.9 Nm
Weight of item(WT)
0.026 kg
Insert seat - metric(SSC_M)
06
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
8/14/06
Release pack id(RELEASEPACK)
06.2
