Type Photo Description

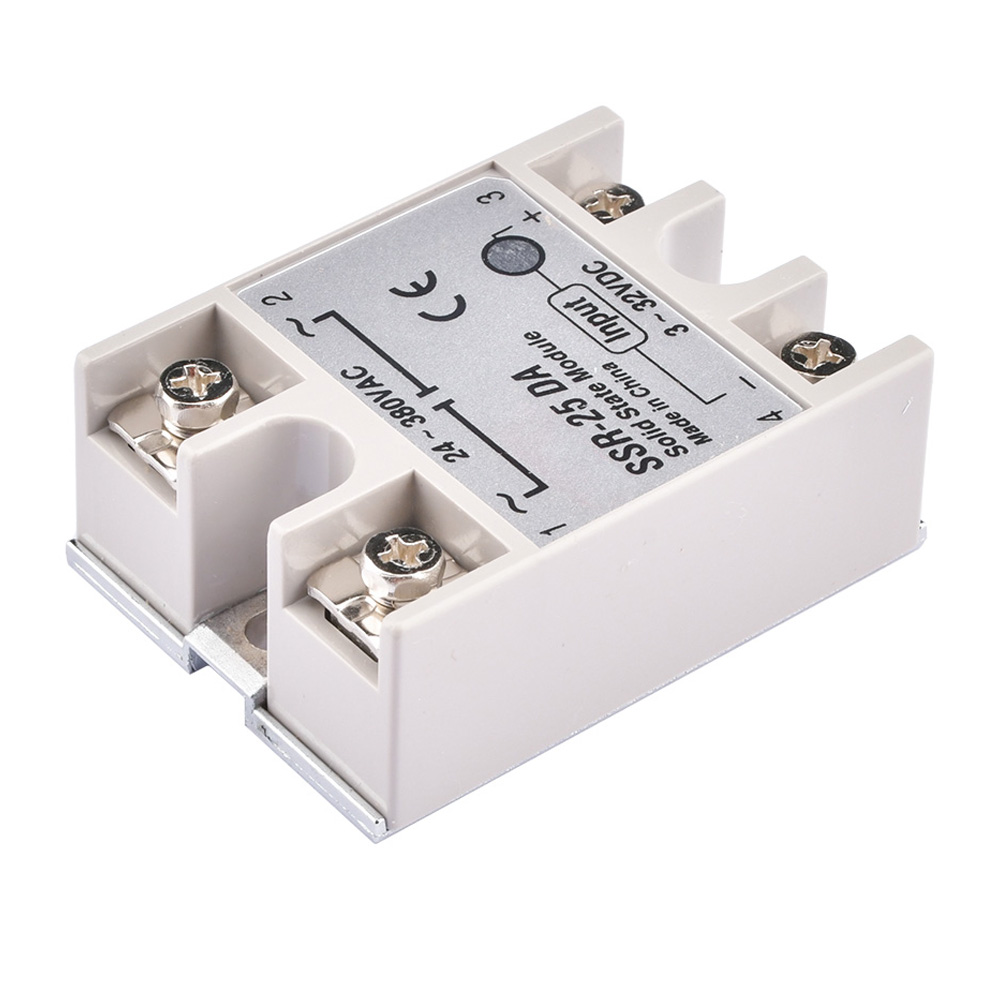

SSR-25DA Input voltage: 3-32VDC
Output voltage: 24-380VAC
Output current: 25A
Working voltage: 250V
On voltage: ≤1V
One-off Time: ≤10ms
Off leakage Current: ≤2mA
Color: White
Item size: 60*45*23mm
Net weight: 97g
Package weight: 106g
SSR-40DA

Color: Gray.
Long service life and high reliability.
Highly reliable, compact size designed to offer users maximum simplicity.
Fast switching.
Reduced electromagnetic interference.
Output voltage: AC 24-380V.
Output current: 40A.
Input voltage: DC 3-32V.
Control Method: DC to AC.
Mounting Method: Bolts fixed.
Size:6.5cm x 4.5cm x 2.2cm - 2.56inch x 1.77inch x 0.87inch.

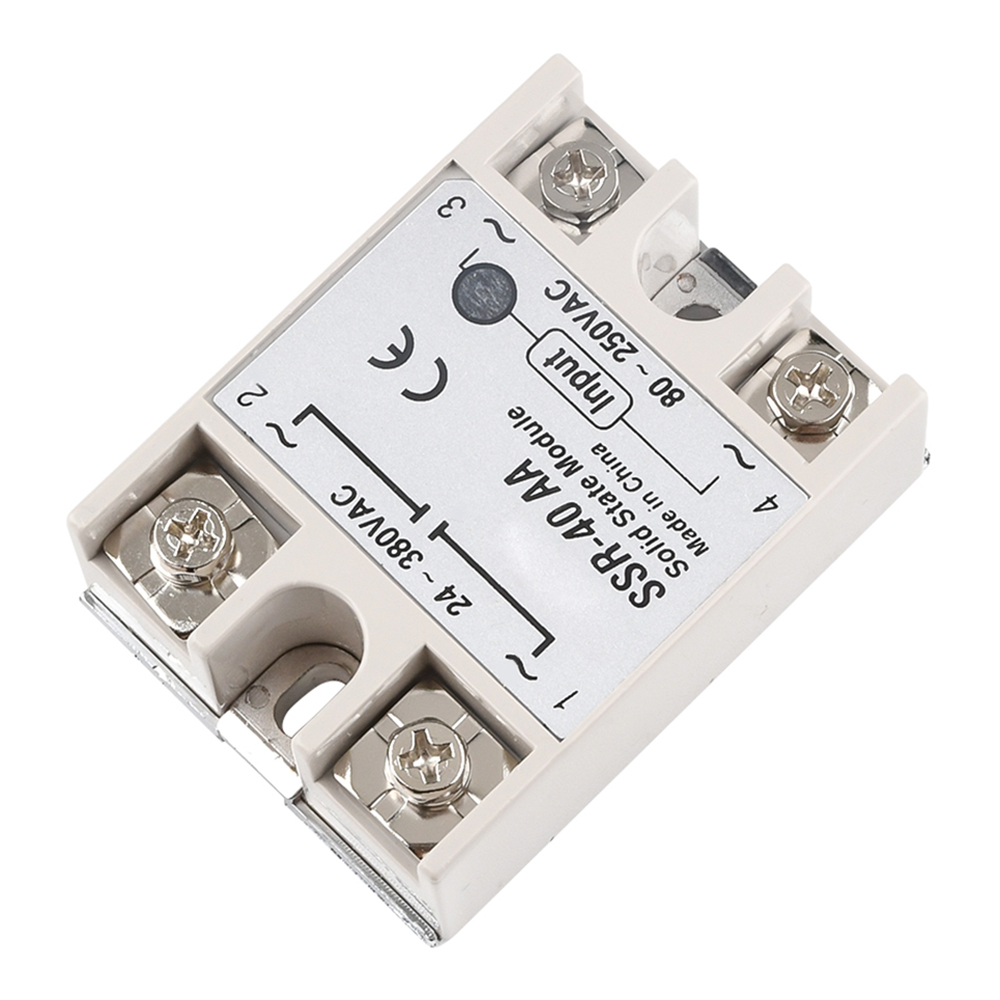

SSR-40AA Model: SSR-40AA
Input voltage: 80-250V AC
Output voltage: 24-380V AC
Output current: 40A
Working Voltage: 250V
On voltage: <= 1V
One-off time: <= 10ms
Off leakage current: <= 2mA
Relay Size: 6 x 4.5 x 2.2cm / 2.3 x 1.7 x 0.8inch (L*W*H)
Heat Sink Size: 8 x 5 x 5cm/ 3.1 x 2 x 2inch (L*W*H)
Total Size: 8 x 5 x 7.2cm/ 3.1 x 2 x 2.8inch (L*W*H)
Net weight: 212g


SSR-100DA   Model:SSR-100 DA
Input voltage: 3-32VDC
Output voltage: 24-380VAC
Output current: 100A
Working voltage: 250V
On voltage: ≤1V
One-off Time: ≤10ms
Off leakage Current: ≤2mA
Weight: 0.107kg

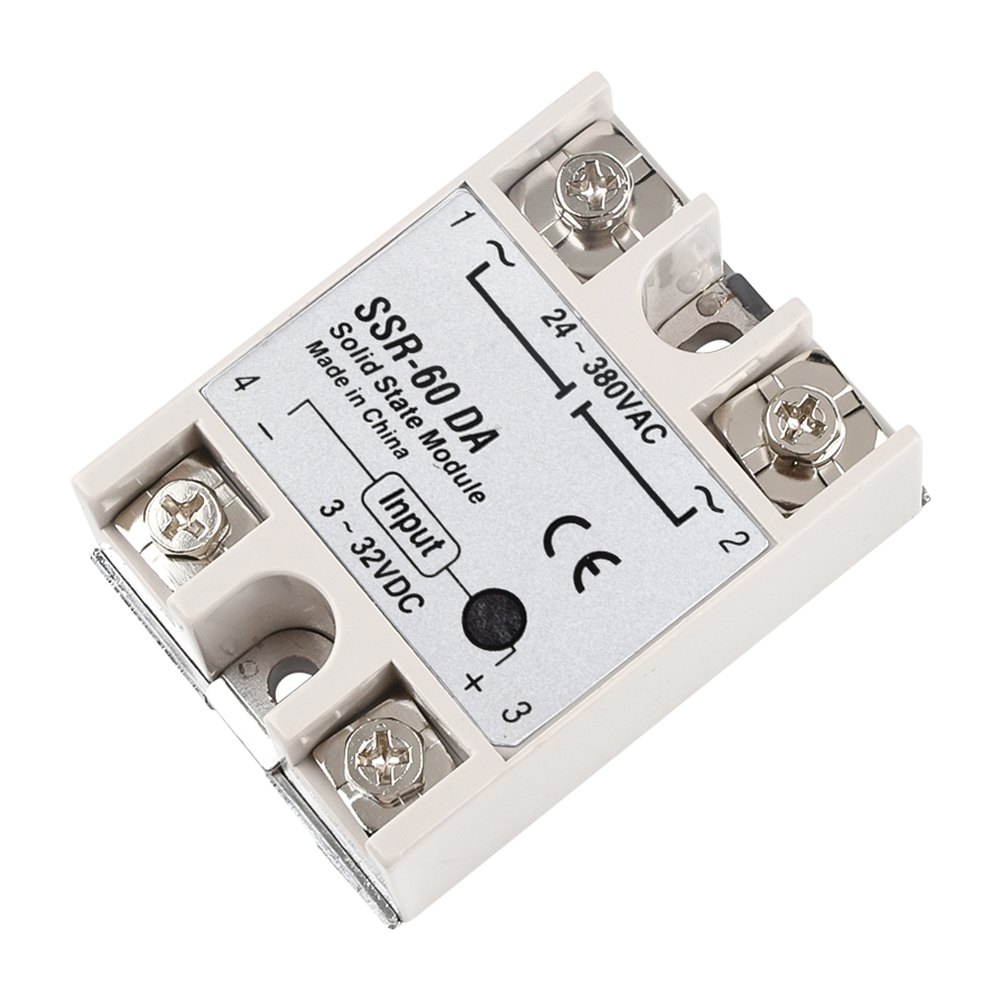

SSR-60DA Brand new and high quality.
Solid State Relay: DC to AC
Input Operating Voltage: 3V~32V DC
Rated Load Current: 60A
Output Operating Voltage: 24~380V AC
The Single Phrase Solid State Relay is ideal for various household/industrial automation process control applications, such as heating & cooling control, numerical-controlled machinery, remote-control system, etc.
Highly reliable, compact size designed to offer users maximum simplicity
High Isolation over than 50MΩ/ 500VDC
High Dielectric over than 2.5KVAC / 1min
Minimum Blocking Voltage: 600VAC
Leakage Current: 3.0mA
LED indicator
Please kindly note that a heat sink has to be used when Load is over 10A


SSR Safety Cover Case 1. Size: 6 x 4.4cm/2.36" x 1.73"(L*W)
2. Material: Hard Plastic
3. Color: Clear
4. Suitable for single phase solid state relay(SSR).
Aluminum Heat Sink Materail: Aluminium alloy.
Size:Roof:50mm x 60mm.Foot:80mm x 50mm.
Height:43mm.
Weight:96g
Compatible with:Designed specially for single phase solid state relay.
Color :Silver


    Package included:
1-10PC(Depends on your choice!)
