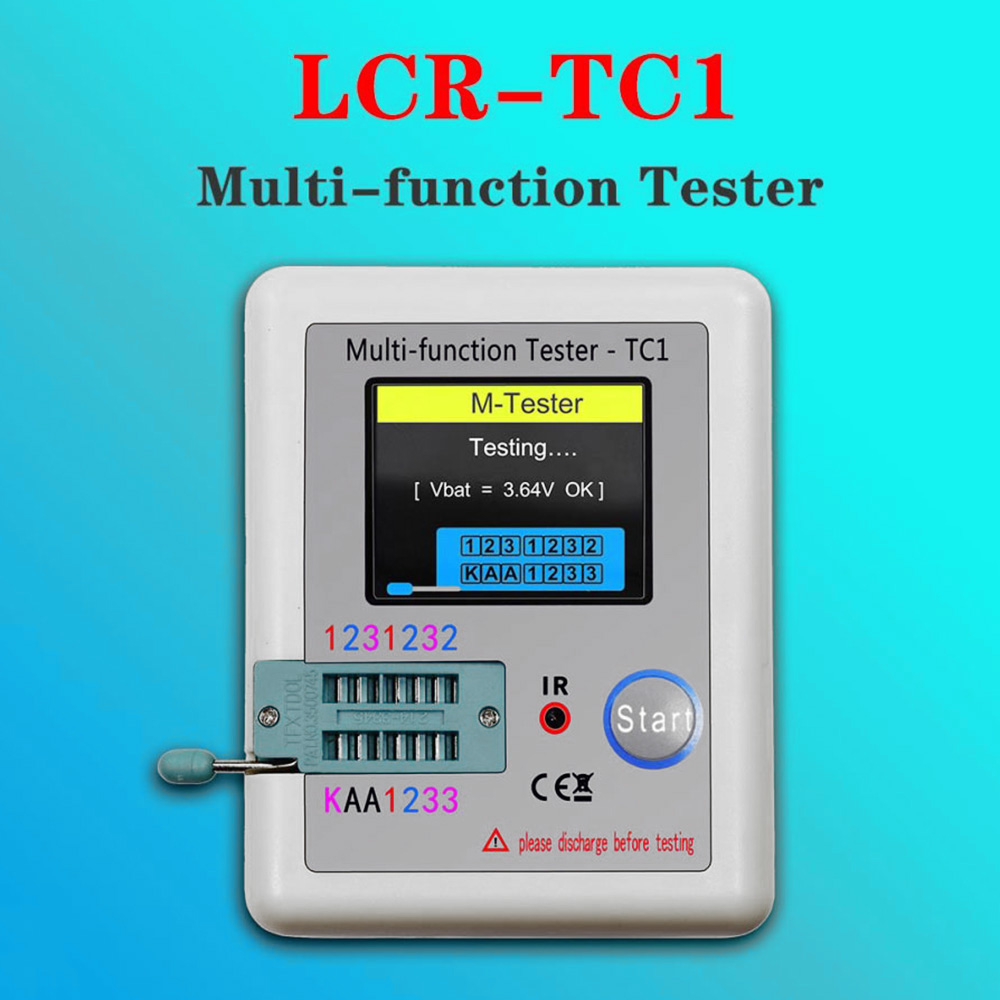

LCR-TC1 Transistor Tester
Features
TC-V2.12k is a TFT graphic display Multifunction Tester.
Transistor Tester
Automatic detection of zener diode 0.01-30VSelf test with automatic calibration
IR decoder
Support Hitachi IR coding
IR waveform display
Infrared receiving instruction
Other
Measurement results using TFT graphic display(160x128)
One key operation
Auto Power Off(Timeout Settable)
Built-in high capacity rechargeable Li-ion Battery
Li-ion Battery voltage detection
Support Chinese and English
Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!
Operating Instructions
Key operational definitions
Multi-function key has two actions:
Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
Long press: Press the key more than 1.5 seconds
Power on
In the power off state, short press the multifunction key, the tester is turned on and automatically measured.
Power on & measurement interface
Detect transistor
In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.
Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!
Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!
Component placement
Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.
No, unknown, or damaged part

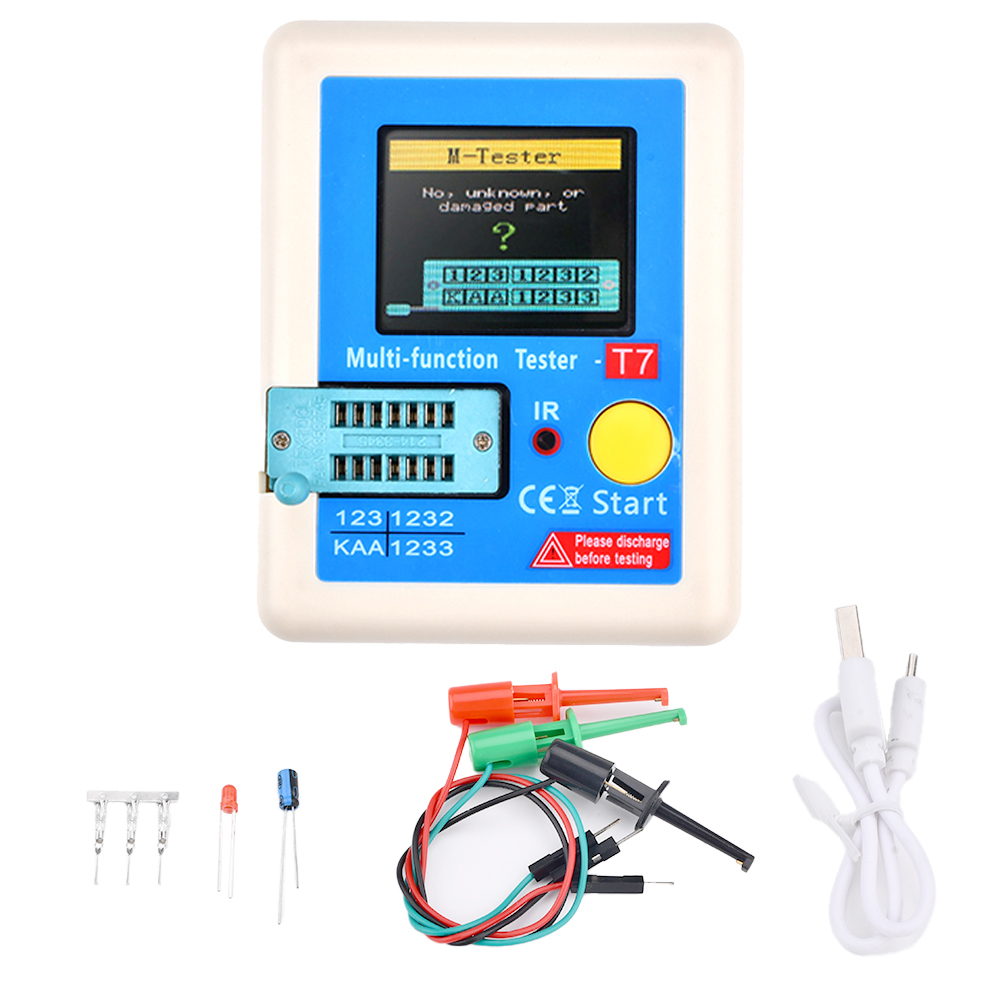

LCR-T7 Transistor Tester
Description:
- 160x128 TFT display
- Multi function key
- Transistor test area
- Zener Diode test area
- IR receiver window
- Micro USB Charging Interface
- Charge indicator LED
Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Operating Instructions:
1.3 Detect transistor
In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.
Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!
Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!
l Component placement
Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.
l No, unknown, or damaged part
Package Included:
1 set x LCR-T7 TFT Transistor Tester
TC-T7-H Transistor Tester
Features:
1. Automatic detection of zener diode 0.01-20V.
2. Self-test with automatic calibration.
3. Support infrared coding.
4. Infrared waveform display.
5. Infrared receiving instructions.
6. The measurement results are displayed by TFT graphic.
7. A key operation.
8. Automatic shutdown (timeout setting).
9. Built-in high capacity rechargeable lithium ion battery.
10. Lithium ion battery voltage detection.
Specification:
Condition:100% Brand New
Color: As Pictures Shown
Capacitor: 25pF-100mF
Resistor: 0.01-50MΩ
Inductor: 0.01mH-20H
Battery: 0.1-4.5V
Package list:
1 x Transistor tester
1 x USB cable.
1 x Red and yellow green contact wires
2 x capacitance
