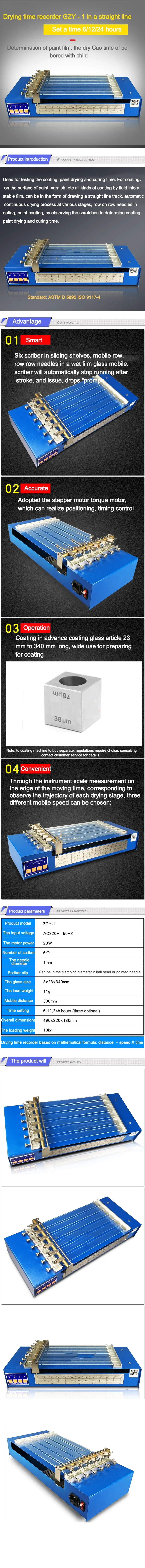

GZY - I Drying Time Recorder Intelligent Linear Paint Film Tester Curing Test For Coatings And Paints Positioning Timing Control



Item Description



Name: drying time recorder

Model: GZY - I

Voltage: 220 v / 50 hz

Power: 20 w

Pin number: 6

The needle diameter: 1 mm

Clip: plus or minus two goals can clamp diameter or sharp needles

Load weight: 11 g

Movement distance: 300 mm

Time setting: 6, 12, 24 hours (three optional)

Dimension: 490 * 220 * 130 mm

Transportation weight: 11 kg

Drying time recorder based on mathematical formula: distance xspeed = time



About this item



Used for testing the coating, paint drying and curing time. For coating on the surface of paint, varnish, etc all kinds of coating by fluid into a stable film, can be in the form of drawing a straight line track, automatic continuous drying process at various stages, row on row needles in coating, paint coating, by observing the scratches to determine coating, paint drying and curing time.
